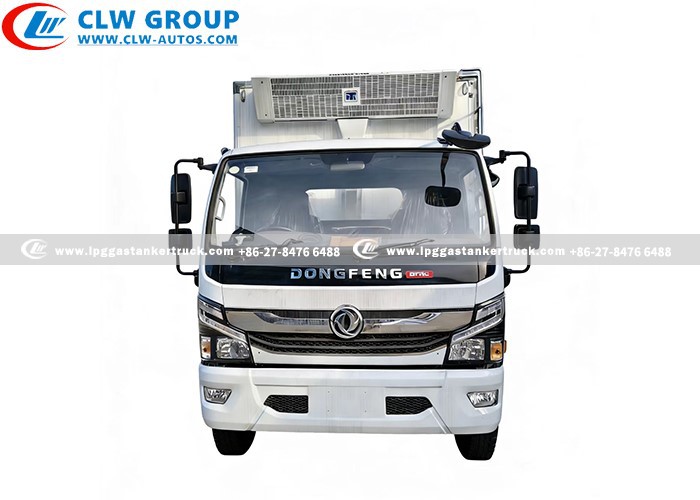

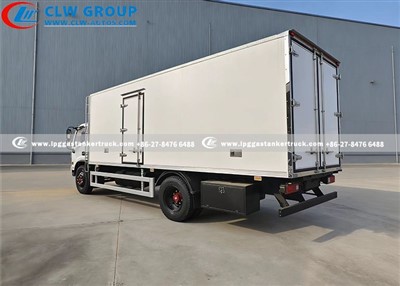

Dongfeng 10Tons Reefer Refrigerator Truck
Dongfeng DFAC 4X2 refrigerated trucks
6 meters cooler box
Temperature range -68°F~ +68°F
Wheel base 4200mm
Cummins B140 33-140HP engine
Thermo King sv-108 condenser unit
6-speed manual transmission gearbox
Box Volume 45 feet
CLW group deep-freeze truck
Cold Chain Transport for Perishables
Pharma logistics vehicle
Heavy-duty frozen transport truck
Middle East chiller truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of Dongfeng 10Tons Reefer Refrigerator Truck in China. If you're going to buy high quality Dongfeng 10Tons Reefer Refrigerator Truck, welcome to get more information from our factory. For price consultation, contact us.
DFAC 10-15Tons Frozen Transport Truck
The Dongfeng 140hp built for durability, hygiene & energy efficiency!
Products Description
DFAC Right-Hand Drive 4x2 Refrigerated Truck – Engineered for efficiency and reliability in temperature-controlled transport.
Performance & Drivetrain
Powered by a robust Cummins B140 33 engine delivering 140hp from a 3.9L displacement, this truck ensures dependable performance while meeting Euro III emission standards. The smooth-shifting 6-speed manual transmission (plus reverse) offers precise control and adaptability across various road conditions.
Chassis & Dimensions
Built on a 4,300mm wheelbase with a 4x2 configuration, the chassis provides stability and agility. With an overall compact size of 7,445×2,600×3,595 mm, the vehicle balances urban accessibility with cargo capacity, supported by a durable single-row right-hand drive cabin.
Cargo & Refrigeration
The spacious refrigerated box measures 5,995×2,320×3,330 mm, offering ample room for high-volume deliveries. Temperature consistency is maintained by the reliable Carrier SV-108 refrigeration unit, ensuring optimal conditions for perishable goods throughout transit.
Insulation & Build Quality
The cargo body is insulated with 8mm thick polyurethane foam, effectively minimizing thermal exchange. Enhanced with stainless steel door frames and locks for long-lasting durability and hygiene, the compartment is sealed by reinforced rubber gaskets that prevent external heat and moisture ingress.
Design & Usability
Designed with a focus on operational efficiency, the truck supports seamless loading and unloading, while the right-hand drive configuration suits specific regional requirements. Every detail is tailored to meet the demands of modern cold chain logistics.
Key Features:
Right-hand drive & single-row cabin / 4,300mm wheelbase, 4x2 chassis / Cargo dimensions: 5,995×2,320×3,330 mm / Cummins B140 33 engine (140hp, 3.9L, Euro III) / 6-speed manual transmission (+1 reverse) / Carrier SV-108 refrigeration unit / 8mm polyurethane foam insulation / Stainless steel door frames & locks / Airtight rubber door seals / Overall size: 7,445×2,600×3,595 mm
Key Vehicle Specifications:
Overall Dimensions: 7445×2600×3595 mm
Brand: Dongfeng / RHD
Cab: Single row cabin, 1driver seat + 2 passenger seat
Wheelbase: 4300 mm
Engine: Cummins B140 33
Horsepower: 140HP
Emission standard: Euro III
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 8195 kg
Curb weight: 4425 kg
Loading weight: 3275 kg
Suspension: Front/Rear Multi-leaf Spring
Tires: 8.25R16 14PR, 6 pcs with one spare
Fuel Tank: 145L Steel material
Related Operational Video
The Main Applications
Products Parameters
|
Van Box |
||
|
Box Dimension |
5995x2320x3330mm |
|
|
Box Material
|
Inner |
FRP |
|
Middle |
80mm thickness XPS insulation layer, |
|
|
Outer |
Aluminum alloy |
|
|
Flooring
|
Surface layer |
Aluminum alloy anti-slip pattern plate |
|
Inner layer |
Waterproof multi-layer board |
|
|
Refrigerator Unit
|
Brand/Modal |
Thermo king / SV-108 |
|
Type |
Non-Independent refrigeration unit |
|
|
Temperature |
-20℃~ +20℃ |
|
|
Side Door |
Left side, 1.2m width, equipped with sealing strips and door locks |
|
|
Rear Door |

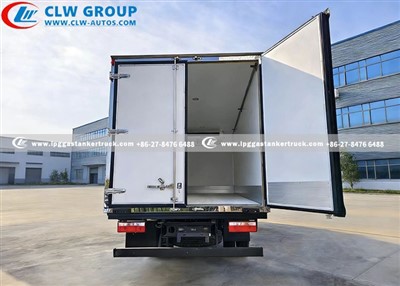

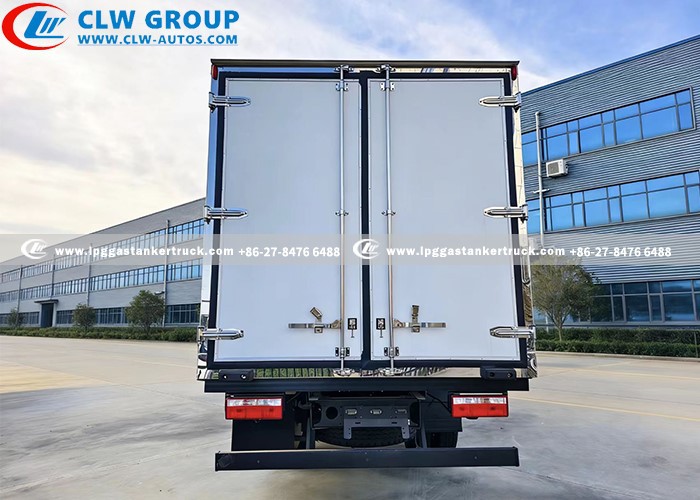

Full Size Double Opening Rear Door |
|
|
Marker Light |
2 sets white on front. & 2 sets Red on rear |
|
|
Celling Light |
2 sets of 24V LED |
|
|
Door frame & lock |
Stainless steel material, corrosion-resistant and does not rust. |
|
|
Drainage |
2 drainage hole |
|
|
Compartments |
Single / Dual Zone (optional) |
|
|
Optional equipment
|
1.Dual-use units for cooling and heating |
|
|
2.Dydraulic lifting tailgate |
||
|
3.Center flip partition |
||
|

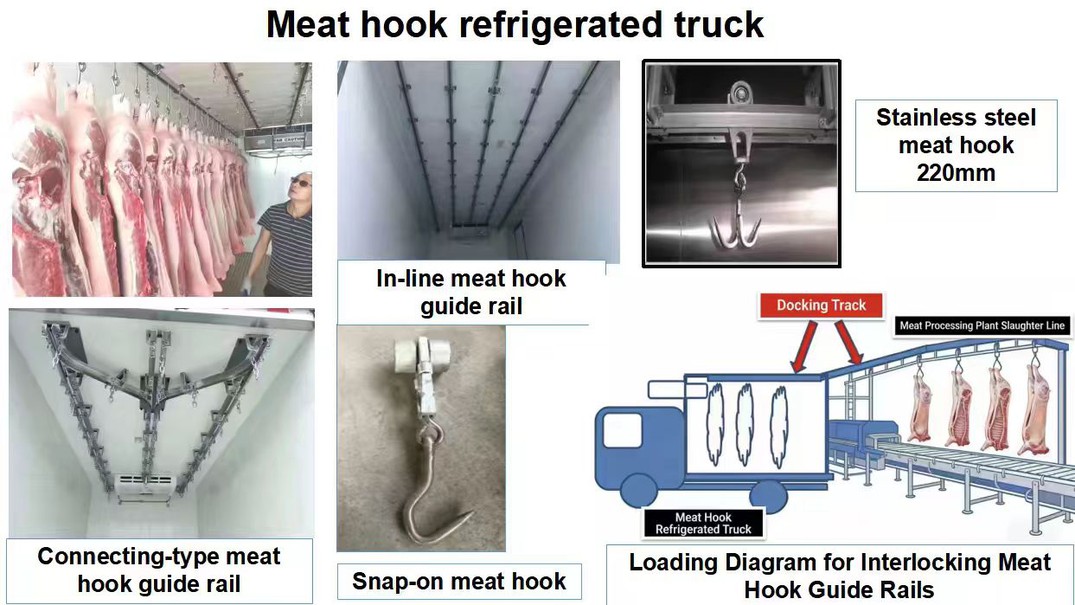

4.Roof guide rail with meat hooks |
||
|
5.Stainless steel fixed cargo strip |
||
|
6.Sidewall ventilation slot |
||
|
7.Rubber curtain |
||
Reference Picture
More details
This DFAC refrigerated truck is your trusted partner for flawless cold chain delivery!

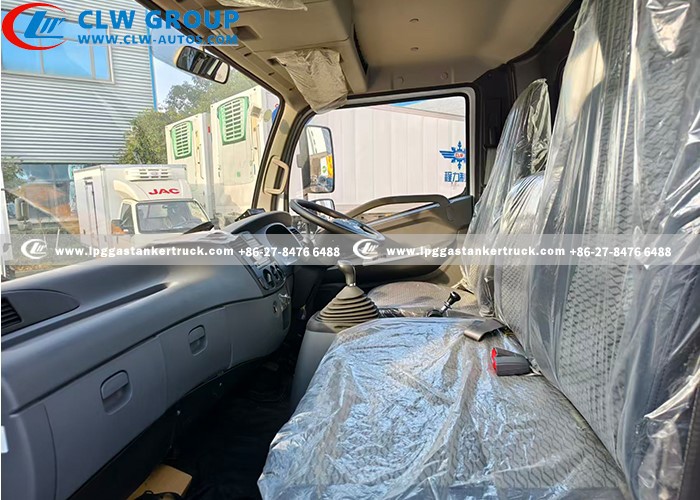

Cabin
Single row cabin , 1driver seat+2 passenger seat
Dongfeng DFAC / RHD chassis
10-15 ton load capacity,
Euro III emission standard
Engine: 140HP diesel, Cummins B140 33
Transmission: MLD 6-Speed Manual
Elctronic window, Mechanical driver's seat
Air conditioner, Central locking
Wheelbase: 4300 mm

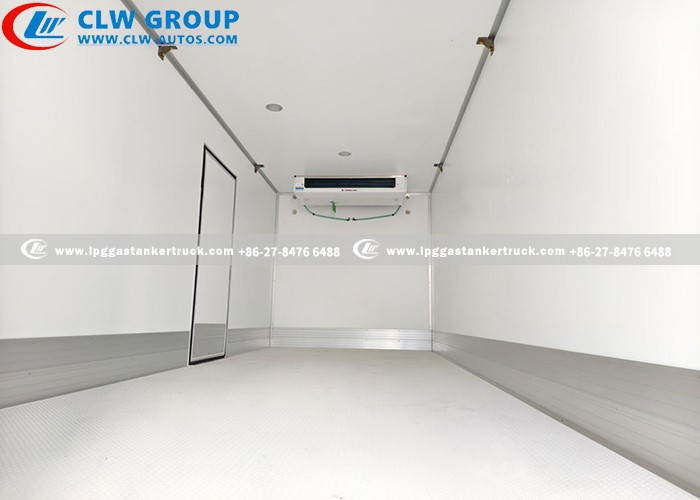

Van box
Cargo Box : 5995x2320x3330mm
Left side door,1.2m width
Aluminum alloy anti-slip pattern plate Flooring
Middle isPolyurethane foam – commonly used for insulation
Van frame is Stainless steel – for durability and hygiene
Sealed door frames – prevent heat infiltration

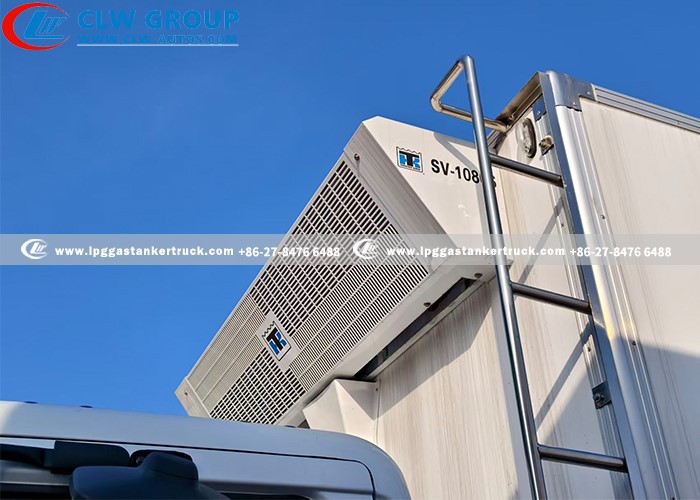

refrigerator unit
Refrigeration Unit: Thermo king / SV-108
Refrigerated transport serves numerous industries:
Pharmaceutical supply chains
Meat and seafood transportation
Ice cream industry and dairy
Perishable flowers and cosmetics

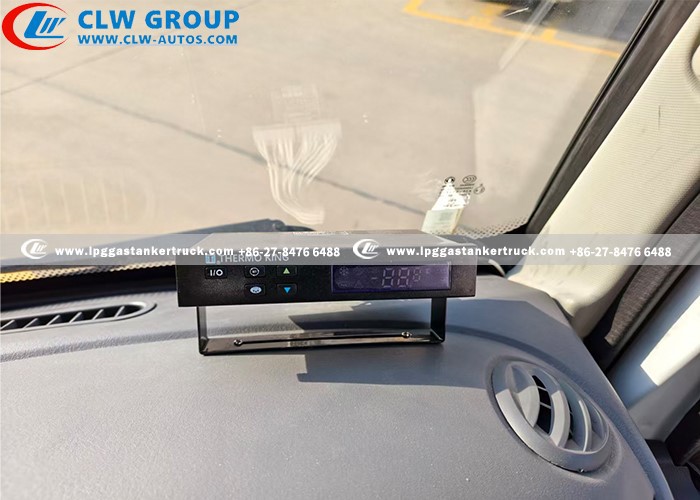

refrigerator control box
Refrigerator control mounted in cabin
Temperature sensors with real-time monitoring
Selectable temperature control: -5℃ / -10℃ / -15℃ / -20℃

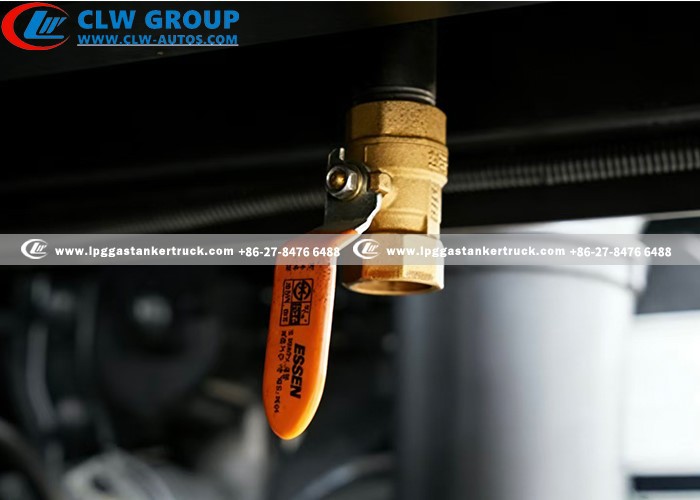

Drainage Hole
The condensate and sanitation drain valve on a reefer unit
Designed for the sanitary discharge of meltwater from the cargo
Located at the front or side lower panel

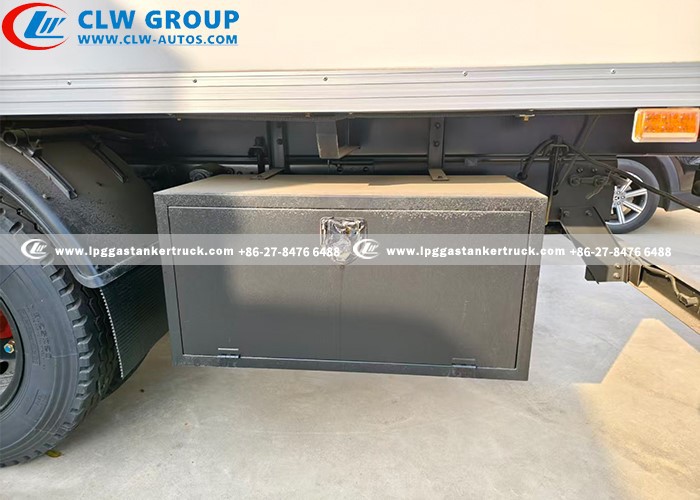

Tool cabinet
Tool box on the left rear side
Lockable, waterproof design with external access
Keeps essential tools (e.g., wheel chocks, gladhand seals)
Enables quick roadside maintenance
refrigeration unit checks without entering the cargo area
Applications of Refrigerated Transport
Packaging & shipping
There are various modes of transportation for you to choose from!
