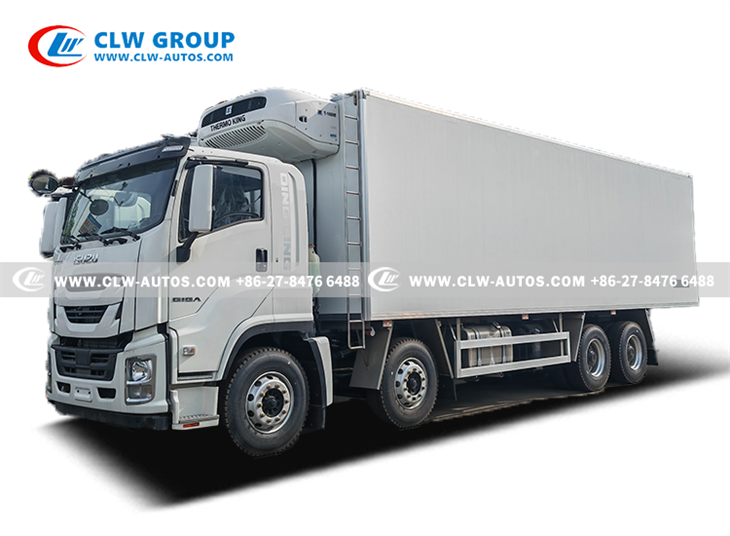

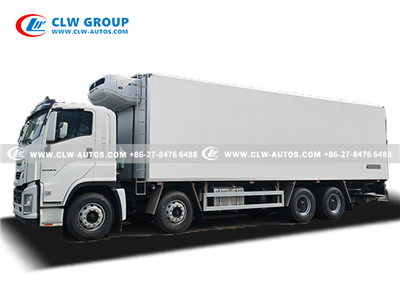

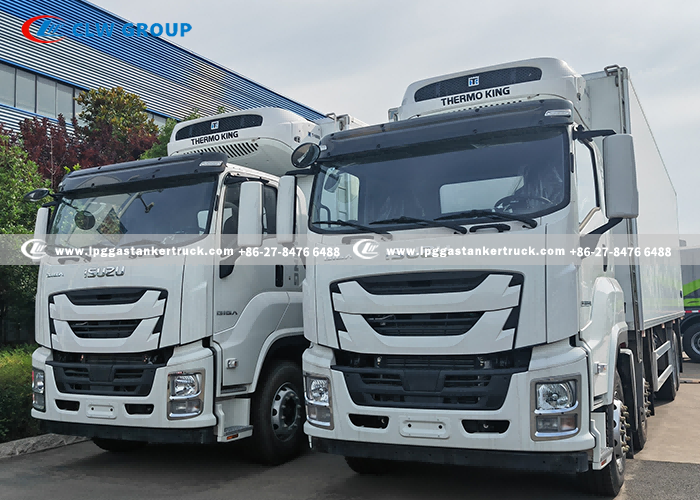

Philippines ISUZU GIGA 30Tons Refrigerated Truck
Drive Type: 8x4
Engine Power:350hp
Emission Standard: Euro 6
Van Capacity: 20 Ton/30 Ton
Refrigerator: Thermo King
With Hydraulic Folding Tail-plate
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of philippines isuzu giga 30tons refrigerated truck in China. If you're going to buy high quality philippines isuzu giga 30tons refrigerated truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU GIGA VC66 30 Tons 12 Gulong 8x4 Pinalamig Na Trak
May Hydraulic Folding Tail Plate
Products Description
The Philippines has high temperatures, high humidity, frequent typhoons, and complex road conditions throughout the year. This ISUZU 30-ton Refrigerated Truck is designed for the Philippine market. ISUZU GIGA chassis and equipped with ISUZU diesel engine and cold king independent unit. Therefore, the cooling performance and stability of this model are very high, and it has strong durability.
Use Advantages
ISUZU 6UZ1 / 6WG1 Engine
Suitable for long-distance heavy loads
The engine cooling system and refrigeration units are optimized for tropical climates.
Assemble Thermoking / Carrier Brands
Temperature -25℃ ~ +20℃
8x4 drive + high ground clearance, suitable for some unpaved roads in the Philippines.
Van box length around 10 meters
Isuzu diesel engine has a good reputation in the Southeast Asian market and is easy to maintain.
Isuzu has a well-established dealer network in the Philippines.
Reference Products Video
Products Parameters
|
ISUZU Refrigerator Truck |
|
|
Chassis Specification |
|
|
Chassis Model |
QL131 |
|
Driving Model |
8X4 |
|
Dimension |
12000 x 2600 x 3990 mm |
|
Cab |
|
|
Wheelbase |
1850+4575+1370 mm |
|
Gross vehicle Weight |
31000 kg |
|
Front Axle Loading Capacity |
75000 x 2 kg |
|
Rear Axle Loading Capacity |
13000 x 2 kg |
|
Axle Number |
4 |
|
Engine |
|
|
Model: 6UZ1 |
|
|
Horse power: 350 HP |
|
|
Displacement: 9839 ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
8 Forward & 1 Reverse |
|
|
Tire |
295/80R22.5 |
|
12pcs with 1 spare tire |
|
|
Fuel Tank Capacity |
400 L |
|
Refrigerated compartment body |
|
|
Van Body Size (L*W*H) |
9400 x 2440 x 2500 mm |
|
Van Body Material |
Extruded Polystyrene Sheet - XPS |
|
Polyurethane - PU |
|
|
Fiber Glass - FPR |
|
|
Van Body Thickness |
80mm / 100 mm |
|
Refrigerator |
Thermo King T-1080E |
|
Temperature |
-20 ~ 12 ℃ |
|
Optional Configuration |
Ventilation Slot |
|
Both Sides Fixing Slot |
|
|
Top-hook / Rail |
|
|
Hydraulic Tailgate - Carbon Steel / Aluminum Alloy |
|

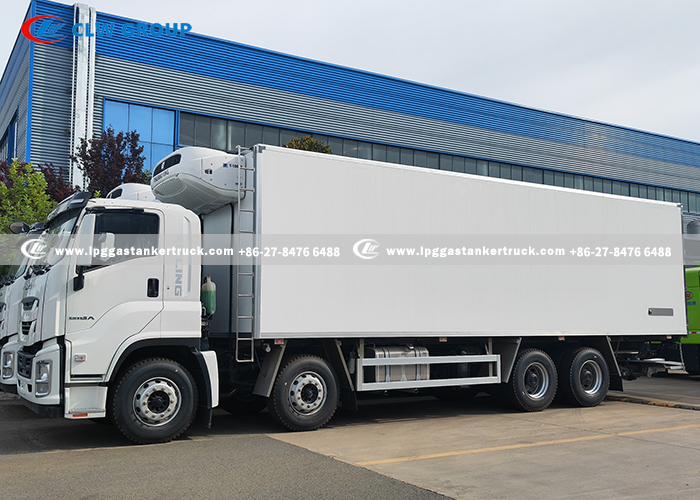

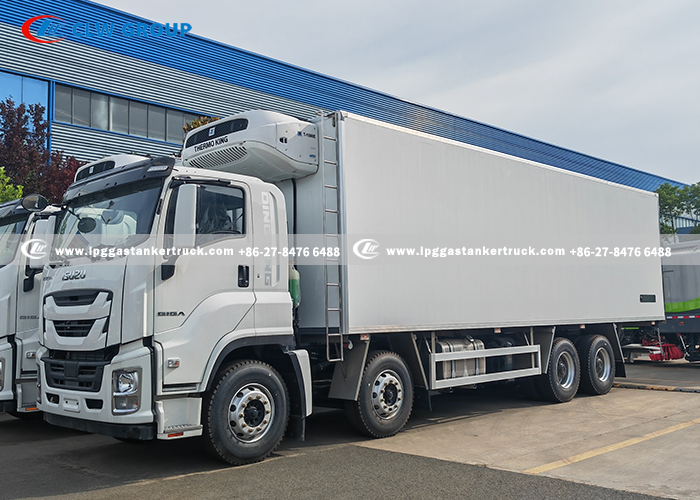

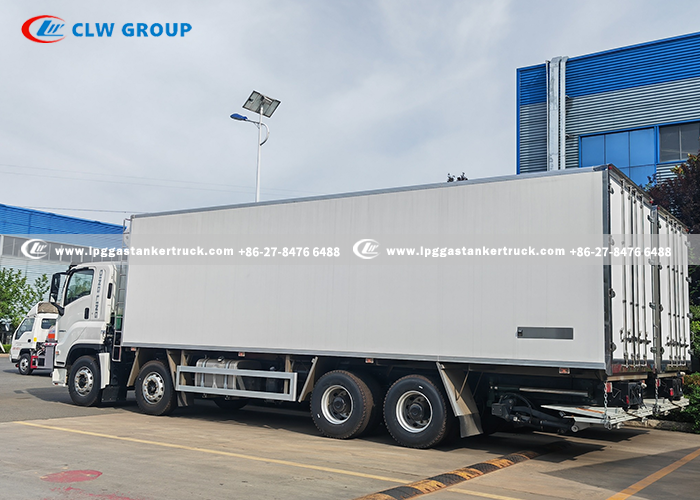

Products Pictures

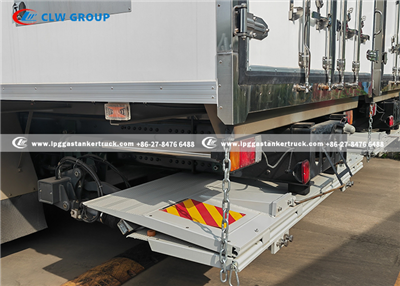

Refrigerated trucks equipped with folding hydraulic taillifts (also known as hydraulic lifting taillifts or loading and unloading taillifts) can significantly improve loading and unloading efficiency, reduce labor costs, and ensure the temperature stability of goods transported in the cold chain.
The folding hydraulic tail plate is the "rigid configuration" for efficient loading and unloading of refrigerated trucks, especially suitable for cold chain transportation that is sensitive to aging and temperature. It is widely used in medicine, high-end food and other fields, and can significantly reduce the cargo damage rate and operating costs.
1. Mechanized loading and unloading
- Instead of traditional manual handling, the goods are automatically lifted and lowered through the hydraulic system to realize the rapid loading and unloading of palletized goods or heavy goods.
2. Temperature control guarantee
- Reduce the opening time and avoid temperature fluctuations in the refrigerated compartment (especially for sensitive goods such as frozen food and pharmaceuticals).
3. Adapt to a variety of scenarios
- The foldable design saves space and is suitable for narrow spaces or scenarios where the tailgate needs to be opened and closed frequently.

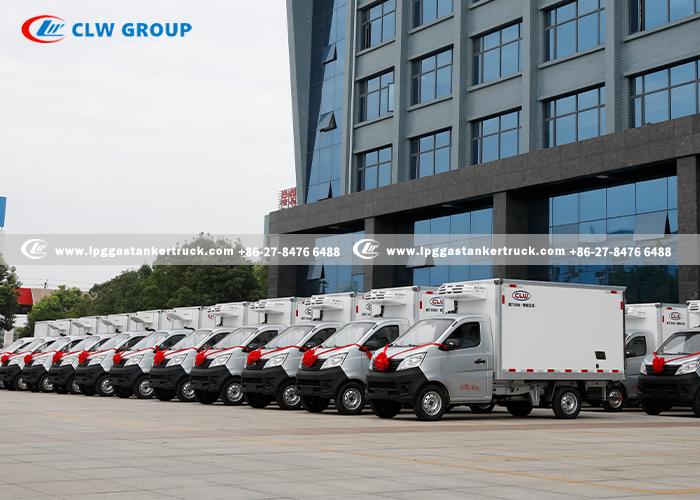

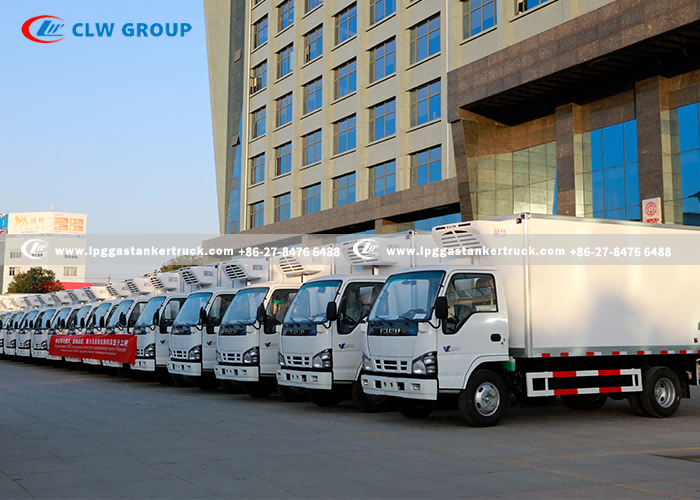

Batch Delivery
