Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 45000l fuel tank trailer with liftable axle in China. If you're going to buy high quality 4 axle 45000l fuel tank trailer with liftable axle, welcome to get more information from our factory. For price consultation, contact us.
The detailed specification of 4 axle fuel/oil tank trailer with liftable axle:
Main Dimensions | |
Overall Length | Approx.11800mm |
Overall Width | 2500mm |
Overall Height | Approx.3650mm |
Tare Weight | Approximate 10900KGS |
Loading Capacity | 45m3 |
Tank Body | |
Shape | Mono block Cylinder |
Total Volume（m3） | 45CBM |
Tanker Body Material | 5mm Carbon Steel Q235 |
End plate | 6mm Carbon Steel Q235 |
Lifting Ladder | Including Top walkway and backside steel material |
Manhole cover | 4 sets Aluminum alloy API manhole cover , ∮500mm , with breather valves and anti-Spillage valves |
Bottom Valve | 4 sets DN100 Pneumatic Bottom Valve,Pneumatic control for each compartment |
Discharging valve | 4 sets DN100mm API discharging valves |
Discharging Pipe | 4”rubber hose |
Chassis | |
Main Beams | Special design I beam, Steel Saddle support 8 No’s each side. |
Axle | 4 axles, Front axle is liftable |
BPW brand 13 Ton | |
Landing Gear | JOST brand |
King Pin | JOST Brand 2’’ or 3.5” bolt-in king pin;interchangeable. |
Suspension | heavy duty leaf spring type, Front axle with BPW brand air bag |
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
Tire | 385/65R22.5 tubeless Single Tri-angle Brand tire with one spare tire, 9 pieces |
TOTAL standard Lighting system | 1. Electrical wires: Placed in leak tight sheathes,neither bare wire nor split sheathes 2. Back lights:Inserted inside rear bumpers and protected. 3. Stop light:Additional LED stop lighting. 4. Lighting repeaters:Turn,reverse and stop lights must be repeated on top left and right sides. 5. Indicator: In the rear side. |
Other TOTAL Design and parts | 1. Dust Board to Cover the Tires 2. Rear Ladder to access the top of the tanker. Well secured,with angle,not vertical, linked to mechanism for automatic handrail lifting. 3. Walkway with fold-able handrail. (air operated) 4. Tool Box 5. Double Spare Tire Carrier (Winch Type). 6. Anti-skid design on the whole available surface 7. 2 No’s of fire extinguisher holder. With 2 No’s 9KG extinguisher. 8. Drip collecting system(slope-by directing liquid to a on/off tap) 9. Earthing plots(Qty 4, front left/right+back left/right,in brass) 10. A yellow, reflective safety line 5cm wide shall be placed along both side of tank shell 11. With ABS System 12. Epoxy coated inside Tanker 13. Aluminum Alloy Pipeline suitable for transport JET A1 |

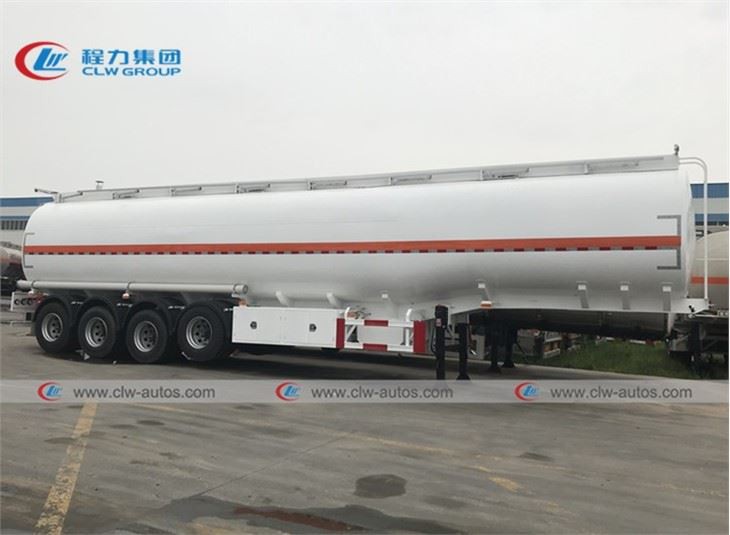

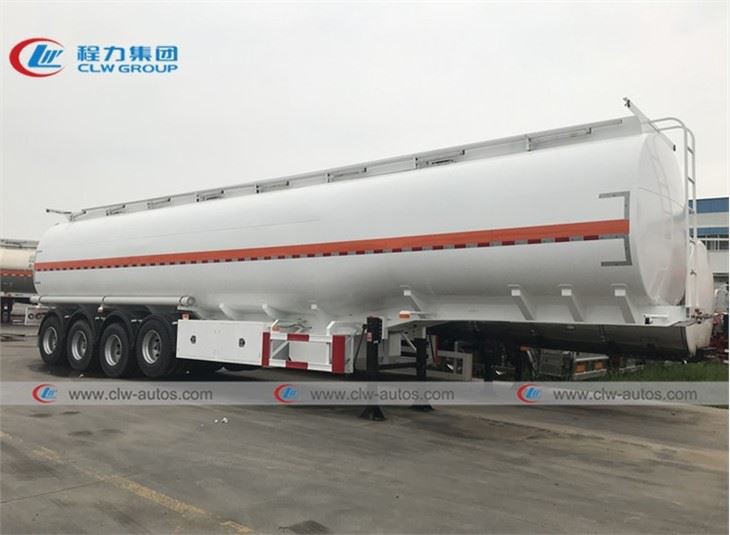

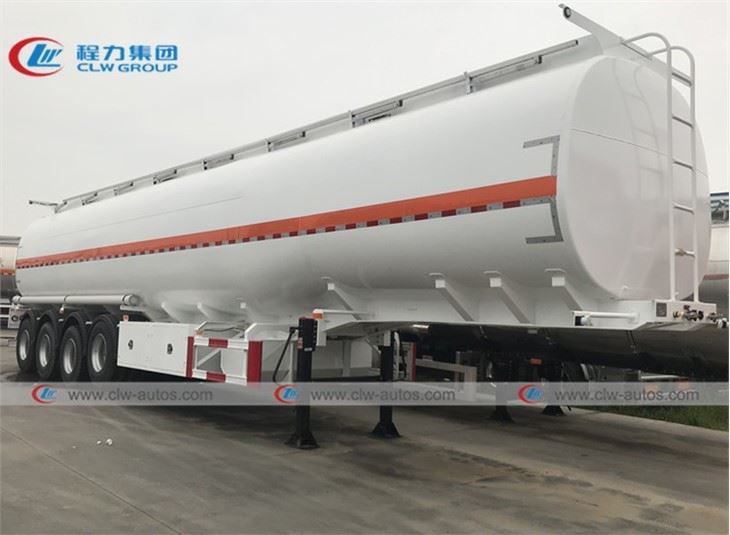

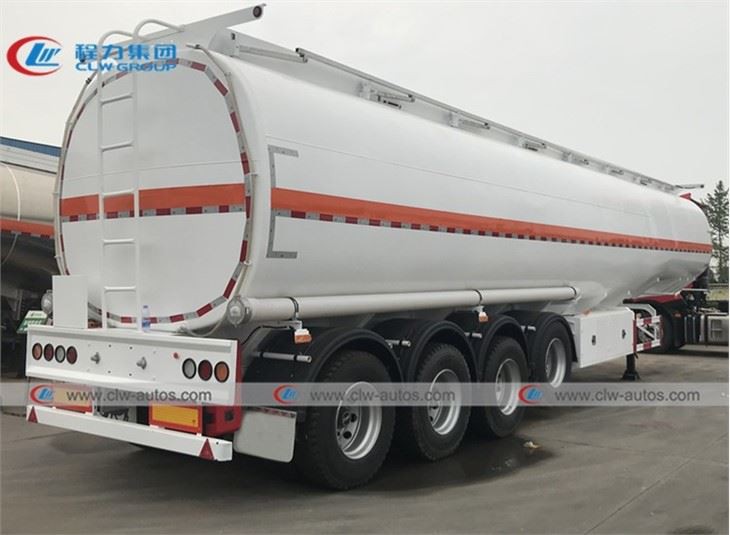

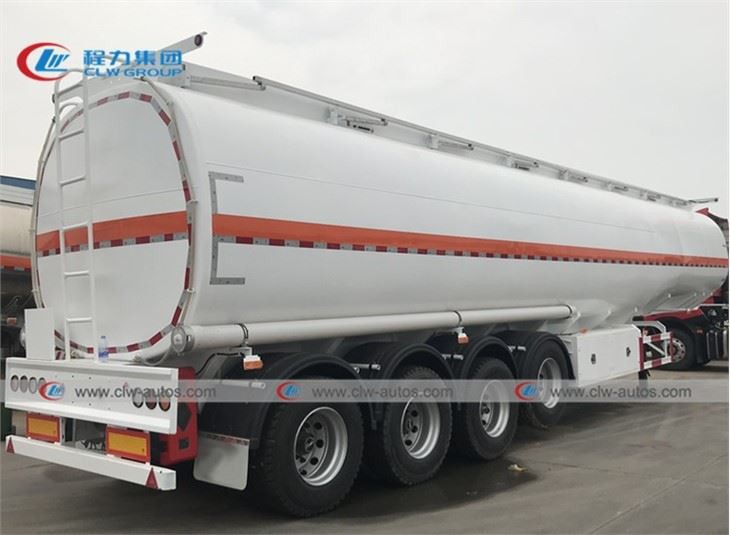

The more pictures of 4 axles fuel tank semi trailer, oil Transport tank railer.
1. The tank body is made of 4mm or 6mm high-quality carbon steel according to national standards. The shape of the tank body is divided into oval or square round tanks, which can contain 1-4 kinds of oil products. Can also produce heating and heat preservation series tanks.
2, alcohol, chemical tanker made of high quality stainless steel at home and abroad, the thickness of 4 mm to 5 mm ..
3, all kinds of hydrochloric acid, sulfuric acid, lye tanker made of plastic, thickness of 12 mm to 22 mm ..
4. A plurality of anti-wave baffles are arranged in the tank body. High pressure gas leak test is adopted to ensure that the tank body has high strength, stable center of gravity and safe and stable vehicle transportation.
