Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 42000liters aluminum alloy oil tanker semi trailer in China. If you're going to buy high quality 42000liters aluminum alloy oil tanker semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1--Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer, oil tanker trailer, oil semitrailer, semi tanker trailer, stainless steel tanker trailer, carbon steel fuel trailer is used to deliver/transport/haulage oil, edible oil, palm oil, maripa oil, gasoline, diesel, kerosene and so on.
2--Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL, Vietnam, Tanzania and Zambia.
3--Oil Tanker Trailers is optional for air bag suspension, front axle lifting.
4--Nice shape and rational structure.
5--High class running system and tank material.
6--High-intensity kingpin and landing legs.
7--Top gemany brand BPW axle or Chinese brand FUWA axles.
8--Durable and long term service life.
Product Specification
| 30,000L-50,000L 3-axle Aluminum Alloy Oil Tanker Semi-Trailer | ||
| Feature: | Diesel, Gasoline, Chemical Liquid | |
| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12000mm *2500mm*3800mm (42,000L) 13000mm*2500mm*3750mm(50,000L) | |
| Material: | Aluminum Alloy | |
| Compartment: | 3-8 | |
| Capacity(kgs): | 30,000L-50,000L | |
| Tare weight(kgs): | 6,000-7,800kgs | |
| Kingpin | JOST brand bolt-in/welded type 3.5"/2" | |
| Landing gear | JOST brand two-speed manual operation | |
| Tire size | 11R22.5,12R22.5,315/80R22.5, | 385/65R22.5, 425/65r22.5(Single tire) |
| Rim size | 8.25*22.5, 9.00*22.5, | 11.75*22.5, 13*22.5 |
| Axle | Original BPW-12T/ FUWA-13T | |
| Leaf spring | leaf spring / Airbag suspension | |
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | |
| Manhole: | Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; | |
| Discharge Valve | Aluminum alloy discharge valve with cover | |
| Bottom Valve | Pneumatic control DN80 aluminum alloy bottom valves | |
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch | |
| Discharge Hose | 2 units 3" X6M factory PVC hose with quick coupling on both ends | |
| Vapor Recovery & Overfill system | Optional | |
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | |
| We can build the trailers according to customer's design and requirement | ||

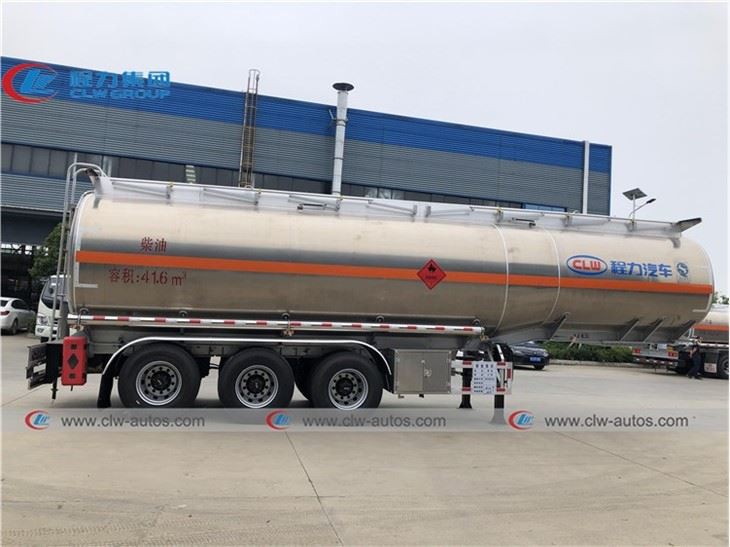

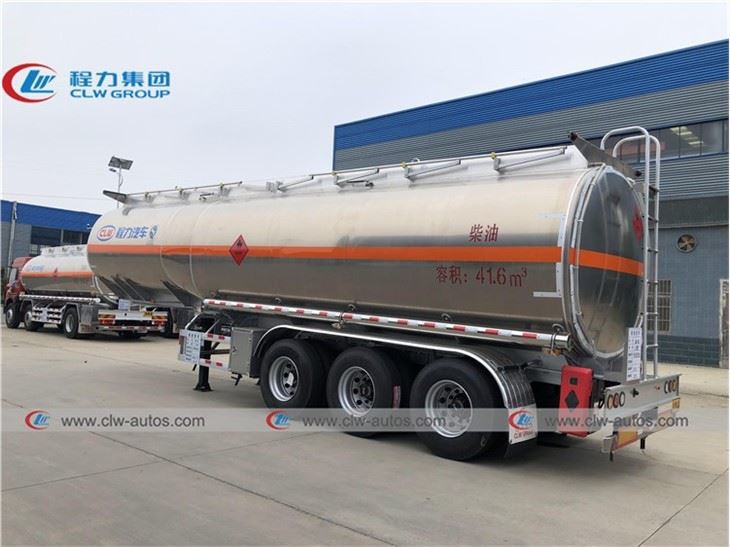

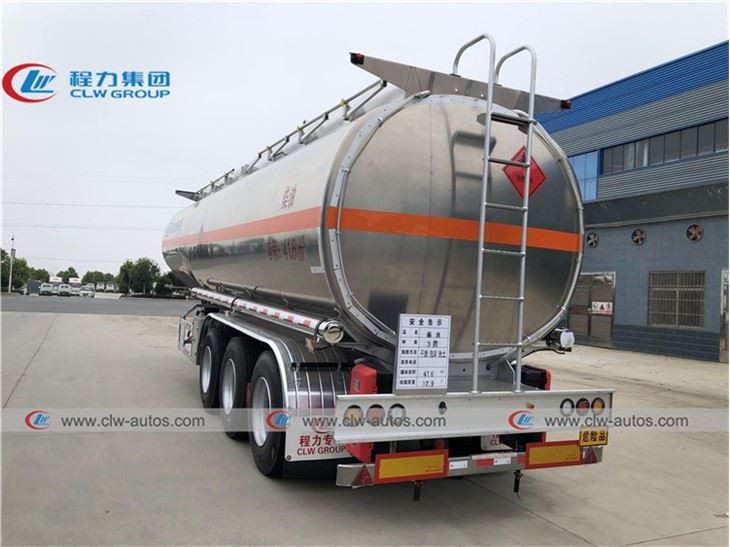

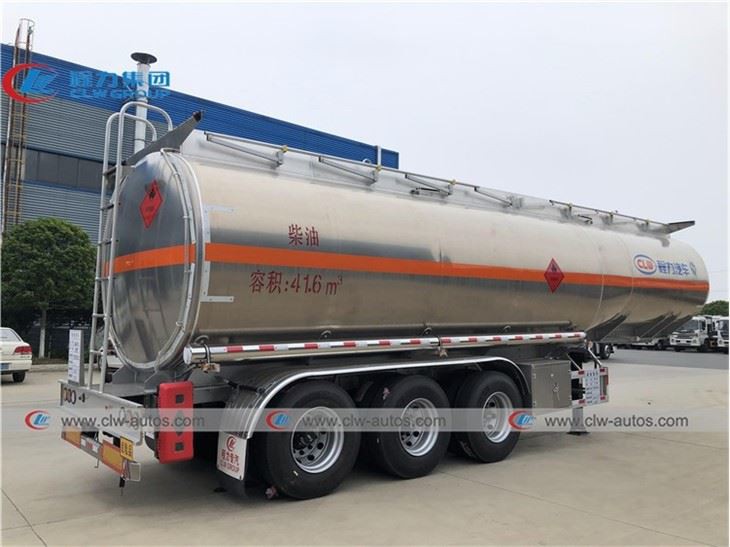

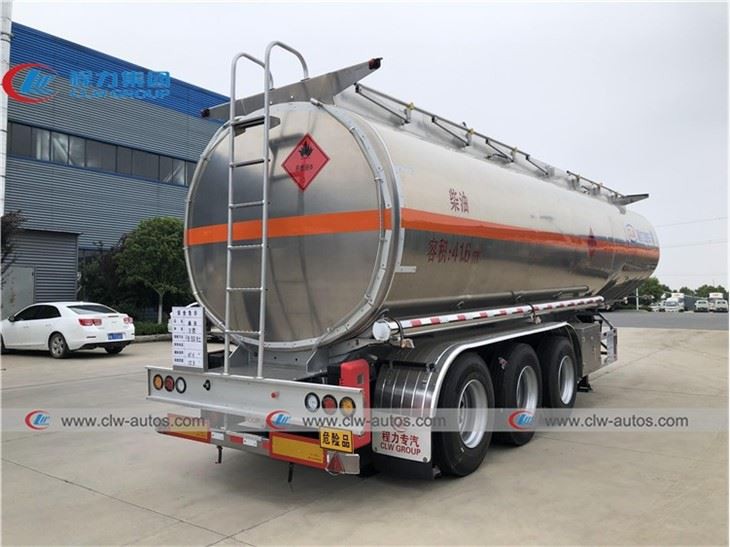

Product pictures
