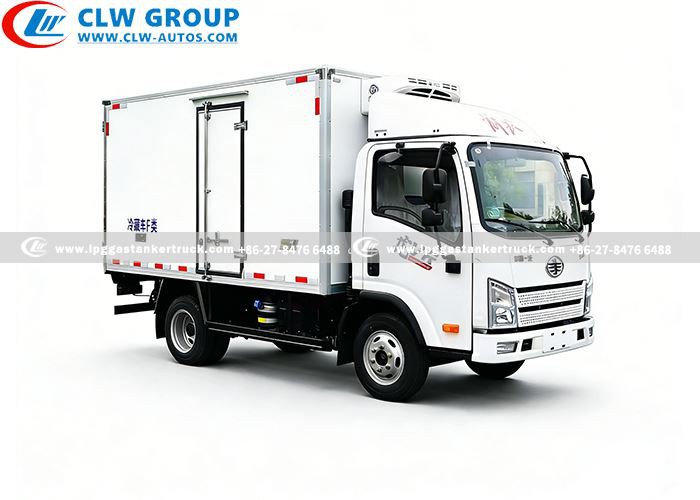

FAW 1-2Tons Freezer Refrigerated Truck

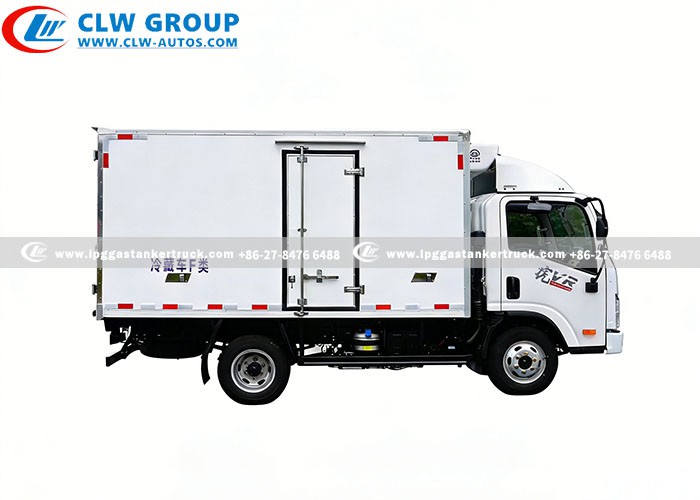

FAW 130HP Cold Chain Truck
4x2 Reefer Refrigerated Truck
-15℃~ +25℃ Seafood delivery truck
FAW Xichai CA4DB1A13E6 engine
5-speed manual transmission gearbox

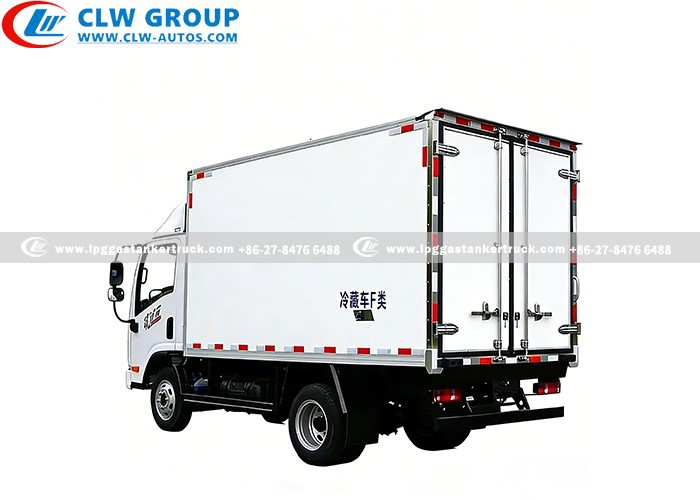

Pharma logistics vehicle
Cooling van truck
Seafood delivery truck
Temperature controlled truck
Medical waste transport vehicle
Cooling van truck

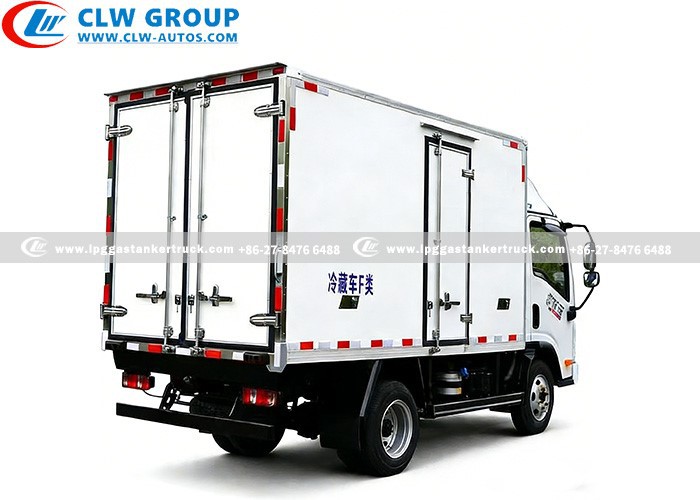

Frozen transport truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of FAW 1-2Tons Freezer Refrigerated Truck in China. If you're going to buy high quality FAW 1-2Tons Freezer Refrigerated Truck, welcome to get more information from our factory. For price consultation, contact us.
FAW 12m³ Reefer Cold Chain Delivery Truck
Meet the FAW Tiger VR Cold Chain Master: Your Versatile & Reliable Refrigeration Partner !
Products Description
This FAW Tiger VR is far more than just a truck. It is a comprehensive cold chain truck solution, built to ensure the integrity of your temperature-sensitive cargo from first to last mile.
Unmatched Versatility for Diverse Needs
Whether you are in food distribution, pharmaceuticals, or specialized transport, this single vehicle platform is designed to adapt. It expertly serves as a dairy truck for fresh products, a capable frozen transport truck for ice cream and frozen goods, and a secure seafood delivery truck. Its reliable refrigeration truck system makes it equally vital as a pharma logistics vehicle for sensitive medicines and a compliant medical waste transport vehicle, fulfilling its role as a true temperature controlled truck for critical sectors.
Core Strength & Intelligent Design
Powered by the efficient Euro 6 compliant CA4DB1A13E6 engine delivering 130HP, paired with a WLY 5-speed transmission and a stable 2800mm wheelbase, it 's a light reefer truck. The enclosed van truck body, with internal dimensions of 3600*1800*1800mm, offers a secure and insulated cargo space. Driver-focused features like the multi-function steering wheel, air conditioning, power windows, and central locking ensure comfort and efficiency-essential for long hauls in refrigerated cargo transport.
Precision-Controlled Refrigeration Performance
This is where the cooling van truck truly excels. It is the van truck equipped with a refrigerator device with which the inside temperature can be optionally set to -5°, -10°, or -15°. This flexible range allows it to perform seamlessly as a freezer truck for deep-frozen products, a refrigerated box truck for chilled goods, and much more. It is the definitive reefer van truck and refrigerated van truck, delivering the precise climate control needed to protect your valuable cargo.
Key Features : 95.2kW / 130 HP Engine | Adjustable -5°C / -10°C / -15°C | 5495*1960*2900mm overall dimensions | 600*1800*1800mm insulated compartment | WLY 5-speed manual transmission | 2800mm wheelbase with 6.50R16 steel-belted tires | ABS braking system with spring brake | Multi-function steering wheel, A/C, power windows, central locking
Key Vehicle Specifications:

Overall Dimensions: 5495×1960×2900 mm
Brand: FAW Tiger VR / LHD
Cab: Single row cabin, 1driver's seat +2 passenger seat
Wheelbase: 2800 mm
Engine: CA4DB1A13E6
Horsepower: 130HP
Emission standard: Euro VI
Gearbox: 5 Forwards and 1 reverse
Gross Vehicle Weight: 4485 kg
Curb weight: 3190 kg
Suspension: Front/Rear Multi-leaf Spring
Tires: 6.50R16, 6 pcs with one spare
Fuel Tank: 80L Steel material
Related Operational Video
The Main Applications




Products Parameters
|
Van Box |
||
|
Box Dimension |
3600x1800x1800mm |
|
|
Box Material |
Inner |
FRP |
|
|
Middle |
80mm thickness XPS insulation layer, |
|
|
Outer |
FRP |
|
Flooring |
Surface layer |
Aluminum alloy Anti-slip pattern plate |
|
|
Inner layer |
Waterproof multi-layer board |
|
Refrigerator Unit |
Brand/Modal |
Hanxue / L-ZD350 |
|
|
Type |
Non-independent refrigeration unit |
|
|
Temperature |
-15℃~ +25℃ |
|
Side Door |
Right side, 1.2m width, equipped with sealing strips and door locks |
|
|
Rear Door |
Full Size Double Opening Rear Door |
|
|
Marker Light |
2 sets white on front. & 2 sets Red on rear |
|
|
Celling Light |
2 sets of 24V LED |
|
|
Door frame & lock |
Stainless steel material, corrosion-resistant and does not rust. |
|
|
Optional equipment |
1.Dual-use units for cooling and heating |
|
|
|
2.Hydraulic lifting tailgate |
|
|
|
3.Center flip partition |
|
|
|
4.Roof guide rail with meat hooks |
|
|
|
5.Stainless steel fixed cargo strip |
|
|
|
6.Sidewall ventilation slot |
|
|
|
7.Rubber curtain |
|
|
|
8.Flooring ventilation slot |
|
Reference Picture
More details
This compact cold chain truck delivers strong performance for efficient urban logistics and multi-stop deliveries.!

Cabin
1driver seat +2 passenger seat
FAW Tiger VR / LHD chassis
1-2 ton load capacity,
12CBM loading volume
Euro 6 emission standard
Engine: 130HP diesel
Transmission: MLD 5-Speed Manual
Wheelbase: 2800 mm

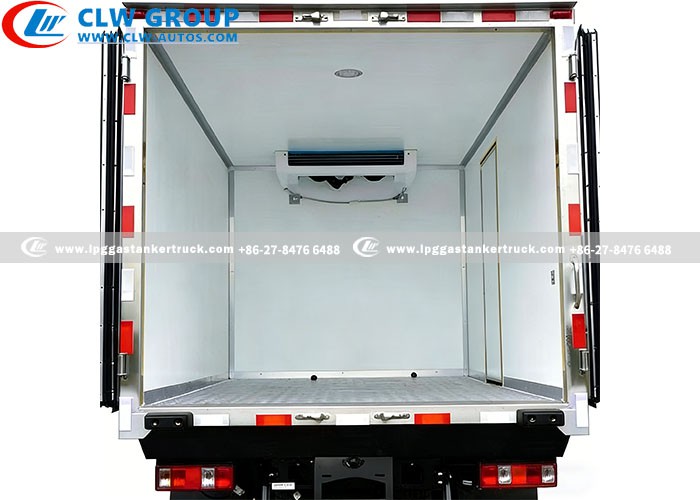

Cooling box
Refrigeration Unit : Adjustable temperature -5°C / -10°C / -15°C
Cargo Box : 3600*1800*1800mm insulated compartment
Optional ventilation slots & rubber curtains
Anti-slip patterned floor


side door
Right side,1.2m width door
Equipped with sealing strips and door locks
Marker Light: 2 sets white on front & 2 sets Red on rear

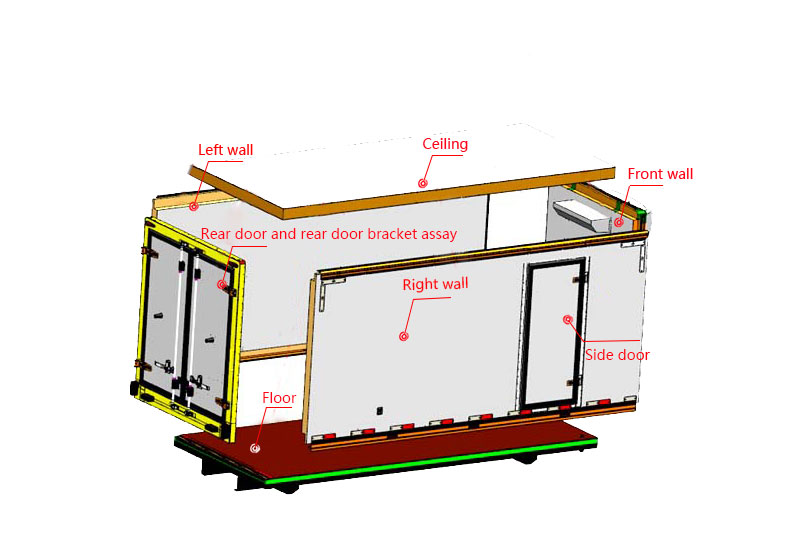

Insulation box body
The outer and inner layers are made of FRP
Middle is 8mm Polyurethane Foam
Anti-corrosion and rust prevention, and heat-insulating

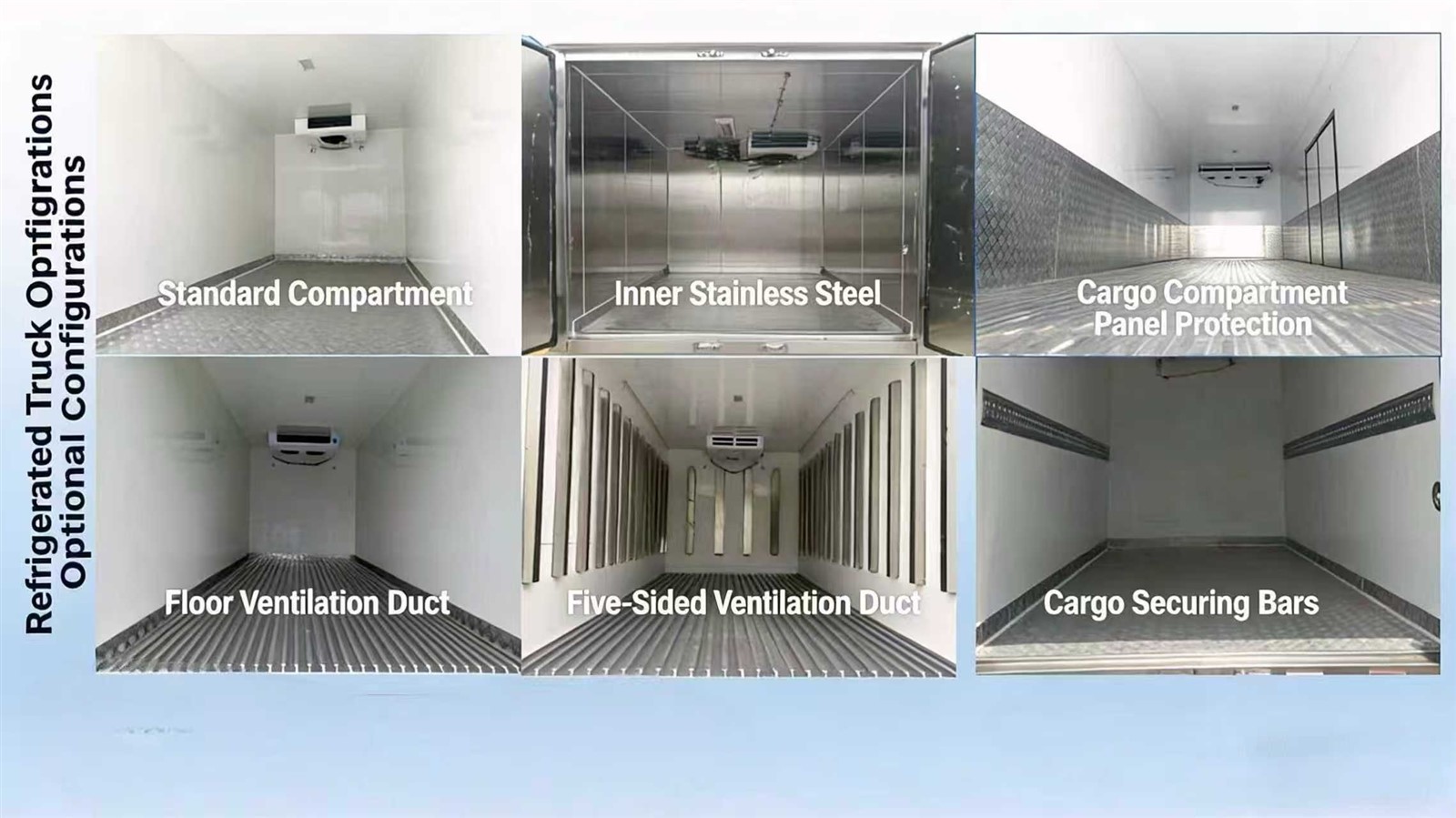

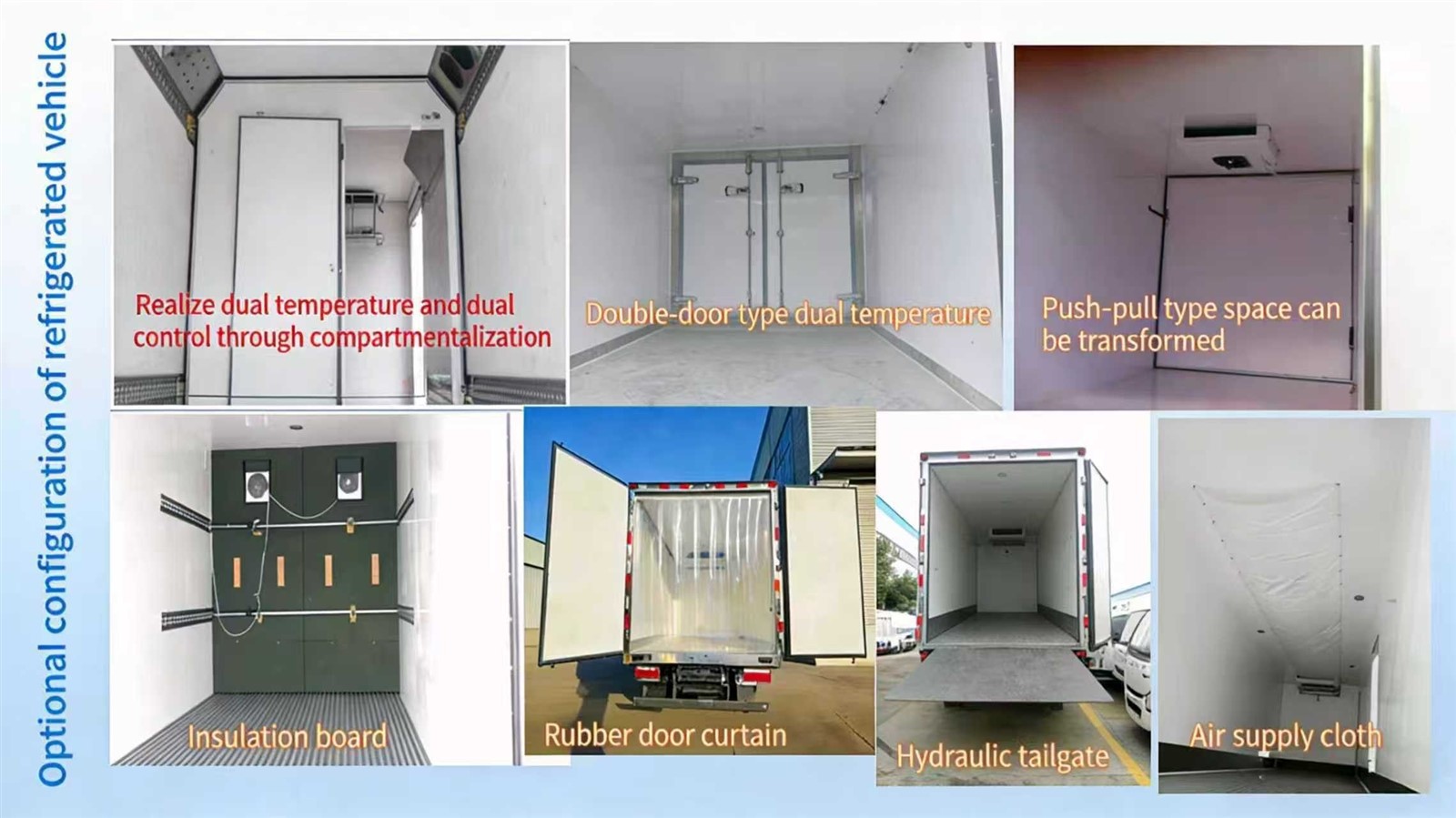

Other Optional Configurations For Refrigerated Truck
