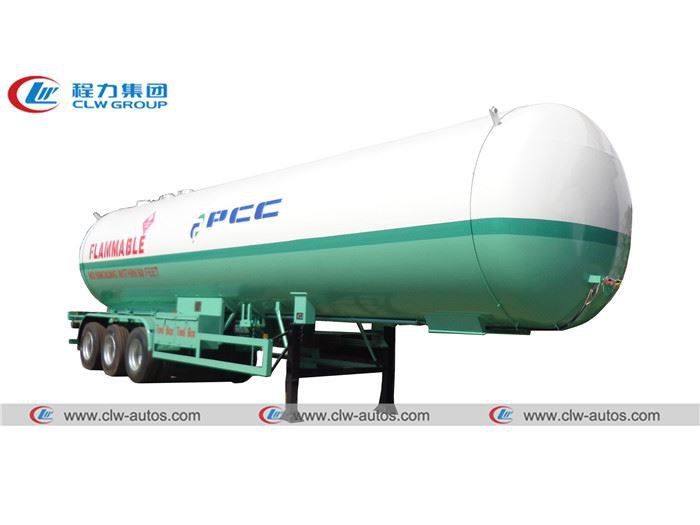

30tons LPG Gas Tank Trailer
Tank size:30tons;
Level Gauge:Manual type
Axle:FUWA,BPW for option
Tire:12R22.5
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 30tons lpg gas tank trailer in China. If you're going to buy high quality 30tons lpg gas tank trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Features
a. Famous brand safety accessories are offered such as REGO, Rochester, Blackmer, Corken
B. high strength working mechanism with multiple models
Technical Specification
Design Pressure: 16.1 Bar
Design Temperature: -20 Deg C to +50 Deg C
Liquid Phase Connection
Connection to tank: 3" flange.
3" flanged internal valve with excess flow and pneumatic actuator
Ball valve 3", fire safe
Set WECO 2"
Gas Phase Connection
Connection to tank: 2" threaded
2" threaded internal valve with excess flow and pneumatic actuator
Ball valve 2", fire safe
Set WECO 2"

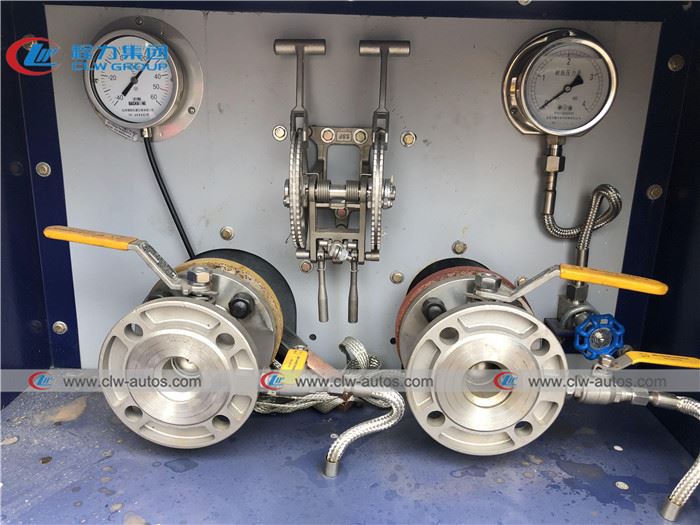

Filling & Discharge System
Control method: mechanical
Liquid discharge: double liquid discharge system, both sides of the trailer
Valve box: doubel valve boxes, both sides

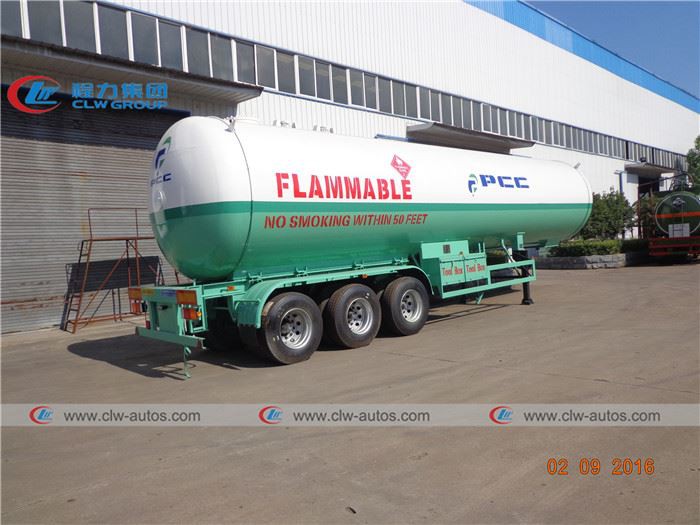

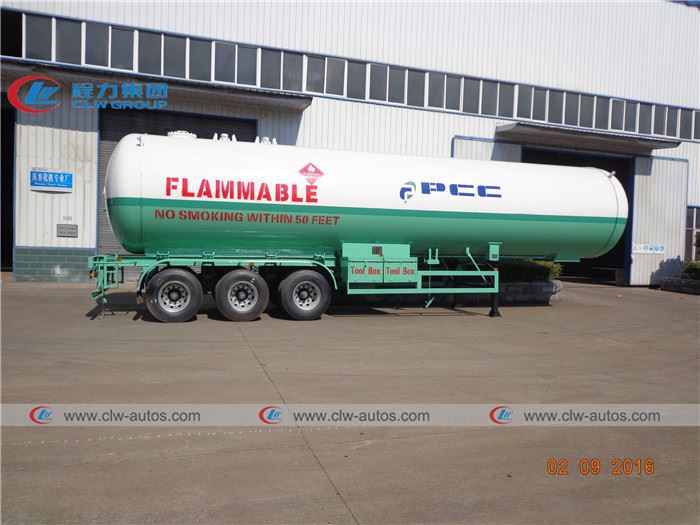

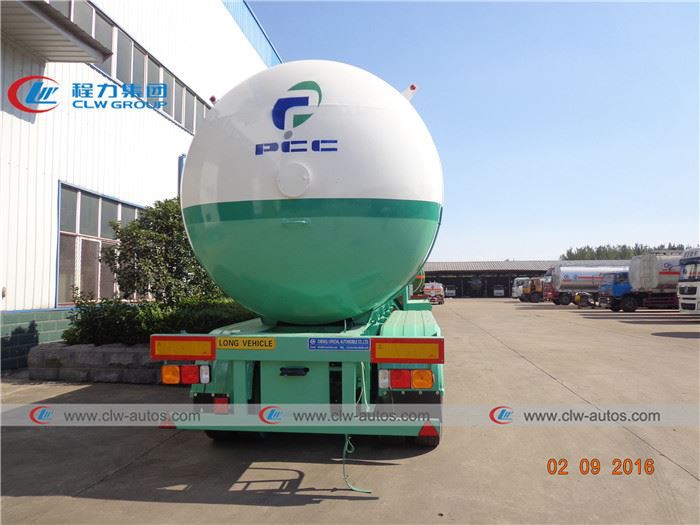

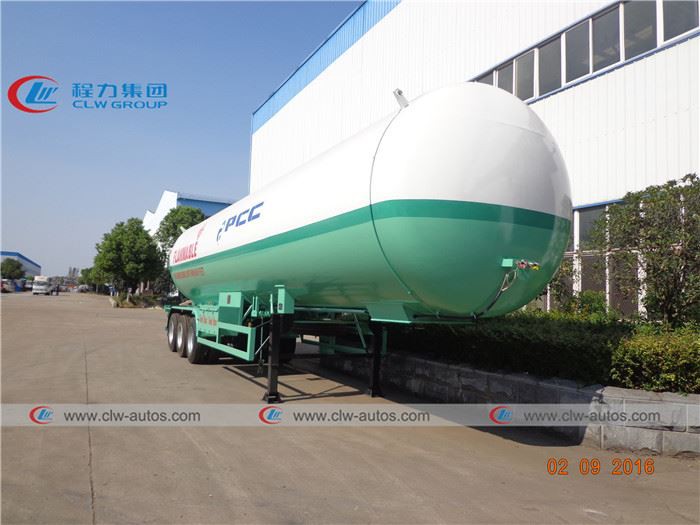

Reference picture
Specification
30tons LPG Gas Tank Trailer Information | ||
Volume of Tank (cbm) | 59.6 | |
Overall Dimensions(L*W*H)(mm) | 13000*2500*3990 | |
Tank Dimensions(Inner Diameter*thickness*Length) | 2478*11*12791 | |
Estimated Tare Weight (kg) | 14997 | |
Payload(kg) | 25000 | |
Total Weight(kg) | 4000 | |
Wheelbase(mm) | 7230+1310+1310 | |
Shell of Tanker | ||
Products | Liquefied Petroleum Gas (propane) | |
Fluid Property | Flammable | |
Design Temperature(ºC) | 50ºC | |
Design Pressure(MPa) | 1.61 | |
Corrosion Allowance(mm) | 1 | |
Weld Joint Factor | 1 | |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, | |
End plate:Q345R,12mm | ||
Main beam:16Mn | ||
Detection | ||
Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC | |
Flaw Detection | 100% Flaw detection | |
Test Pressure(MPa) | 1.61 | |
Hydraulic Test(MPa) | 2.1 | |
Magnaflux Inspection | Aim at welding place that flaw detection can not cover | |
Manhole (As Customer's Requirement) | ||
Quantity | 1;on top | |
Size | DN450 | |
Safety Valve(As Customer's Requirement) | ||
Quantity | 2 | |
Location | On the top of tanker | |
Size | DN80 | |
Level Gauge | ||
Type | Manuel Switch type | |
Location | At the rear of the end dish | |
Running System | ||
Axles | 3*13T BPW | |
Tire | 12R22.5 Tubeless tire ,8 with one spare tire | |
Landing leg | JOST | |
King Pin | #50 or #90 | |
Control System | ||
Emergency Cut-off Valves | 2 or 3 | |
Ball Valve | 4 or 6 | |
Liquid Gauge | 1 | |
Pressure Indicating Thermometer | 1 | |
Pressure Gage | 1 | |
