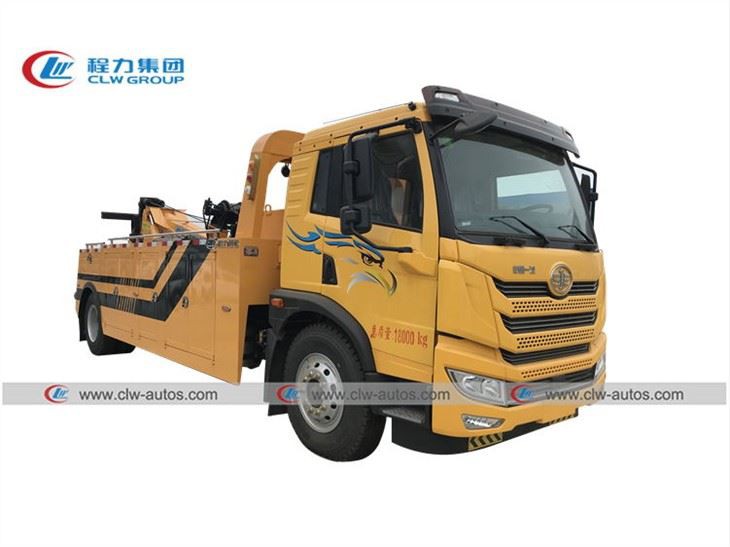

FAW 15Ton Under Lift Wrecker Tow Truck
15Ton Under lift k
Crane with Towing Bar
Intergrated Tow Truck
FAW Long V Model
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 15ton under lift wrecker tow truck in China. If you're going to buy high quality faw 15ton under lift wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.
Faw Integrated 10Ton Wrecker Tow Truck
Ø 220HP Xichai Engine Euro 2
Ø 5800 wheelbase,
Ø FAST 8-speed gearbox,
Ø 5T front axle, 10T rear axle,
Ø 10.00-20 Radius tire,
Ø ABS, with air conditioning.
Upper Body Specification:
Ø Hexagonal two-section boom,
Ø Three-section support arm,
Ø Split carriages,
Ø Double-sided linkage operating device,
Ø 3 rear working lights, 3 rear indicator lights,
Ø 2unit 80KN hydraulic reels (45m steel wire rope),
Ø 1 set of U-shaped tire holding device, 4 pairs of brackets, 1 pair of steel plate ear brackets, 1 pair of trailer seat, 1 set of auxiliary brake air pipe assembly, and the rest are standard.
FAW Long V tow crane combined wrecker truck Specification:
Ø Maximum towing mass is 16T,
Ø Maximum lifting mass is 4.6T,
Ø Full extension maximum lifting mass is 3.5T,
Ø Maximum lifting mass is 12T,
Ø Farthest lifting mass is 5.75T,
Ø Maximum lifting height is 4830mm.
Accessories:
1. Warning Lights
2. Loudspeaker
3. Rear working Lights
4. Hand Washing Box
5. 4 Different Fork
6. Spare Tires:
Inquiry Line:
Contact: Mr Eric Cen
Whatsapp: +86 186 0715 8551
Truck Photos----------------------------------------------------------------------
FAW Long V Luxurious Cabin, with Air Seat, Central Lock, Electrical Glass, etc.
10.00R20 Radius Tire for bad road condition.

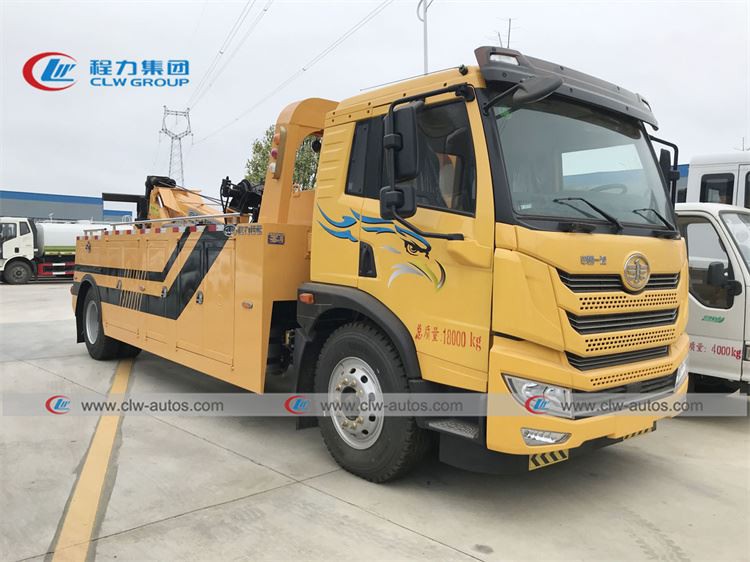

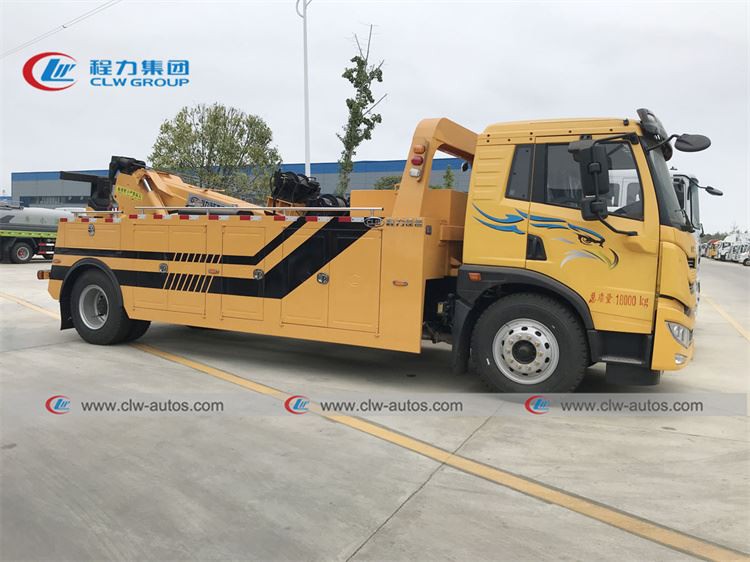

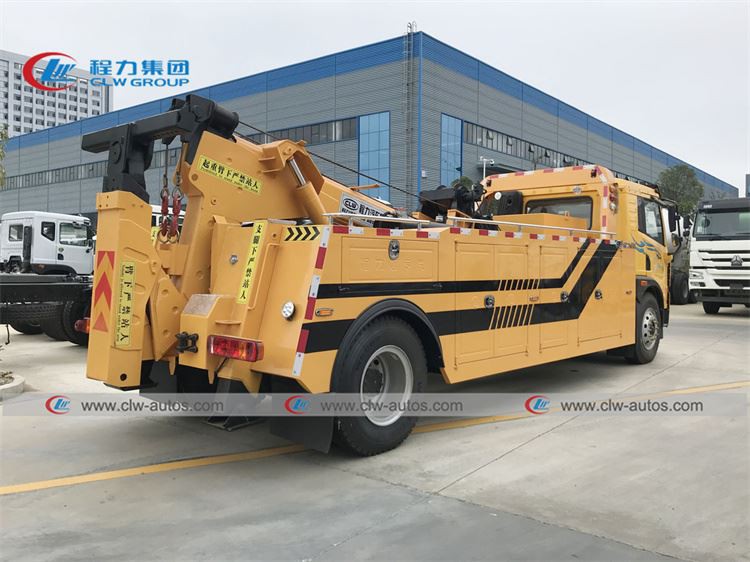

Heavy Duty Wrecker Body, Intergrated Crane & Under Lift Towing Bar.

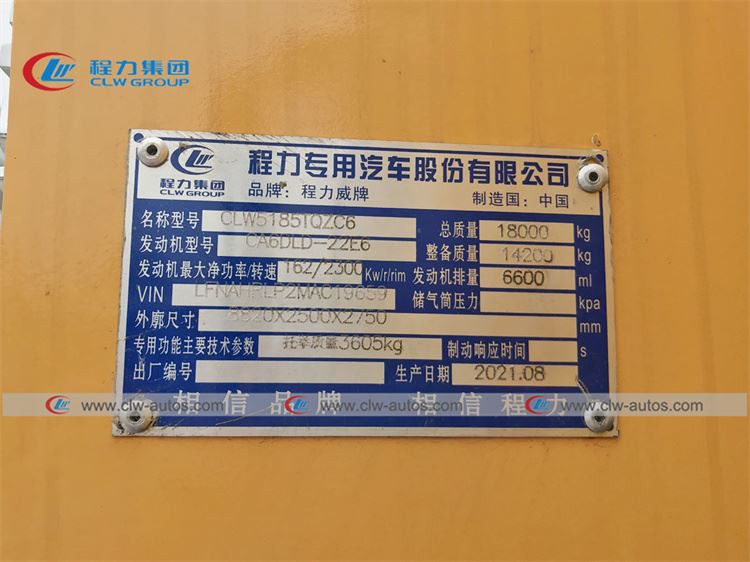

Name plate for the truck. 18Ton Gross Vehicle Weight.

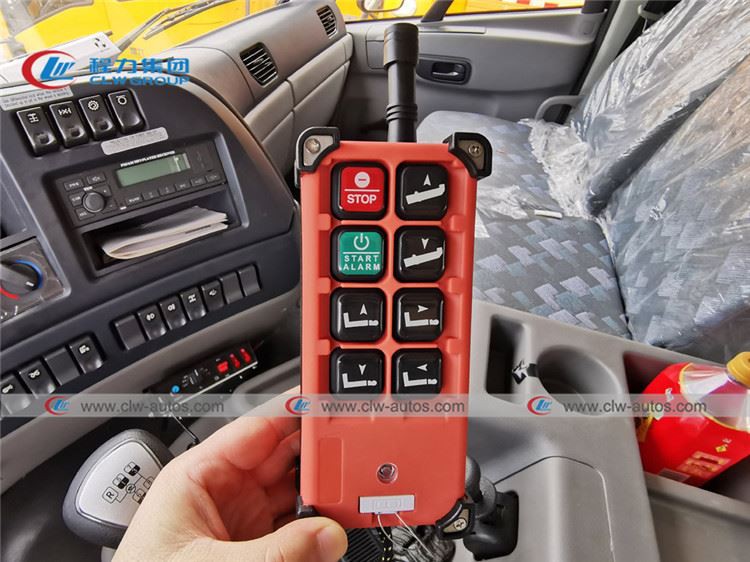

Remote Control System for Crane & Underlift

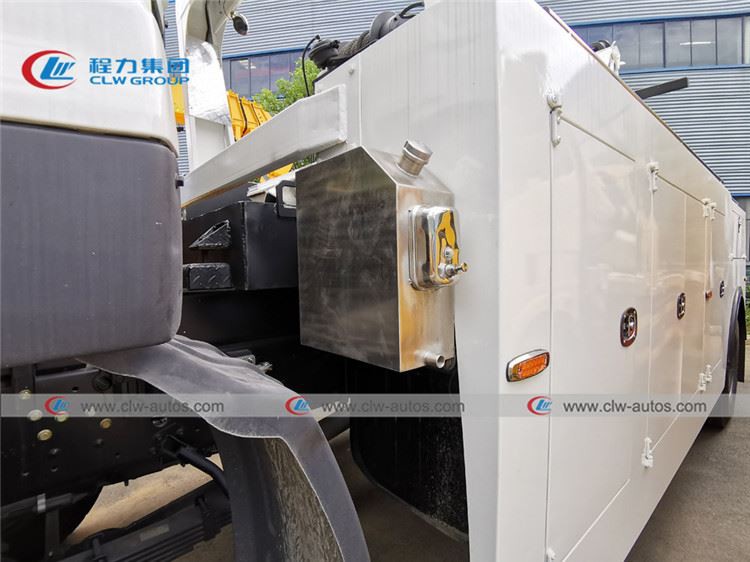

Stainless Steel Hand Washing Tank

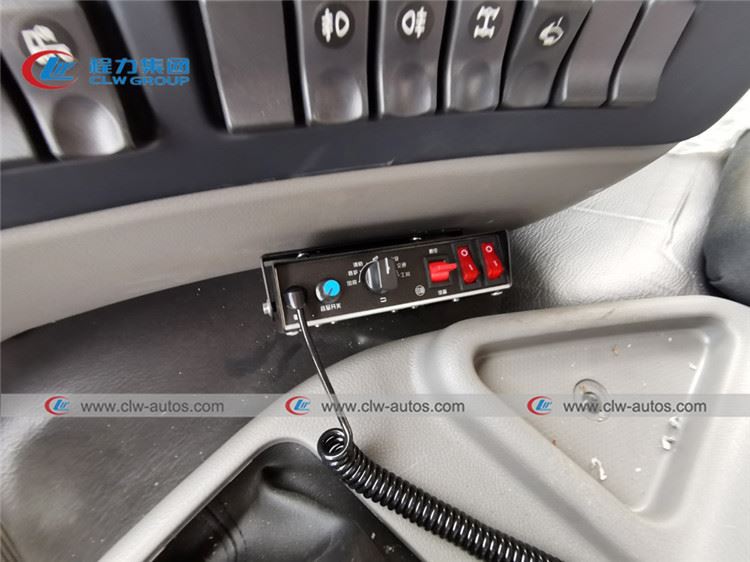

Loudspeaker & Siren System.
Truck Specification----------------------------------------------------------------------------------------
FAW 4x4 220HP 15T Tow Truck | ||||
Cabin | Driving type 4x2, LHD/RHD | |||
Long V Cabin, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for reference. | ||||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8700×2500×3320 | ||
Wheel base (mm) | 5200 | |||
Wheel track (front/rear) (mm) | 2022/1830 | |||
Weight in KGS | Tare Weight | 16600 | ||
Front axles loading capacity | 1x6500 | |||
Rear axles loading capacity | 1x13000 | |||
Max. driving speed（km/h） | 90 | |||
Engine | Brand | Xichai | ||
Model | CA6DLD-22E6 | |||
Type | 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled | |||
Horse Power（HP) | 220 HP | |||
Emission standard | EurO 5 | |||
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |||
Gearbox | FAST, 8 peed forward and 1 reverse gear | |||
Fuel tank | 300 liters | |||
Tire | 10.00R20 tubeless tire with one spare , totally 7 pics | |||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
Towing System | ||||
Under lift Towing System | Rated lifting weight | Kg | 5000 | |
Max. Lifting weight of original place | Kg | 8000 | ||
Max. Lifting weight of full extension boom | Kg | 3500 | ||
Rated towing weight | Kg | 20000 – 25000 | ||
Effective length of boom | mm | 2450 | ||
Extension traveling of boom | mm | 1250 | ||
Folding angle of boom | ° | 90 | ||
Crane Lifting System | Max. Rated hanging weight | Kg | 16000 （8000×2） | |
Max lifting high(mm) | mm | 5000 | ||
Max. Extension traveling of lifting boom | mm | 2900 | ||
Length of steel cable | M | 40 | ||
Min. Speed of steel cable | m/min | 5 | ||
