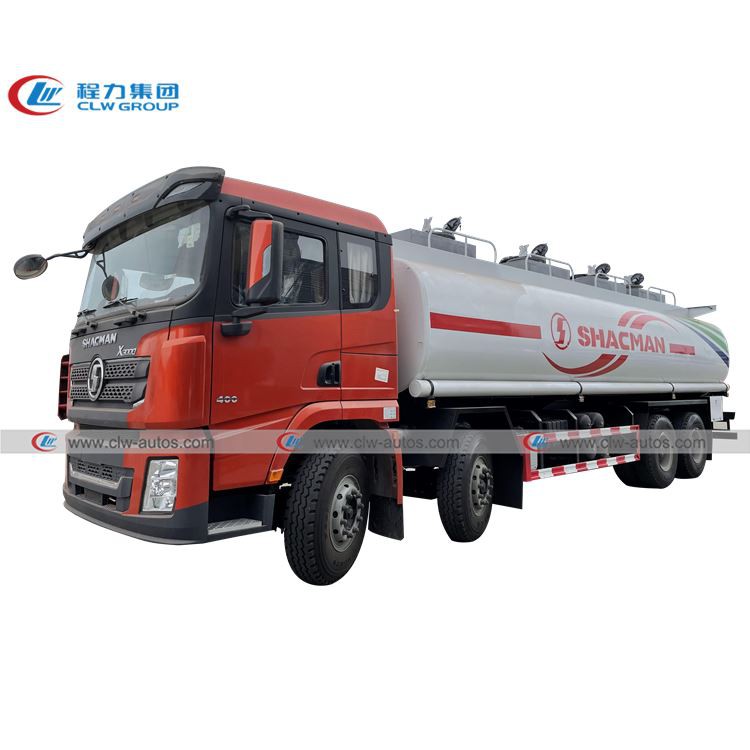

Shacman X3000 400HP 30,000Liters Oil Tanker Truck
Shacman X3000 fuel truck
30,000L 30tons fuel tanker truck
Carbon steel oil tank truck
Fuel Oil delivery purpose;
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman x3000 400hp 30,000liters oil tanker truck in China. If you're going to buy high quality shacman x3000 400hp 30,000liters oil tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Shacman Oil tanker truck(also called oil tank truck,petrol tanker truck,diesel tank truck,fuel truck,fuel tank truck,fuel delivery truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.
Shacman X3000 is the high end series of shacman truck among M3000 ,F3000 and X3000 with more luxious cabin and larger horsepower.
Purpose of oil Tanker Truck: It used for mobile transporting Fuel/Petrol/Diesel, etc.
Optional for Oil pump, Hose reel with filling gun,Oil dispenser machine,oil flow meter.
shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation;
Optional for ISUZU,SINOTRUK HOWO,FOTON,DONGFENG...truck chassis.
| |||
|
| ||
| Brand | Shacman X3000 | |
Curb weight(kg) | 14300 kg | ||
Wheelbase(mm) | 1800+4575+1400 mm | ||
Dimensions(mm) | 11990X2500X3250 mm | ||
Front/Rear Axle loading(kg) | MAN 7.5T front axle/7500kgX2; MAN 13T rear axle/13000kgX2； | ||
Wheel track (front/rear) (mm) | 2022/2022/2041/2041 mm | ||
Front/Rear overhang(mm) | 1500/2740 mm | ||
Approach/Departure angle(°) | 26/20 | ||
Max. driving speed(km/h) | 95 | ||
Clutch | Reinforced diaphragm clutch | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 12 pcs with one spare tire | |
Specifications | 12.00R20,12R22.5 | ||
Fuel box | 400L with lockable cap | ||
| Manual type 12JSD200T-B, 12 Forwards and 2 reverse | ||

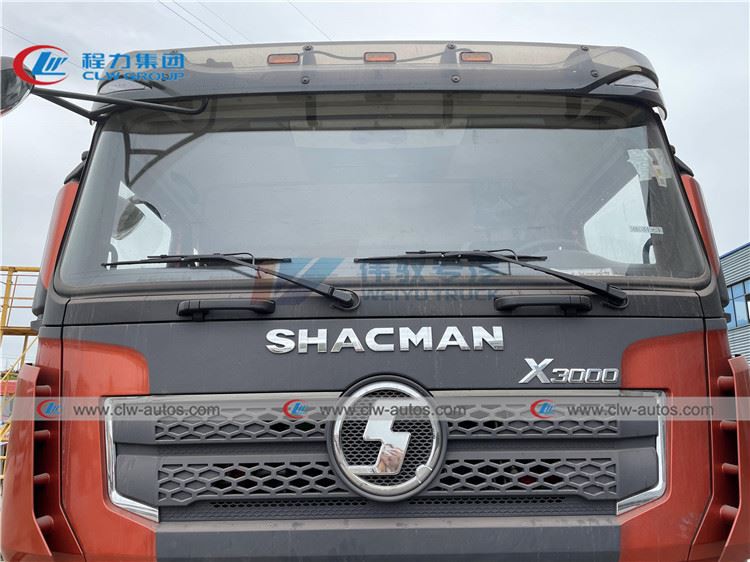

| X3000 cabin,Mid-lengthened flat roof; Rear windown,manual sunroof,hydraulic driver seat with seatbelts,hydraulic suspension of cab,electronic air conditioning with temperature control; Electric window,radio with MP3 palyer | ||
| Brand | Weichai | |
Model | WP12.400E201 | ||
Fuel type | Diesel | ||
Displacement(ml) | 11596 ml | ||
Power(kw) | 294kw | ||
Horsepower(HP) | 400HP | ||
Max. Torque(N.m) | 1800 | ||
Cylinder number | In-line 6 cylinders,water cooling,four-stroke,super-charge and middle cooling,direct-injection | ||
Emission standard | Euro II | ||
| |||
|
| 30 cbm/30,000 liters | |
| Tank material:Q235 high tensile strength steel. | ||
| 5mm of tank and 5mm of end plate | ||
| Square or as request | ||
| 3 | ||
| 4 mm carbon steel | ||

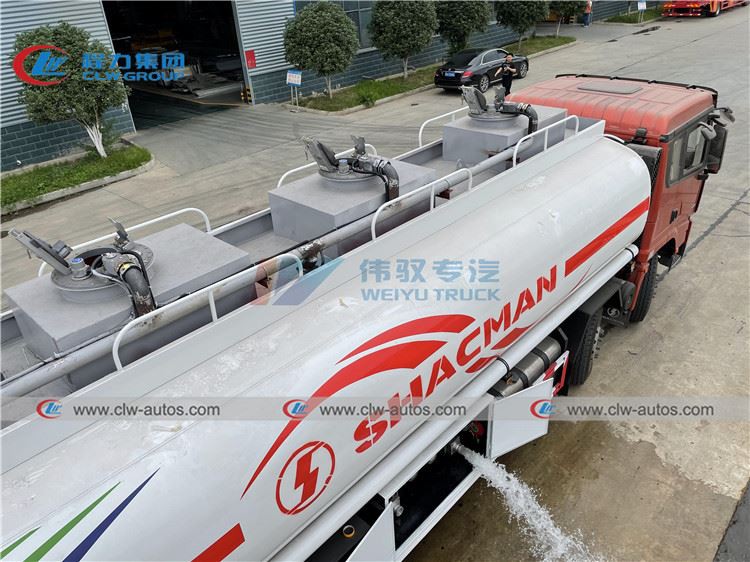

| 3 pcs of European Aluminum alloy manhole covers, ∮500mm 3 sets with 3 breather valves | ||

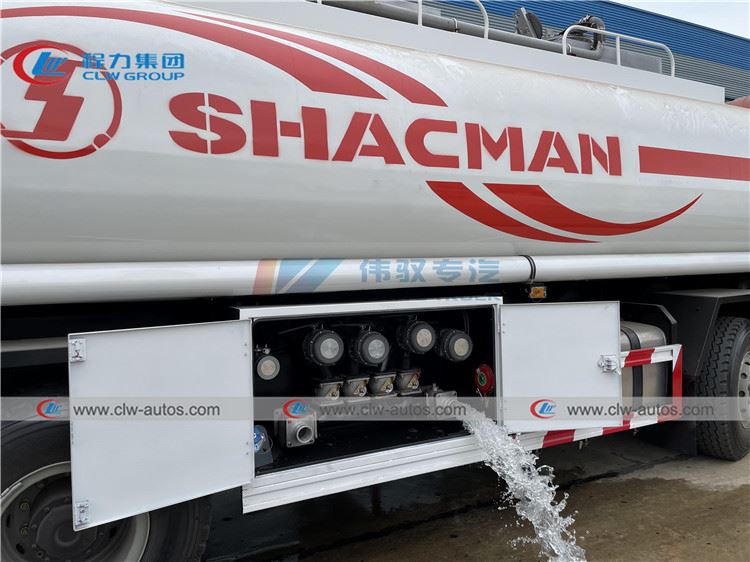

| 3 sets of Aluminum alloy Pneumatic Bottom Valves | ||
| 3 set ∮ 4 inches API discharging valves | ||
| Chinese brand,80-60 carbon steel pump with flow meter 60m3/h | ||
| 2.5 inches | ||
| Chinese brand DN50 flow meter | ||
| Anti-slip | ||
| Color and design as customer’s requirement | ||
| Over flow; 3 sets of vapour recovery; Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire; Truck will be waxed before shipment; | ||
| Pneumatic controlled at two sides of truck | ||
| At rear of tank | ||
