6cbm Refuse Compactor Truck
Truck brand:Dongfeng 4X2 compactor garbage truck
Wheelbase:3308mm
Volume Capacity:6,000litrs
Engine:YC4FA130 50, 130 horsepower
Front and rear axle loading:2.2tons/5tons
With ABS system and air conditioning
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6cbm refuse compactor truck in China. If you're going to buy high quality 6cbm refuse compactor truck, welcome to get more information from our factory. For price consultation, contact us.

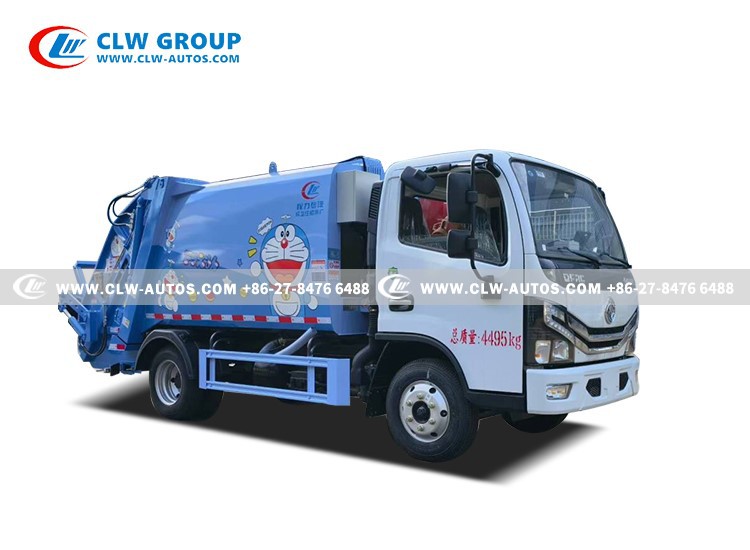

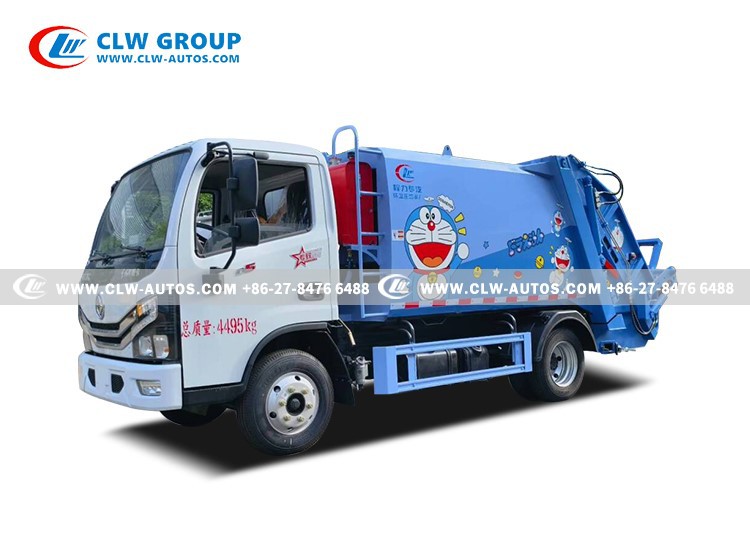

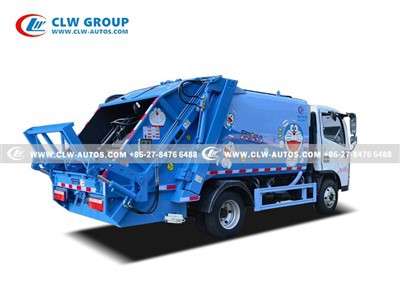

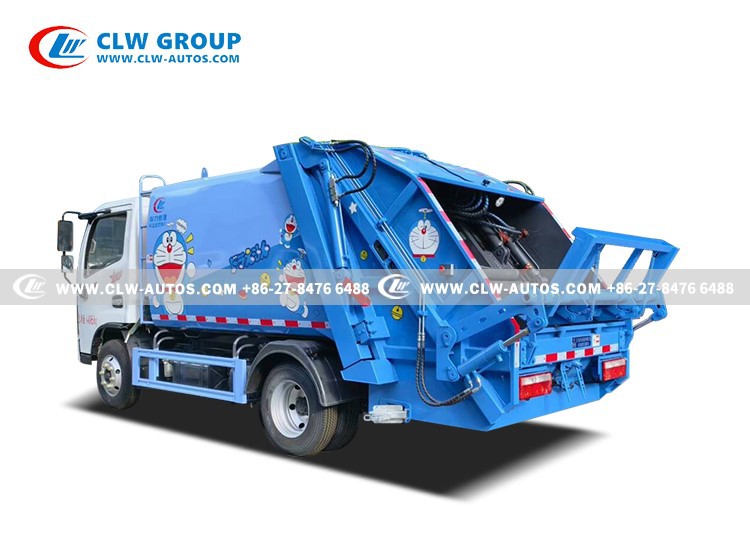

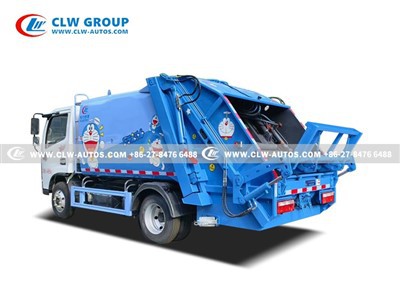

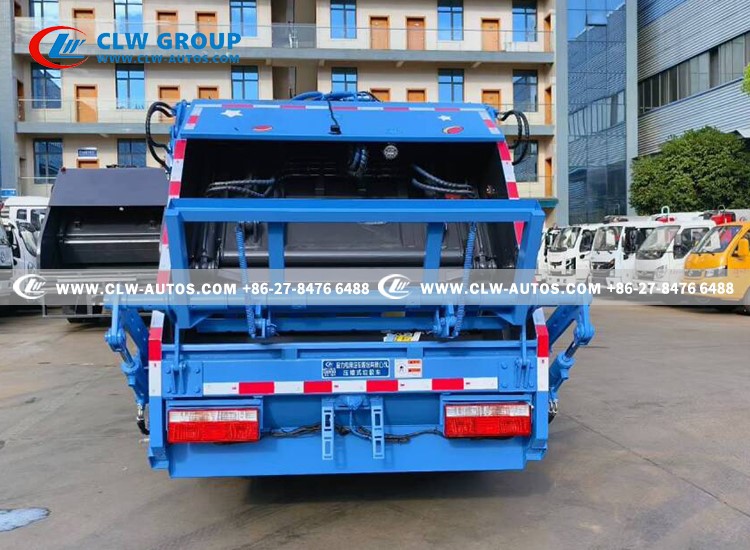

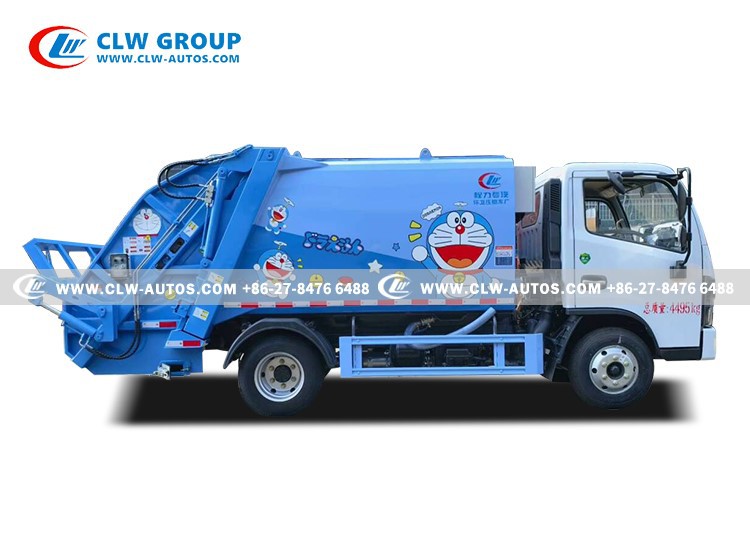

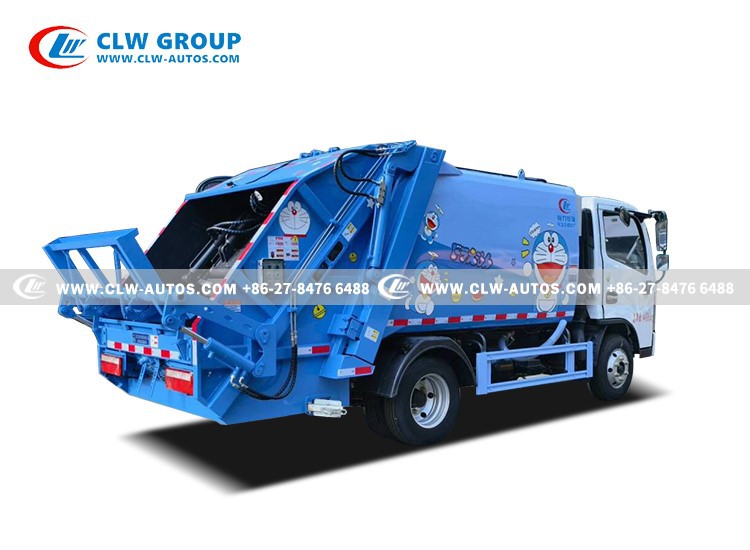

6m3 Dongfeng 4X2 Compactor Garbage Truck
Products Description
A refuse compactor truck is a specialized waste management vehicle designed to collect, compress, and transport municipal solid waste (MSW). Combining a heavy-duty chassis with hydraulic compaction technology, it significantly increases payload capacity while reducing collection frequency.
Dongfeng Dolyca 6m³ Refuse Compactor Truck integrates a robust YC4FA130-50 engine (130HP) with 6-speed manual transmission on a 3308mm wheelbase chassis. Featuring 7.50R16 steel-belted tires, 192mm reinforced frame, and 120L fuel tank, this vehicle combines municipal waste compaction with agile urban mobility. The lifting bin lifter enables rapid 120L/240L container handling.
Core Functions and Advantages
Core Functions
Automated Waste Loading
-Bin/Bucket Lifter: Mechanically engages standardized waste containers (120L-1100L)
-Hopper Integration: Directs waste into compaction chamber without manual handling
High-Pressure Volume Reduction
-Sealed Body Design: Prevents liquid spillage with rubber-edged tailgate
-Corrosion Resistance: SUS304 steel cladding for acidic/organic waste
Leak-Proof Transportation
-Sealed Body Design: Prevents liquid spillage with rubber-edged tailgate
-Corrosion Resistance: SUS304 steel cladding for acidic/organic waste
key Advantages
Enhanced Driver Safety
Integrated Braking: ABS + Exhaust brake for 25% descent control
360° Awareness: Rear radar + wide-angle mirrors (ISO 17387 compliant)
Low Maintenance Design
Hopper Liner: 5mm NM400 wear-resistant steel
Centralized Lubrication: Automatic greasing every 50 cycles
Primary Applications
Urban Waste Management
High-density residential areas (narrow street access )
Apartment complexes with centralized bin stations
Commercial Sector Service
Shopping malls/food courts requiring daily collection
Office parks with limited loading zone space
Event and Public Space Cleaning
Temporary venues (festivals/sports events)
Municipal parks and pedestrian zones
Municipal Solid Waste (MSW) Collection: High-frequency residential routes
Commercial Zone Servicing: Shopping centers, office parks with bin clusters
Event Waste Management: Temporary venues requiring rapid compaction
Narrow-Access Operations: Historic districts/alleyways
Products Specification
|
Chassis Technical Specification |
||
|
Driving model |
4X2 |
|
|
Cab |
Standard Dongfeng cabin Left hand driving With 2-3 passengers |
|
|
Wheelbase |
3308mm |
|
|
Engine |
Model |
YC4FA130 50 |
|
Type |
Diesel, 4 stroke, 4 cylinders in line |
|
|
Horsepower |
130hp |
|
|
Max output power |
96kw |
|
|
Emission standard |
Euro 2 |
|
|
Gear box |
Manual type, 6 forward gears and 1 reverse |
|
|
Axle loading (front and rear) |
2.2T ; 5T |
|
|
Fuel box volume |
120L, steel material |
|
|
Tyre |
7.50R16 |
|
|
Garbage truck body |
||
|
Garbage Container Size |
6 m3 |
|
|
Tanker body material |
Quality high tensile Q345 carbon steel |
|
|
Shape |
Rectangular box, arc-shaped rear |
|
|
Thickness |
Side 3mm, bottom 4mm |
|
|
Filling hopper volume |
0.7 m3 |
|
|
Idle Speed |
750 rpm |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤23 s |
|
|
Loading cycle time |
≤10 s |
|
|
Unloading cycle time |
≤45 s |
|
|
Oil pump displacement |
40 ml/r |
|
|
Hydraulic oil box size |
60 L |
|
|
System pressure |
16 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Remarks |
|
|
|
Optional device |
|
|
Factory Real Shot Video for You
Different Rear Design of Garbage Compactor Truck
Hanging Bucket Tipping
Pneumatic cover and bucket flip
Triangle collection hopper
Swing Arm Bucket Rear Mechanism
All sealing waste collection hopper
Feeding device of lifting structure
