Off Road SINOTRUK HOWO 10cbm Garbage Compactor Truck
howo Garbage compactor truck
10cbm garbage compactor truck
off road garbage truck
HOWO 10cbm garbage compactor truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of off road sinotruk howo 10cbm garbage compactor truck in China. If you're going to buy high quality off road sinotruk howo 10cbm garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description

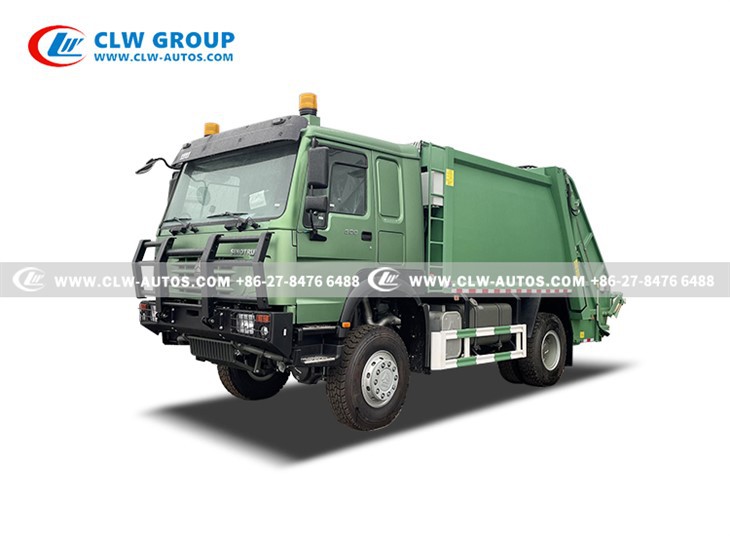

Off Road SINOTRUK HOWO 10cbm Garbage Compactor Truck
The main function of a garbage compactor truck is to do the collection of all kinds of waste: garbage, solid waste , and recyling objects and transport to waste treatment facilities. Garbage truck are mostly used by municipal facilities and private companies. Off road /All wheel drive garbage truck are suitable for rough road use, gugged mountain roads, desert dunes, and forest use.
Garbage compactor truck feature:
* high intense Q235b carbon steel
* Compression cycle time: 25-30s
* compression density: 0.6-0.8t/m3.
* unloading garbage is: 40s
* PLC control system: left & right control panel at rear part of truck, operation hanle at side of the truck, control panel at driver cabin
* Rear loading : lifting mechanism working with 120L/240/600L plastic garbage, can be customized as per customer's request
*

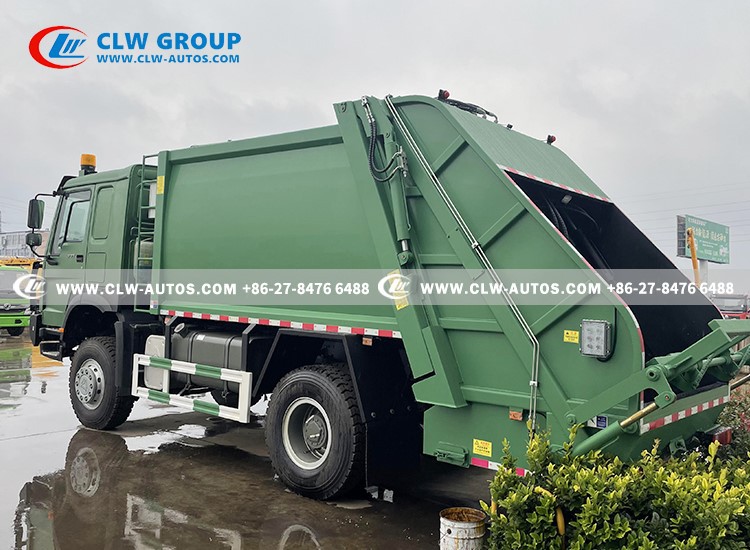

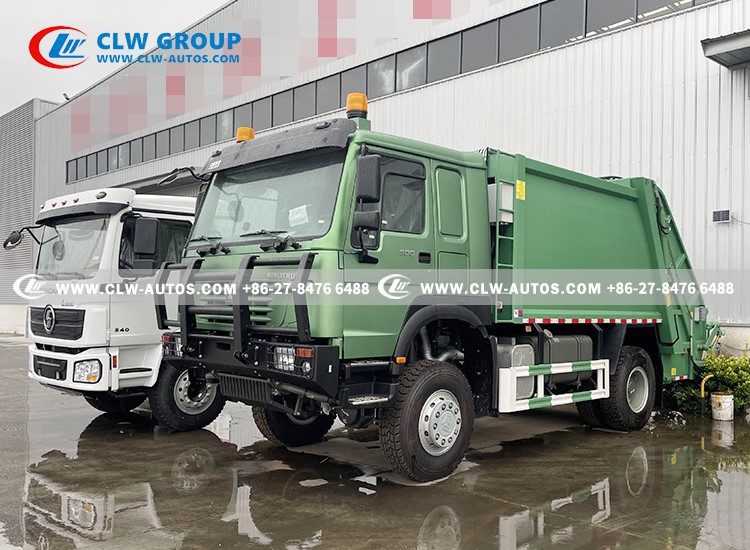

Reference photos
| Off Road SINOTRUK HOWO 10cbm Garbage Compactor Truck | |||
| Condition | New condition/Left hand drive/4x4 | ||
| Chassis | Brand | HOWO | |
| Curb weight(kg) | 9850kg | ||
| Wheelbase(mm) | 3800mm | ||
| Dimensions(mm) | 7050*2320*2900 mm | ||
| Axle Load(kg) | 7000/16000 kg | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | air brake | ||
| Steering Gear | Power assistant | ||
| Tire | Number | 6pcs with one spare tire | |
| Specifications | 12.00R20 | ||
| Transmission | Manual type, 10 Forwards and 2 Reverses | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | Weichai | |
| Model | WP10.300E22 | ||
| Horsepower/(HP) | 300 HP | ||
| Emission standard | Euro II | ||
| Upper Body | |||
| Item No. | Parameters | ||
| Volume Capacity(Garbage) | 10.0 CBM | ||
| Thickness of the tank | 5mm for the bottom and 5mm for the side carbon steel | ||
| Sewage tanker(one side of the truck) | 200 L | ||
| Tail gate volume(L) | 700L(Filling structure) | ||
| Rated Pressure of Hydraulic system: 16 Mpa | |||
| Filling time of loading system: 8-10 s | |||
| Specification | Working cycle of Loading system: 50-60 s | ||
| Working cycle of the unloading system: 30-40 s | |||
| Compress ratio:0.6:0.7 | |||
| Equipped with hermetic dustbin, hydraulic system and operating system. | |||
| Automatic compress and uninstall, sewage can be collected by the sewage tank. | |||
| Equipment | Control system: China top brand operate system. | ||
| Painting and Logo | As customer’s requirement | ||
| Other detail | China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, | ||
| Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder. | |||
Contact Alice for quick inquiry +86 180 7154 2196
You can also choose different loading method for the garbage compactor truck
You are mostly welcome to visit our factory for production line of garbage trucks.
