10Tons LPG Refilling Truck For Kenya

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10tons lpg refilling truck for kenya in China. If you're going to buy high quality 10tons lpg refilling truck for kenya, welcome to get more information from our factory. For price consultation, contact us.

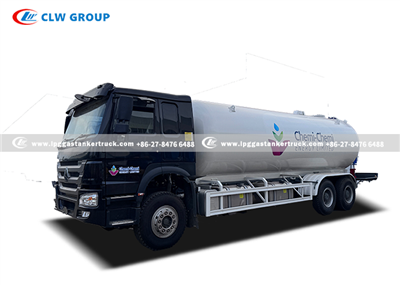

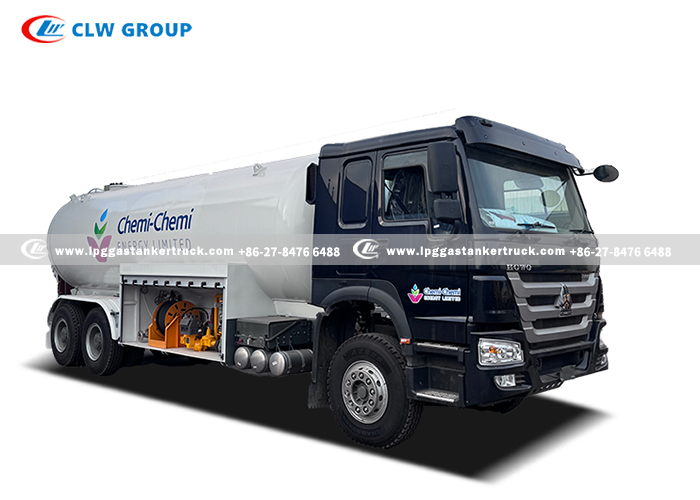

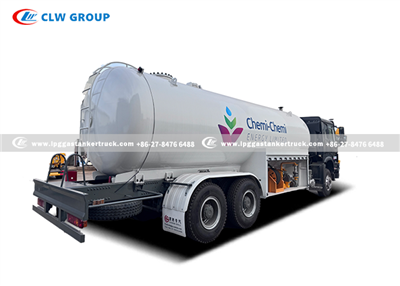

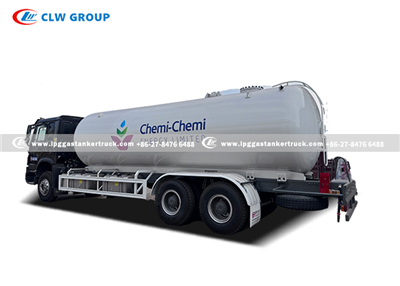

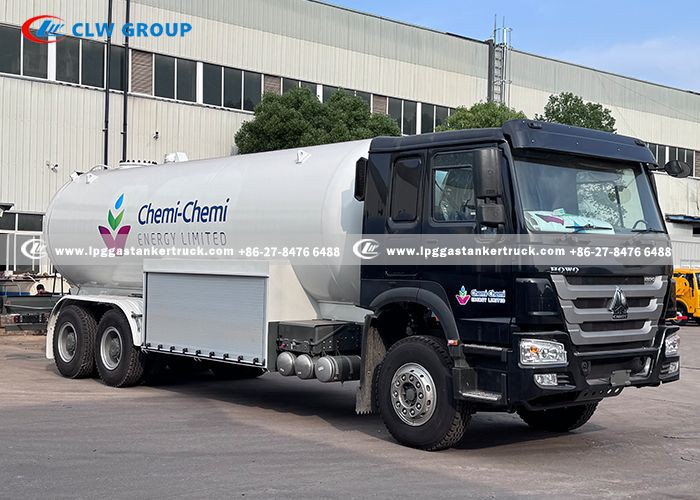

Sinotruk HOWO 10 Wheels 6x4 20,000 Liters 10Tons LPG Refilling Truck For Kenya





LPG Refueling Truck is a special vehicle designed to provide mobile refueling services for liquefied petroleum gas (LPG) vehicles. It is also called as "Gari ya kusukuma gesi LPG", LPG Transportation Truck, LPG Bobtail Truck , Bulk LPG Truck and so on. It integrates storage, transportation and refueling functions and is mainly used for LPG fuel vehicles such as taxis, buses, agricultural machinery, etc.



Designed specifically for the Kenyan market
1. Unstable power supply: optional diesel hydraulic pump (not dependent on the power grid)
2. Poor rural road conditions: reinforced tires + shockproof brackets
3. Strict safety supervision: equipped with automatic shut-off valve



Typical application scenarios
1. Nairobi taxi fleet: LPG taxis account for more than 40%, and there is a strong demand for mobile gas filling
2. Mombasa Port Logistics Center: gas supply for LPG forklifts and freight fleets
3. Agricultural production areas (Kisumu, etc.): provide fuel supply for LPG tractors and dryers



Why This Works for Kenya?

• Regulatory Alignment - Explicitly names Kenyan authorities that buyers prioritize.
• Terrain Adaptations - Addresses Kenya's road conditions and power standards.
• Localized Support - Highlights in-country service networks, a key decision factor.

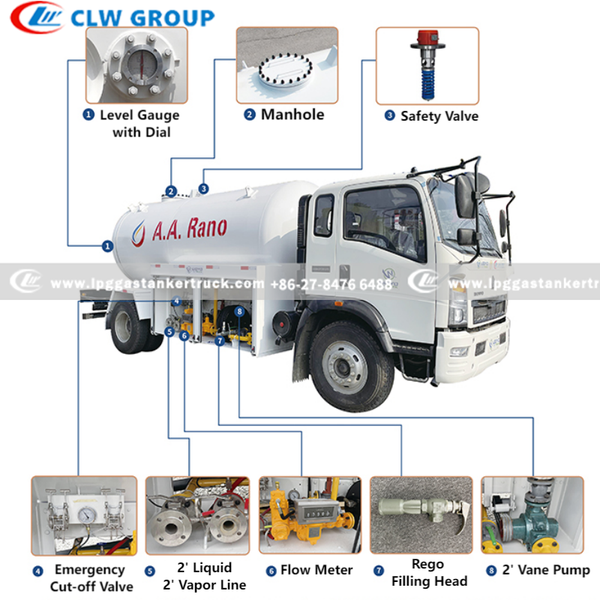

Main components of LPG filling truck

1. LPG Tank: Carbon steel/stainless steel, with safety valve, level gauge, pressure resistance ≥2.2MPa.
2. Gas Filling Pump System: Electric/hydraulic drive, filling speed 30~100L/min (depending on the model).
3. Measuring Device: High-precision flow meter (error ≤±1.5%).
4. Safety System: Gas leak alarm, automatic shut-off valve, static electricity removal device.
5. Control System: Automated operation panel, can monitor pressure, temperature, and gas filling volume.

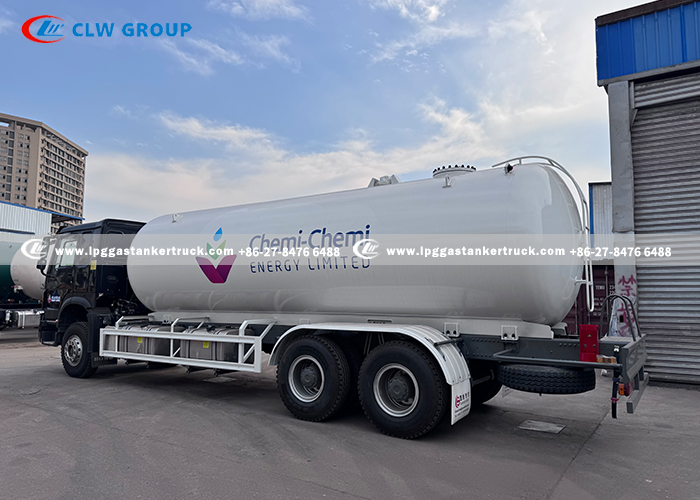

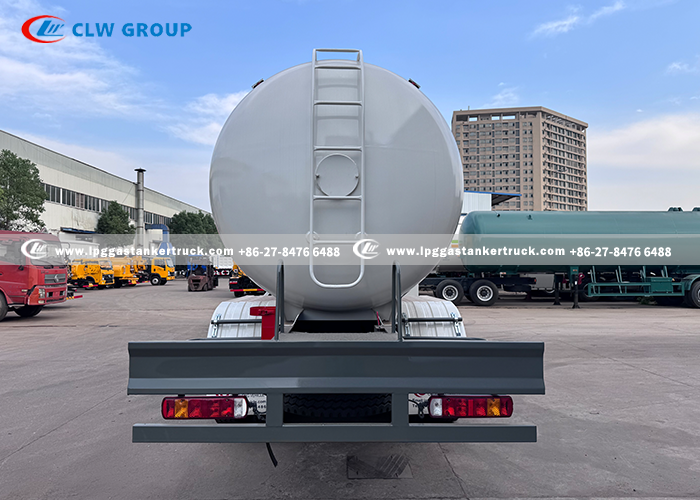

HOWO 20m³ LPG Refilling Truck
Chassis Model		ZZ125
Driving Model		6 x 4

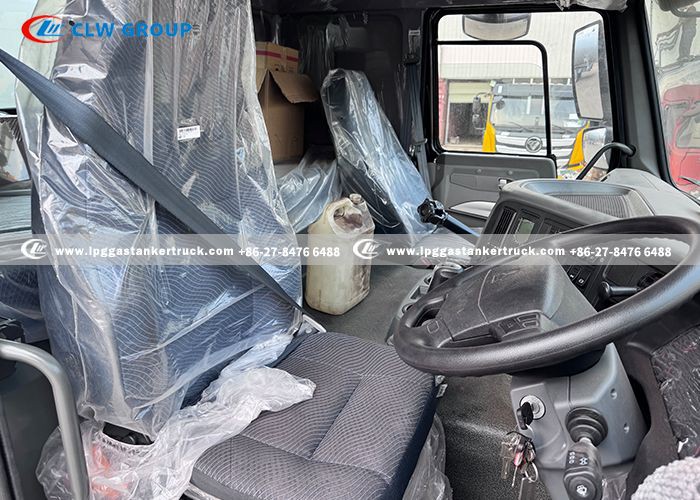

Cab		Right Hand Driving with air conditioner Central lock Steer Assistance Electric Window
Wheel Base		4600+1350 mm
Axle Loading (front/rear)		9500 / 16000x2 kg
External Dimensions (L x W x H)		10260×2500×3500 mm
Net weight (Kg)		9870
Approach / Departure Angle		20/12°
Max. Driving Speed		105 km/h
Engine		Model: WP10.380E22
		Weichai diesel engine, 6 cylinders in a line, Water cooled,turbocharged,after cooled , cold start.
		Horse Power: 380hp
		Emission standard: Euro 2
		Displacement: 9726 ml
		Max. Torque: 1600 N.m
Gearbox		Manual type 10 forward & 2 reverse
Clutch		Reinforced diaphragm clutch
Tire		12.00R20 18PR
		10 Pcs with 1 spare tire
Fuel Box		400L /steel material
LPG Tank Specification (20m3)
Filling Medium		Liquefied Petroleum Gas
Working Temperature		-40~50℃
Volume		20,000 Liters
Tank Material		Q345R
Tank Diameter		2050 mm
Tank Thickness		12 mm
End Plate Thickness		12 mm
Tank Length		As designed
Gas Phase		Flange Type, DN50/2"
Liquid Phase		Flange Type, DN50/2"
Filling Gas		Propane (LPG)
Working Pressure		1.61 Mpa
Design Pressure		1.71 Mpa
Testing Pressure		2.21 Mpa
Corrosion Allowance		1.0 mm

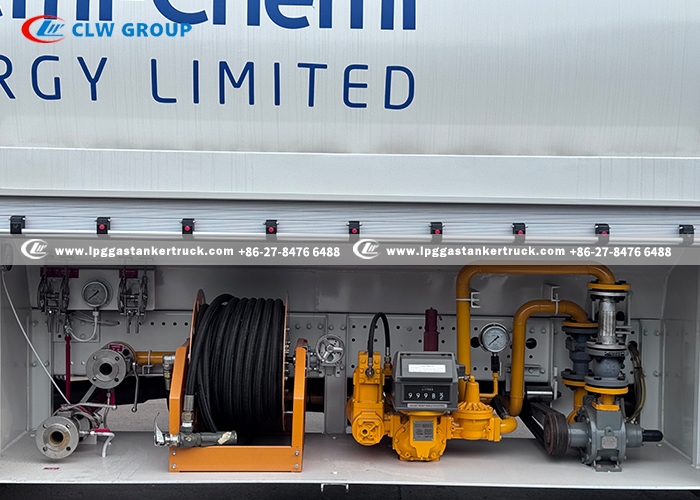

Refilling Accessory
Directly driven by PTO (easy for future maintenance)
LPG Pump	Chinese Brand CLW 15-5
	Inlet 2" NPT and Outlet 2" NPT
	Flow Rate: 15.5m³/h
	780 r/min for Rotation Speed
LPG Flow Meter	TSC-50 Model
	Showing Filling Volume
	Inlet / Outlet 2"/ DN50
	Maximum Capacity: 76~380lpm
	With mechanical register, strainer, air eliminator, diff, valve and back check valve
	With ticket printer
Filling Hose	15 m, retractable with REGO adapter for small tank refilling
Level Gauge	Rochester level gauge or Chinese brand
Safety Valve	Model: A412F-25-16
	Type: Built-in
	Nominal Pressure: 2.5Mpa
Safety Return Valve	1 pc
Pipeline Safety Valve	1 pc
Equipment & Valve Box	Located at side of LPG bobtail (opposite driver's side)
Manhole	DN450
Thermometer	1 pc, WTQ-280
Pressure Gauge	2 pc, YN-100T
Emergency Shut Off Valve	2 pc With switch inside valve box and at rear of truck
Fender	Steel
Fire Extinguisher Holder	1 set
Static Conductive Tape	1 pc
Painting & Logo	Can be customized



We manufacture LPG transport vehicles with 5,000-37,000-liter capacity tanks, fully compliant with:

• Kenya Bureau of Standards (KEBS) certification
• Energy & Petroleum Regulatory Authority safety guidelines
• ADR/African Harmonized Vehicle Regulations for road transport

Key Features:
✔ Mandatory Safety Systems

• Explosion-proof electrical components (IP67 rated)
• Double-walled discharge valves with auto-shutoff
• Grounding kits for static electricity prevention

✔ Kenya-Specific Adaptations

• UV-resistant paint for tropical climate protection
• Reinforced suspension (6x4 chassis recommended for rural roads)
• Optional 240V/50Hz pump power supply

✔ After-Sales Support

• 1- year warranty on tank pressure vessels



We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Welcome to visit our factory!
