22cbm Shacman Cooking Gas Truck

Brand: SHACMAN X3000 6X4
Horsepower: 340hp
Tank volume:20m3/22m3/24m3
Wheelbase: 4375+1400mm
Emission standard: Euro Ⅱ
Fuel tank: 300L aluminum alloy tank

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 22cbm shacman cooking gas truck in China. If you're going to buy high quality 22cbm shacman cooking gas truck, welcome to get more information from our factory. For price consultation, contact us.

Shacman X3000 6X4 20m3 22m3 24m3 LPG Filling Truck

Products Description

The LPG Bobtail Truck is also called LPG tanker truck/ Propane bobtail/ Heavy-duty gas delivery solution/ Autogas bowser/ LPG skid unit/LPG dispenser truck, etc. It is a specialized commercial vehicle designed for safe and efficient transportation and on-site refueling of liquefied petroleum gas (LPG).
With a 20-cubic-meter storage capacity and 10-ton payload capacity, it integrates a high-pressure LPG tank, pumping system, and metered dispensing equipment into a single mobile unit, making it ideal for bulk LPG logistics and direct-to-consumer delivery.

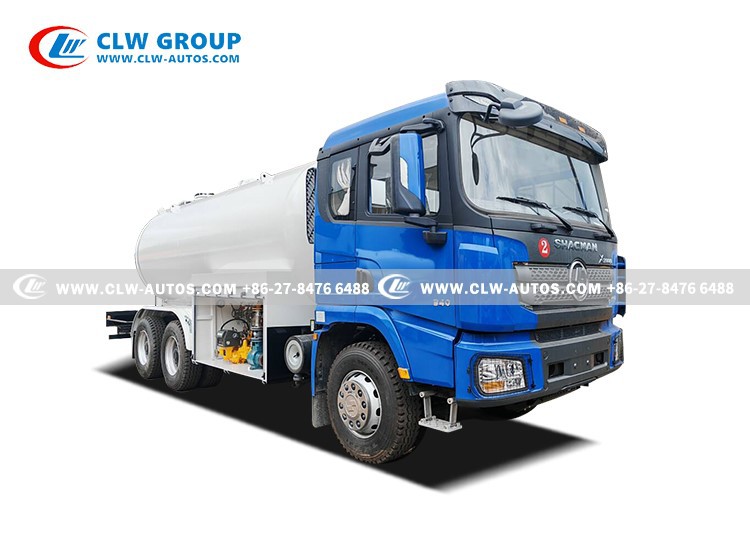

This Shacman X3000 LPG Refueling Truck integrates a robust 6×4 chassis with a specialized LPG dispensing system, engineered for efficient mobile fuel distribution. Powered by a Weichai 340HP engine and equipped with a 300L aluminum alloy fuel tank, this vehicle delivers exceptional durability in demanding operating environments. Its LPG refueling module features a high-precision Chinese-made LPG pump and flow meter, ensuring accurate metering and safe transfer of liquefied petroleum gas.

Chassis: 6×4 Drive, Wheelbase 4375+1400mm
Engine: Weichai WP10.340
Axle Capacity: Front 7.5T / Rear 13T
Fuel System: 300L corrosion-resistant aluminum tank
LPG System: Domestic LPG pump (±0.5% accuracy), tamper-proof flow computer
Emission Standard: Euro II (Upgradable)

Target Applications

Urban and Remote LPG Distribution: Fleet refueling for taxis, buses, and commercial vehicles.

Mining Construction Sites: On-site fuel supply for machinery in off-grid areas.

Disaster Relief: Emergency fuel logistics support.

Agricultural Zones: Irrigation pump and farm equipment fueling.

Industrial Zones: Supply LPG to factories, welding shops, or forklift fleets.

Agricultural Support: Fuel crop dryers, irrigation pumps, and greenhouse heating systems.

Remote Communities: Act as a mobile refueling station for off-grid households.

Emergency Response: Rapid deployment during pipeline outages or natural disasters.

Chassis Technical Parameters
Driving mode	Shacman X3000 6X4
Overall dimension	950025503420mm
Gross weight	25,000kg
Curb weight	12,500kg
Payload	10,000kg , 10tons
Wheelbase	4375+1400mm
Cabin	SHACMAN X3000 flat top cab; 2-3 seats with one sleeper; With air conditioning
Engine	Brand	WEICHAI engine,
	Horsepower	340hp;
	Emission standard	EuroⅡ
	Displacement	7,800ml
Gear box	8JS85T, 8 forward gears and 2 reverse
Max driving speed	95km/h
Tyre	12.00R20 (10pcs with 1 spare)
Front axle loading	7,500kg
Rear axle loading	13,000kg
Tank body parameters
LPG tank volume	20,000 liters
Tank material	Q345R
Tank diameter	2,050mm
Tank thickness	10mm
End plate	10mm
Tank length	As designed
Gas phase	DN25 or DN50 or customized
Liquid phase	DN 50 or DN80 or customized
Filling gas	Propane (LPG)
Design pressure	1.61Mpa
Hydraulic temperature	2.21Mpa
Working temperature	-20~50℃
Design code	GB150.1~2011
Accessories
Level gauge	Rochester Float ball type at the rear of tank
Safety valve	DN80*1
Manhole	DN450
Tool and valve box	Equipped
Radiator of hydraulic oil	Equipped

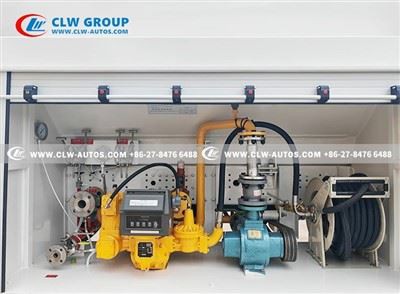

LPG pump	USA brand CORKEN vane pump, driven by truck engine through PTO
Dispenser machine	Single nozzle with English remarks
Filling hose	15 meters
Pressure gauge	0ne set
thermometer	One set
Emergency valve	Controlled valve box and installed at the rear of truck
Fender	Steel material
Fire extinguisher holder	Installed at left and right sides of rear truck *2
Exhaust shaft	At the front of truck cabin for safety

Competitive Advantages

Dual-Function Design

Combines transportation and on-demand refueling capabilities in one vehicle.

All-Terrain Adaptability: Reinforced chassis and ABS braking for stable operation in rural/urban areas.
Robust Safety Systems

Equipped with emergency shutoff valves, pressure relief devices, and leak detection sensors compliant with NFPA 58/ASME standards.

Fast-Fill Technology: High-flow dispensers with precision meters and auto-cutoff nozzles.
Cost Efficiency

Reduces logistics expenses by eliminating intermediate transfers.

Operational Flexibility: Operates as a "gas station on wheels" without fixed infrastructure.
Regulatory Compliance

Meets DOT/TPED certifications for cross-border operations.

Scalability: Modular design allows customization for varying tank sizes (10-20 m³).

Reference Pictures

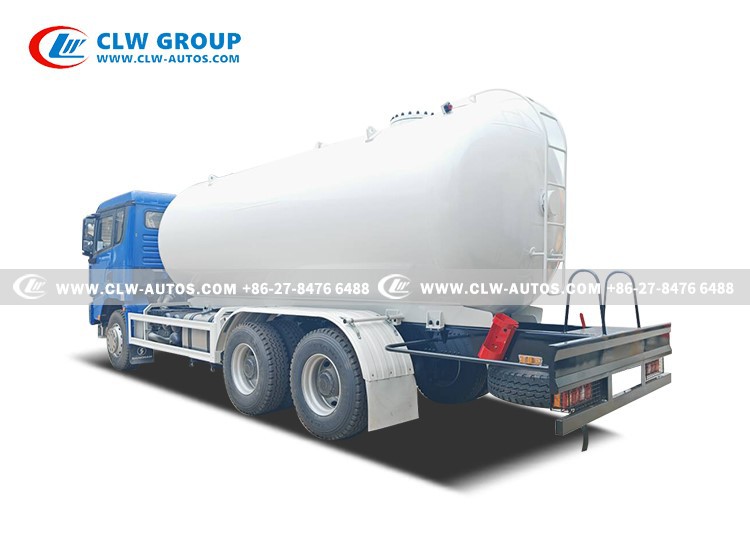

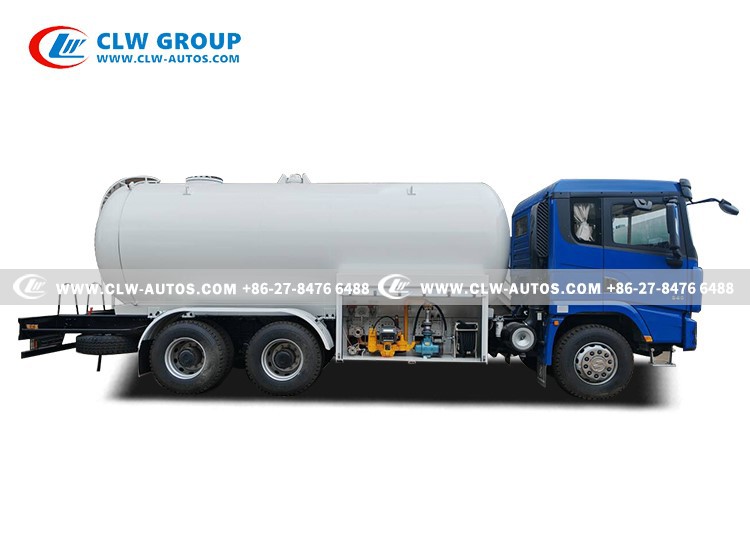

LPG bobtail truck

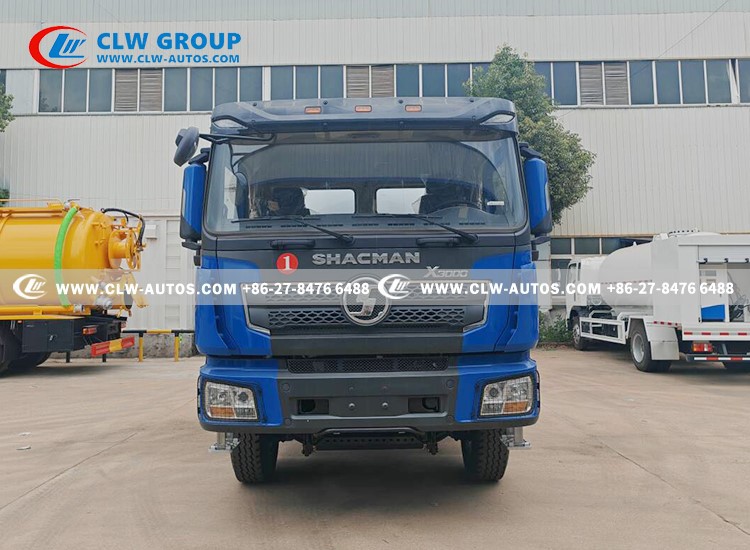

6X4 lpg bobtail truck supplier manufacturer

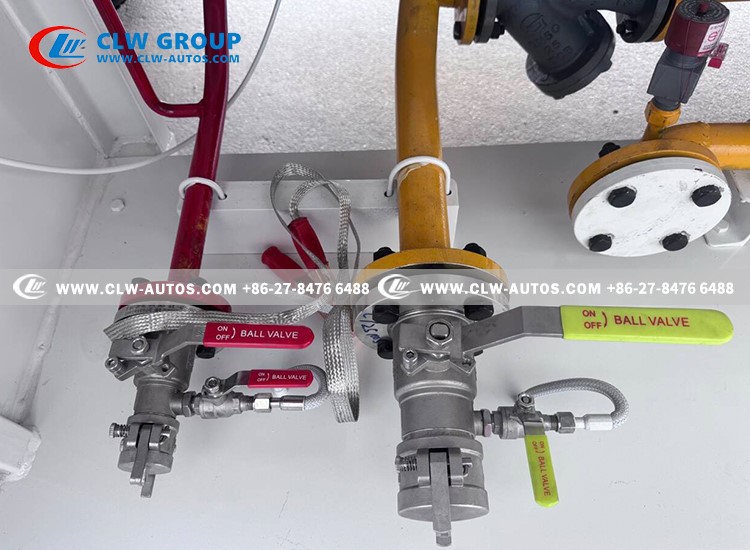

Valve Systems:

Emergency Shutoff Valve (ESV): Automatically triggers on leak detection.

Check Valves: Prevent backflow during multi-truck refueling operations.

Float-Type Level Gauges: Provide real-time LPG volume tracking with ±2% accuracy, resistant to sloshing effects.

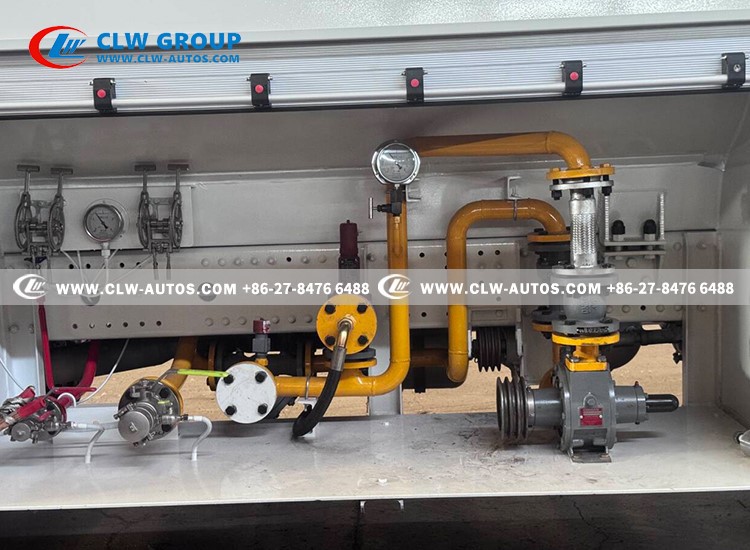

Vapor/Liquid Phase System:

Liquid Withdrawal Valve: Ensures stable flow during high-demand dispensin.

Vapor Return Line: Recovers excess gas to maintain tank pressure equilibrium.

Quick-Connect Couplings: Enable 90-second nozzle attachment/detachment, minimizing downtime.
Modular Skid Design: Allows seamless transfer between chassis types (e.g., Isuzu, Volvo) for fleet scalability.
Anti-Corrosion Coating: Tank interiors use epoxy-phenolic linings to withstand H₂S contaminants in low-grade LPG.
Mobile Fueling Stations: Deployable in disaster zones or remote areas lacking fixed infrastructure.
Fleet Management Integration: IoT-enabled telematics systems track fuel consumption, route efficiency, and maintenance schedules.
Hybrid Energy Solutions: Compatible with LPG-CNG dual-fuel systems for fleets transitioning to greener alternatives.
