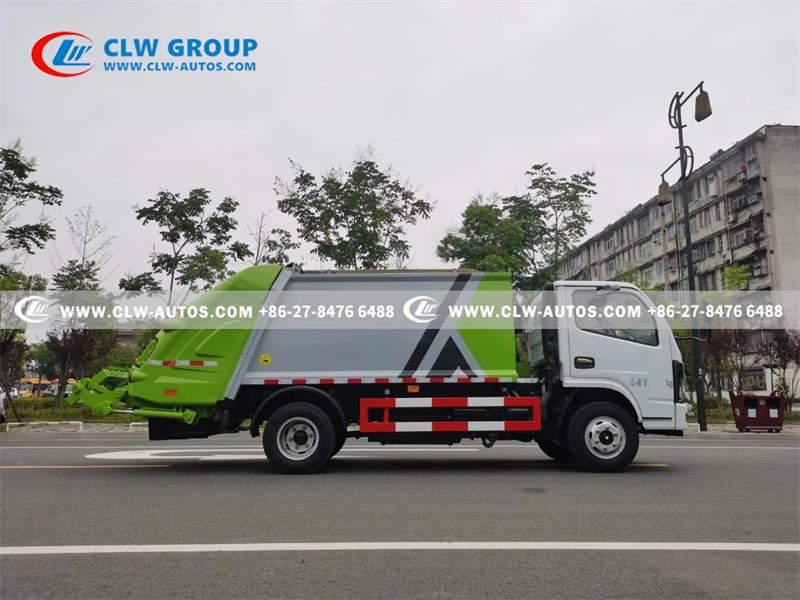

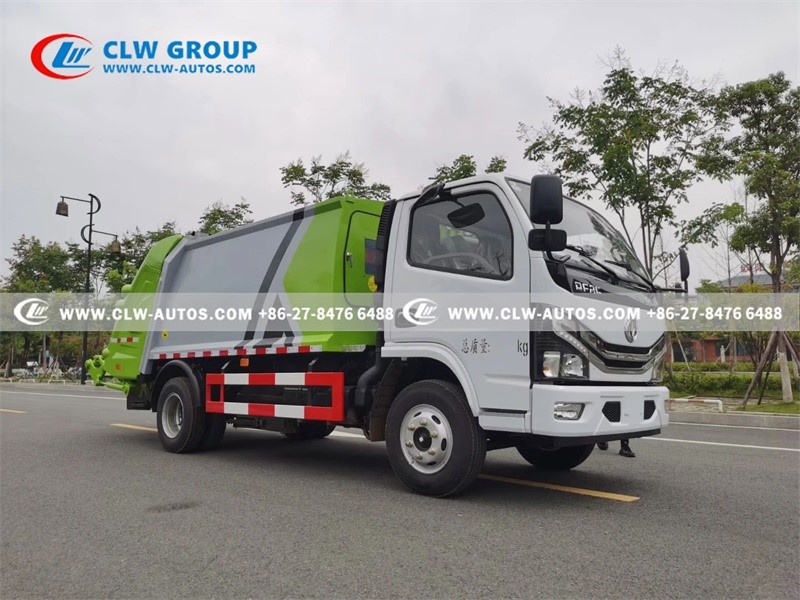

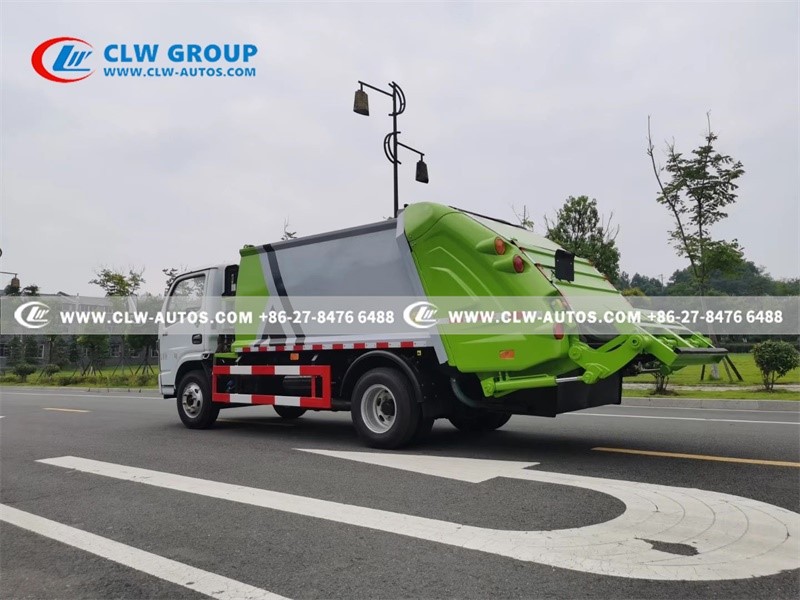

Chengli CLW5075ZYS6 6m³ High-End Compactor Garbage Truck

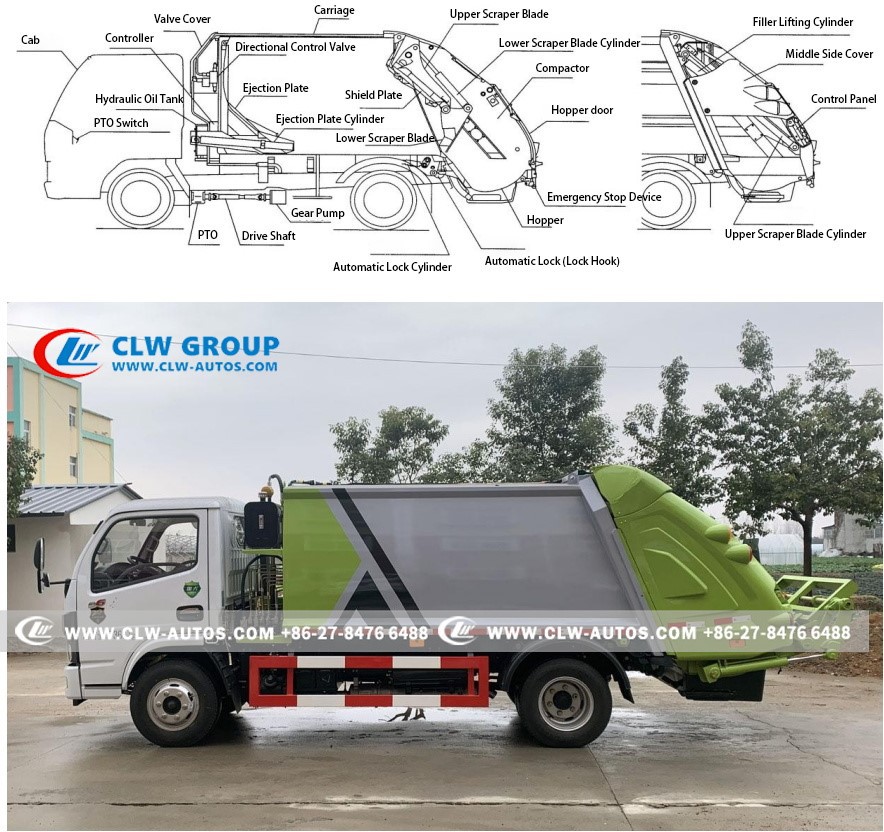

The Compactor Garbage Truck (also known as Garbage Compactor Truck, Refuse Compactor Vehicle, Waste Collection Truck, Trash Compactor Truck, or Dustcart Truck in the UK; Camion à Ordures Compresseur, Camion de Collecte des Déchets Ménagers, or Véhicule de Compactage des Ordures in French) is a specialized vehicle designed for efficient urban waste management. Equipped with a hydraulic system, it compresses garbage to 1/3–1/2 of its original volume, significantly reducing transportation costs and increasing payload capacity.

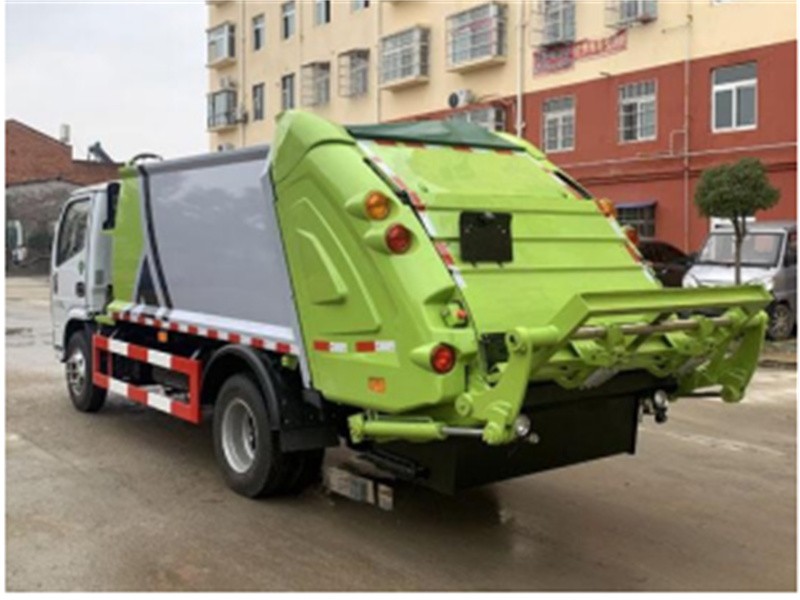

1. Streamlined Side Design & Durable Assembly:

• The truck body features a streamlined side panel design with industry-leading modular and standardized welding processes, ensuring enhanced structural durability.

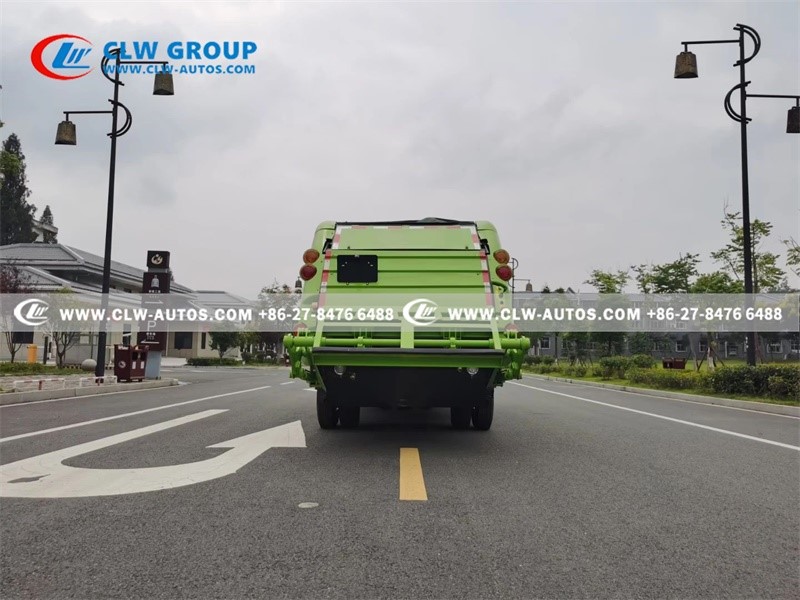

• The fully enclosed rear design provides a sleek, high-end aesthetic.





2. Advanced CAN Electronic Control System & Intelligent Operation:

• Equipped with a state-of-the-art CAN-based electronic control system, the truck offers smart and efficient operation with enhanced stability via high-quality electronic components.

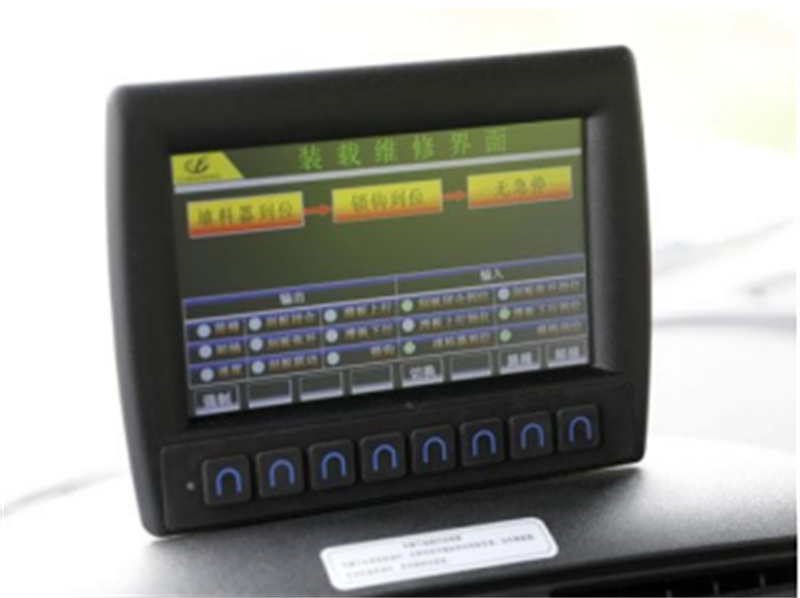

• A high-definition display screen provides real-time system monitoring, while automatic fault diagnostics alert operators to issues instantly, simplifying maintenance.
• The forced operation mode ensures continuity: if a function key fails, alternative keys can activate backup protocols to maintain functionality.



3. Bidirectional Compression Technology & Uniform Loading
(Technologie de Compaction Bidirectionnelle et Chargement Uniforme)

• Chengli's compactor garbage trucks utilize bidirectional compression technology, achieving superior compaction efficiency and a high compression ratio. This design maximizes load capacity within the same cubic volume.
• The curved push-plate mimics the natural filling direction of waste, ensuring even pressure distribution across the container-eliminating dead zones, gaps, or blockages for 100% volume utilization.



4. Robust Push-Plate Guide Rails
(Rails de Guidage Robustes pour le Plateau Pousseur)

• The push-plate slides on dual C-channel guide rails (vs. floor-mounted tracks), offering higher rigidity, superior stability, and zero floor deformation. This ensures smooth push-plate motion, thorough waste discharge, and long-term reliability.



5. Optimized Mid-Pressure Variable Hydraulic System
(Système Hydraulique à Pression Variable et Optimisé)

• Unlike traditional constant-pressure systems, Chengli's mid-pressure variable hydraulic system provides faster dynamic response, lower internal heat loss, and shorter cycle times. Key advantages include:
• High efficiency & low failure rates (reduced downtime).
• Simplified operation with intuitive controls.

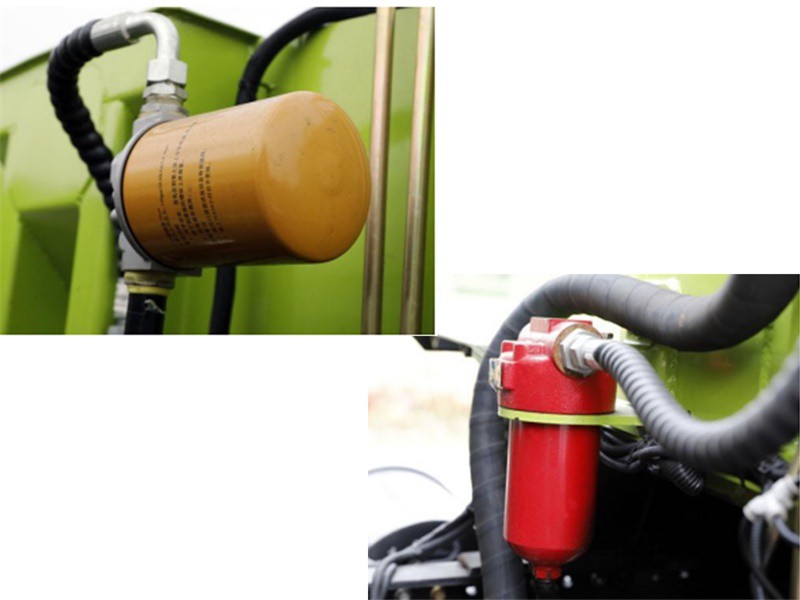

6. Quadruple Hydraulic Oil Filtration (Standard)
(Quadruple Filtration de l'Huile Hydraulique)

• Equipped with 4-stage filtration (high-pressure inlet filter, return leak filter, and dual tank filters), the system eliminates valve jams and ensures stable hydraulic performance. Benefits include:

1. Enhanced Oil Cleanliness: Removes contaminants, reducing component wear and extending equipment lifespan.
2. Reduced Failure Rates: Minimizes hydraulic system malfunctions caused by debris.
3. Improved System Performance: Clean oil ensures faster response times and precision, boosting operational efficiency and cutting maintenance costs.
4. Longer Equipment Lifespan: Regular filter replacement reduces wear, delivering long-term cost savings.







7. Innovative Sewage Management & Leak-Proof Design
(Gestion Innovante des Eaux Usées et Étanchéité Renforcée)

• The custom-shaped sewage conduit prevents leakage by optimizing fluid flow dynamics.
• A unified hopper-sewage tank design and hydraulic auto-locking seals between the container and compactor ensure zero sewage spillage, eliminating secondary pollution risks.



8. High-Performance Sliding System with Durable Polyethylene Guides
(Système de Glissement Haute Performance avec Guides en Polyéthylène Durables)

• The slider plate moves via four sets of imported high-density polyethylene (HDPE) guide blocks, reducing friction and wear compared to conventional steel bearings.
• Unlike domestic plastic alternatives, Chengli's HDPE blocks offer superior durability, requiring minimal maintenance and near-zero replacement under normal use.



9. Nylon-Guided Roller Rails for Smooth Scraping
(Rails à Rouleaux Guidés par Nylon pour un Scrapage Fluide)

• The slider rail rollers incorporate nylon guides, enabling effortless material scraping with reduced mechanical stress.



10. Anti-Backflow Device for Optimal Hopper Space
(Dispositif Anti-Reflux pour un Espace de Chargement Optimisé)

• A baffle plate prevents waste backflow, ensuring sufficient hopper capacity for uninterrupted, high-efficiency loading.

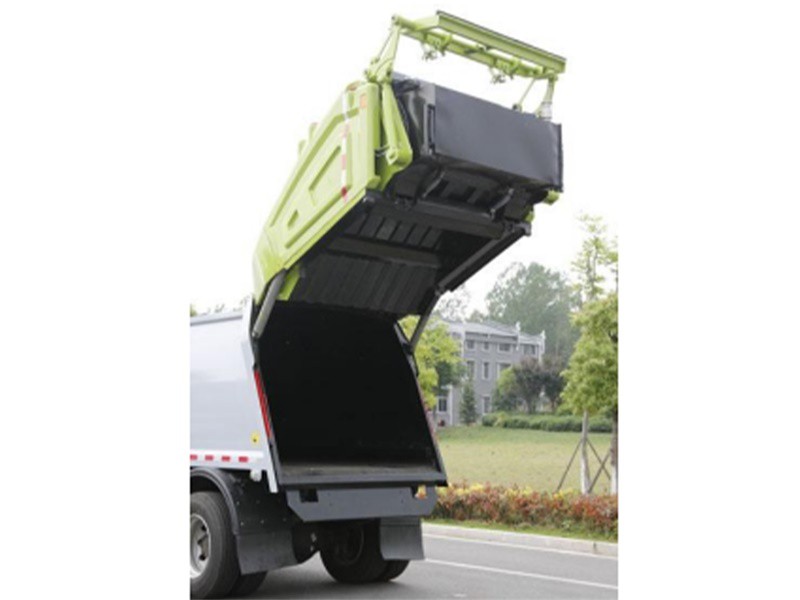

11. 90°+ Compactor Lift Angle & Secondary Scraping for Clean Unloading
(Angle de Levage de >90° et Double Scrapage pour un Déchargement Propre)

• The compactor lifts beyond 90 degrees, enabling a secondary scraping plate to clear residual waste, guaranteeing zero leftovers during unloading.





12. In-Cabin Control System for Seamless Compactor Operation
(Système de Commande Intégré au Poste de Conduite pour un Contrôle Intuitif)

• The in-cabin control panel enables operators to manage compactor lifting/lowering and push-plate waste discharge without leaving the driver's seat, enhancing safety and efficiency.



13. Electronic Throttle Control for Optimal Engine-Pump Synchronization
(Contrôle Electronique de l'Accélérateur pour une Synchronisation Parfaite Moteur-Pompe)

• Equipped with an electronic throttle, the system automatically adjusts engine speed for constant or accelerated hydraulic pump performance, ensuring peak efficiency and reduced fuel consumption.

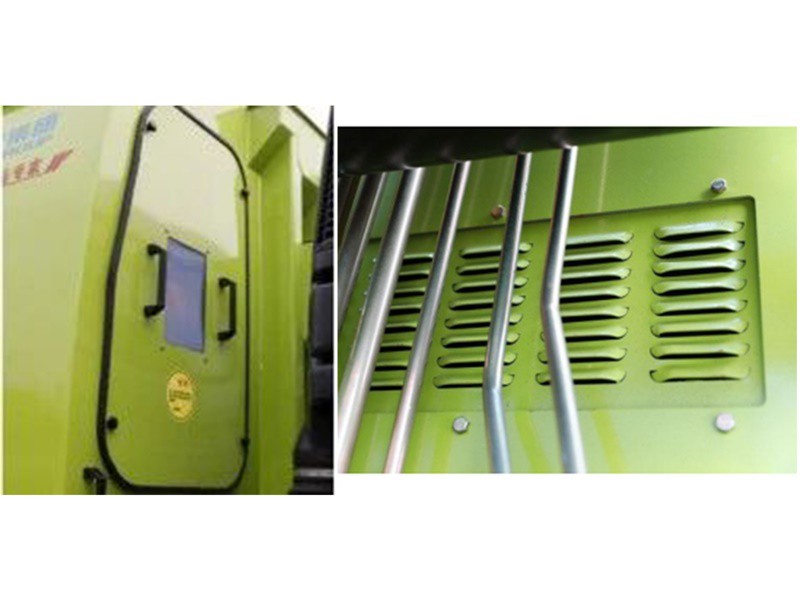

14. Front-Mounted Safety Inspection Window & Ventilation Ports
(Fenêtre d'Inspection de Sécurité et Orifices de Ventilation à l'Avant du Conteneur)

• A front safety inspection window allows easy access for routine checks, while strategically placed ventilation ports eliminate backpressure during waste loading, improving operational smoothness.



15. Dual-Function Single-Pump System for Simultaneous Operations
(Système de Pompe Unique à Double Fonction pour des Opérations Simultanées)

• The single hydraulic pump achieves independent, synchronized control of the bin-lifting mechanism and scraper plate, enabling concurrent operation without interference. This design optimizes cycle efficiency by 30% compared to dual-pump systems.



16. 17-Layer Safety Protection System for Operator Safety
(Système de Protection à 17 Couches pour une Sécurité Maximale)

• The vehicle incorporates 17 safety mechanisms, including:

1. Communication buzzer: Alerts operators during critical operations.
2. Emergency stop button: Instantly halts all hydraulic functions.
3. Anti-entanglement guards: Prevents clothing/limb contact with moving parts.
4. Abnormal pressure relief valves: Protects against overloads.
5. Dedicated compactor lift cylinders: Ensures stable lifting/lowering.
6. Interlock switches: Blocks unauthorized operation.
7. Safety rods: Physical barriers to prevent access to hazardous zones.
8. Compactor lift alarm: Warns when the compactor is in motion.
