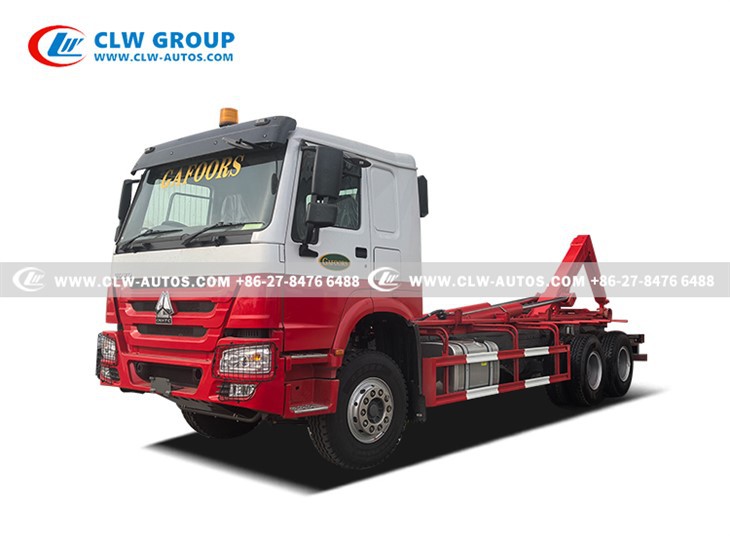

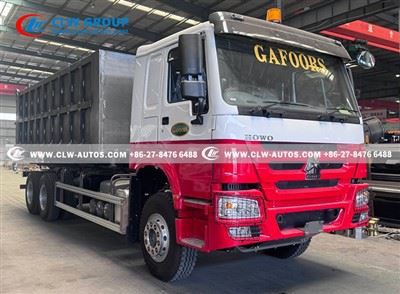

25tons Hook And Dump Truck for Guyana

Brand:Sinotruk HOWO
Driving mode:6x4
Wheelbase:4600+1350mm
Engine:WP12.400E201400hp
Emission standard: Euro 2

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25tons hook and dump truck for guyana in China. If you're going to buy high quality 25tons hook and dump truck for guyana, welcome to get more information from our factory. For price consultation, contact us.

25tons RHD SINOTRUK HOWO Hydraulic Hook Lift

We Are 100% Straight Factory Manufacturer For Hook Lift Truck Since 2004

Products Description

25m3 Capacity: Extra-large load capacity for high-volume waste handling in municipal, industrial, or construction settings.
Advanced Hook Arm System: Heavy-duty lifting mechanism for seamless container swapping and increased operational efficiency.
4600+1350mm Wheelbase: Extended wheelbase enhances stability, load distribution, and safety during heavy-duty operations.
WEICHAI 400HP Diesel Engine: High-performance engine with exceptional torque, fuel efficiency, and reliability for demanding tasks.
HW19710 12-Speed Manual Transmission: Smooth shifting, superior power delivery, and adaptability to steep gradients or rugged terrain.
Reinforced Steel Chassis: Ultra-durable construction to endure extreme loads and prolonged use in harsh environments.

We also provide different brands of Hook lift Garbage Truck, such as Dongfeng, Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.

Products Parameters

Chassis Technical specification
Driving model	6X4
Cabin	Right hand driving; Flat-roof, one row and half; HW76 new face cabin Central control lock; ABS control system
Dimension	920025003400mm
Wheelbase	4600+1360mm
Engine	Brand		WEICHAI engine; WP12.400E201
	Horsepower		400hp
	Emission standard		Euro Ⅱ
	Displacement		11.596L
Front axle loading	9500kg
Rear axle loading	16000kg*2
Ratio speed	4.42
Transmission	HW19710 ; Manual type; 10forward gears and 2 reverse gear
PTO	HW70 Flange power take off
Tires	12.00R20 18PR
Clutch	Ф350
Suspension	Front and rear reinforced multi-leaf springs 10/12
Steering gear	Power steering, hydraulic steering with power assistance
Fuel tank	400L, iron material
Truck Frame	8+8/300
Superstructure
Garbage hopper		Body material		Carbon steel or stainless steel
		Volume		25m3
		Loading capacity		20-25tons
		Thickness		2-4mm
		Standard configuration		With one garbage bin
Dump type		Hydraulic cylinder lifting and self-loading
Dump angle		≥45°
Hydraulic system pressure		≤16Mpa
Standard configuration		With outriggers Wireless remote control operation Lateral locking
Optional device		Hydraulic rear outriggers Rear traction hook Operation in the driver's cabin Integrated operation of hand and flashlight Air conditioning Fire extinguisher
Remarks		Color is optional Customized logo painting as per customer request

product Pictures

01.

Reliability-Focused Design:

12.00R20 tyres provide enhanced traction and puncture resistance for harsh waste collection environments.

400L steel fuel tank supports extended duty cycles, reducing refueling downtime.

02.

Durable Chassis Configuration:

6X4 drive system with a 9.5-ton front axle and 16-ton rear axle guarantees exceptional load-bearing capacity (up to 25+ tons GVW).

Extended wheelbase (4600+1350mm) enhances stability during heavy lifting/tipping operations.

03.

Power & Efficiency:

Equipped with a Weichai WP10H400E62 engine (400 HP, Euro VI compliant), delivering robust torque and fuel efficiency for continuous urban waste operations.

Sinotruk HW19710 manual transmission (10 forward + 2 reverse gears) ensures smooth shifting and adaptability to complex terrains.

04.

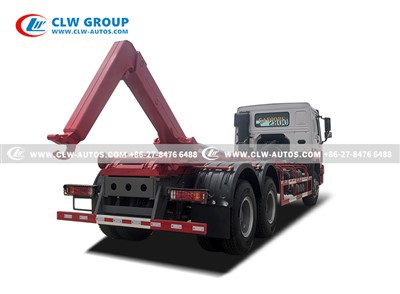

Hook Arm System Advantage:

Modular container handling reduces labor costs and improves operational safety in municipal waste management.

Right-Hand Drive Optimization:

Tailored for Southeast Asia, UK, or Commonwealth markets, offering superior maneuverability in narrow urban/rural roads.

Everything You Need to Know

lt is also called a hook arm garbage truck, waste container handling system, hydraulic hook arm echanism, munipal waste coolection workflow. The product often used for construction and demolition waste management, urban municipal waste collection, recycling centers, industrial zones, etc.

What working scenarios do we need a hook arm lift garbage truck?

Urban Municipal Waste Collection
Construction & Demolition Waste Management
Rural & Remote Area Waste Clearance
Recycling Centers & Industrial Zones
Disaster Relief Operations

What is our technical differentiation comparing to other products?

Smart Hook Arm Safety:

Load sensors trigger automatic shutdown if container weight exceeds 16-ton rear axle limit.

Maintenance Optimization:

Centralized grease nipples on pivot points reduce service time by 30%.

How does a hook arm garbage truck work?

The high-pressure hydraulic cylinders (rated 20-25 MPa) elevate the container to a 45°-60° angle, enabling gravity-fed waste compaction. Optional pre-compaction mechanism (if equipped) reduces load volume by 20-30%, maximizing transport efficiency.

At disposal sites, the hydraulic system tilts the container to 70°-85° for complete waste ejection. The dual rear axles (16-ton capacity) prevent chassis deformation during repeated tipping cycles.

The container loading and transportaton process

Step 1: Position the truck parallel to the waste container (3-30 cubic meters capacity) using the right-hand drive cab for precise urban maneuverability.

Step 2: Activate the hydraulic hook arm system via in-cab controls to securely grip the container's lifting brackets.

Powered by the Weichai 400HP engine and HW19710 10-speed transmission, the truck maintains stable speeds (50-80 km/h) even under 25-ton GVW loads.
