Chengli Group CL5040XZH6BYS Iveco Daily Command Vehicle (China VI Diesel Version)

Jul 05, 2024

Vehicle Parameters & Standard Configuration

Base Model	Iveco Daily Tourys (Diesel, China VI Emission Standard)	Wheelbase	3,300 mm
Exterior Color	Black	Overall Dimensions	5,998 mm × 2,040 mm × 3,250 mm
Gross Vehicle Weight (GVW)	4,200 kg	Approach/Departure Angles	19° / 11°
Occupancy Capacity	2-3 persons	Maximum Speed	130 km/h
Engine Model	F1CE8481K	Displacement	2.998 L
Emission Standard	China VI (GB17691-2018 National VI)	Rated Power	125 kW (170 hp)
Fuel Tank Capacity	100 L	Drive Type	Front-Engine, Rear-Wheel Drive (FR)
Minimum Ground Clearance	175 mm	Minimum Turning Diameter	12.1 m
Transmission	5-speed manual transmission (5 forward gears + 1 reverse gear) (Optional: 8-speed automatic transmission (8AT))	Suspension	Front: MacPherson Strut Independent Suspension Rear: Leaf Spring Non-Independent Suspension
Power Steering	Rack-and-Pinion with Hydraulic Assist	Braking System	Front/Rear: Disc Brakes (Hydraulic)

Vehicle Overview

The command vehicle is a customized modification of the Iveco NJ6606EC coach, designed to provide a spacious, comfortable workspace for operators while meeting technical requirements for system operation and maintenance. It establishes secure, high-speed communication channels (video, audio, data) with command centers via private networks, enabling visualized command for on-site coordination, image acquisition, processing, and transmission. This ensures commanders have real-time visuals and critical information for effective decision-making in emergency scenarios.

Key Equipment & Capabilities

1. Real-Time Monitoring & Communication:

Mobile Policing Video System, broadcasting, lighting/cameras, warning/alarm systems.
Wireless Communication: Rapid networking and remote connectivity.
BeiDou/GPS Positioning: Precision location tracking.
Border Inspection Systems: For specialized operational needs.

2. Onboard Systems:

Wired Communication Devices, large-screen displays, image acquisition/transmission (with mobile policing video integration).
Audio Mixing Equipment, on-site office systems, lighting, and power supply.

3. Surveillance & Recording:

High-Definition, Low-Light Pan-Tilt-Zoom (PTZ) Cameras: For 24/7 multi-angle surveillance.
Vehicle-Mounted DVR: Records video/audio for post-incident review; supports USB/data port connections for real-time backup.

4. Command & Display:

Onboard LCD TVs: Display live feeds for situational awareness, enabling rapid command dispatch and decision-making.

Compliance & Standards

Safety & Dimensions: Adheres to GB7258-2017 (Motor Vehicle Safety Standards), GB1589-2016 (Vehicle Dimensions/Weight Limits), and GB 50054-95 (Low-Voltage Distribution Design).
Fire Command Compliance: Meets GB 50313-2013 (Fire Command System Design Specification).

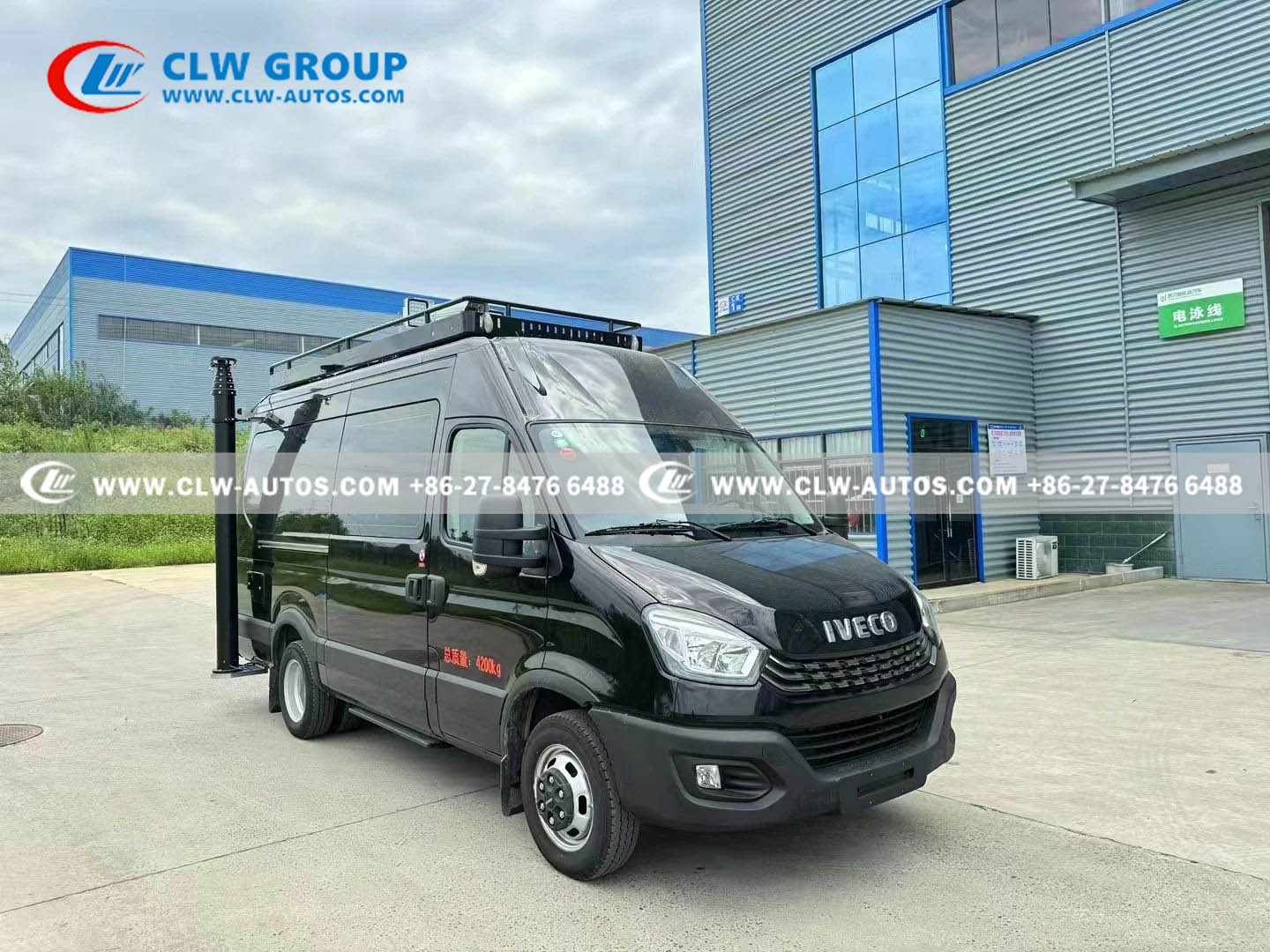

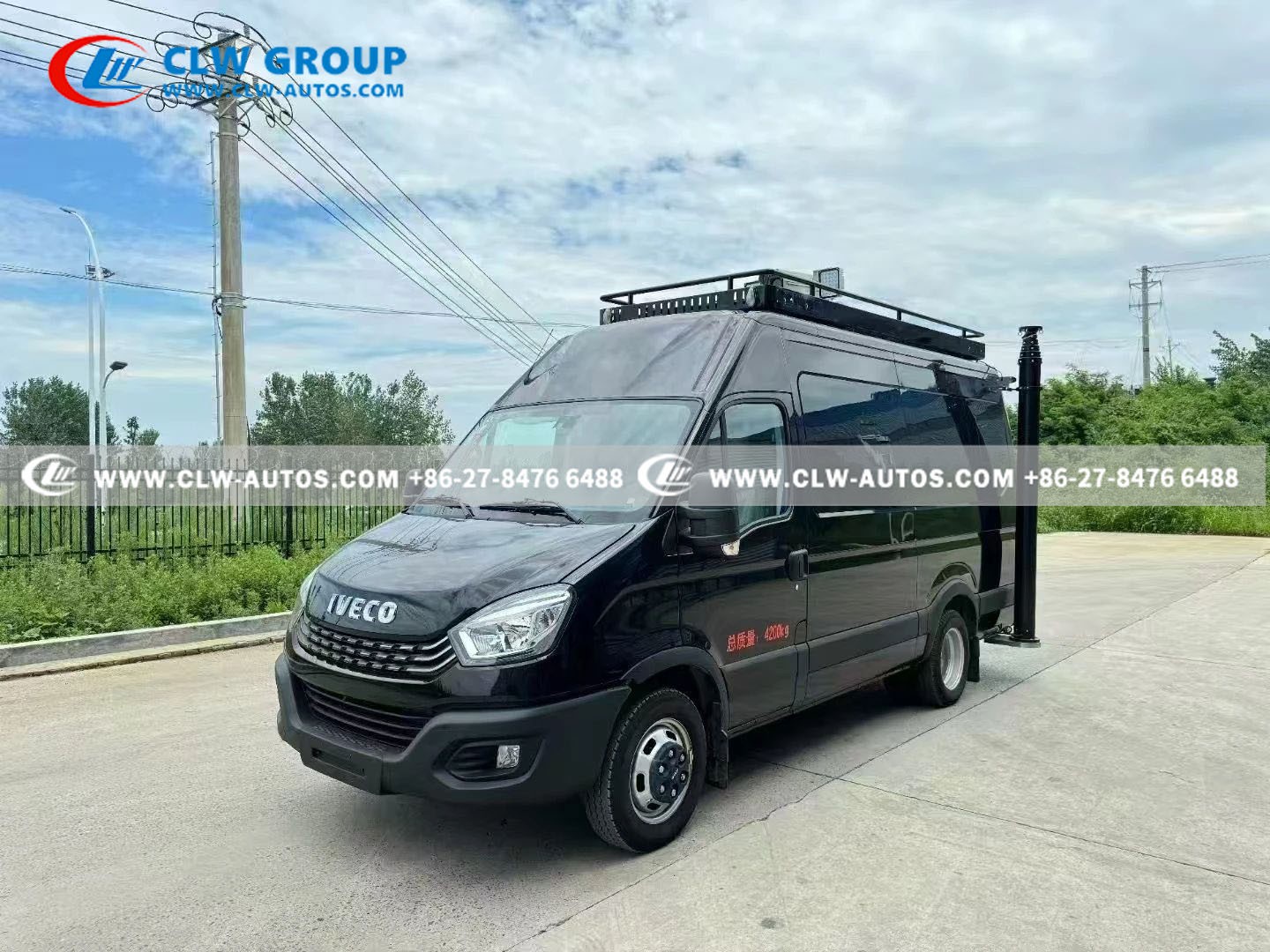

Reference Image

Configuration List

Driver's Seat	Leather upholstery (light gray)	Co-Driver's Seat	180° reversible, light gray leather; converts to a conference chair
Side Bench Seat	1,200 mm length, adjustable backrest (reclines flat), microfiber light gray leather	Foldable Single Seat	Microfiber light gray, with backrest
Operator Seats (2)	Light gray, reclining, swivel, and sliding functionality	Flooring	RV-specific floor leather
Step Decorative Panel	Custom stainless steel with LED light strips	Wheel Arch Cladding	Microfiber soft-pack (rounded corners), light gray

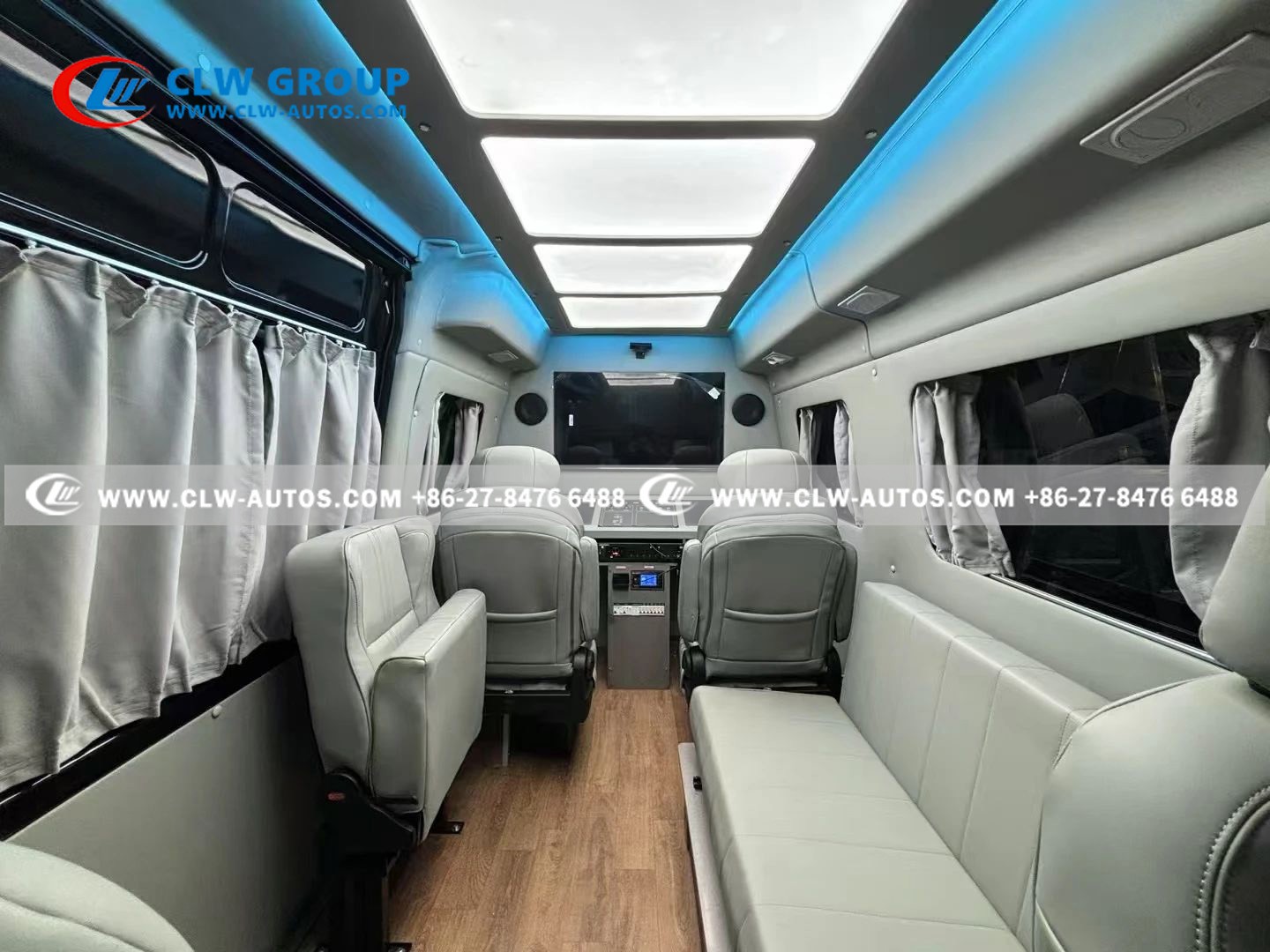

Full-Vehicle Interior	Light gray microfiber soft-pack, ceiling with decorative lighting, side air ducts. Interior height: 1,800 mm. Partition wall, control console, and unified styling	Control Console	Material: Wood veneer (paint-free), LED decorative lighting. Embedded Display: Metal cabinet with soft-pack surface (matching interior color). Inclination Angle: 17° slope, all controls integrated into the panel.

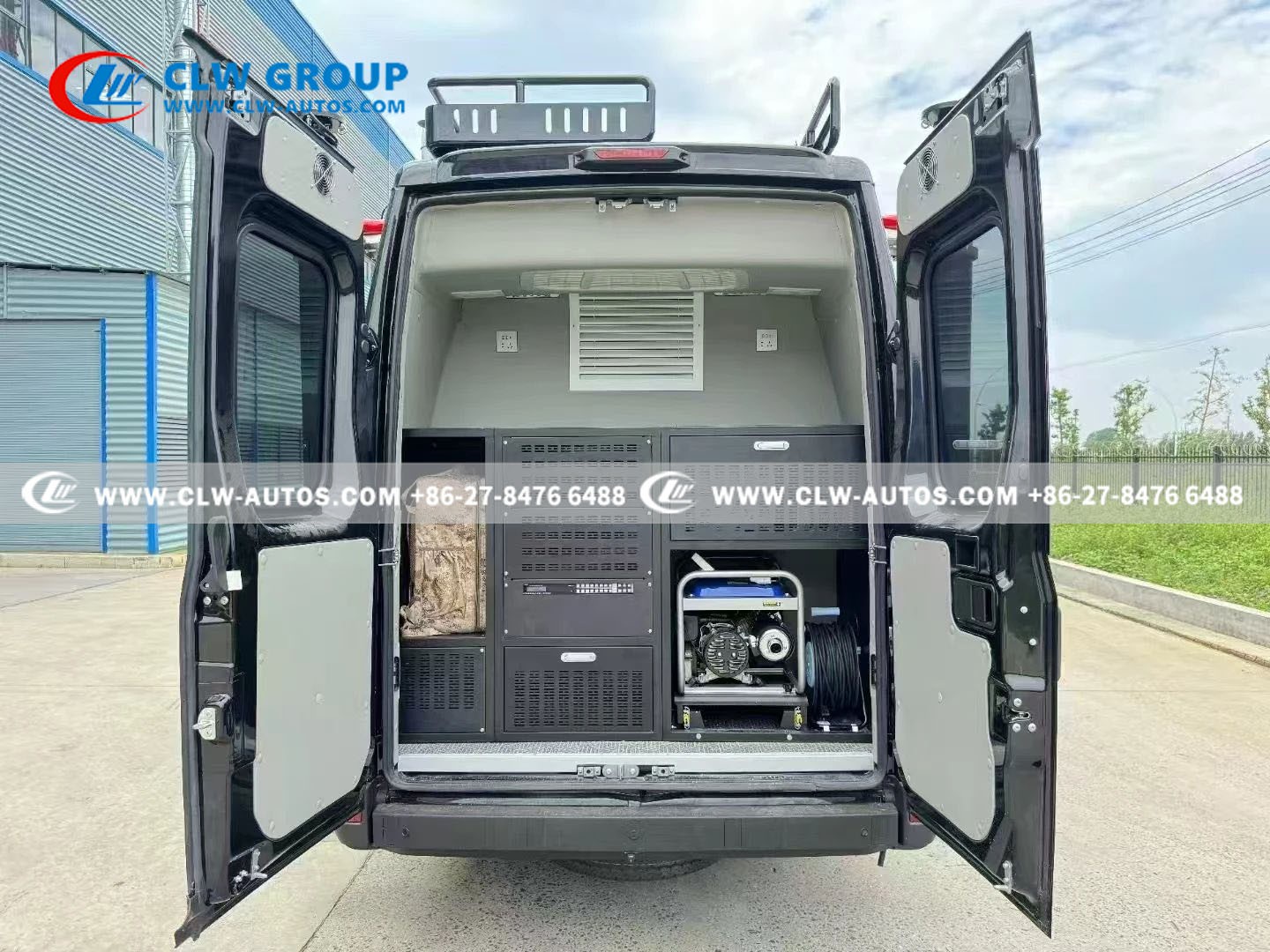

Rear Cabin Equipment Storage	Custom Cabinets: Metal, black-gray painted finish. Generator Bay: Heavy-duty slides, shock-absorbing plates, and straps. Equipment: Generators, ground-tethered boxes, inverters, air pumps, servers, drones. IT Rack: Metal, black-gray painted. Houses NVRs, video switchers, switches, with shock absorption and thermal insulation.	Main Display Partition Wall	Custom Design: Matches interior color
Curtains	Fabric: Light gray, drapery-style	Structural Reinforcement	Interior Base Frame: Leveling, platforms, partitions
External Accessories	External Power Input Door: Custom (rainproof). Roof Platform (Luggage Rack): Stainless steel, ≥1,500 mm × 1,500 mm, painted to match body. Rear Ladder: Aviation aluminum, ≥2,200 mm × 300 mm, painted to match body. Lifting Rod Transition Bracket: Stainless steel. Window Tinting: Black sunshade film. Exterior Color: Black (lifting rods same color as body).	Mains Power Input	50m Cable Reel: 3-core 16A waterproof power supply, 220V input interface (side door).
Vehicle Circuit Control	Switchgear: Changeover switch, leakage protector, indicator lights, battery level display.	Dual-Battery Isolation System	Operating Voltage: DC12V. Connection/Disconnection: Connect: ≥DC13.5V Disconnect: ≤DC12.7V Battery Current: 160A
Battery	Type: 1,200A lithium battery.	Sockets	220V: Six 5-pin panel sockets. USB/Type-C: Four sockets.
Wiring	Full-Vehicle Specialized Harness: Concealed routing.	Auxiliary Electrical Materials	Components: Protective rings, clips, cable ties, tapes, putty, terminals, distribution blocks.
Conference Camera	Type: Compact conference camera.	In-Vehicle Displays	Main Display: 43-inch 4K screen. Console Display: Philips 24-inch 2K screen.
Video Matrix	Configuration: 8-input, 8-output HD decoder, ≥2K resolution, split-screen support.	Network Switch	Model: TP-LINK 24-port full gigabit.
5G Router	Model: Huawei 5G CPE (wireless + wired).	Amplifier & Speaker	Power: ≥150W–300W, supports vehicle speakers and optional roof loudspeakers. Loudspeaker Power: 200W.
Checkpoint Camera	5MP 2/3" CMOS, 25mm focal length. License plate, vehicle type, color, logo, sub-brand, pendant, seatbelt, sun visor recognition.	Camera Strobe Light	Input: 220V, switch signal or high/low level. Flash Power: 80W instantaneous. Range: >20m.
Microphone	Type: Wired omnidirectional, supports remote conferences with the command center.	Auxiliary Interfaces	HDMI/USB: Two each, installed on the console.
Signal Interfaces	HDMI: Input + output. RJ45: Two outputs (side door).	360° Vehicle Surveillance	Resolution: ≥720P/1080P, IP67 rating, auto day/night mode. Coverage: Full perimeter, no dead zones.
Strobe Lights	Type: LED, mounted at roof corners.	Interior Lighting	Ceiling LEDs: Long LED strips.
Roof-Mounted Lifting Light	Type: Rotating, tilting high-mast light for accident scenes/emergencies. Specifications: Lifting Height: 2,500 mm. Rotation: 360° horizontal, ±90° vertical. Speed: 6 r/min. Power: 2 × 120W, ≥22,000 lumens, 6,000K, floodlight, IP66, -35°C to 55°C.	Side Door Electric Step	Installation: Original vehicle electric step retrofit.
Electric Stabilizing Legs	Quantity: 4, electric, wired control, auto-leveling. Features: Leg pads (4), balance display, manual override switch. Single-leg control, no alarms, no interference with clearance.	Safety Grounding System	Terminal: External interface cabin with grounding terminal. Accessories: 5m 25mm² braided copper flat wire, φ16×400mm grounding rod.
Reversing Camera	Resolution: ≥720P/1080P, 120° view, IP67, auto day/night mode, distance markers.	Heating System	Type: Diesel parking heater (uses main fuel tank).

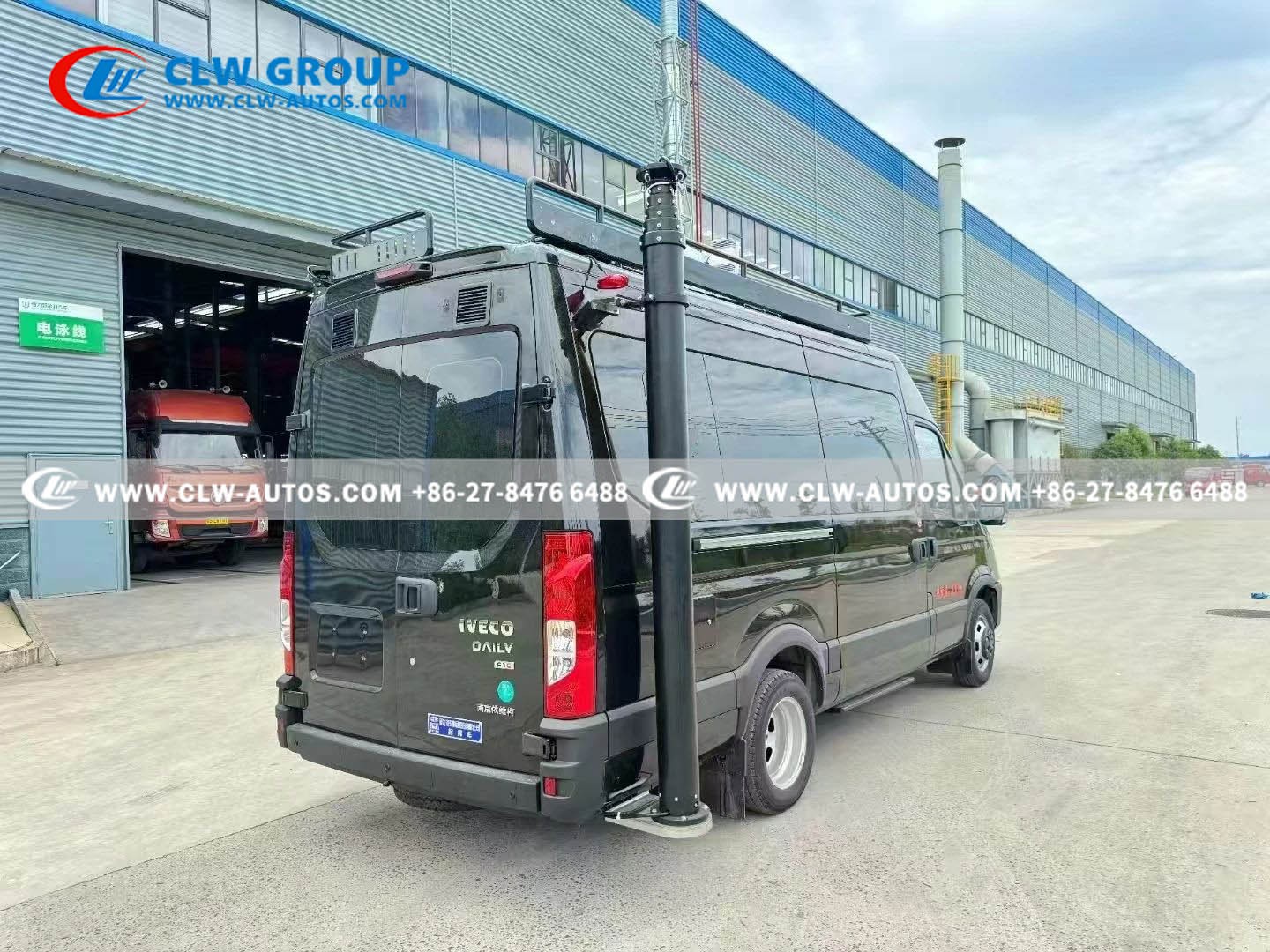

Vehicle-Mounted Lifting Rods	Quantity: 2, ≥10m height, pneumatic drive (DC12V/AC220V). Specifications: Total height: ≥10m, closed height: ≤2.5m. Load capacity: 40kg. Includes air pump and control board (pre-wired).	Ventilation System	Main Cabin: Exhaust fan. Rear Cabin: Exhaust fan.
Miscellaneous Accessories	Items: Specialized adhesives, small hardware, fasteners, seals, trim, brackets.
