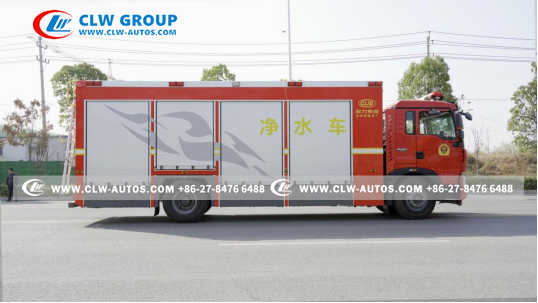

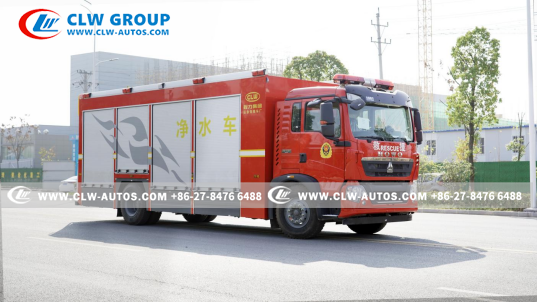

CLW5180XJS6 Water Purification Vehicle: Advanced Mobile Water Supply Solution
Technical Performance Description
Complete Vehicle Technical Specifications
|
Chengliwei | Product Name | Water Purification Vehicle | |||
| Gross Vehicle Mass (GVM) (Kg) | 18,000 |
|
|
|||
|
|
|
9,895 × 2,500 × 3,550 | |||
| Curb Weight (Kg) | 17,805 / 17,870 | Passenger Capacity in Cab | 2 / 3 | |||
| Approach Angle/Departure Angle (°) | 19 / 10 | Axle Load (Kg) | 6,500 / 11,500 | |||
| Front Overhang/Rear Overhang (mm) | 1,430 / 2,865 | Maximum Speed (Km/h) | 101 | |||
Additional Features & Notes:Vehicle Configuration: Non-Openable Roof: The cargo compartment roof is fixed. Equipment: Equipped with a water intake system, purification system, and other related devices for supplying domestic and drinking water. Axle Base: Only available with a 5,600 mm wheelbase. Safety & Protection: Side Protection: Skirt-type structure, material: Q235A steel, ground clearance: 380 mm. Rear Protection: Material: Q235A steel, connection method: welded, cross-sectional dimensions: 100 mm × 120 mm, ground clearance: 430 mm. ABS System: Manufacturer/Model: WABCO (Shanghai) Management Co., Ltd. / 4460046300. Optional Configurations: Cab Selection: The chassis allows for optional cab configurations. |
||||||
Chassis Technical Parameters
| Chassis Model | ZZ5187XXYN711GF1 | Trademark Name | HOWO |
| Number of Axles | 2 | Number of Tires | 6 |
| Wheelbase (mm) | 5,800 | Tire Specifications | 275/80R22.5 18PR, 11R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 11.00R20 18PR, 10.00R20 18PR, 295/60R22.5 18PR |
| Leaf Spring Plates | 11/9+8, 3/9+8, 3/3+2, 2/3+2, 3/-, 2/-, 2/3, 7/7+6, 7/7+3, 3/7+6, 3/7+3, 2/3 | Fuel Type | Diesel |
| Emission Standard | GB17691-2018 (China National VI) | Engine Model | MC07H.35-60 |
| Chassis Name | Van/Box Truck Chassis | Manufacturer | China National Heavy Duty Truck Group Co., Ltd. |
| Front Track (mm) | 1,950 / 2,035 | Rear Track (mm) | 1,848 / 1,860 |
| Engine Manufacturer | CNHTC | Engine Displacement (ml) | 7,360 |
| Engine Power (kW) | 257 |
Other Technical Parameters
| Material Requirements | - Frame: Square Steel (High-Strength Structural Steel) - Body/Casing: Aluminum Alloy Profiles & Alloy Sheet Metal (Lightweight & Corrosion-Resistant) |
Drive Configuration | 4×2 |
| Wading Depth | 500 mm | Turning Radius | 11,000 mm |
| Ground Clearance | 220 mm | Maximum Gradient Climb | 40% |
| Environmental Adaptability | - Altitude: Operational at ≥4,500 m (14,764 ft) above sea level - Temperature Range: -40°C to +45°C (-40°F to +113°F) |
Master Power Switch | - Location: Integrated near the battery compartment - Type: Manual On/Off Control for Emergency Shutdown |
【Cab Structure & Equipment】
1. Cab Structural Design
Frame Construction: Full-steel welded frame structure, flat-nose design, with two original doors and single-row seating.
Hydraulic Tilt Mechanism: Equipped with a hydraulic cylinder tilt mechanism, 45° tilt angle for easy engine access and maintenance.
Safety Locking & Protection: Integrated reliable locking and safety devices to prevent accidental movement during tilting.
2. Seating Configuration
Driver's Seat: Adjustable: Height, tilt angle, and fore-aft position are adjustable for optimal comfort.
Passenger Seat: Mold-Formed Design: Durable, scratch-resistant material for longevity.
Safety Belts: Each passenger position is equipped with a three-point seat belt.
Total Seats: 2 (1 driver + 1 passenger).
3. Parking & Reversing Systems
Rear Parking Assist: Ultrasonic Radar: Alerts the driver of obstacles when reversing.
1080p Rearview Camera: High-definition camera for enhanced visibility.
360° Panoramic Monitoring:
Four Cameras: Mounted at the front, sides, and rear of the vehicle.
7-Inch Color Display: Supports split-screen and single-screen modes, with 32GB storage and 1080p resolution.
4. Alarm & Siren System
In-Cab Alarm & PA System: 100W Power Amplifier: Integrated into the dashboard.
Independent Control Switch: Enables the driver to activate the public address (PA) system.
5. Warning Light System
Roof-Mounted Lightbar: 1.6m Fire Service Lightbar: Installed on the cab roof.
Red-Blue Strobe Lights: Parallel Installation: On both sides and rear of the vehicle, with independent control switches.
Safety & Marker Lights: Clearance Lights: Mounted at the sides and rear.
Side Reflex Reflectors: Enhance visibility in low-light conditions.
Front Fog Lamps: Dual units for improved visibility in foggy weather.
6. Original Equipment
Interior Features: Interior Lighting, Cigarette Lighter, Rearview Mirror, Instrument Panel Lights.
Power Windows, Central Locking, Eco-Friendly R134a Refrigerant AC (Heating/Cooling).
Sun Visors, Blind Spot Mirrors, Windshield Wiper/Washer System.
7. Auxiliary Equipment
Control Panels & Switches: Warning Light Control Box: For managing lightbars and strobes.
Strobe Light Switch, External Lighting Control.
PTO (Power Take-Off) Control Switch & Indicator Light.
Air Circuit Switch, Equipment Compartment Door Warning Light.
【Vehicle-Mounted Radio & Water Tank/Purification System】
1. Vehicle-Mounted Radio
Model: Dual-Mode (Analog/Digital) 350 MHz Transceiver
2. Water Tank Specifications
Capacity:Total: 3,000 kg (3 m³)
Drinking Water: 1,500 kg (1.5 m³)
Domestic Water: 1,500 kg (1.5 m³)
Material:
Tank & Piping: 304 Stainless Steel (Corrosion-Resistant)
Anti-Slosh Baffles: Internal baffles reduce liquid surge during transit.
Manhole Access: 450 mm diameter for maintenance and inspection.
3. Water Purification System
3.1 Pumping Equipment
2.2 KW Submersible Pump, 5 KW Float Pump (Portable)
Intake Distance: ≤80 m, Lift Height: ≤30 m
7.5 KW High-Pressure Pump features: Flow meter, pressure gauge, low-pressure protection.
3.2 Water Source Compatibility
Purifies: Rivers, lakes, and Surface Water Classes I/II/III (GB3838-2002).
3.3 Production Capacity & Standards
Output:
Drinking Water: 3 m³/h, Domestic Water: 6 m³/h
Water Quality:
Complies with GB5749-2006 (National Drinking Water Standard).
Meets Military Wartime Drinking Water Standards (≤90-day consumption).
3.4 Power Supply
12 KW Silent Generator, Noise Level: ≤70 dB(A)
Mains Power Connection: Pre-wired for external municipal power supply.
Dual-Circuit Power System: Ensures uninterrupted power for PLC controls and instrumentation.
3.5 Filtration & Treatment Process
Multi-Stage Filtration:
Multi-Media Filter: Removes sediment and suspended solids.
Activated Carbon Filter: Eliminates chlorine, organic compounds, and odors.
Automatic Water Softener: Reduces hardness (calcium/magnesium ions).
Security Filter (5 μm): Protects downstream RO membranes.
Reverse Osmosis (RO) System:
Recovery Rate: ≥60%
Total Salt Rejection: ≥99%
3.6 Control System
PLC Automation: Real-time monitoring and adjustment of filtration parameters.
Safety Features:
Low-pressure shutdown for pumps.
Automatic backwash for filters.
Emergency stop and fault diagnostics.
Key Advantages
✅ Versatile Water Source Use: Treats diverse water types (freshwater, surface water).
✅ High Efficiency: Dual-use water tanks (drinking/domestic) optimize resource allocation.
✅ Low Maintenance: 304 stainless steel and modular filtration design reduce corrosion and downtime.
✅ Silent & Reliable Power: Generator meets noise regulations and ensures 24/7 operation.
✅ Compliance: Adheres to strict national and military water quality standards.
【Electrical System, Cabin, & Body Specifications】
1. Electrical Distribution & Protection
Distribution Box:
Overvoltage/Overcurrent Protection: For main power and branch circuits.
Earth Leakage Protection: Ensures safety against electrical faults.
Battery:
Type: 12V DC Maintenance-Free Lead-Acid, 100AH.
Charger: AC-to-DC Converter for battery charging.
Lighting:
Interior LED Lights: For cabin and compartment illumination.
Exterior Scene Lights: For outdoor operational areas.
Vehicle Identification Lights:
Clearance Lamps, Side Marker Lamps, Turn Signals, License Plate Lamps.
Cabling:
Power Cables & Portable Cable Reel: For external power connections.
Aviation Plugs:
Waterproof/Dustproof Input Sockets & Plugs: For external power supply.
Surge Protector:
Power Lightning Arrester: Protects against lightning strikes and voltage surges.

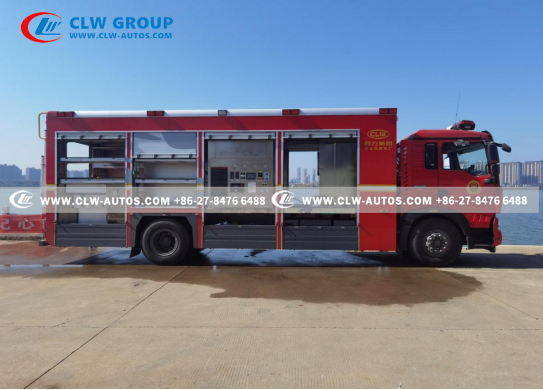

2. Compartment Body
Dimensions:
Length × Width × Height: 7,400 mm × 2,500 mm × 2,900 mm.
Doors:
Left/Right Wing Doors (1 Each) + Rear Tailgate: Equipped with skylights (4 units).
Materials:Steel Frame + Aluminum Cladding:
Outer Skin: 3 mm aluminum alloy plate.
Insulation Core: High-density flame-retardant polyurethane foam.
Frame: Welded steel skeleton with electrophoretic coating for 8-year corrosion resistance.
Rear Door:
Aluminum Frame with Anodized Profiles: Includes observation glass, limiters, and handrails.
Ventilation Skylights:2 Units (Top-Mounted):
Plastic Frame with Plasma Treatment:
Rounded Interior Handles: Deburred edges to prevent injuries.
Push-Out Windows:
Left/Right Sides: Anodized aluminum frames with double-glazed glass.
3. Interior Finishing
Walls & Ceiling:
Waterproof PVC Substrate + 1.5 mm Stainless Steel Panels.
Flooring:
Waterproof Bamboo Flooring + Anti-Slip Aluminum Checker Plate.
Aisle:
Anti-Slip Mat + Floor Drain: For safety and drainage.
4. Automatic Deployment Systems
Wing Door Assist:
Hydraulic Cylinders, Piping, Control Unit: For smooth wing door operation.
Generator Drawer Tray:
Custom-Built with Hydraulic Lift: Includes oil cylinders, piping, control unit, and升降架 (telescopic frame).
Mounted on Skirt: Easy access for maintenance.
5. Safety & Accessibility
Guardrails:
Foldable Stainless Steel Handrails (600 mm Height): On lower flip panels.

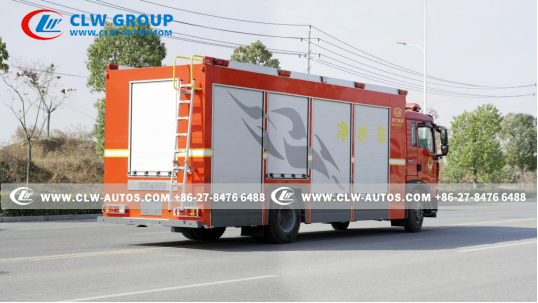

Aluminum Ladders:
Wing Door Ladders: For cabin access.
Rear Telescopic Stainless Steel Ladder: For tailgate access.
6. Electrical System Design
Independent Circuitry:
Dedicated Fuse Box: Permanently labeled for each circuit.
National Standard Copper Cables: Color-coded and numbered for identification.
Cable Protection: Sleeved with 125% rated current capacity and waterproof terminals.
Relay Overload Protection: For all circuit lamps.
Rear Equipment Box Wiring:
Cable Trays & Shock Absorbers: Ensures safety and durability.
Interior LED Lighting:
Strategically Placed: Full compartment coverage.
Exterior Lighting:
4 × 45° LED Side Lights: For outdoor visibility.
Strobe Lights:
Red Strobes (3 m Spacing): Enhances vehicle conspicuity.
Automatic Charging Disconnect:
Chassis-Integrated System: Includes a 30 m cable reel.
Power Outlets:
2 × 250W, 24V-to-220V Inverter Sockets (Waterproof): For radio/lighting charging.
2 × 24V DC, 2 × 12V DC Outlets, 1 × USB Port: All positioned ≥500 mm above cabin floor.
Key Features
✅ Safety First: Overvoltage, overcurrent, and leakage protection ensure electrical reliability.
✅ Modular & Durable: Steel-framed aluminum body withstands harsh environments.
✅ User-Friendly: Automatic deployment systems and ergonomic access points improve operational efficiency.
✅ Energy-Efficient: LED lighting and intelligent power management reduce energy consumption.
✅ Compliant Design: Meets national and military standards for water purification and vehicle safety.
