What is a Heavy Duty Flatbed Wrecker Truck Look Like?

Sep 17, 2021

What is a heavy duty Flatbed Wrecker Truck Look like?

Most people are familiar with the common wrecker tow truc. The flatbed wrecker truck mainly used to transfer road failure vehicles, urban illegal vehicles and emergency rescue.

Nowadays the common flatbed wrecker truck can only load in 3ton to 8ton, flatbed length is can only about 4.5meter to 6.2 meter. These model flatbed can only carry Cars, Van or SUV, for longer vehicle or heavier equipment, the old model are hard to meet the demand.

A large-tonnage flatbed wrecker tow truck have been developed according to market demand, breaking the current market limitation that flat wreckers can only rescue small-tonnage vehicles.

The operating panel of the vehicle is a foldable or ultra-low straight panel. It will minimizes the angle between the flat panel and the ground, effectively avoids the collision between the front suspension and the flat panel. It will protects the rescued vehicle from damage.

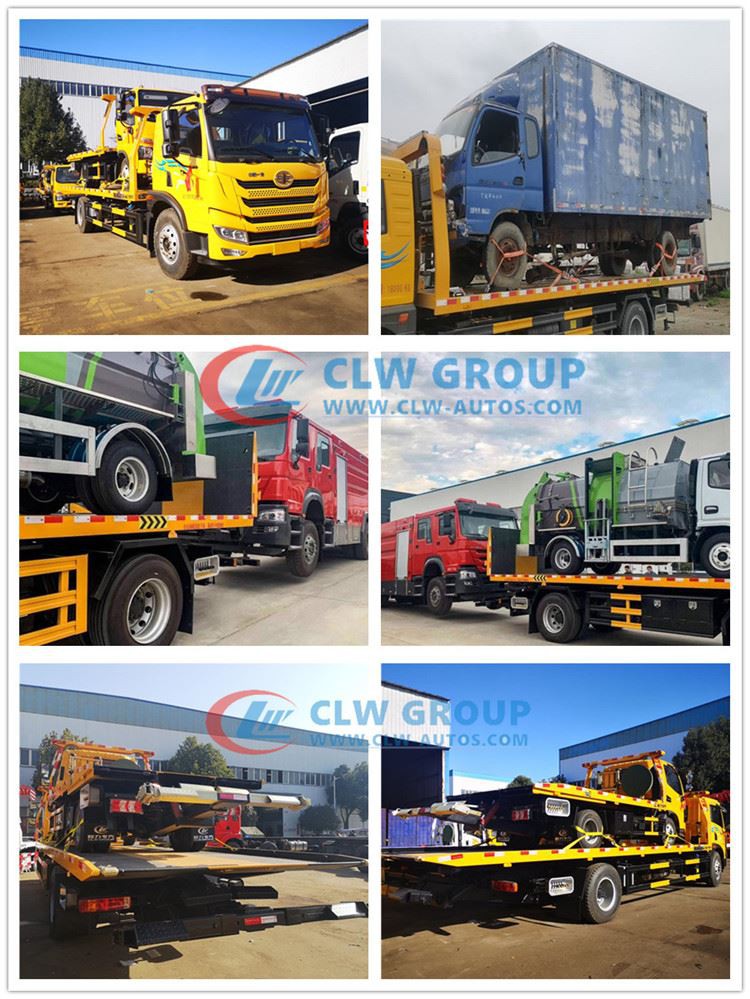

This new heavy duty flatbed wrecker truck widely used in the rescue of various vehicles of about 10 tons, such as tractors, semi-trailers, long wheelbase commercial vehicles, small and medium trucks, small and medium buses, etc. It is a tool for the transportation of scrap tractors and scrapped vehicles.

The new heavy duty flatbed wrecker truck specification are as below.

Ø Flatbed Length: 8200mm Foldable End

Ø Flatbed Width: 2550mm

Ø Loading Weight: 10Ton ~ 15Ton

Ø Under lift Lifting Weight: 10Ton

Ø Wrench in 8Ton ~ 10ton

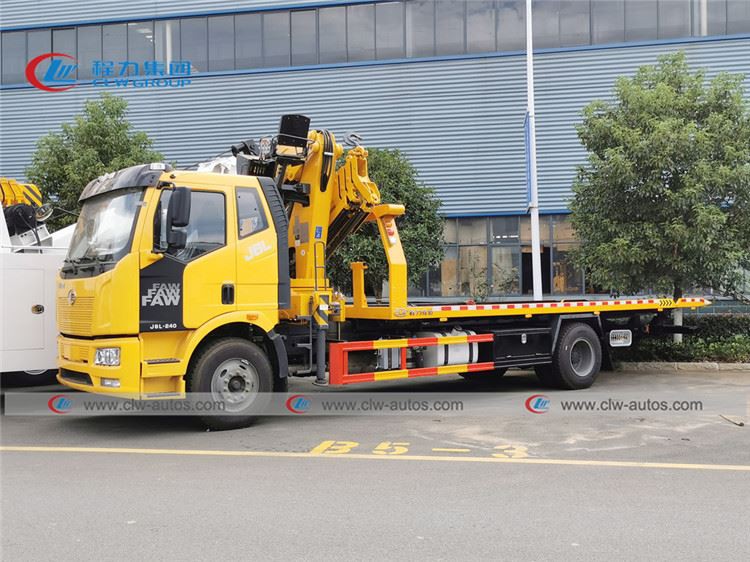

Ø Optional Crane: 6Ton ~ 8Ton

Heavy Duty Flatbed Wrecker Truck Chassis:

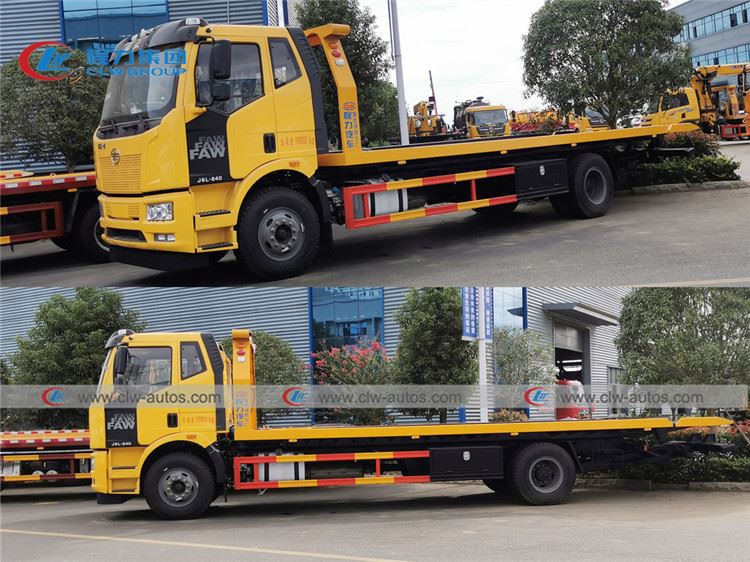

Taking FAW J6L as example

Ø Xichai 210HP Diesel Engine

Ø Gearbox 8 Forward & 1 Reverse

Ø Rear Axle 11.5Ton
