Water Sprinkler Truck Tank Production Process And Process Details

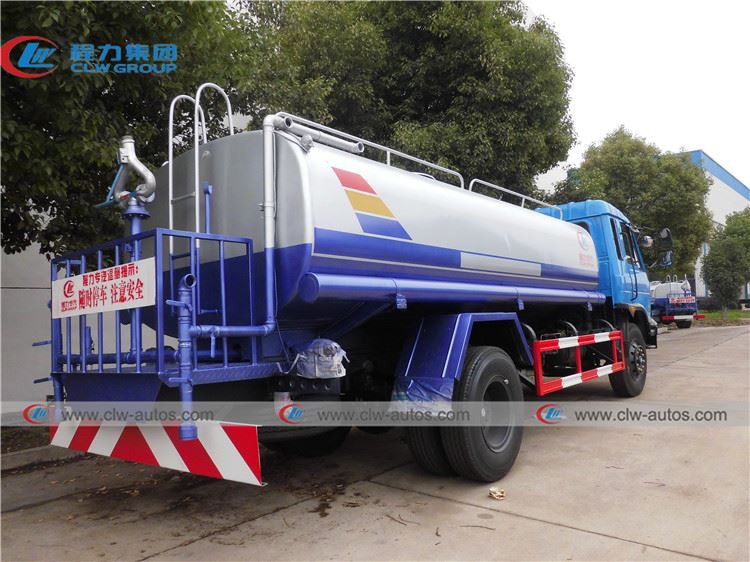

Water sprinkler truck is relatively simple than other special vehicles, the structure is relatively simple, it is installed with water tanks, water pumps, and stroke components on the automotive chassis. Below, I will take you to learn about the production process of the sprinkler tank. The production process and process of water tanks can generally be divided into the following five steps:

       1) The water tank material is rotated once by large roll board machine.

       At present, the market is more commonly used in the market, generally taking carbon steel or stainless steel, and a large roll plate is used once. Regarding the thickness of the water tank, the water tank of 6 cubic or less standard is 4mm, and the water tank of 6 cubic or more is 5mm, 20 cubic, 20 cubic, the water tank is 4 mm. In addition, in the selection of materials, it is generally corresponding to the user's demand. Water tanks made of stainless steel materials, generally mainly used to transport drinking water or food level liquid. It has many advantages such as high safety, anti-corrosion, rust rust.

       2) Water tank welding process

       Water tanks are generally welded by gas protection welding. The length of the tank is welded to ensure the strength of the tank. The tank should be treated overall shot blast processes to eliminate weld stress and overall rust. Cheng Li  adopts an advanced seamless welding process, which can not only help eliminate welds between the molds, but also improve the accuracy, finish and visibility of the part. At the same time, seamless welding processes have implemented efficient control during injection molding, and shorten the production cycle of the mold. Since the product produced by the seamless welding process has a good surface finish, there is no need for the second spraying and annealing to avoid the dimensional changes caused by the secondary contraction.

       3) Water tank shape and front and rear head

       Two kinds of water tanks with square tanks and elliptical tanks. In the case where the length of the tank and the length of the long and short axis are not super, the ellipse coefficient of the head can effectively increase the volume of the tank. The sealing of the tank was used for the plasma CNC cutting machine, and then the imitation rotating machine was rotated once, to increase the strength of the tank, and the artificial tap flipped.

       4) Water tank in the body painting process

       The water tank is sprayed, and the tank body must pass the strict cleansing, after it is clean, the primer and the topcoat are sprayed twice, then dry, preventing the tank from cavitation during transportation. Some small manufacturers are generally painted with artificial painting in the absence of equipment craftsmanship, and the efficiency is high. Moreover, the tank of the artificial paint process is low, and the tank body has no shiny, and the paint on the water tank begins to fall off after 2-3 years, and the environmental pollution is also relatively large.

       5) Water tanks outside painting and drying

       The water tank produced by our company is pulled into the paint room through the automatic robot, automatically painting, and automatically dried integrated. This automatic paint baking water after spraying tank, paint adhesion is uniform, high adhesion, spraying tank gloss is high, and this process spray tank 6-8 years of paint will not fall off, and the tank life is much longer.
