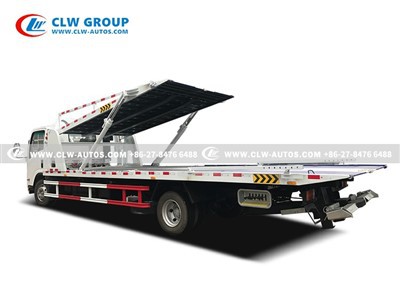

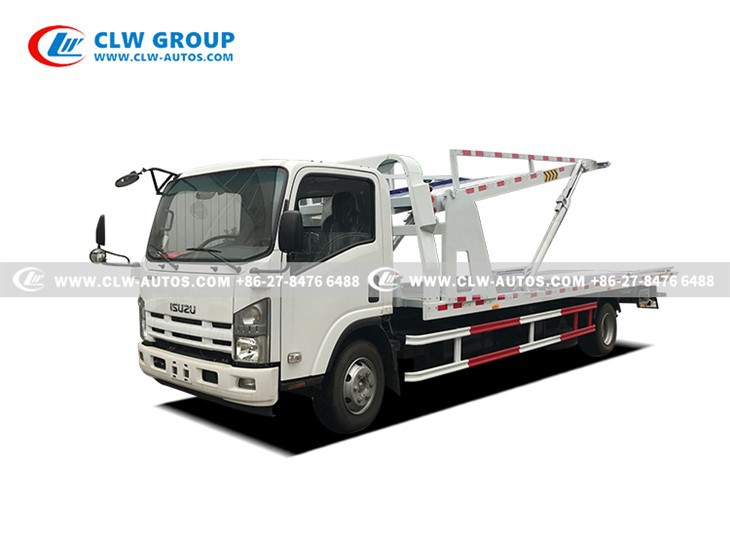

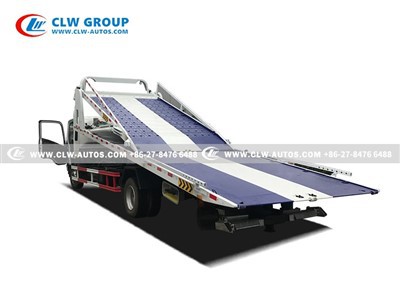

ISUZU 4x2 Flatbed Tow Car Carrier Truck For 3 Cars
ISUZU 700P truck chassis. Load 2 cars, Towing 1 cars, Total: 3 cars.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4x2 flatbed tow car carrier truck for 3 cars in China. If you're going to buy high quality isuzu 4x2 flatbed tow car carrier truck for 3 cars, welcome to get more information from our factory. For price consultation, contact us.
Products Description
ISUZU flatbed Tow Breakdown Car Carrier Truck Chassis:
- ISUZU 700P Truck Chassis.
- Wheel Base: 5200mm.
- ISUZU engine, 190HP. EURO-5, or EURO-6.
- Left Hand Drive.
ISUZU Rollback flatbed Tow Abandoned Car Carrier Truck Upper Equipment:
- First flatbed floor: 7000*2400mm.
- Second flatbed floor: 4600*2110mm.
- Under-Lifting Arm: 3.5Tons.
- Winch Capacity: 5Tons.
- It can load two cars, and tow one car.
Envelope: helen@clw-autos.com
Address: Chengli Automobile Industry Park,Suizhou, Hubei, China
Whatsapp: +86 135 5419 5719
Wechat: +86 135 5419 5719
Parameters for ISUZU Rollback flatbed Tow Abandoned Car Carrier Wrecker Truck:
|
ISUZU General Technical Parameters |
|||
|
Overall Dimension |
9200x2500x2950 (mm) |
||
|
Gross Vehicle Weight |
11695kg |
||
|
Curb Weight |
5695kg |
||
|
Chassis Specification |
|||
|
Chassis Parameters |
Chassis Brand |
ISUZU 700P |
|
|
Cabin |
3 persons, Left Hand Drive,Single Row and a half with a sleeper, with air conditioner |
||
|
Engine |
Engine Brand |
ISUZU brand |
|
|
Model |
4HK1-TC51, 4 Cylinders |
||
|
Power |
140KW/190HP |
||
|
Emission Standard |
EURO V |
||
|
Displacement |
5190ml |
||
|
Fuel Type |
Diesel |
||
|
Gearbox |
MLD, Manual, 6 Forward & 1 Reverse Gear |
||
|
Front and Rear Axle Load |
4T/7T |
||
|
Wheel Base |
5200(mm) |
||
|
Overhang( Front/Rear) |
1110/2602(mm) |
||
|
Wheel track (front/rear) (mm) |
1680/1650 |
||
|
Angle(Approach/departure) |
17/11(°) |
||
|
Brake System |
Air Brake |
||
|
Steering Gear |
Power Assistant |
||
|
Tire |
235/75R17.5, 6 pieces+1 spare tire |
||
|
Maximum Speed |
95(km/h) |
||
|
Fuel tank |
125L |
||
|
Superstructure |
|||
|
First Flatbed Platform |
Dimensions |
7000x2400 (mm) |
|
|
Max. Loading Weight |
4000(kg) |
||
|
Operating Stroke |
3700 (mm) |
||
|
Min. Angle of Slope |
8(°) |
||
|
Platform Height from the Ground |
1070(mm) |
||
|
Second Flatbed Platform |
Dimensions |
4600x2110 (mm) |
|
|
Max. Loading Weight |
2000(kg) |
||
|
Winch |
Quantity |
1pc |
|
|
Winch Rating Pulling Capacity |
5000 (kg) |
||
|
Length of Steel Cable |
25 (m) |
||
|
Underlift system |
Rating Under-Pulling Capacity |
3500 (kg) |
|
|
Fully Extended Max Under-Hoisting Capacity |
1600 (kg) |
||
|
Max Under-Hoist Useful Length |
1240 (mm) |
||
|
Remarks |
1. Equipped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation |
||

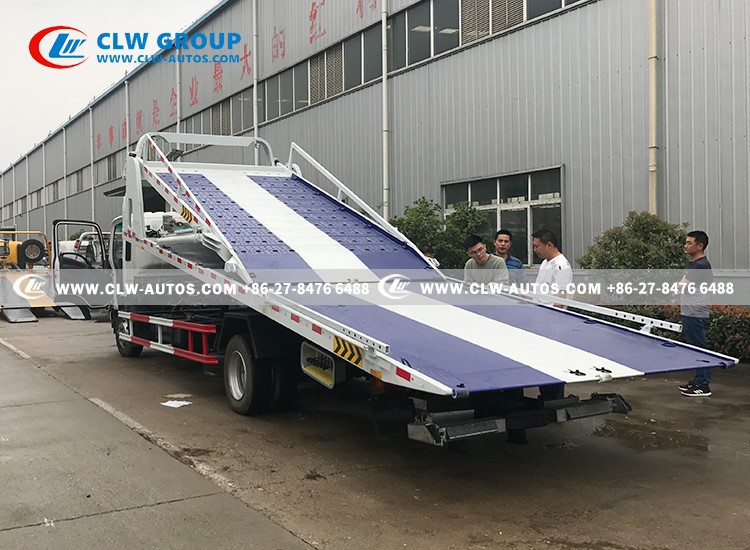

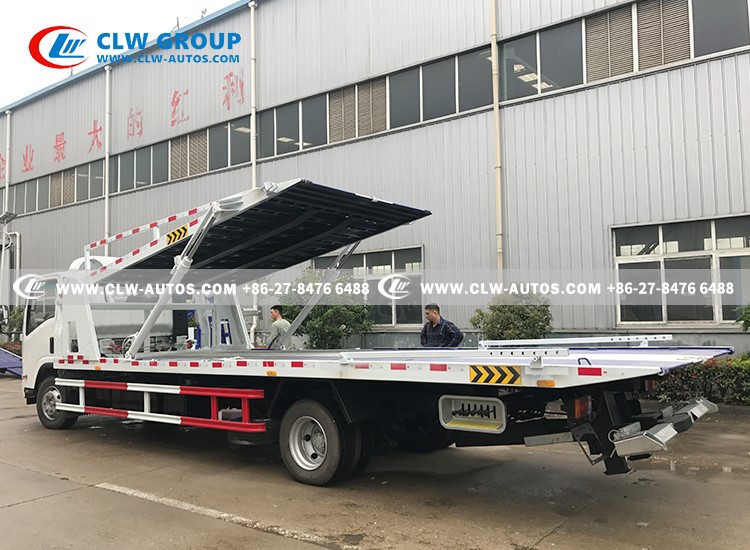

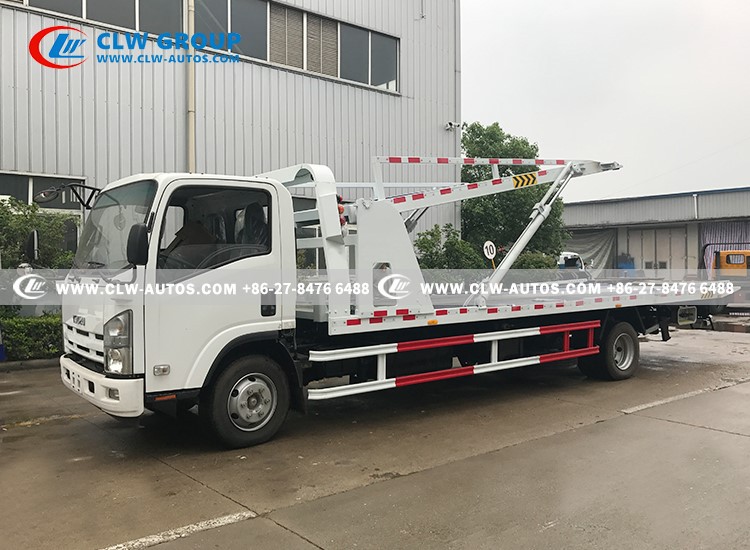

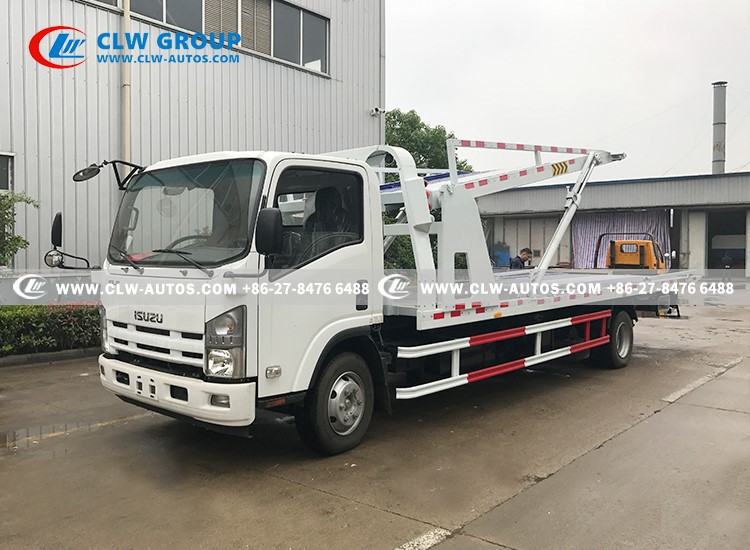

More pictures for reference:
