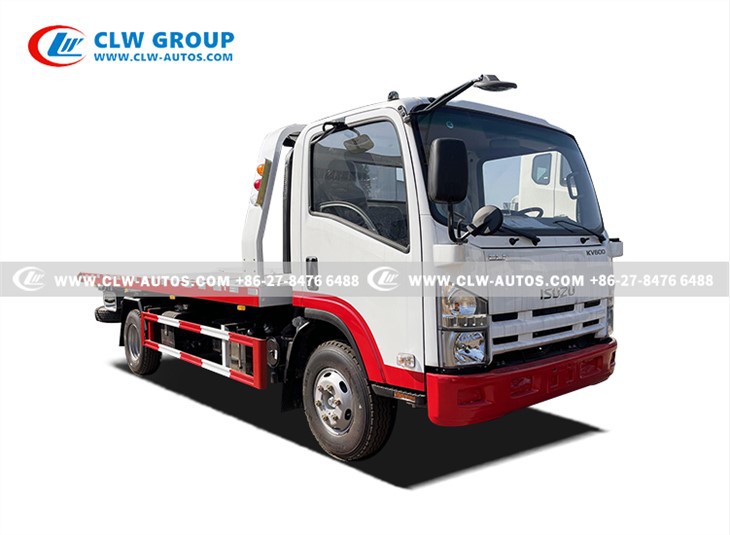

ISUZU 4x2 130HP 5 Tons Flat Bed Tow Truck for Accident Car Carrier
ISUZU 600P 6 Wheels 5Tons Capacity Flatbed Tow Truck for breakdown cars
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4x2 130hp 5 tons flat bed tow truck for accident car carrier in China. If you're going to buy high quality isuzu 4x2 130hp 5 tons flat bed tow truck for accident car carrier, welcome to get more information from our factory. For price consultation, contact us.
Products Description
Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck, towing wrecker truck,
road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Parameters for ISUZU 4x2 130HP 4 Tons Flat Bed Tow Truck:
1. Truck Chassis:
|
Chassis parameters |
|||||
|
Chassis model |
QL1100A8MHY |
Chassis brand |
ISUZU |
||
|
Overall dimensions |
7250X2170X2450mm |
Wheel base |
3800mm |
||
|
Front/rear wheel track |
1680/1650mm |
Front/rear suspension |
1110/2345mm |
||
|
Approach/departure angle |
21/11° |
Maximum speed |
110km/h |
||
|
Chassis Manufacturer |
QingLing Motors (Group) Co., Ltd. |
||||
|
Cab |
Configuration |
600P, single row, allowable 3 passengers, air conditioner, USB radio interface, cab can be flipped. |
|||
|
Color |
White,other color is optional |
||||
|
Engine |
Model |
4KH1CN5HS | |||
|
Emission |
Euro 5 |
||||
|
Type |
4 cylinders, 4 valve, 4-stroke, in-line,common rail, precision electronic control, multistage injection, optimal combustion, exhaust gas recirculation, diesel engine. |
||||
|
Rated power |
130hp |
||||
|
Displacement |
3000ml |
||||
|
Manufacturer |
Isuzu Engine (Chongqing) Co., Ltd. |
||||
|
Tire |
Size |
7.00R16 | |||
|
Number |
6+1 nos |
||||
|
Frame |
216X70(6+3)mm |
||||
|
Front axle |
2.5 tons |
||||
|
Rear axle |
4.8 tons |
||||
|
Drive form |
4X2 |
||||
|
Suspension |
Multi leaf springs |
||||
|
Rated voltage |
24V,DC |
||||
|
Transmissions |
Isuzu MLD six speed transmission, 6 speed forward 1 reverse. |
||||
|
Steering device |
Power assisted steering |
||||
|
Steering wheel |
Left hand drive |
||||
|
Selective configuration |
|
||||
|
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
|||||
2. Parameters for Flat bed Towing Equipment:
|
Wrecker structure parameters |
|
|
Equipment |
2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp. |
|
Flat-bed dimensions |
5800*2300mm |
|
Flat-bed Max capacity |
4000kg |
|
Max under-hoisting capacity |
1800kg |
|
Winch numbers |
1 unit |
|
Max towing capacity of winch |
5000kg |
|
Max towing speed |
40km/h |
|
Length of steel wire rope |
20m |
|
Speed of steel wire rope |
8 m/min |

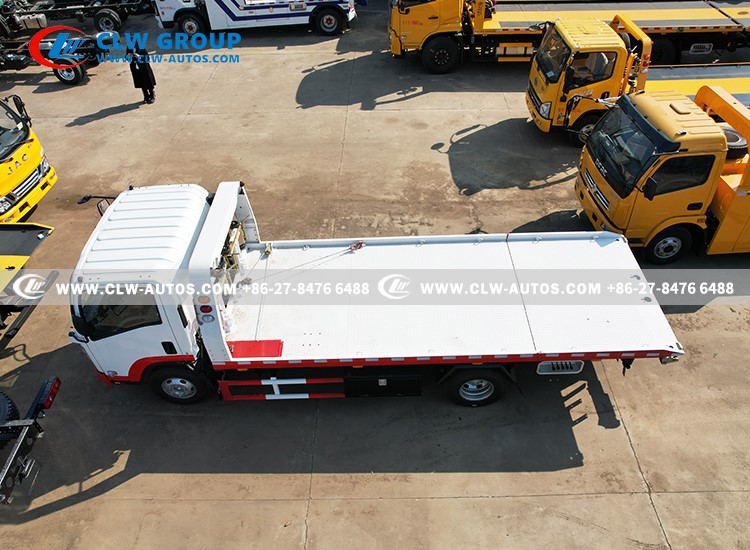

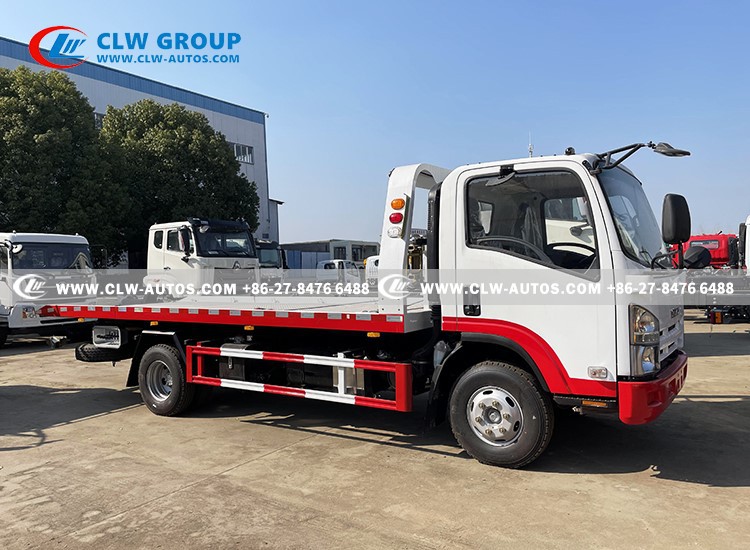

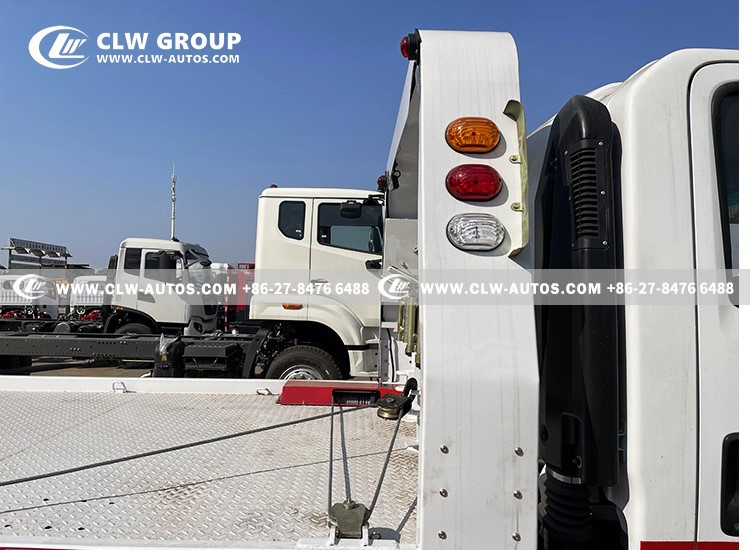

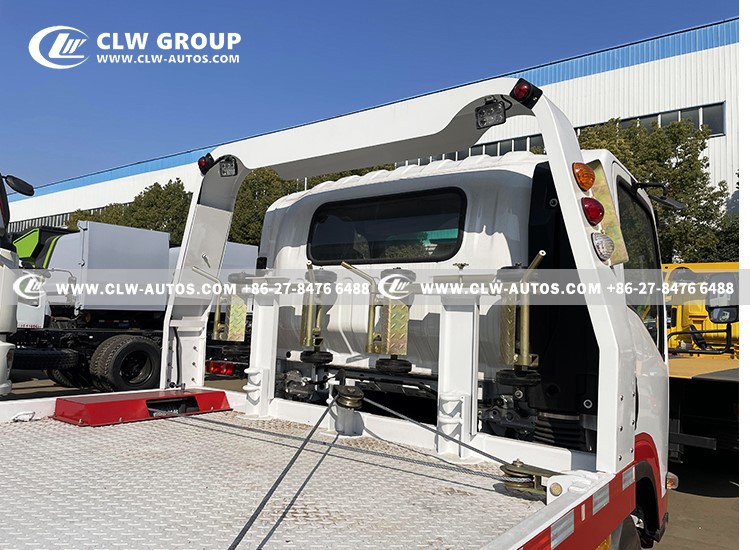

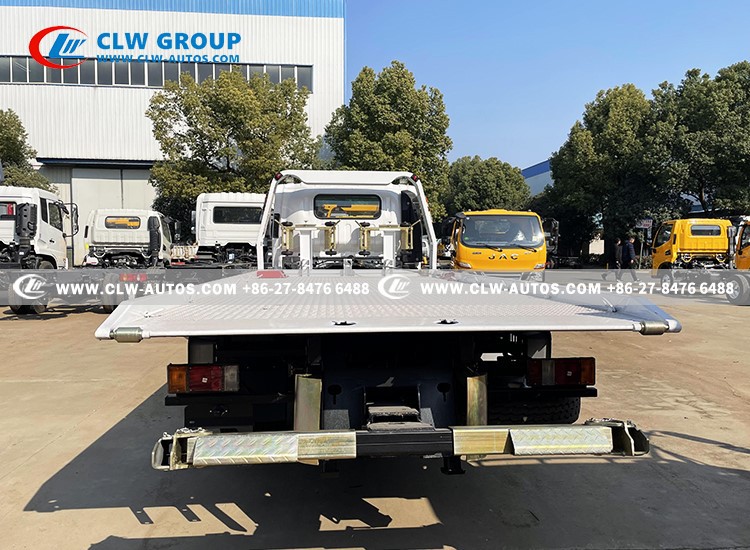

More detailed pictures for ISUZU 4x2 130HP 5 Tons Flat Bed Tow Truck:
