Sinotruk 6x6 16Ton Crane Truck

Engine Power:371HP
Platform Length:8.5m
Platform Width:2.55m
Flatbed Capacity:15~20Ton
With 16Ton Folding Boom Crane
Transport 20FT Container

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 6x6 16ton crane truck in China. If you're going to buy high quality sinotruk 6x6 16ton crane truck, welcome to get more information from our factory. For price consultation, contact us.





Sinotruk HOWO 6X6 Off-Road Flatbed Truck With XCMG 16Ton Folding Boom Crane



Primary Functions of Flatbed Truck With Crane



1. Integrated Transport and Lifting



  • The flatbed provides cargo space for transporting construction machinery, building materials, or equipment, while the folding boom crane enables on-site lifting operations, reducing equipment deployment time and improving efficiency.
  • Typical applications: Construction material handling, equipment installation, emergency rescue, logistics loading/unloading, etc.



2. All-Terrain Capability



  • The all-wheel drive (AWD) design enhances off-road performance, making it suitable for harsh conditions such as mud, mountainous areas, or snowy terrain, ensuring stability in unpaved or rugged environments.



3. Flexible Operation



  • The XCMG 16-ton folding boom crane features a compact folding arm structure, occupying minimal space while allowing multi-angle extension, making it ideal for precise lifting in confined or complex workspaces.



Core Advantages



1. Power and Load-Bearing Performance



  • 371 HP Engine: Delivers strong power, suitable for heavy-load climbing or long-distance transportation needs.
  • High-Capacity Chassis: The HOWO chassis is renowned for its durability, combined with an all-wheel drive (AWD) system to balance load capacity and off-road performance.



2. Efficiency and Time-Saving



  • The self-loading and unloading functionality reduces reliance on additional lifting equipment, lowers labor costs, and accelerates project progress.



3. XCMG Crane Technology Advantages



  • 16-Ton Folding Boom Crane: Features a stable hydraulic system and precise operation; the folding boom design expands the working range (e.g., lifting over obstacles).
  • Optional 360° rotation function enhances flexibility.



4. Reliability of AWD System



  • All-wheel drive ensures more balanced torque distribution, preventing slippage, making it particularly suitable for challenging environments like mines and construction sites.



5. Cost-Effectiveness



  • The multi-purpose design reduces equipment procurement costs, while HOWO's proven chassis technology minimizes maintenance expenses.

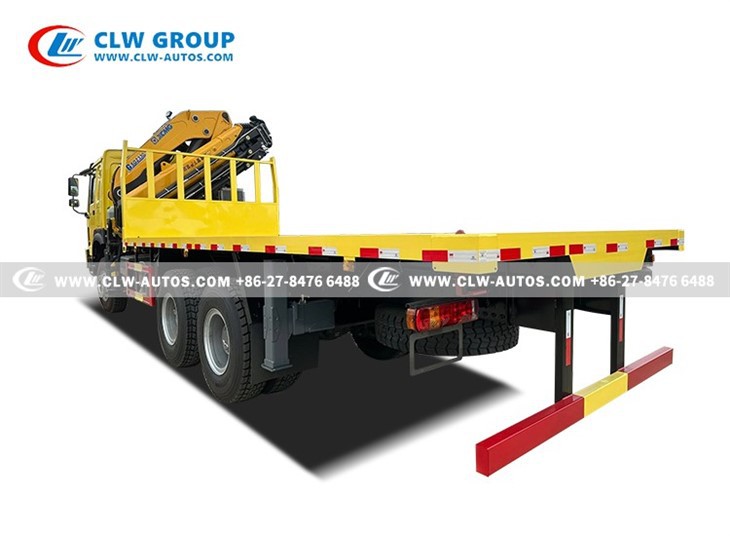

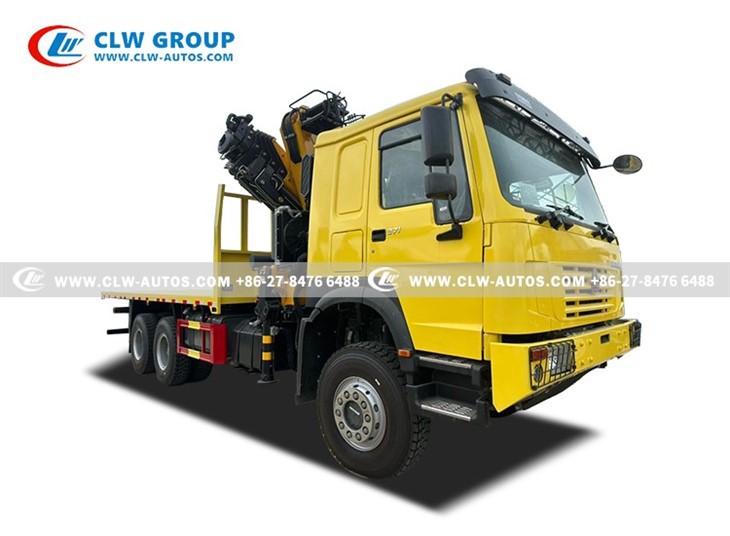

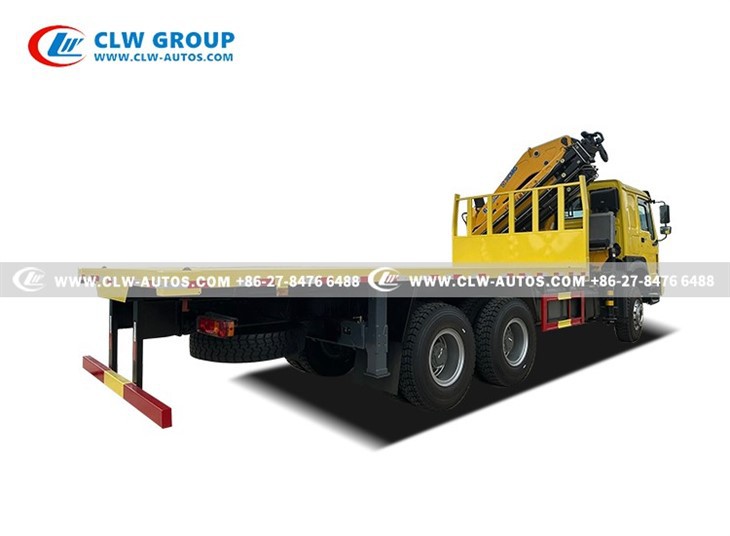

Products Pictures

516Ton Crane Flatbed Tow Truck
7folding boom crane flatbed tow truck
10howo flatbed tow truck with 16ton crane
9howo flatbed tow truck with crane
11howo flatbed tow truck with 16ton folding boom crane
8crane flatbed tow truck

Products Specification



Sinotruk Flatbed Tow Truck With Crane

Chassis Specification

Chassis Model

ZZ225

Driving Model

6X6

Dimension

12200×2500×3950 mm

Cab

  • Original Sinotruk HW cabin
  • Single Row
  • Left Hand Driving
  • With air conditioner
  • Central lock
  • Steer Assistance
  • Electric Window

Overall Weight

25000 kg

Net Weight

21550 kg

Wheelbase

5800+1350 mm

Axle No. 3

Axle Loading (front / rear)

6500 / 16000 x 2 kg

Engine

Sinotruk, diesel engine

6 cylinders in a line,

Water cooled, turbocharged, after cooled, cold start.

Model: WD615.47

Horse power: 371 HP

Displacement: 9726 ml

Emission standard: Euro 2

Transmission

Manual type, 10 Forward & 2 Reverse

Tire

12.00R20

10 Pcs with one spare tire

Upper Parameters

Flatbed

Ground Clearance: 1200 mm

Flatbed Plate Size(length*width): 8500x2550 mm

Min. Tilt Angle: 8°

Moving Range: 3760 mm

Max. Loading Capacity: 16000 kg

Thickness: 8mm

Crane Parameters

Model

XCMG - MSQZ330

Working Platform

360°turning (left or right), H-shape legs 360°

Extendable Boom Section

1 main boom + 4 extendable boom

Crane Type

Folding Boom Crane

Max. Lifting Capacity

Effectively: 16000 kg at 2.05 meters

Max. Working Radius

12 meters

Max. Lifting Height

19 meters

Max. Lifting Moment

338 T.m

Max. Oil Flow of Hydraulic System

63 L/min

Max. Pressure of Hydraulic System

31 Mpa

Crane Weight

4775 kg

Landing Leg

4 Pcs hydraulic handing leg

1
