In the critical world of emergency medical services, your transport vehicle is more than just a van-it is a mobile life-support unit. The Ford V363 Ambulance – Your Trusted Partner in Emergency Medical Response

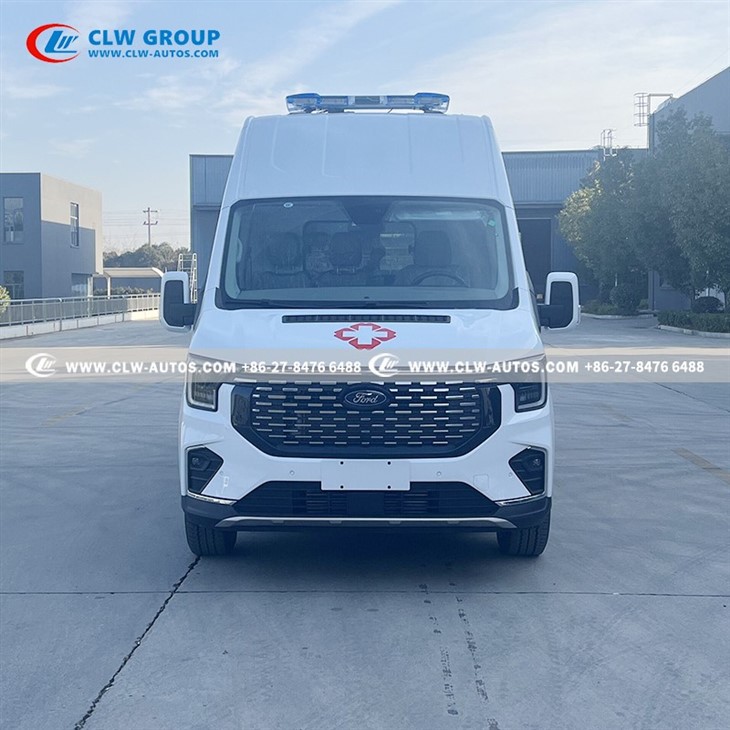

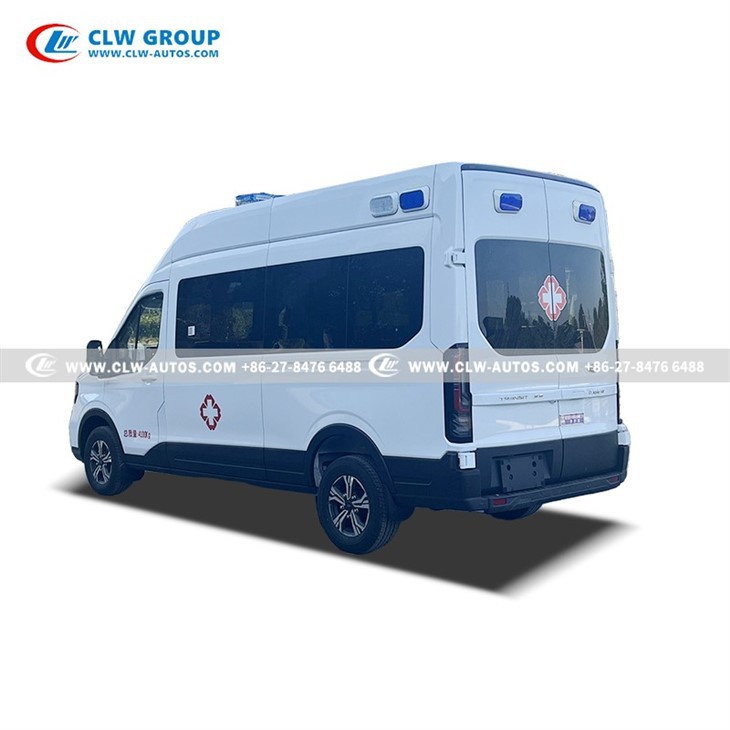

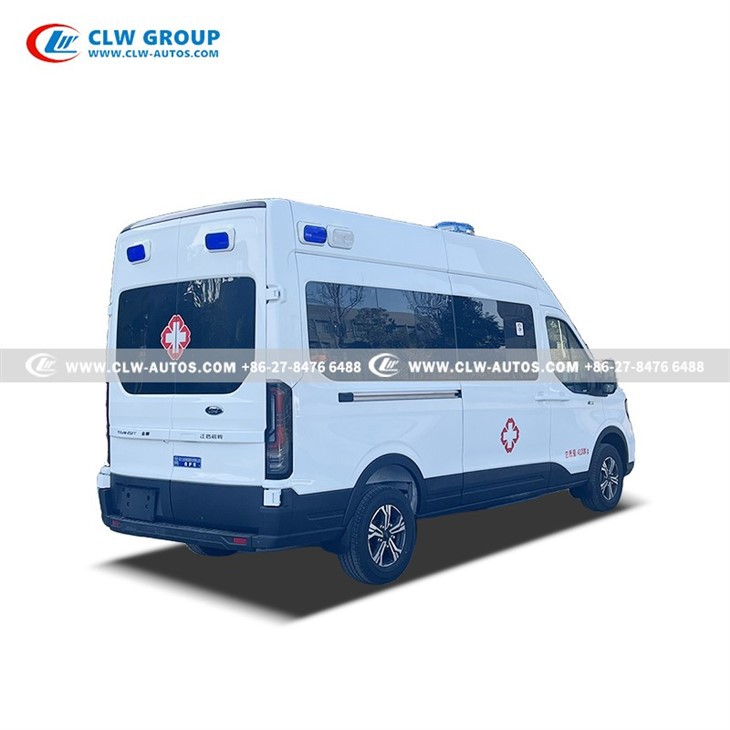

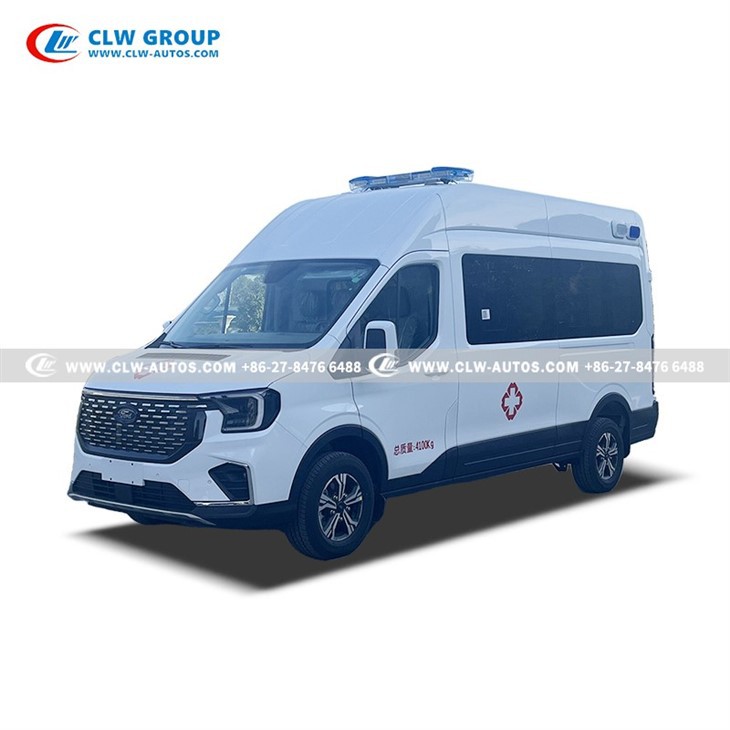

The Ford V363, also known as the Ford T8 ambulance, represents the pinnacle of emergency medical vehicle engineering. Built on the globally recognized Ford Transit platform, this intensive care ambulance combines robust performance, spacious interior, and advanced medical systems to deliver critical care during patient transport. Whether you're a hospital, emergency center, or government health agency, the V363 provides the reliability and capability you need when every second counts.
🚑 Superior Powertrain Performance
At the heart of the V363 lies the legendary Ford Puma 2.3T Duratorq diesel engine (model 4D236). Delivering 175 horsepower and a massive 430 Nm of torque, this powerplant ensures rapid response even when fully loaded. The 2,296cc displacement provides the perfect balance of power and fuel efficiency, while the 6-speed manual transmission offers precise control in all driving conditions
🚑 Built for Emergency Response
The interior features excellent full partition wall, intercom system, warning system, medical rails, safety handrails, loading system, oxygen supply, etc.
With a maximum speed of 160 km/h and exceptional acceleration, the V363 reaches emergency scenes quickly, while the 175mm ground clearance handles urban obstacles and rural roads alike.
🚑 Robust Construction & Safety
The V363 features a high-strength steel body with 65% high-strength steel and 68 boron steel components in critical areas, providing exceptional protection for crew and patients.
The high-rigidity chassis ensures stability during high-speed emergency response.
The 19° approach and departure angles allow navigation through challenging terrain.
🚑 Smart and Connected vehicle
Available with optional L2.5 ADAS (Advanced Driver Assistance Systems) including AEB (Automatic Emergency Braking), LDW (Lane Departure Warning), BSD (Blind Spot Detection), and 360° panoramic cameras, ensuring maximum safety during emergency transport
The vehicle is built on a standardized chassis, but the "Body" (medical compartment) is where we tailor the vehicle to your specific needs.
|
Technical Specification |
||||
|
1. Chassis Part |
||||
|
Driving type |
4X2 |
|||
|
Passengers |
7-8 people (including patients) |
|||
|
Gross weight |
4100kg |
|||
|
Curb weight |
3120kg |
|||
|
Approach/departure angle |
19/19° |
|||
|
Oil tank volume |
80L |
|||
|
Driving type |
Front-engine,rear-wheel-drive layout |
|||
|
Engine |
Engine model |
Puma 2.3T, DURATORQ4D236H |
||
|
Fuel type |
Diesel |
|||
|
Horsepower |
128KW, 175HP |
|||
|
Emission standard |
National Ⅵ |
|||
|
Transmission |
Left handing driving, Manual , 6 forward gears and 1 reverse |
|||
|
Suspension type |
Front Macpherson independent suspension and rear Hochkis non-independent suspension |
|||
|
Minimum ground clearance |
175mm |
|||
|
Tyre |
215/75R 16LT, 4pieces |
|||
|
Remarks |
Power windows, remote central locking, large central screen, reversing camera, multi-function steering wheel, cruise control |
|||
|
2. Upperstructure Configuration of ICU Ambulance |
||||
|
Medical alert appearance |
Truck body structure |
Steel reinforced frame construction |
||
|
The swing door on the right side, double-opening tailgate structure at the rear end. |
||||
|
Appearance |
All white, Red Cross logo at sides and rear door, with colorful strips all round, designed as customer request. |
|||
|
2/3 frosted cellophane to effectively protect patient privacy |
||||
|
Medical cabin rescue facilities
|
Rescue system |
--The all-aluminum alloy automatic loading stretcher --An aluminum alloy track-type IV stand, including two folding hooks, is installed on the top of the medical cabin. |
||
|
Medical oxygen control system |
Two 10L steel oxygen cylinders, with nominal pressure of 15MPA |
|||
|
A ventilator interface and a wall oxygen inhaler, 0-15L/min |
||||
|
Equipped with a humidifying bottle to provide moist oxygen, 150ml |
||||
|
Medical electrical system |
Inverter |
1000W vehicle-mounted sine wave |
||
|
220V /12V multifunctional socket |
||||
|
Sterilizing lamp |
Intelligent timed ultraviolet disinfection *1 |
|||
|
Ventilation fan |
A multi-functional DC 12V ventilation fan with intake and exhasut functions, installed at the top to ensure effective indoor air circulation |
|||
|
Interior configuration of the medical cabin cabinets |
Cabinet assembly |
1 set of long equipment cabinet made of new environmentally friendly materials, with storage spaces. |
||
|
One set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2*10L oxygen cylinders |
||||
|
Medical floor |
Made of new lightweight materials, waterproof, mildew-proof, antibacterial, and easy to clean. |
|||
|
Fire extinguisher |
One fire extinguisher |
|||
|
Safety handrail |
A long handrail installed |
|||
|
Walkie-talkies |
One hands-free microphone is installed |
|||
|
Waste bin |
Equipped with one covered, foot-operated waste bin. |
|||
|
Emergency hammer |
Install one emergency hammer in the medical bay |
|||
|
3. Reference drawings |
||||
|
|
||||
The V363 features a fully equipped intensive care module designed for emergency medical services (EMS) professionals:
The V363 can be equipped with an isolated negative pressure system upon request, transforming the ambulance for infectious disease transport:
Seamless, washable medical-grade flooring – anti-slip, antibacterial, easy to clean.
High-strength, lightweight polymer composite cabinetry – impact-resistant, flame-retardant, and antimicrobial.
Driver compartment and medical bay intercom system for clear communication
Safety handrails along ceiling for crew stability during transport
Retractable IV hangers – multiple ceiling-mounted, foldable when not in use.
Multi-function medical equipment cabinets for securing ECG monitors, ventilators, defibrillators, and infusion pumps.
The Ford V363 Intensive Care Ambulance is ideally suited for:
The V363 can be equipped with an isolated negative pressure system upon request,
transforming the ambulance for infectious disease transport:
Designed for non-emergency transfers and basic medical transport. Includes standard stretchers and seating for attendants.
A high-spec layout designed to accommodate advanced life support equipment. This version features additional storage for defibrillators, ventilators, and multiple IV stands, allowing paramedics to perform complex procedures en route.
In a post-COVID world, infection control is non-negotiable. Based on successful exports during the COVID-19 pandemic, we offer an advanced Negative Pressure System upgrade.
Function: Creates a contained environment by isolating the medical cabin.
Benefit: Prevents cross-contamination by ensuring that infectious air does not escape the patient area, protecting the driver and the outside environment.
