Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 truck with 8tons straight boom xcmg crane in China. If you're going to buy high quality howo 4x4 truck with 8tons straight boom xcmg crane, welcome to get more information from our factory. For price consultation, contact us.

Products Description

HOWO 4X4 Truck with 8Tons Straight Boom XCMG Crane

4X4 straight boom crane,referred to as off road truck-mounted crane,4x4 truck with crane,4x4 crane mounted on truck, is a kind of equipment that realizes the lifting, turning and lifting of goods through a hydraulic lifting and telescopic system.

product-1-1 whatsapp for quick inquiry +86 135 45064324

--4X4 crane truck generally composed of a truck chassis, a cargo compartment, a power take-off, and a crane.
--The truck chassis can be selected from Dongfeng, FAW,FOTON, SHACMAN,I-SUZU,SINOTRUK HOWO and so on
--The truck can be 4x4,6x6,8x8 off road truck with crane or normal 4X2 6X4 8X4 crane
--According to the type of crane, they can be divided into straight arm type and folding arm type.
--according to the tonnage is divided into 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 20 tons.

Feature
--The whole truck is fully controlled by hydraulic, with large working range.
--360 degrees full hydraulic full rotation.
--new type of H-type outrigger, which can adapt to slope and irregular site operations.
--main components such as boom and outrigger are all high-strength and high-quality.
--Hydraulic valve locks are internationalized brand, and other accessories are all domestic well-known brands, which are safer and more reliable.

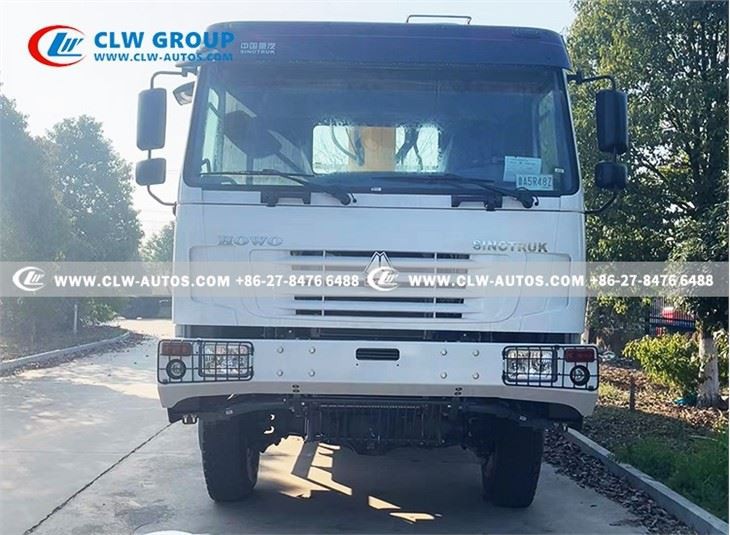

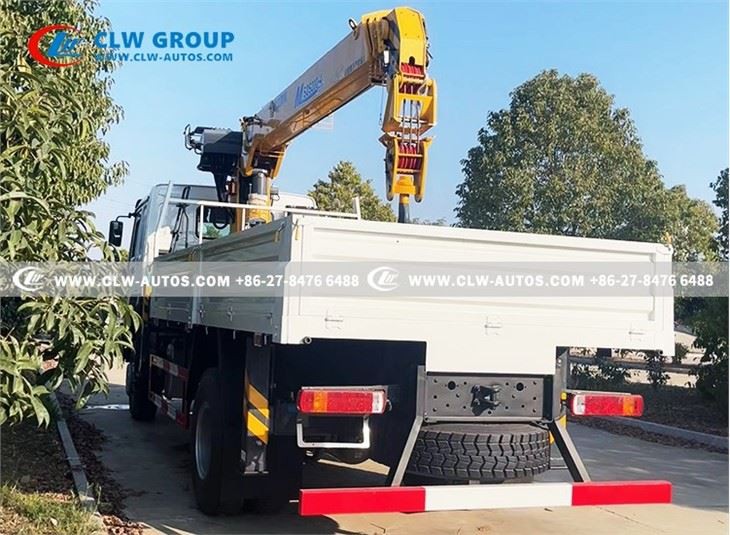

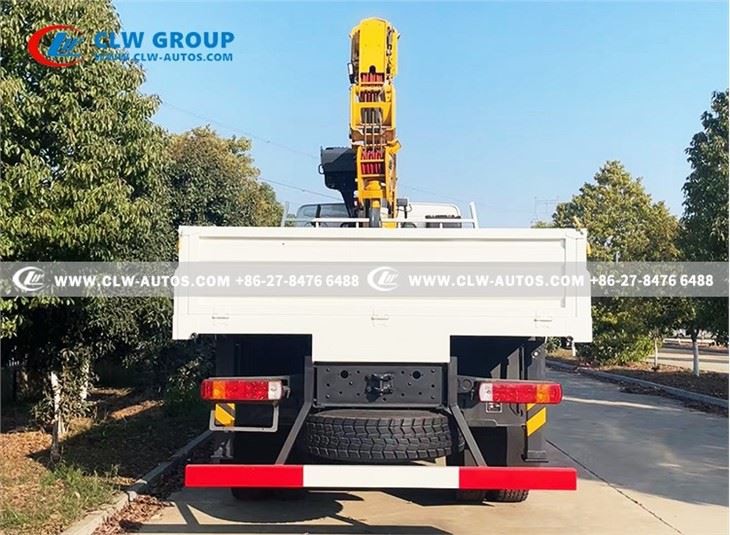

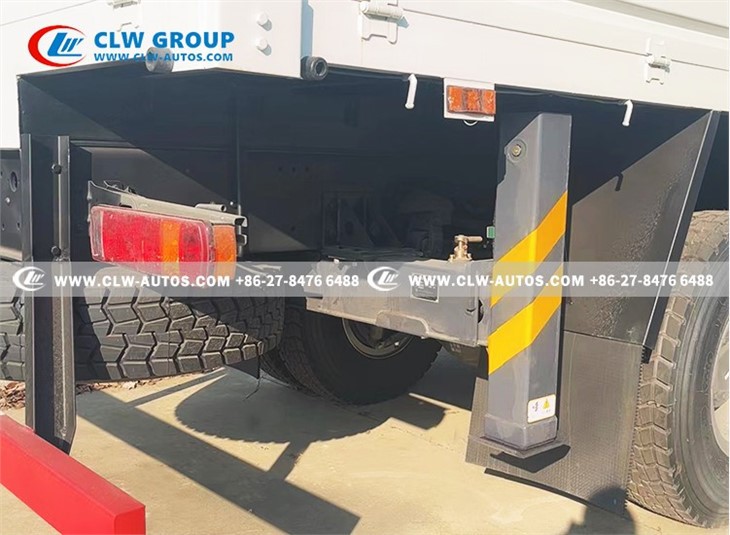

Pictures of HOWO 4X4 Truck with Crane

HOWO 4x4 TRUCK 266HP — 266HP HOWO 4x4 TRUCK,HW76 CABIN WITH ONE SLEEPER

SINOTRUK HOWO 4X4 TRUCK WITH ONE SPARE TIRE

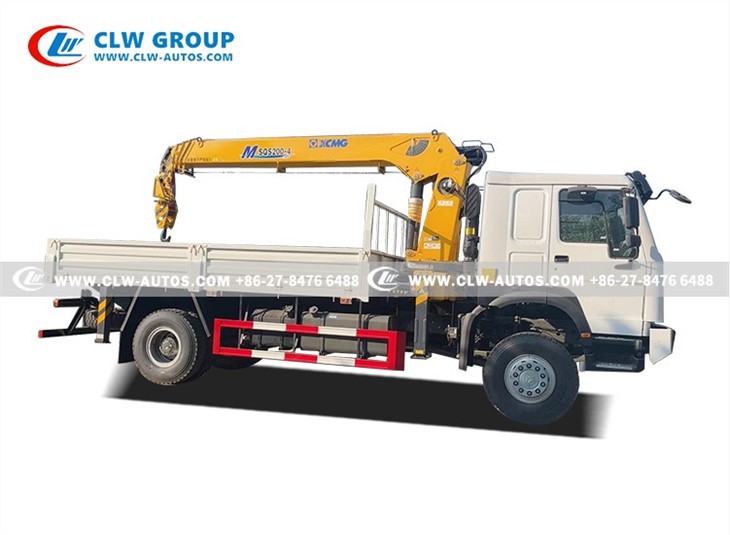

HOWO 8 TONS CRANE TRUCK — HOWO OFF ROAD 8 TONS XCMG CRANE TRUCK WITH REAR LANDING LEG

Technical Parameters
Chassis
Drive Model		4X2,Left hand drive for Djibouti
Vehicle Main Dimensions		Dimensions(L x W x H)(mm)			830025003800 mm
		Wheelbase (mm)			4600 mm
		Overhang (front/rear) (mm)			1430/2425 mm
		Approach/Departure angle(°)			16/14
Weight in KGS		Curb Weight (kg)			9600 kg
		Front/Rear axle loading(kg)			7000/16000
Max. driving speed(km/h)					90
Engine		Model			WEICHAI Diesel engine WP10.300E22
		Type			6-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)			266/290/300 HP
		Displacement (ml)			9726 ml
		Emission standard			Euro II
Brakes		Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake.
Cabin		4X2 OR 4X4/2 axles in total HOWO HW76 cabin,one and a half row cab Power steering Air conditioned Audio System High mental bumper
Gearbox		HW19710,Manual gear box,10 forwards & 2 reverses
Steering Gear		ZF, Power steering, hydraulic steering with power assistance
Fuel tank (L)		400
Tire		12.00R20 tire , 6 + 1(spare tire)
Upper & Equipment
Cargo box		Loading Capacity(tons)			15 tons
		Size(LWH)			50002300600 mm
		Button(mm)			4.0 mm
		Side plate(mm)			3.0 mm
		Tank material			High quality Q235 carbon steel
Crane		Brand			XCMG brand
		Model number			KSQS157-3/KSQS200-4
		Working Platform			360 °turning(left or right)
		Material			Q235 Carbon steel
		Extendable boom section			3/4
		Boom Type			Straight boom
		Max. Lifting Weight(kg)			Effectively: 6300 kg/8000 kg
		Max. Working Radius(m)			8.3 m
		Max. Lifting height(m)			10.3 m
		Max. Lifting Moment(T.M)			157.5 T.M
		Max. Oil Flow of Hydraulic System(L/min)			40L/min
		Oil box size			90 L
		Max. Pressure of Hydraulic System(MPa)			22 MPa
		Crane Weight(kg)			2200kg
		Landing leg			4 pcs hydraulic landing leg
Working radius	2.5		4.0	6.3		8.6
Lifting Capacity(KG)	6300		2900	1600		1100
