Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 4x4 awd 8000l oil tanker truck in China. If you're going to buy high quality sinotruk howo 4x4 awd 8000l oil tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Description for off road trucks:
This series model is equipped with such advanced parts as CNHTC WD615 series EURO2/EURO3 turbine turbocharged inter-cooled diesel engines, power ranging from 226hp to 380hp, CNHTC HW series transmission, strengthened drive axle, WABCO brake system and exported traversing mechanism. The cab of HOWO series military vehicle is for-point suspended and installed the domestic orginally crated horizontal stabilizer for cab as well as strong protector frame to prevent front striking. Thus the cab has been thought of the safest domestic cab by specialists.
HOWO series military vehicle adopts the German VOSS quick plug connector which has the first-class level in the world and greatly improves the air tightness of brake system as well as the safety of driving.
This model also possesses the world widely used CAN bus communication technology and VDO meter that can reduce the number of lines and lift the reliability of electric system.
The truck can work under the temperature from -45ºC to +46ºC day and night, elevation up to 5000m high. The options for the truck are ABS system, concentrated lubricating system, etc.
Parameters for Sinotruk HOWO 4x4 AWD 8000L Oil Tanker Truck:
| Model | CLW5180GJYZ3 | |
| Producer | CLW(ChengLi Special Automobile Co.,Ltd) | |
| Chassis brand | SNIOTRUK HOWO | Forland,Sinotruk,Chufeng, I SUZU |
| Driving cab | 3 seats, LHD, 4x4 | RHD |
| Volume | 8000 liters | 2~50000L |
| Medium | Diesel | gasoline, or other oil products |
| Overall dimension | 7650*2500*3350mm | |
| Refueling machine position | In front of tank | |
| Engine | WD615.62 195KW/266HP, 9.726L, 6-cylinder inline, turbocharged, intercooler, water cooling | |
| Wheelbase | 4200mm | |
| Curb weight | 8360kg | |
| Max speed | 90km/h | |
| Emission standard | Euro 2, Euro 3 | |
| Axle & wheel | 2 axles, 6 wheels, | |
| Tire specification | 12.00R20, with one spare tire | |
| Dedicated equipment | Breathing valve, fuel outlet valve, bottom valve, aviation kerosene fuel pump, filtration sampling valve, joint valve, filter separator, flow meter, level gauge, refueling machine with refueling gun and 20m hose reel, etc. | |
| Safety accessories for dangerous goods chassis | ||
| Exhaust pipe | Front set, under driving cab | |
| Manhole | Euro standard manhole | |
| Emergency cut off valve | Set | |
| Top fence | Top protect fence | customized |
| Brake | Air brake | |
| Conductive electrostatic reel | Set | |
| Static conductive towing belt | Set | |
| Fire extinguisher | Set, two units | |

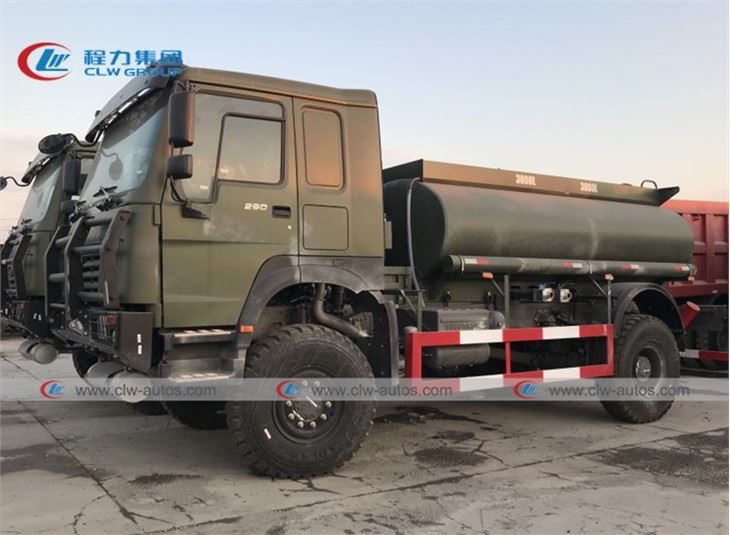

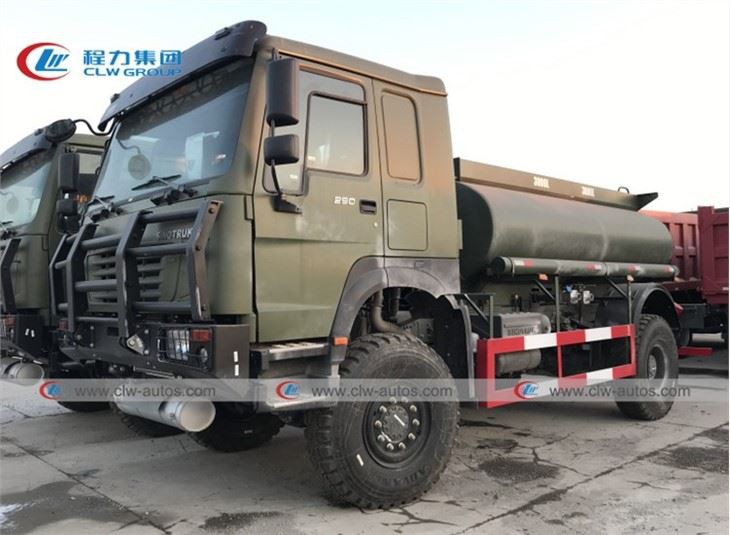

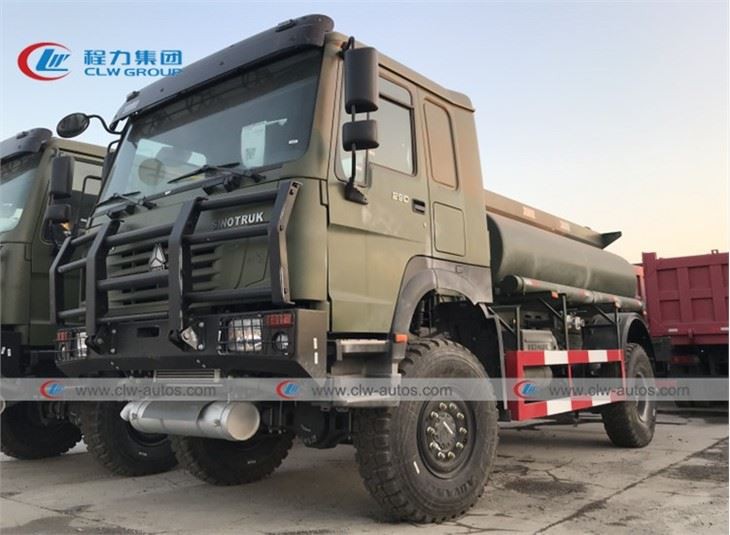

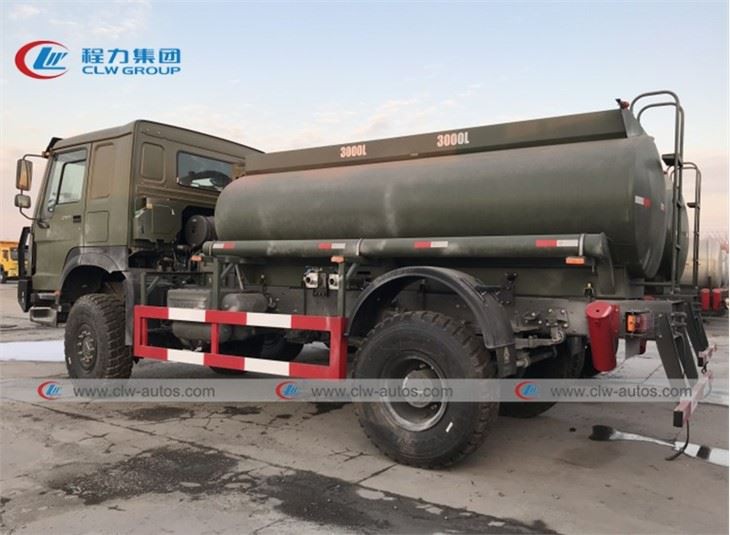

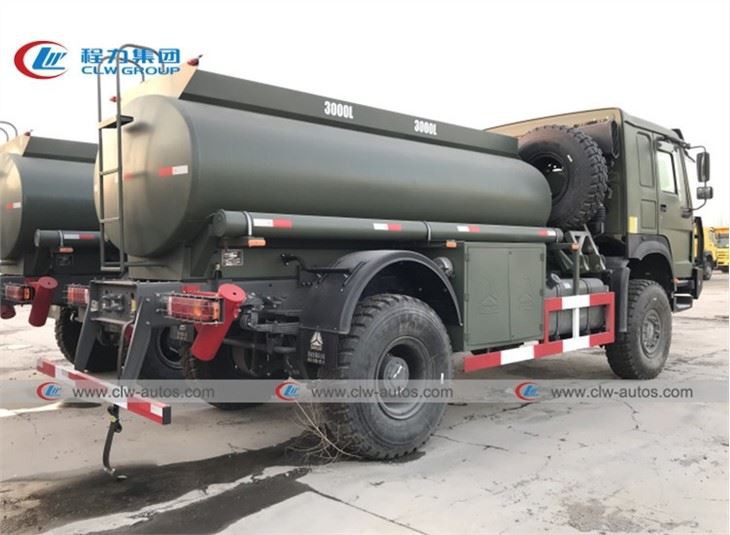

More detailed pictures for Sinotruk HOWO 4x4 AWD 8000L Oil Tanker Truck:
Other Optional parts as below for Sinotruk HOWO 4x4 AWD 8000L Oil Tanker Truck:
| splited compartment | Customzied number | For loading different or same oil |
| Discharge valve | Customzied number | also called bottom oil loading inlet pipe |
| Pump | one unit | including pipe and mounting |
| Large flowrate refueling machine | One unit | 60~70L/min |
| Flowrate meter | One unit | Made in Hefei or Chongqing,China |
| Self-flow valve | Customzied | |
| Euro standard system | Customzied number | a whole set of bottom oil loading system(including discharge valve, oil and gas recovery device, anti-overflow probe, Euro standard manhole cover) |
