Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu kv100 30m insulation type telescopic aerial platform truck in China. If you're going to buy high quality isuzu kv100 30m insulation type telescopic aerial platform truck, welcome to get more information from our factory. For price consultation, contact us.
We Are 100% Straight Factory Manufacturer For Aerial Platform Truck Since 2004

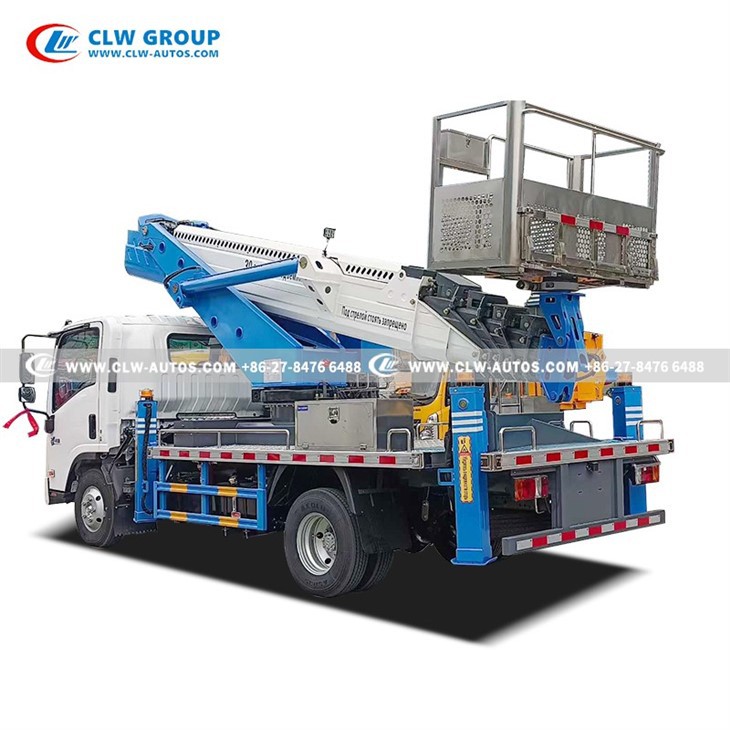

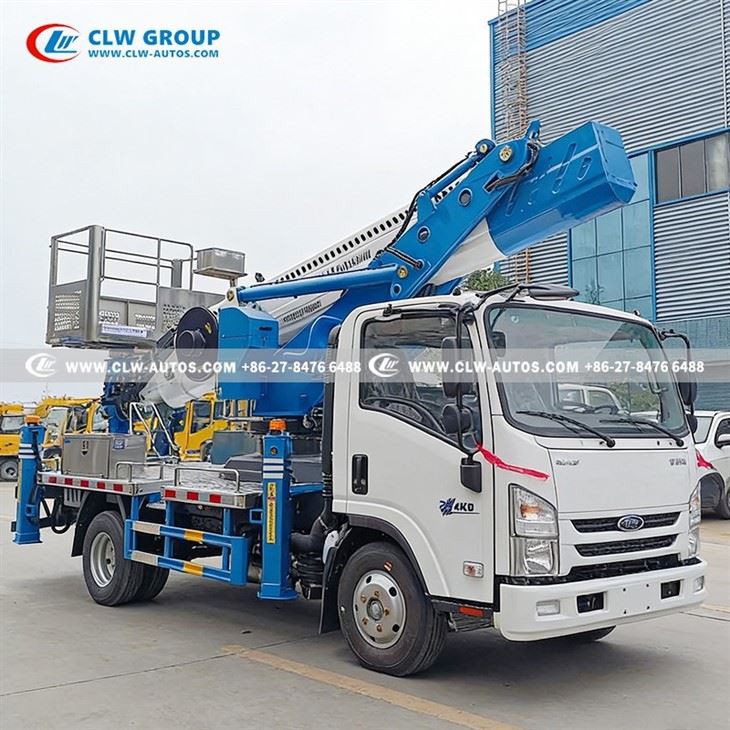

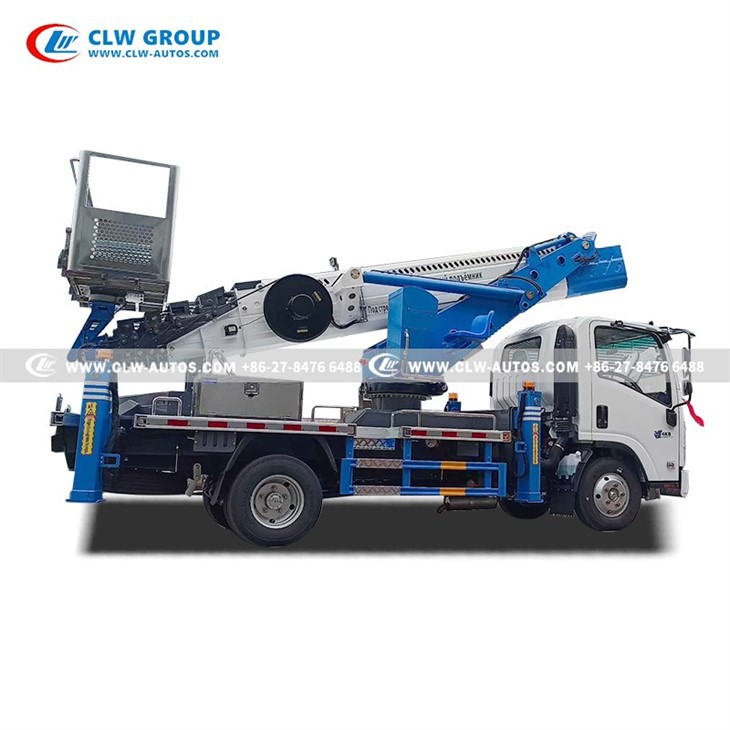

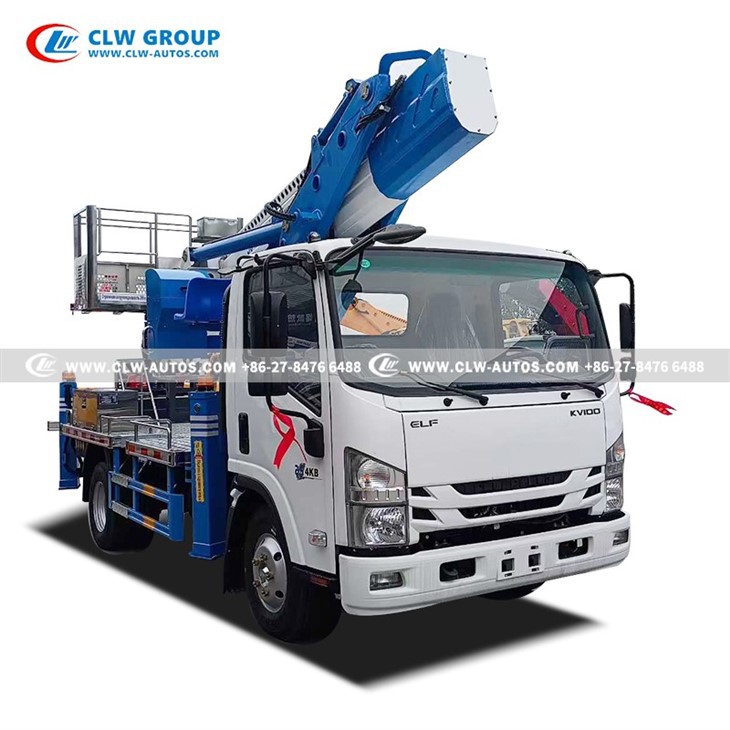

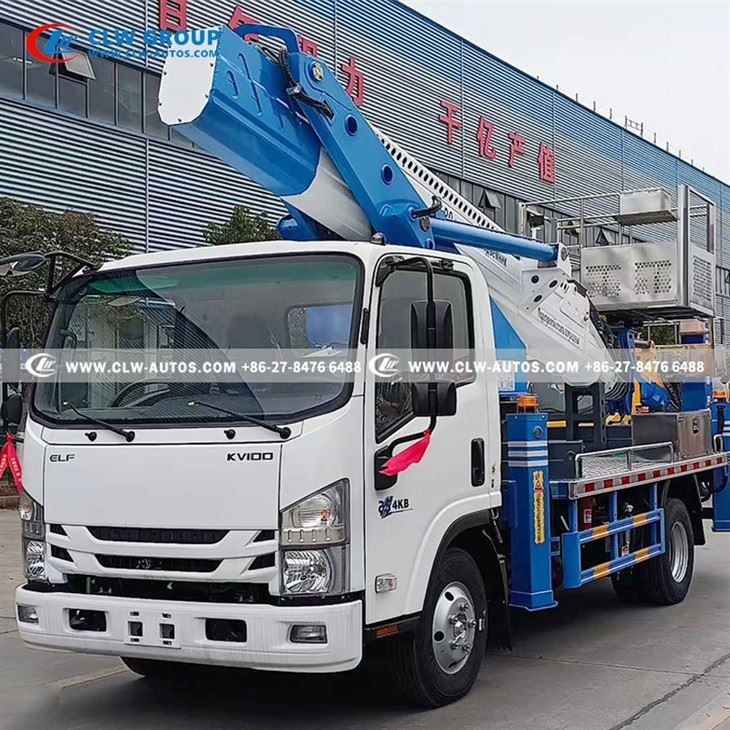

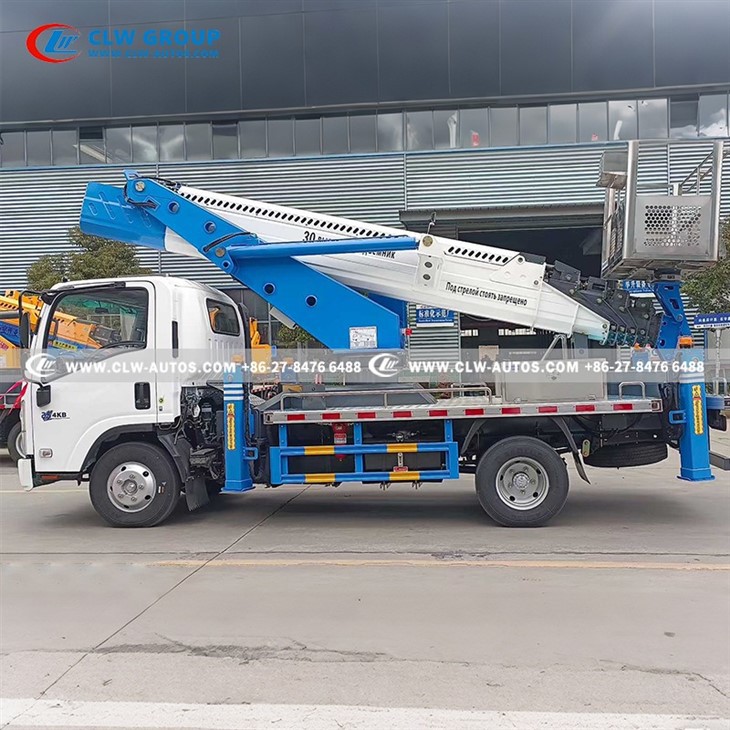

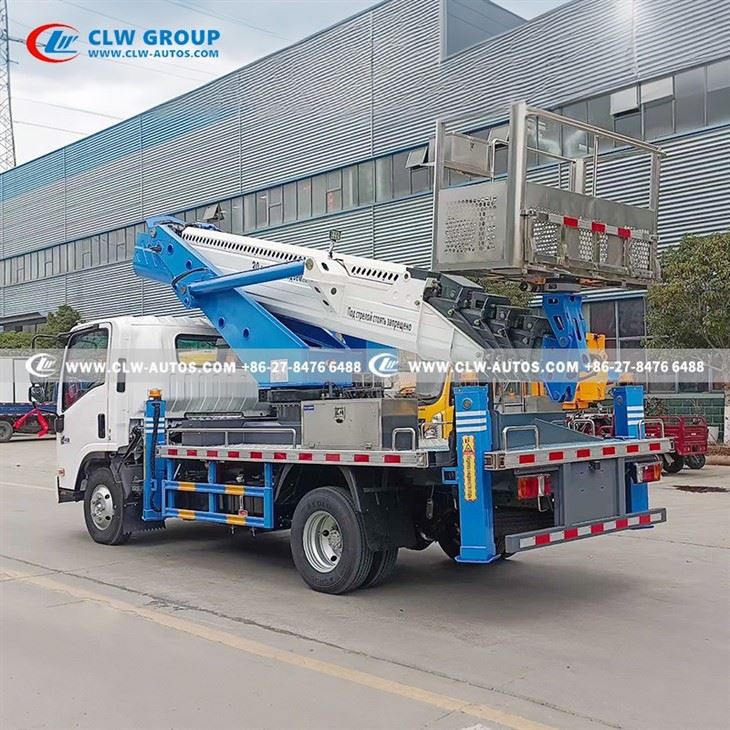

The Isuzu KV100 30m Aerial Work Truck represents the pinnacle of medium-duty aerial access solutions. By integrating a heavy-duty upper structure onto the commercially successful Isuzu KV100 chassis, this vehicle offers a seamless balance of mobility, lifting capacity, and operational safety. Designed for high-frequency urban operations, it provides a maximum working height of 30 meters and an impressive 24-meter lateral reach, making it the most versatile tool for any high-altitude task. The integration of a 14-sided polygonal boom ensures torsional rigidity, providing a stable work platform even in windy conditions.
Sales Director Shirley Fu
Mobile: +86-135 4506 4324(whatsApp)
Email: shirley@clw-autos.com
Model: Isuzu KV100 (Right/Left Hand Drive Optional)
Engine: Isuzu 4KB1-TCG60, Inline 4-Cylinder, Turbocharged.
Displacement: 2,499 cc
Max Power: 96 kW @ 130 HP (High torque output for gradients and PTO operation)
Gearbox: MSB 5-Speed Manual, synchronized.
Emissions: National VI Compliant (DPF + SCR technology).
Comfort Package: Full steel cabin with air conditioning, power steering, central locking, electric windows, and remote key entry.
Tire Specification: 275/80R22.5 16PR (Radial, heavy-duty).
Wheelbase: 3815 mm (Optimized for stability during outrigger deployment).
Rear Overhang (Chassis): 2780 mm.
Boom Technology (The 14-Sided Advantage):
Unlike conventional round or square booms, this unit features a 6-section, 14-sided polygonal boom. This geometric profile increases the boom's moment of inertia, significantly reducing deflection and vibration when the platform is fully extended. The telescoping action is synchronous, ensuring even extension and retraction for precise positioning.
Hydraulic Outrigger System (V-Shaped Geometry):
The machine utilizes a Front V and Rear V double-stage hydraulic leg design. This configuration allows for a wider support base without increasing the stowed width of the vehicle.
Horizontal Span (Track Width): 6400 mm
Vertical Span (Ground Clearance when deployed): 6100 mm
Benefit: Allows the vehicle to stabilize on uneven ground or soft surfaces.
Dimensions (L x W x H): 3200 mm x 700 mm x 1100 mm (Extra-long basket for pipe/beam handling).
Material: Steel construction with anti-slip base plate.
Rated Load: 200 kg (Standard).
Operational Envelope:
Max Working Height: 30.0 m (Floor to basket floor).
Max Lateral Working Radius: 24.0 m (Side reach).
Max Backward Reach: 28.0 m (Over the rear).
To enhance site productivity, the following optional systems are available:
Dual-Purpose Oil-Electric Drive: Allows the operator to switch to electric motor drive while in the basket for silent operation and zero emissions, ideal for indoor or noise-sensitive areas (e.g., hospitals, schools at night).
Hydraulic Winch: Boom-tip mounted winch with a remote control for lifting tools and materials from the ground to the platform.
Reverse Camera System: Wide-angle camera mounted at the rear to monitor outrigger deployment and blind spots during vehicle maneuvering.
Upper Operation Cab: An enclosed cab at the boom turret, allowing the operator to control the machine while protected from the elements during cold or inclement weather.
| Vehicle parameters | Vehicle Name |
30m Truck Mounted Aerial Platform / Aerial Work Truck / Bucket Truck / Manlift truck / High-Altitude Operation Truck |
||
| External dimensions | 7665×2430×3780mm(length, width, height) | |||
| Total mass | 12000kg | |||
| curb weight | 11605kg | |||
| Chassis parameters | emission standard | National VI | ||
| rear overhang | 2780 | |||
| tire | 275/80R22.5 16PR | |||
| wheelbase | 3815 | |||
| MSB five speed transmission with air conditioning, steering assistance, central locking, electric doors and windows, remote control key | ||||
| engine | model | 4KB1-TCG60 | ||
| Displacement (ml) | 2499 | |||
| Power (kW) | 96 | |||
| Horsepower (ps) | 130 | |||
| Upper configuration | Big arm structure | 6-section 14-sided large arm, synchronous telescopic | ||
| Leg | Front v and rear v double leg support | Horizontal span | 6400mm | |
| Vertical span | 6100mm | |||
| Hanging basket size | 3200(1800)×700×1100mm(length, width, height) | |||
| Rated load of work platform | 200kg | Maximum homework height | 35m | |
| Lateral extension | 24m | Backward extension | 28m | |
| Optional: dual-purpose oil and electric device, reverse camera, hydraulic winch, upper operation cab | ||||
Utility Sector: High-voltage line maintenance (Optional insulated insert available upon request), transformer station upkeep.
Urban Infrastructure: Bridge inspection, highway sign installation, and stadium lighting maintenance.
Commercial Properties: Shopping mall exterior cleaning, CCTV pole installation, and large-scale festive decoration hanging.
Industrial Maintenance: Overhead crane rail inspection and plant piping maintenance.
