HOWO 28m Aerial Platform Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 28m aerial platform truck in China. If you're going to buy high quality howo 28m aerial platform truck, welcome to get more information from our factory. For price consultation, contact us.

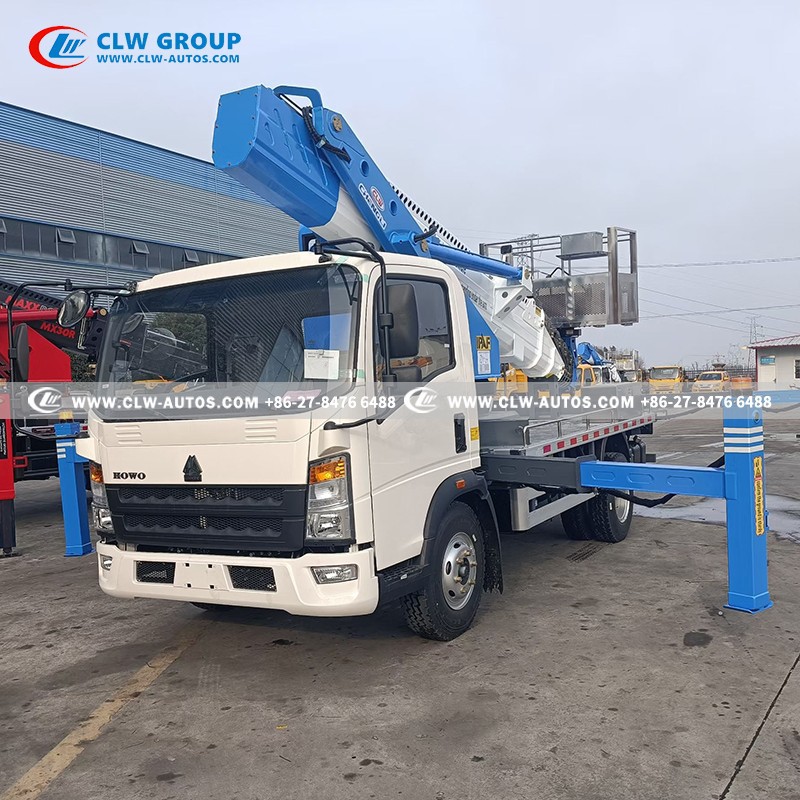

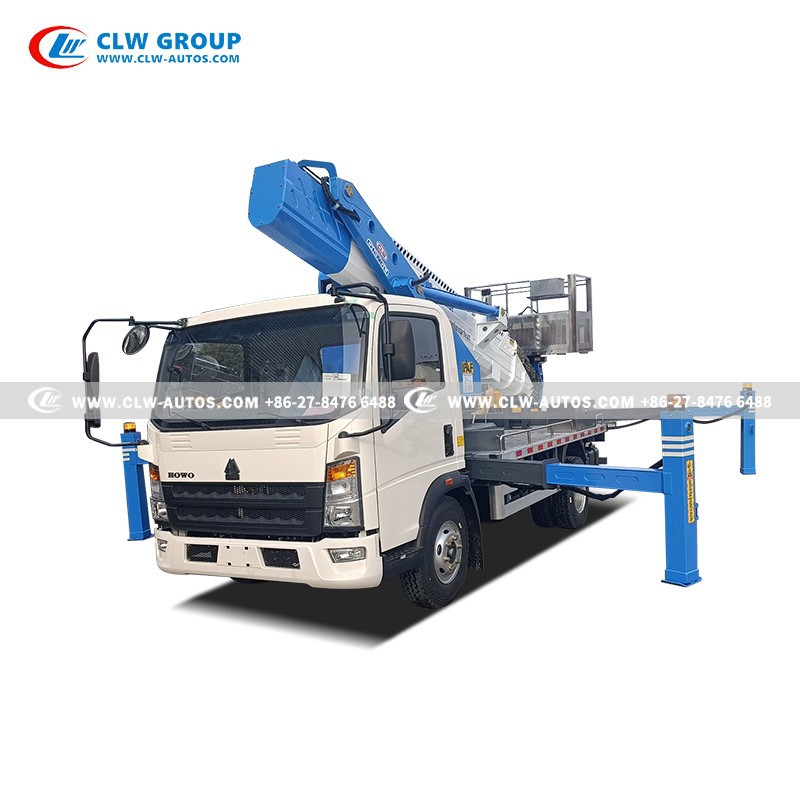

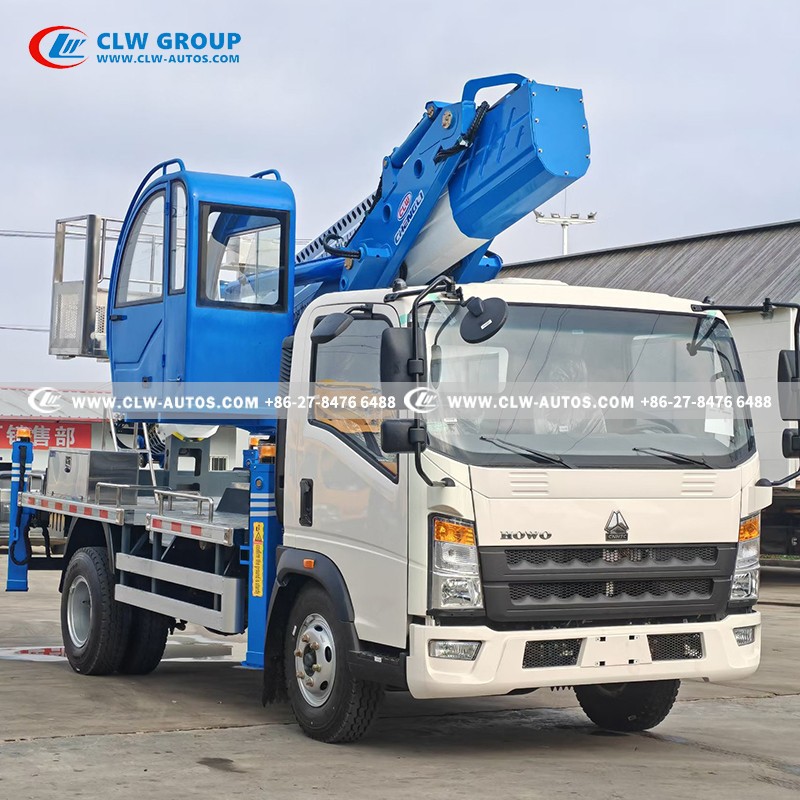

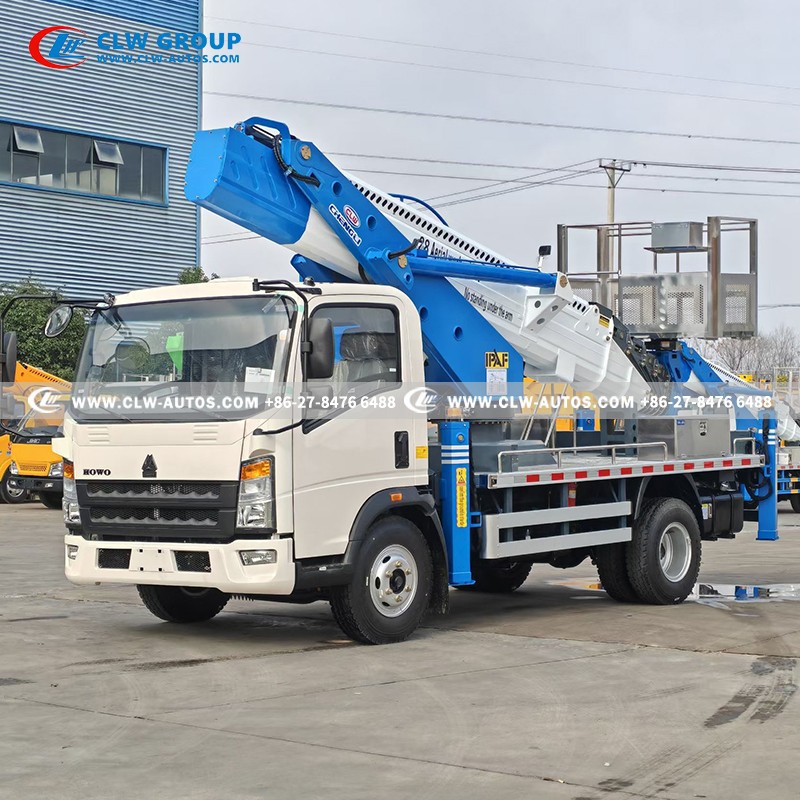

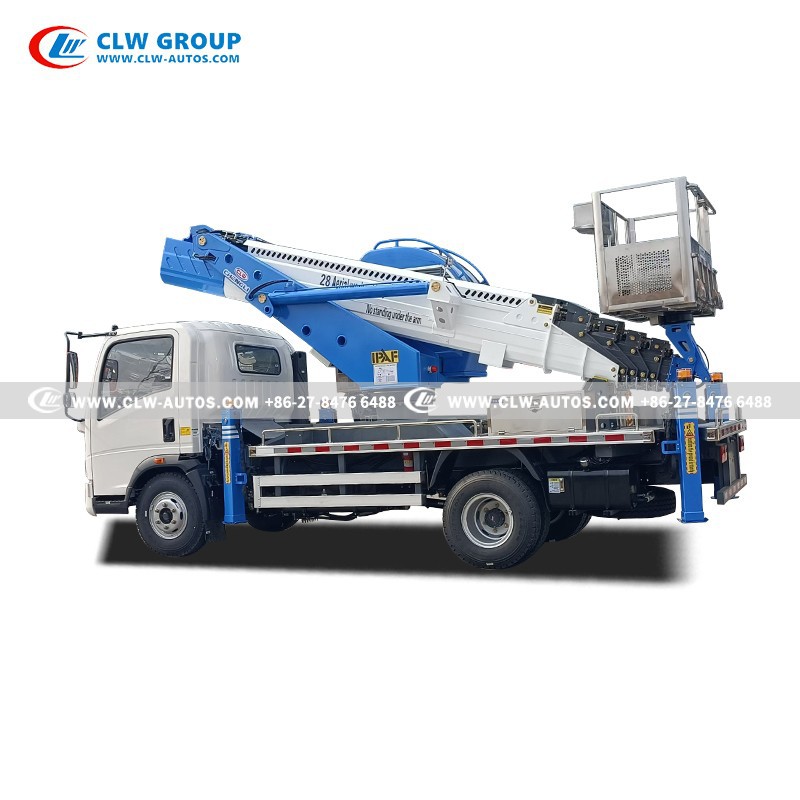

Sinotruk HOWO 28m Aerial Platform Truck

We are China top special vehicle manufacturer since 2004

Brand New Truck for Sale at Factory Price

Sinotruk HOWO 28m aerial platform truck, also known as HOWO 28m cherry picker truck, 28m mobile boom lift truck, truck-mounted 28m elevated work platform vehicle, aerial work platform with 360 rotation, is manufactured by clw group in China, it combines the legendary durability of the Sinotruk HOWO chassis with a high-performance telescopic boom. Designed for safety and efficiency, this unit offers a maximum working height of 28 meters and a lateral working reach of 14 meters, making it the ideal solution for construction, municipal engineering, tree trimming, and high-altitude facility maintenance.

Key Features of the 28m Mobile Boom Lift Truck:

 Robust Chassis & Powerful Powertrain

Built on a Sinotruk HOWO 4x2 chassis, this aerial work truck is engineered for stability and reliability in demanding environments.

• Engine: Powered by a Yunnei YN4100QBZL diesel engine delivering 110HP, complying with Euro 2 emission standards. This water-cooled, 4-cylinder inline engine ensures consistent power for both driving and hydraulic operations.
• Drivetrain: Equipped with a WLY6TS40 manual transmission (6 forward/1 reverse gear) for precise speed control.
• Maneuverability: Compact overall dimensions (5998x2100x2950 mm) and a 3360mm wheelbase allow for easy navigation in urban settings.
• Tires & Axles: Fitted with durable 7.00R16 tires (6+1 spare) and supported by a front axle loading of 2000kg and a rear axle loading of 3500kg, ensuring a stable work platform base.

 Superior Boom Structure & Working Parameters

• 7-Section Octagonal Boom: The main boom features a synchronized telescopic system (octagonal design) for smooth extension and retraction, minimizing vibration even at full reach.
• Max Working Height: 28 meters
• Max Working Radius: 14 meters
• Rotation: 360° continuous rotation, allowing for non-stop operation around the vehicle.

 Operator-Focused Basket & Safety Systems

The stainless steel platform (basket) is designed for both comfort and strict safety compliance.

Platform Specifications:

• Material: High-strength stainless steel (1600x700x1000mm).
• Loading Capacity: 200kg.
• Smart Sensor: Equipped with a real-time load sensor to monitor weight and prevent overload situations.

Safety & Control:

• Triple Control Stations: Operate via the remote controller with an LCD monitor, the platform-mounted manual control, or the cabin control.
• Real-Time Monitoring: Displays on the remote and platform monitor show live data in English including arm length, working height, working radius, and tilt angle.
• Hydraulic Outriggers: Features a V-shaped outrigger configuration (Front V, Rear V) with four individually adjustable legs. The lateral span is 5600mm and the longitudinal span is 5400mm, providing a stable base on uneven terrain.
• Automatic Upper/Lower Interlock: Prevents chassis movement while the boom is in use.
• Emergency Systems: Includes a manual emergency pump for auxiliary power and an emergency stop button on the platform.
• Wind Speed Alarm: An anemometer triggers an alarm and restricts operation if wind speeds exceed Level 5.
• Hydraulic Safety: Cylinder anti-retraction safety locks prevent boom descent in case of hydraulic line failure.
• Leveling System: Hydraulic automatic leveling ensures the basket remains level throughout the range of motion.

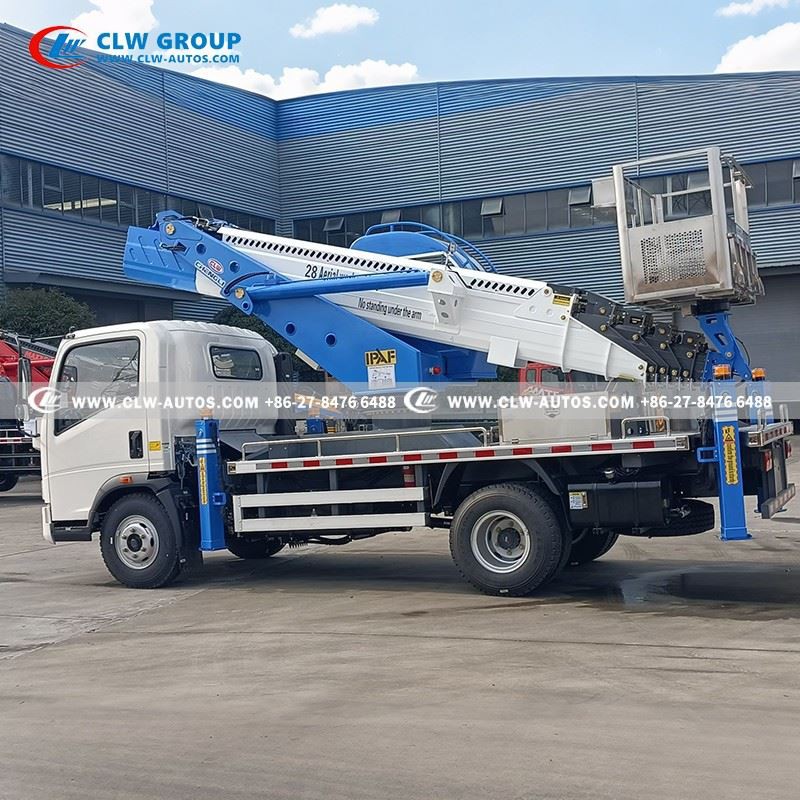

Four outrigger for good stablity

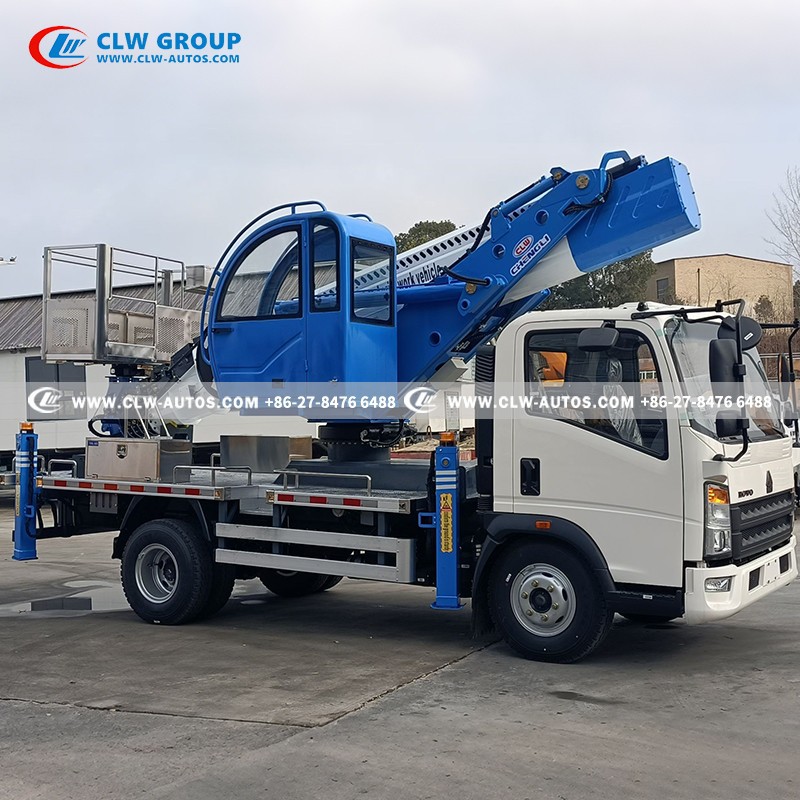

Main boom can 360 degree rotate
