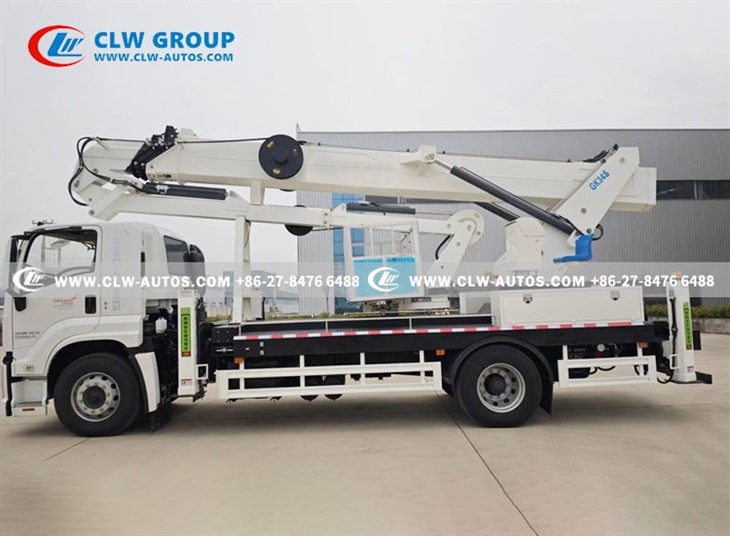

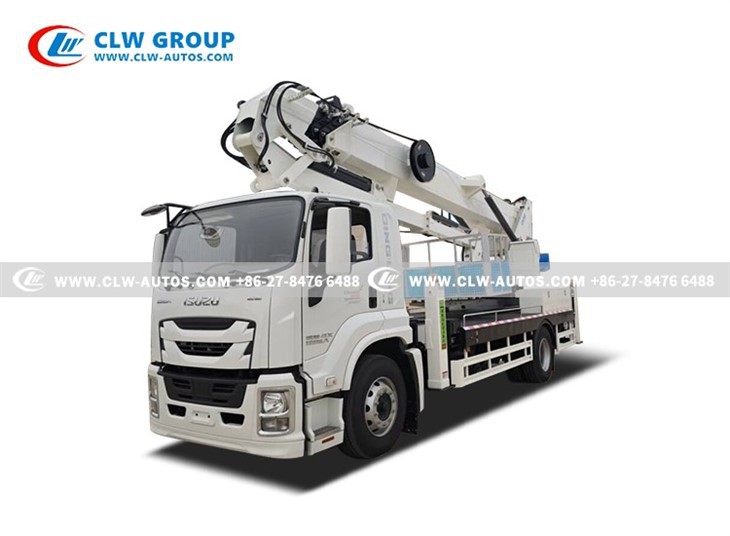

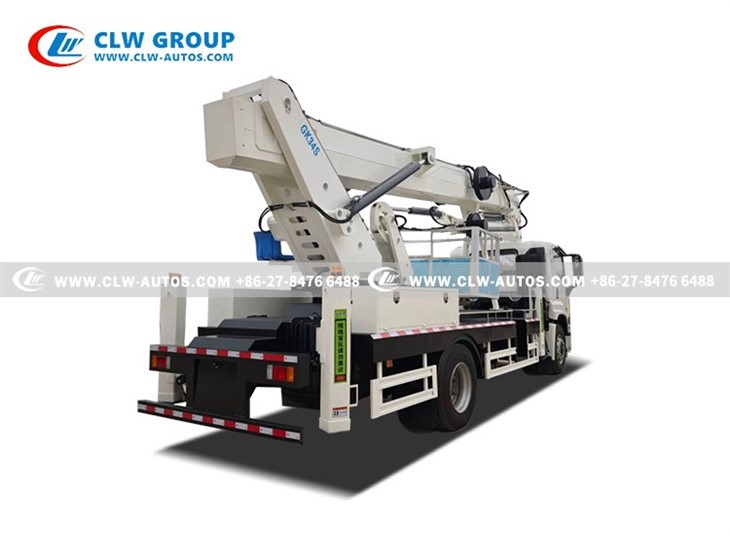

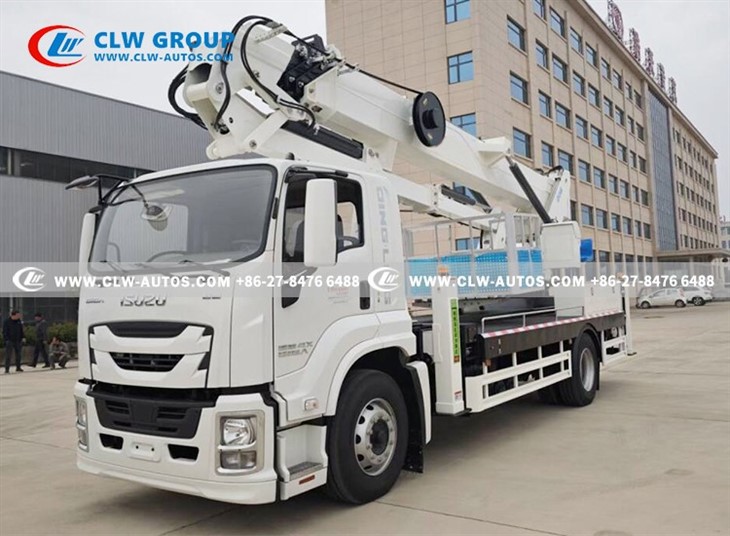

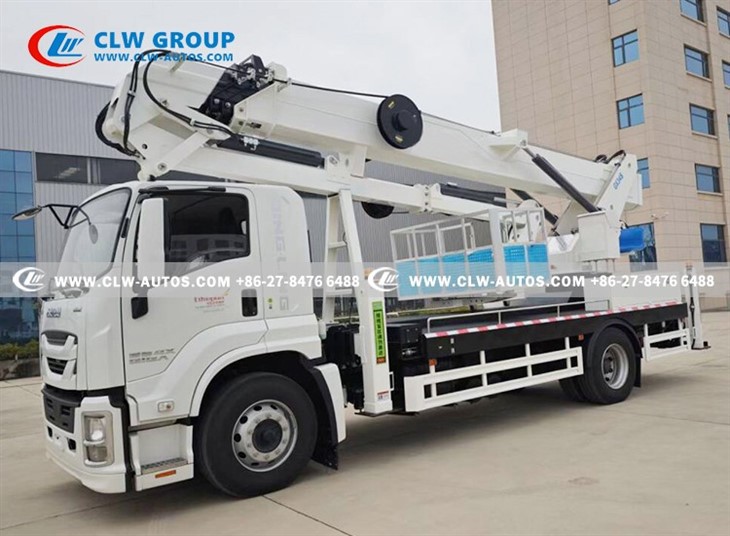

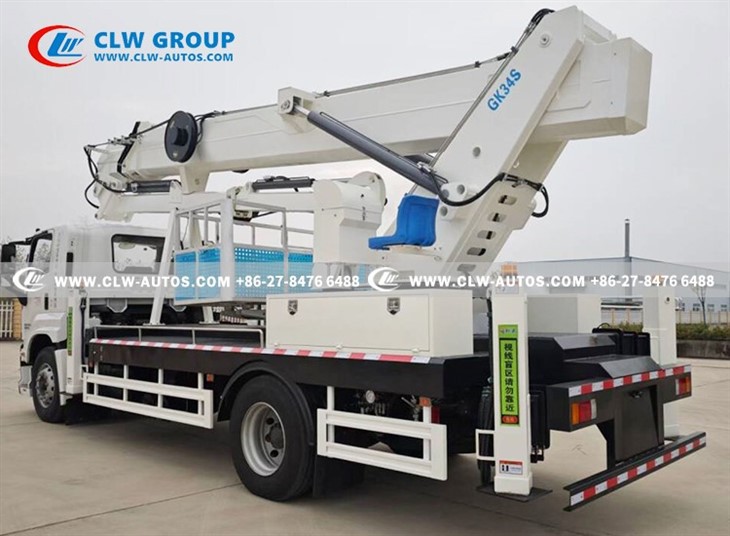

ISUZU 36M Telescopic Boom Lift Truck
We are professional special vehicle manufacturer in China since 2004 | Brand new truck factory price for sale
The Isuzu 36m telescopic boom lift truck, articulated high-low aerial work platform truck, is a specialized engineering vehicle engineered for superior performance in both elevated and below-ground level tasks. Utilizing advanced hydraulic or mechanical systems, it safely elevates and lowers the work platform to various heights and depths, providing operators with a secure and stable environment for a wide range of applications.
Unmatched Versatility for Multiple Industries
This aerial platform is designed to meet the demanding needs of various sectors, making it an indispensable asset for:
Power & Telecommunications: Grid maintenance, line installation, and tower repairs.
Construction & Municipal Work: Building facade maintenance, installation, and municipal projects.
Transportation & Bridges: Inspection, lighting repair, and signage installation.
Landscaping & Arboriculture: Tree trimming and maintenance in complex terrains.
It is perfectly suited for critical tasks such as installation, repair, cleaning, inspection, and emergency services.

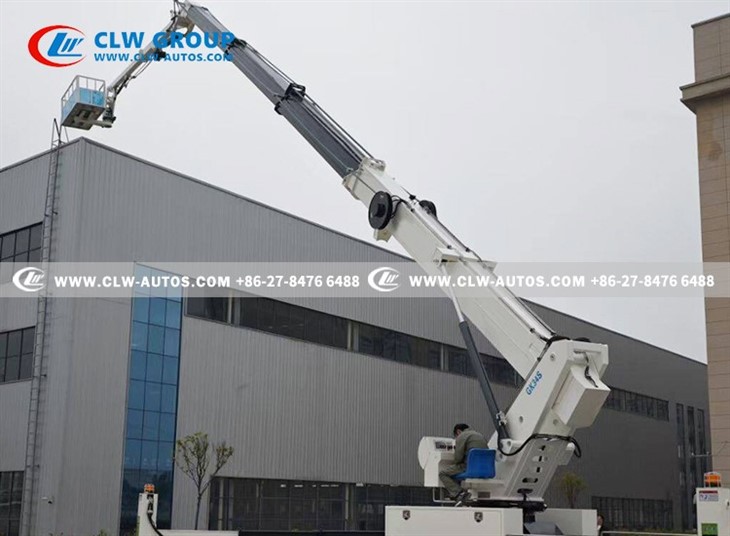

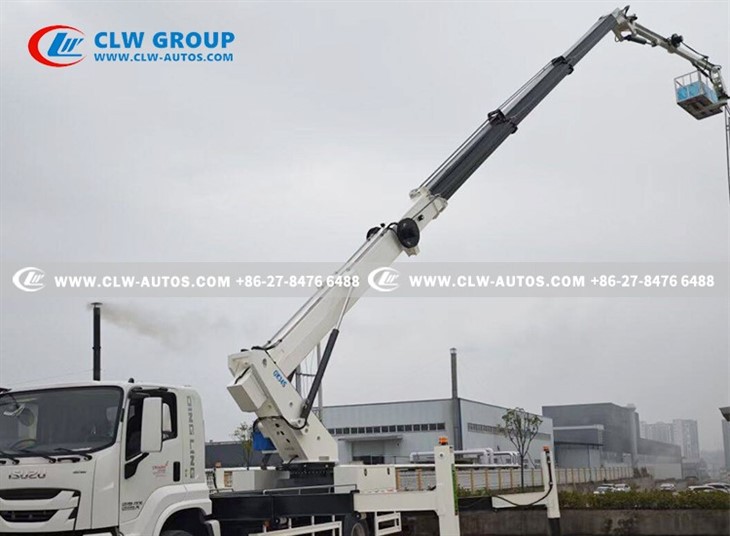

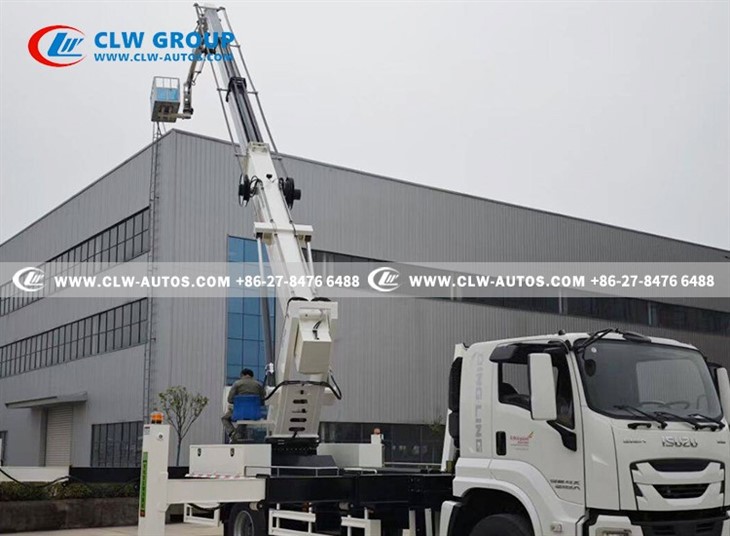

1. Extensive 36-Meter Working Height
Achieves a maximum working height of 35 meters, providing extensive reach for high-elevation tasks.
Capable of negative height (below ground) operation, making it ideal for excavation, slope work, and underground structure maintenance.
2. Superior Flexibility with Articulated Boom
The advanced articulated boom design allows for precise positioning and the ability to work over and around obstacles.
Excellent flexibility in complex and confined spaces ensures optimal reach and angle adjustment.
3. High Efficiency & Productivity
Rapidly deploys personnel and tools to the desired height, significantly reducing setup and auxiliary time.
Smooth platform movements enable quick repositioning, leading to faster job completion and enhanced overall productivity.
4. Compact & Maneuverable Design
Features a space-saving folding boom that minimizes the vehicle's footprint during transport and parking.
Built on a highly mobile Isuzu truck chassis for easy relocation between different job sites.
For qiuck Inquiry, contact Juniper:
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
|
Parameters Of Truck Chassis |
||
|
Overall Dimension |
9000x2520x4200mm |
|
|
Cab |
ISUZU VC61 Cab Left hand driving 3 seats One sleeper Air conditioned Central locking Power steering Electrical window |
|
|
Engine |
Diesel Engine, ISUZU 4HK1-TC60, 205HP/151kW, Euro VI 4 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection |
|
|
Gearbox |
Manual transmission ISUZU MLD 6 Forward & 1 Reverse Speed |
|
|
Axle Loading |
Front axle: 6,300kg Rear axle: 13,000kg |
|
|
Tire |
295/80R22.5 7 pieces including 1 spare tire |
|
|
Parameters Of Upper Structure |
||
|
Main technical parameters of the operation |
Max. working height |
36 m |
| Lowest working height | 9 m | |
|
Maximum operating range behind the platform |
19 m |
|
|
Maximum operating range on the side of the platform |
14 m |
|
|
Maximum boom tilt angle of the platform |
75° |
|
|
Rated load of bucket |
400 kg |
|
|
Bucket size |
2000x1000x1000mm |
|
|
Outrigger |
Method: Front H and rear V, can adjustable independently Control: Individually adjustable or linked Front span: 8350mm, Rear span: 7680mm Left span: 7680mm, Right span: 7260mm |
|
|
Main boom |
Four-section fourteen-sided working boom, with synchronous telescopic design Made of Baosteel BS960E high-strength steel |
|
|
Rotation |
Platform can 360° continuous rotate in both directions Bucket can 360° rotate |
|
| Operation method |
Remote controller with monitor showing display arm length, working height, working radius, tilt angle in English Manual control on the platform with monitor showing display arm length, working height, working radius, tilt angle in English Manual control in the operator's cabin |
|
| Hoarding&walking platform | Stainless steel fence and anti-slip walking platform | |
| Automatic interlock device for getting on and off the vehicle | Used for interlocking when getting on and off the vehicle to prevent accidents caused by misoperation. | |
Discover the Isuzu 36m Articulated High-Low Aerial Work Platform – your reliable partner for efficient and safe access solutions across multiple sectors.
