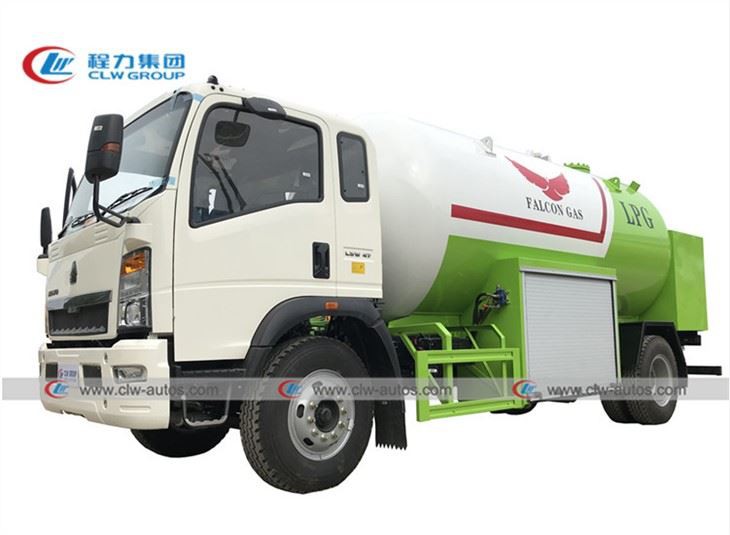

HOWO RHD 15000L LPG Tank Bobtail Truck
HOWO RHD 15000L LPG Tank Bobtail Truck Tank Volume: 15000Liters, 15CBM, 15m3, 15 cubic meters Loading capacity: 7.5Tons, 7.5MT, 75000kgs With pump, flow meters, 30 meters filling hose, REGO filling gun, dispenser.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo rhd 15000l lpg tank bobtail truck in China. If you're going to buy high quality howo rhd 15000l lpg tank bobtail truck, welcome to get more information from our factory. For price consultation, contact us.
Goods Discription:
HOWO RHD 15000L LPG Tank Bobtail Truck is mainly used for cooking gas or LPG gas transport and dispensing. our LPG road tanker can install one dispenser which can filling cooking gas to cylinders. it is used to transport gas for big hotels, restaurants, factories etc. it is under the very strict inspection by goverments. it is tesed by air, water, X-ray and with fire firing. it a very safe products. We sold hundreds of LPG tanker trailers to Nigeria, Kenya, Zimbabwe, Bangladesh, Cambodia etc every year.
For more detailed information, please contact: Helen Jiang. WhatsApp: +86 135 5419 5719
The technical parameters for HOWO RHD 15000L LPG Tank Bobtail Truck:
Item No. | Parameters |
Overall Dimension | 7800x2500x3250 mm |
Driving Model | Right hand drive for East africa |
Gross Vehicle Weight | 16000 kg |
Curb Weight | 8460kg |
Payload | 7000 kg |
Wheel Base | 4700 mm |
Front Axle capacity | 3600kg |
Rear Axle capacity | 10500kg |
Engine | Yuchai engine,YC4E160-33, Diesel engine |
Engine horsepower | 160 HP/118KW, EUROIII |
Displacement | 4260mL (Diesel) |
Gearbox | DC6J65TC,6 forward& 1 reverse |
Cabin | HOWO 2080 type cabin,one row and a half with A/C |
Tire | 9.00R20 (6 pc with 1 spare) |
Exhaust Pipe | At front of Cabin for safety |
LPG tank | |
Volume: | 15000iters |
Tank material: | Q345R |
Tank diameter: | 2000mm |
Tank thickness: | 10mm |
End plate thickness: | 10mm |
Tank length: | as designed |
Gas phase | Flange type,DN50/2” or according to customer request |
Liquid Phase | Flange type,DN50/2” and DNDN80/3” or according to customer request |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Testing pressure | 2.21Mpa |
Refilling Accessory | |
LPG Pump | Corken Brand, Model NO. : Z2000EGAEE |
Inlet 2” NPT and Outlet 2” NPT | |
Max. RPM:800 | |
Radiator | 1 pc (to avoid high temperature of hydraulic oil during operation |
Hydraulic motor | 1 pc |
Flow meter | English remarks with printer for receipt
|
Filling hose | 15M,retractable |
Filling nozzle | Filling nozzle for cylinder |
Level Gauge | Chinese Float Ball type,at the rear of tank
|
Safety Valve | 1,DN80 |
Tool and Valve Box | Located at side of LPG bobtail |
Thermometer | 1 pc |
Pressure Gauge | 2 pc |
Emergency shut off Valve | 3 pcs with witch inside valve box and at rear of truck |
Fender | Steel |
Fire Extinguisher Holder | 2 sets |
Anti Static line | 1 set |

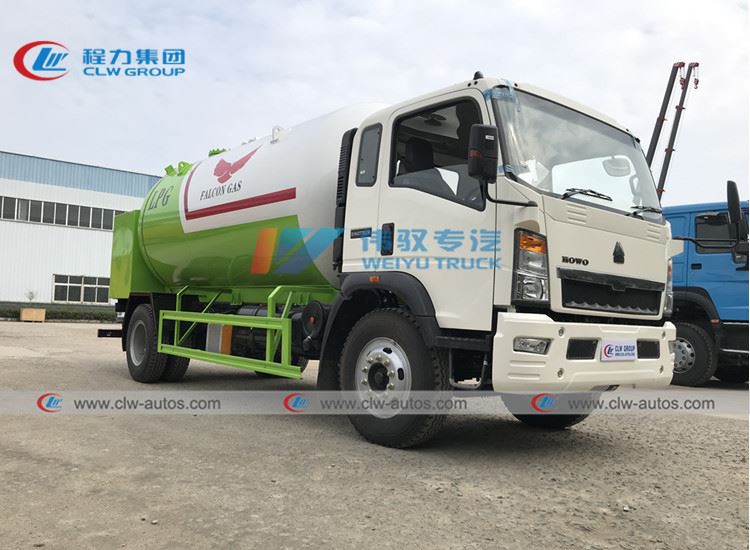

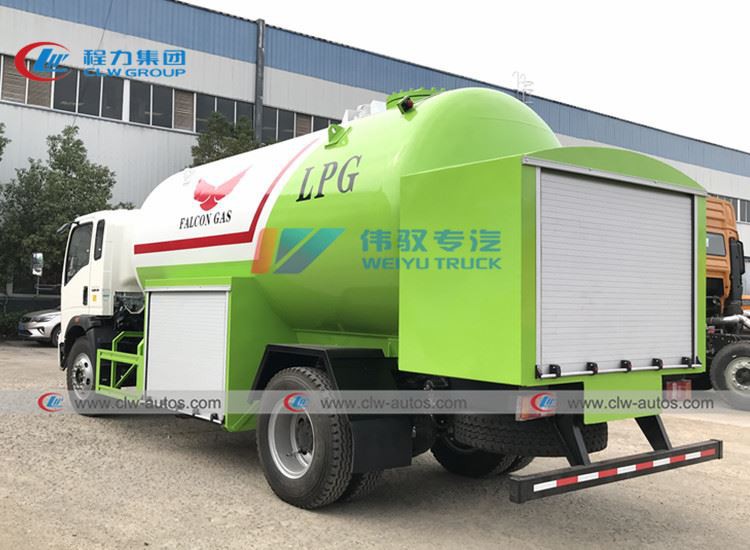

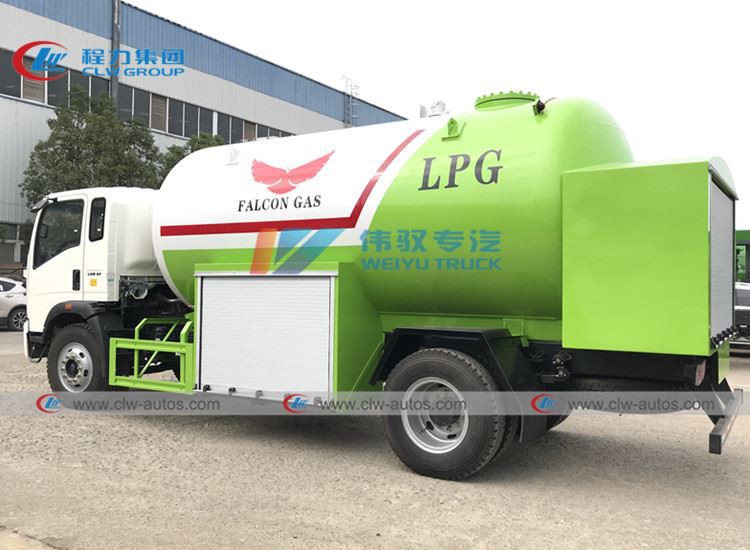

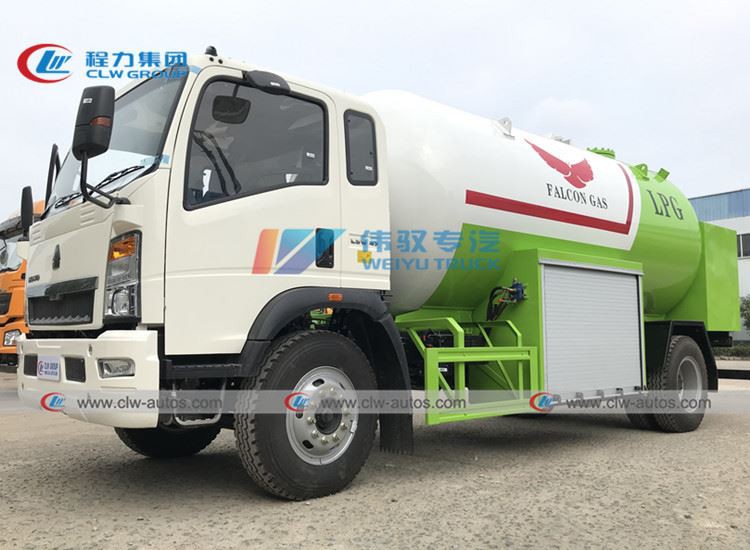

More detailed pictures for HOWO RHD 15000L LPG Tank Bobtail Truck:
LPG tanker parameter:
Design Pressure: 1.77Mpa
Design temperature: -40-50 centi degree
Tank capacity: 15000 liters, 15cbm, 15cbm, 15M3,
Filling medium: LPG(Propane)
Tank material: Q345R
Corrosion allowance: 1.00 mm
Heat treatment method: PWHT
Hydraulic test pressure: 2.66Mpa
External Dimensions(In-Diameter*Thickness*length): 6224*10mm*2400 mm
Vessel’s sort: The third kind
Service Years: 10 years
Emergency cut-off valve parameter:
Model: QGJ43F-2.5
Nominal Pressure: PN2.5Mpa
Nominal Diameter: Gas Phase DN25mm Liquid Phase DN50mm
Operation Way: Manual
Closing Time: 10s
Melting switch temperature: 70±5°

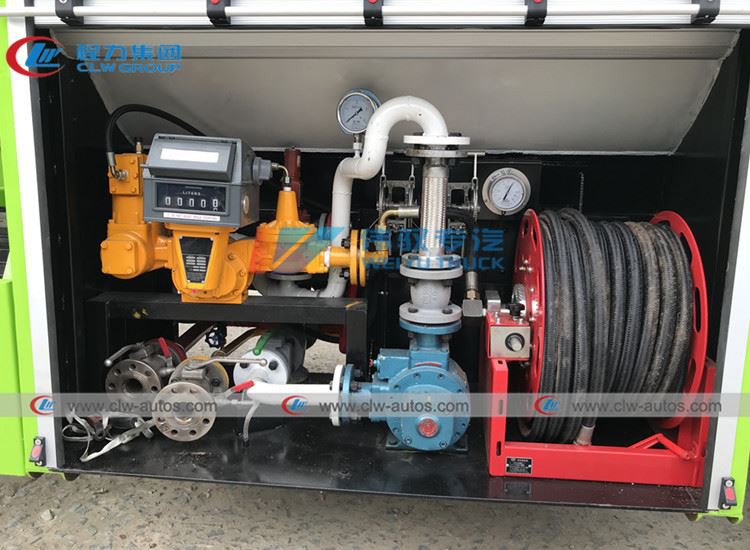

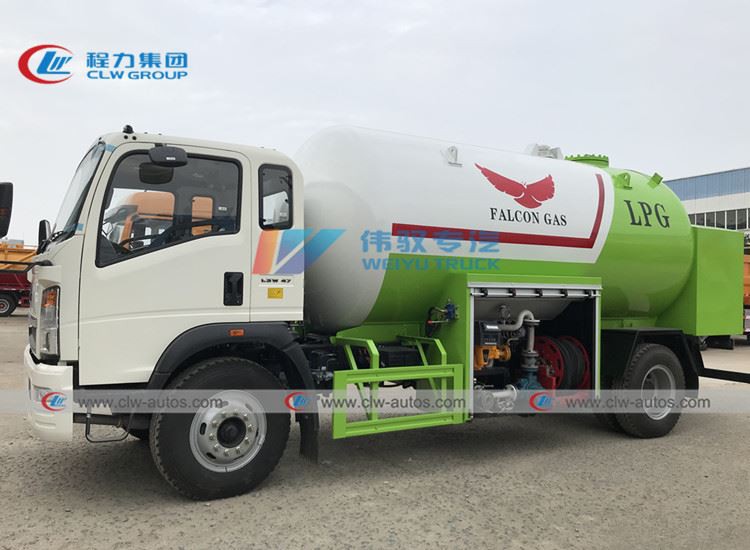

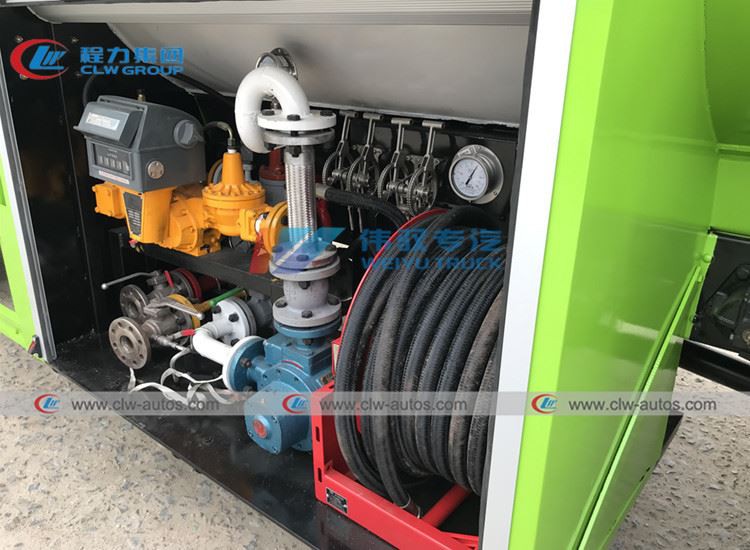

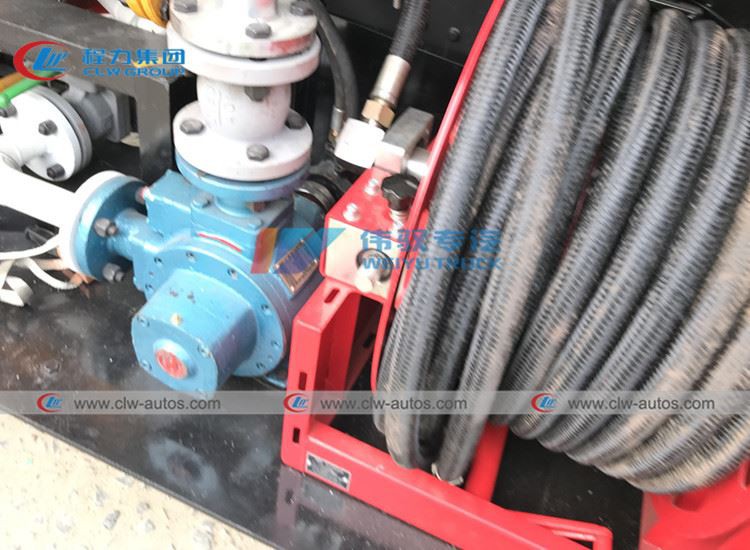

With pump, flow meter, 30 meters filling hose, REGO filling gun for filling small tanks in gas station, hotel, restaurant etc:

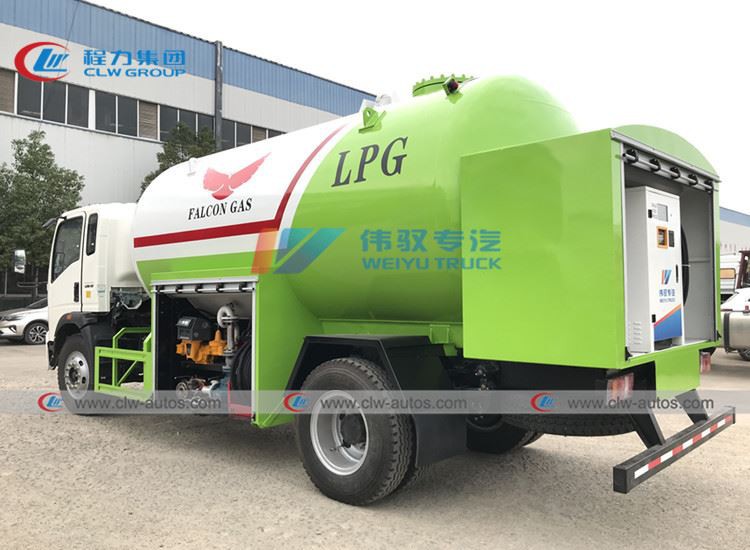

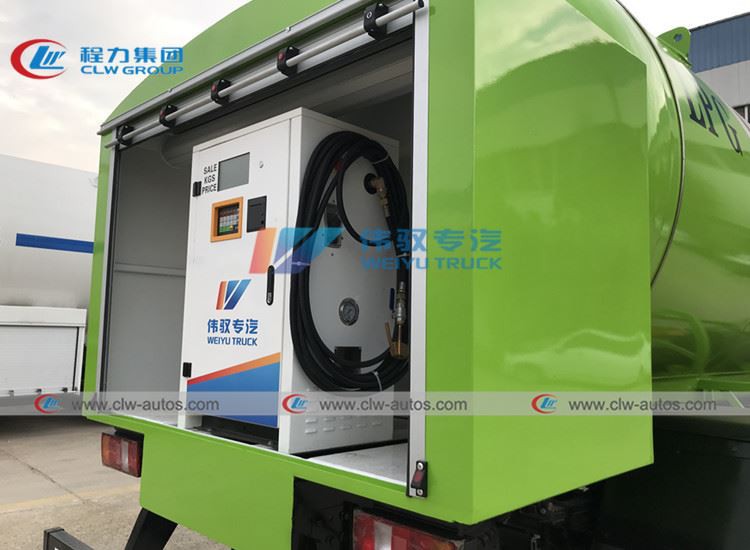

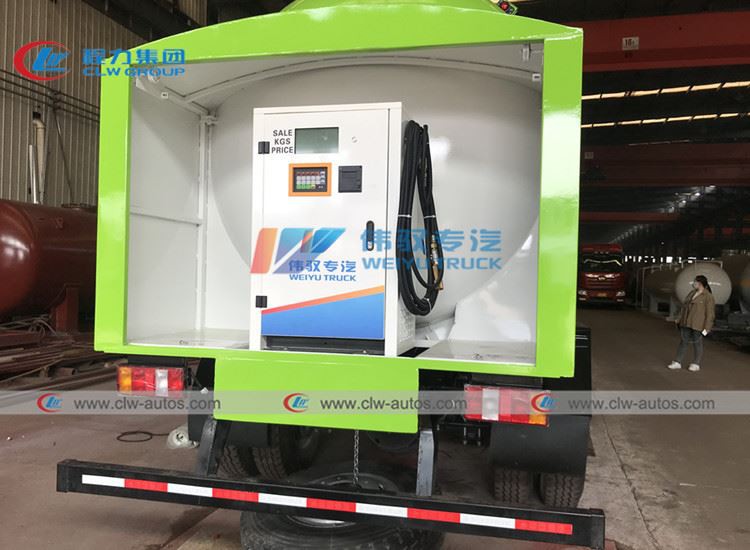

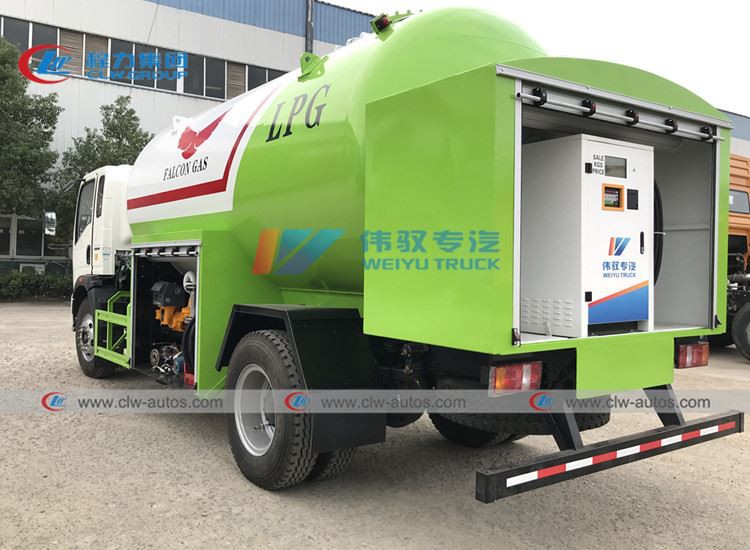

At the rear side, there is one dispenser with one nozzle or double nozzles for filling different sizes of gas cylinders or
small cars:
