Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of FAW 20m³ Hook Llift Garbage Truck in China. If you're going to buy high quality FAW 20m³ Hook Llift Garbage Truck, welcome to get more information from our factory. For price consultation, contact us.

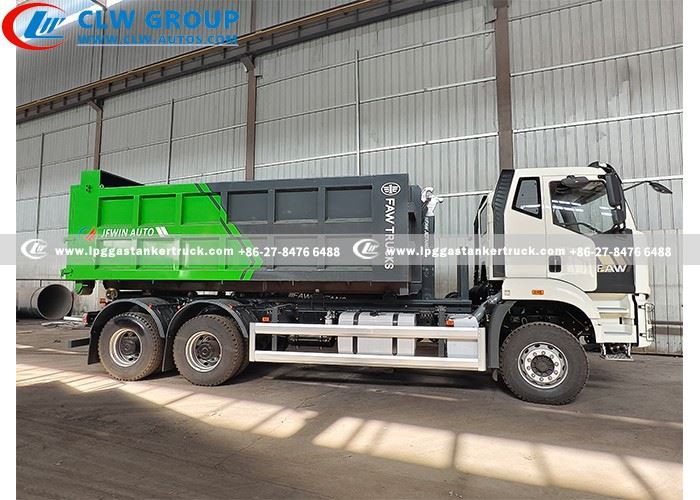

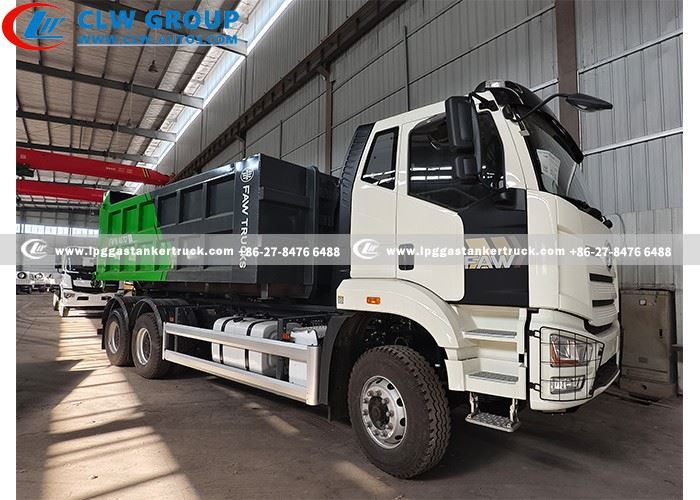

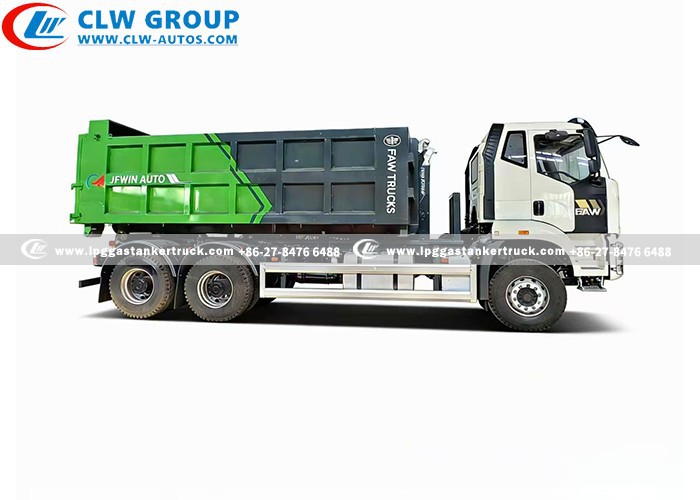

FAW J6L-350HP 6x4 10 Wheels Hook Garbage Truck
Hook lift garbage truck is a garbage truck in separate containers to collect garbage and take it to storage!
1. Vehicle Overview & Key Features
This is a robust FAW J6L truck, specifically built for harsh operating environments like Africa. It features a reinforced chassis, raised cab, and heavy-duty suspension to ensure reliability and durability on rough terrains. The truck comes in Pearl White and is equipped with a versatile hook lift system, enabling quick loading, transport, and unloading of various containers.
2. Performance & Powertrain
Powered by a reliable 350HP Ca6DL2-35E3F engine and a CA10TA160F5 10-speed manual transmission, the vehicle delivers strong pulling power suitable for heavy loads and challenging roads. The 5.921 rear axle ratio and 12.00R20 tires further enhance its load-carrying capability and off-road performance.
3. Hook Lift System & Application
The truck is fitted with a sliding rail-type hook lift mechanism, which uses a full-length frame with rollers instead of wear pads. This design allows it to handle different container lengths while maintaining an optimal unloading angle. It is ideal for waste management, construction, landscaping, and equipment transportation, providing efficient container handling without additional machinery.
4. Durability & Practical Specifications
Built for toughness, it includes a 400L steel fuel tank, metal bumper, oil-bath air filter, and aluminum radiator. The 12/12 leaf spring suspension, dual fuel filters, and manual hydraulic cab lifting device ensure easy maintenance and long service life in remote areas. The cabin offers basic comfort with air conditioning and a mechanical suspension seat.
Key Features:
Hook Lift Truck/ Jiefang J6L Africa Edition/ Heavy-Duty Chassis/ Waste Management/ Construction Transport/ Sliding Rail Hook System/ 350HP Diesel/ Durable Off-Road Truck.
Product Name: FAW J6L Skip Loader Trucks
Application: Transportation of construction waste
Cab: Single row and half cabin, LHD, A/C
Wheelbase: 4800+1350 mm
Engine: CA6DL2-35E3F
Horsepower: 350HP
Emission standard: Euro II
Gearbox: 10 Forwards and 2 reverse
Gross Vehicle Weight: 25000 kg
Curb weight: 9500 kg
Loading weight: 15500 kg
Front/Rear Axle loading: 8t / 2x16t
Tires: 12.00R20 18PR, 10 pcs with one spare
Fuel Tank: 400L Steel material
Control Box: Electric Control Box in Cabin
|
Hook-lift container |
|
|
Container Type |
Open top container, hydraulic cylinder lifting & self loading |
|
Dimension |
5800x2450x1800 |
|
Volume |
20CBM; 20 m³ |
|
Loading Capacity |
18Tons |
|
Tank Material |
5mm, carbon steel Q235B |
|
Hook Arm Material |
Made in High Tension Steel with Fallen Down Sensor. |
|
Hydraulic System |
Reinforced hydraulic swept-body system, with Double hydraulic cylinder |
|
Hydraulic System Pressure |
≤16Mpa |
|
Self-Discharge Angle |
≥45 ° |
|
Discharging Time |
≤45 s |
|
Lifting Time |
≤45 s |
|
Locking Devices |
Hydraulic Cylinder Locking Arm &Tipping Device |
|
Steel Wheels |
2pcs, installed container back end for easy of hook up and down |
|
Control Box
|
1. Electric Control Box in Cabin |
|
2. Hydraulic muti-way valve control at rear |
|
|
Standard Accessories
|
1.Warning lights |
|
2.music alarm |
|
|
3.basic tool kit |
|
|
4.English manual. |
|
|
Optional
|
1.Back alarm and Camera can be equipped. |
|
2.Remote Control Box can be optional. |
|
|
3.Garbage container can be of stainless steel |
|
Hook lifts truck are typically smaller and more versatile - and they can also be used in conjunction with flatbed trucks or dump trucks!

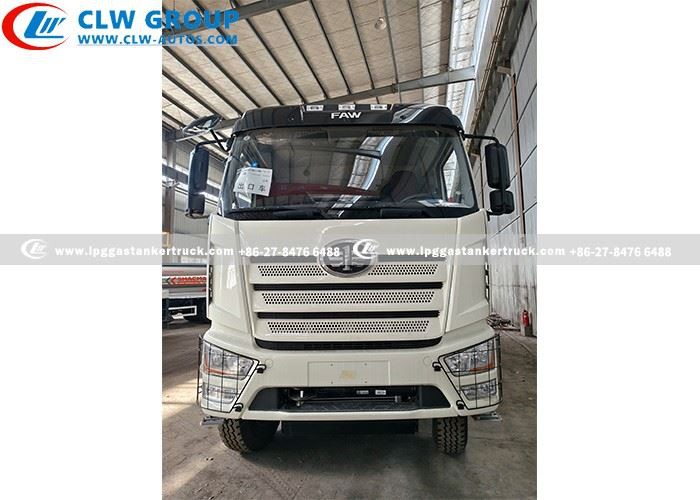

FAW J6P cabin
Single row and half cab
Two seats with one sleeper
Air conditioner
Electric window
Mechanical suspension seat

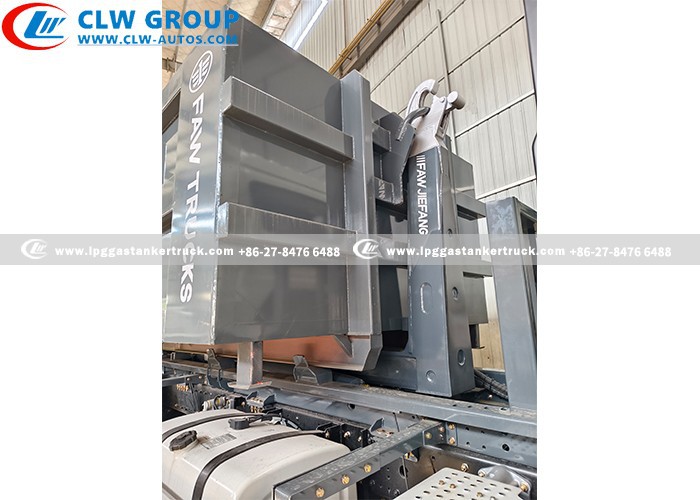

20 tons Hydraulic Hook System
Mechanical locking structure design
Drive the hook arm mechanism for the lifting
Loading, unloading and transportation of the garbage bin
Hydraulic Cylinder Locking Arm &Tipping Device
Hook arm material is made of high tension steel
hydraulic cylinder lifting & self loading

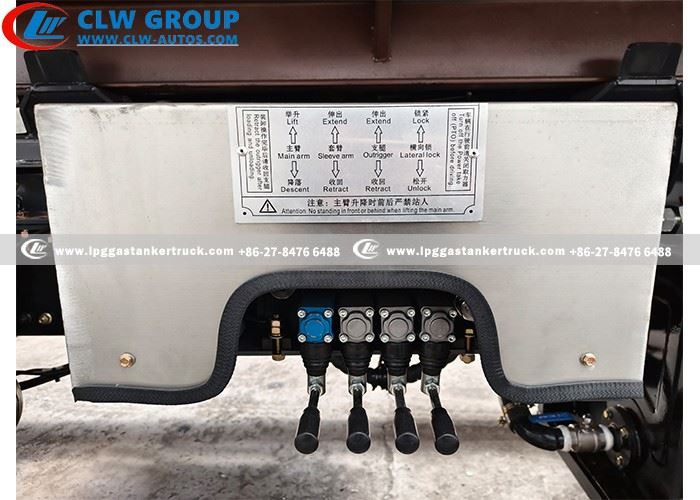

Hydraulic muti-way valve control
The control box at the rear of the truck
The hydraulic control valve is operated to extend and retract the oil cylinder,enabling the boom to pick up, lift
And firmly place the garbage bin on the cab track for transportation
After reaching the dumping location, the hydraulic system reverses, causing the boom to slide the garbage container out for automatic dumping.
Electric Control Box
Electric control box in cabin
Optional cab electrical control is available
Operation simple and maintenance convenient
Compressed garbage truck
Swing-arm garbage truck
Side loader garbage truck
There are various modes of transportation for you to choose from!
