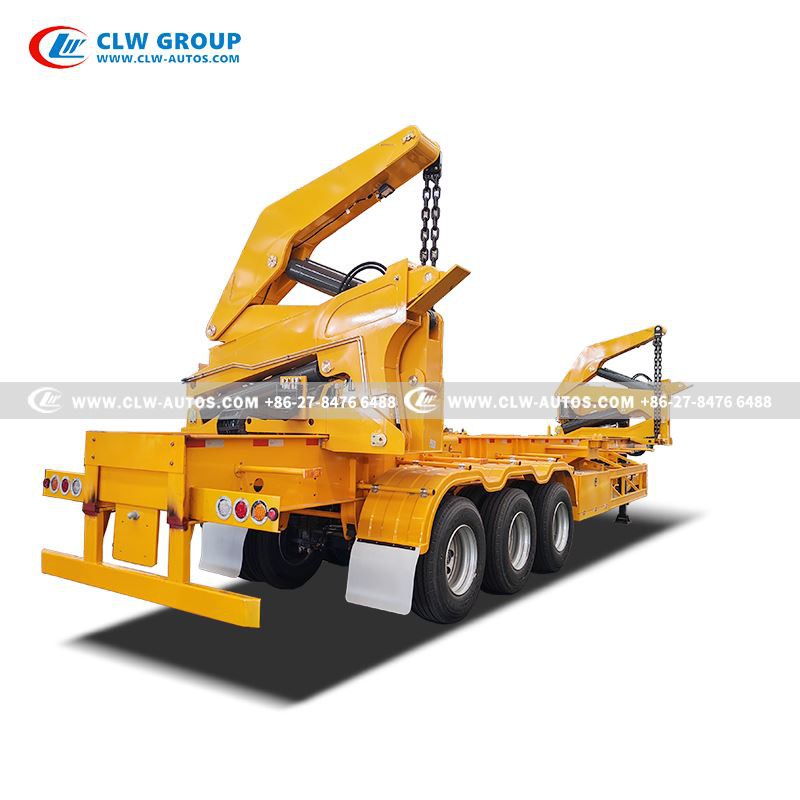

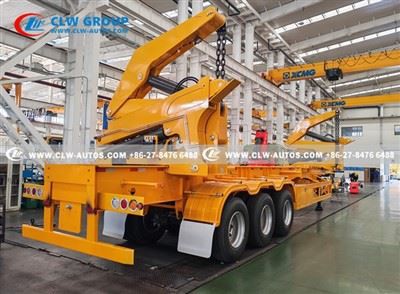

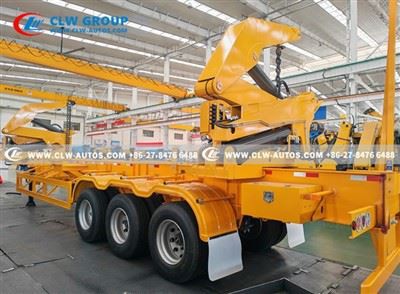

40ft Container Self-Loading Side Loader Trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40ft container self-loading side loader trailer in China. If you're going to buy high quality 40ft container self-loading side loader trailer, welcome to get more information from our factory. For price consultation, contact us.

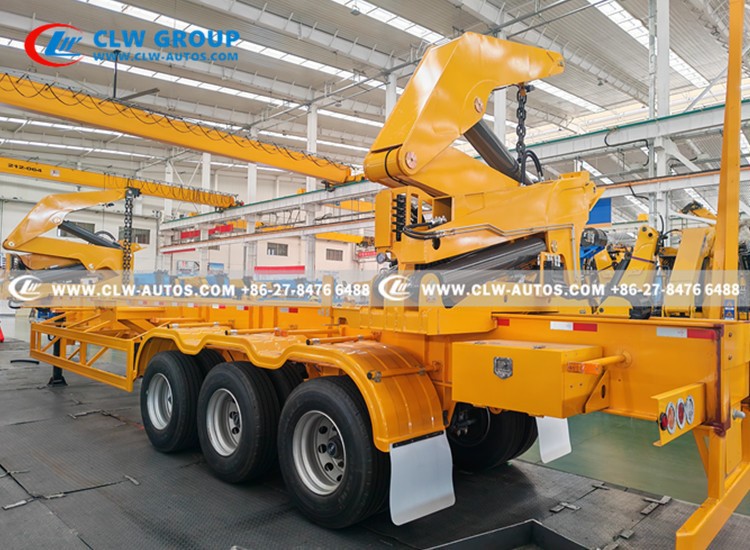

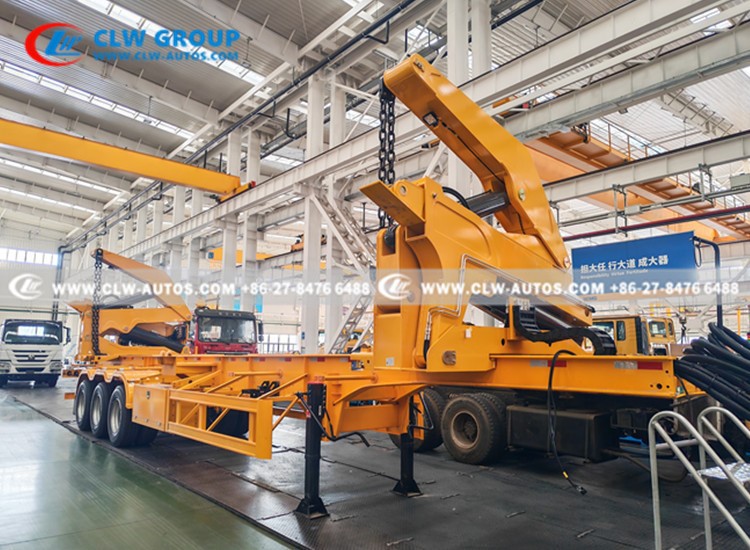

3 Axles Side Loader Trailer for 20FT/40FT Container Self-Loading, Self-Discharging;   The Autonomous Revolution in Container Logistics!





The 3-Axle Side Loader Trailer is a revolutionary self-sufficient intermodal transport solution engineered for autonomous handling and transportation of standard ISO shipping containers without requiring external cranes, reach stackers, or terminal infrastructure. Featuring an integrated hydraulic side-loading system and a robust 3-axle running gear, this trailer enables one-person operation to pick up, position, transport, and deliver 20ft and 40ft containers in virtually any location-dramatically increasing efficiency in ports, depots, logistics yards, and last-mile delivery operations.









Parameter	20ft Version	40ft Version
Trailer Length	7.82 m	13.62 m
Trailer Width	2.55 m	2.55 m
Loading Capacity	30,000 kg	32,000 kg
Max Container Weight	28,000 kg	30,480 kg
Self-Lifting Height	0-1.5 m	0-1.5 m
Lifting Time	2-3 minutes	3-4 minutes
Axle Configuration	3-Axle Tridem	3-Axle Tridem
Axle Load Capacity	3 x 13,000 kg = 39,000 kg	3 x 13,000 kg = 39,000 kg
Tare Weight	9,800 kg	11,500 kg
Power Pack	Deutz TCD 3.6 L4, 60 HP	Deutz TCD 4.1 L4, 75 HP
Hydraulic Pressure	280 bar	280 bar
Fuel Capacity	100 liters	150 liters







Technical Parameters of 3 Axles Side Loader Trailer
1) Main Dimensions
1	Overall Dimension	14300×2550×4100 mm
2	Curb weight	About 14,460 Kg
3	Rated Payload	50,000kg
Enclosed Photos only for reference, final product will be made according to exact requirements

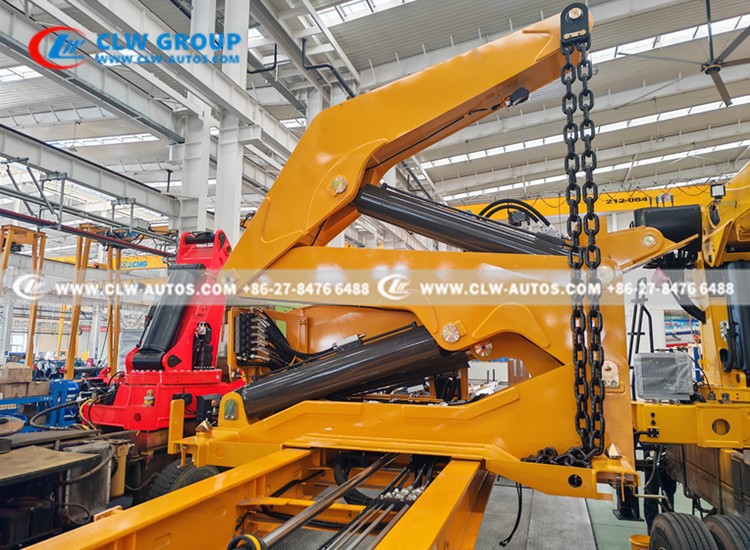

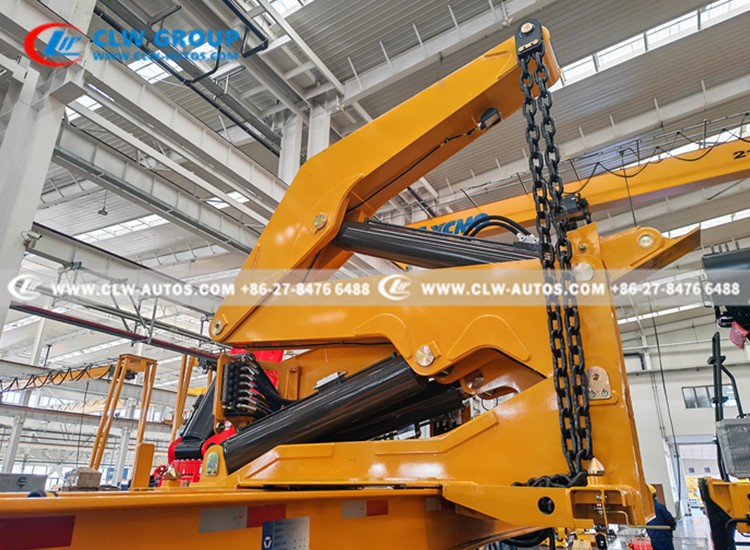

Crane
4	Max lifting capacity	37000 Kg
5	Model	MQH37
6	Crane weight	7000 Kg
7	Working pressure	28 Mpa
8	Material	High Tensile Steel
9	Max.working range	4 m
10	Max.Lifting height	2.7 m
11	Max.stabilliser outreach	3.2m
3) Trailer
12	Axle	3 Axles, FUWA brand 13 ton,
13	Suspension	Heavy duty mechanical suspension
14	Axle base	7,300+1,310+1,310mm
15	I beam	Height of main longitudinal girder: 500mm; thickness of wing plate:16/16mm; thickness of web plate: 10mm
16	Leaf Spring	10 piece Leaf spring
17	King Pin	JOST brand 3.5" Bolt-in King Pin
18	Landing Gear	JOST brand

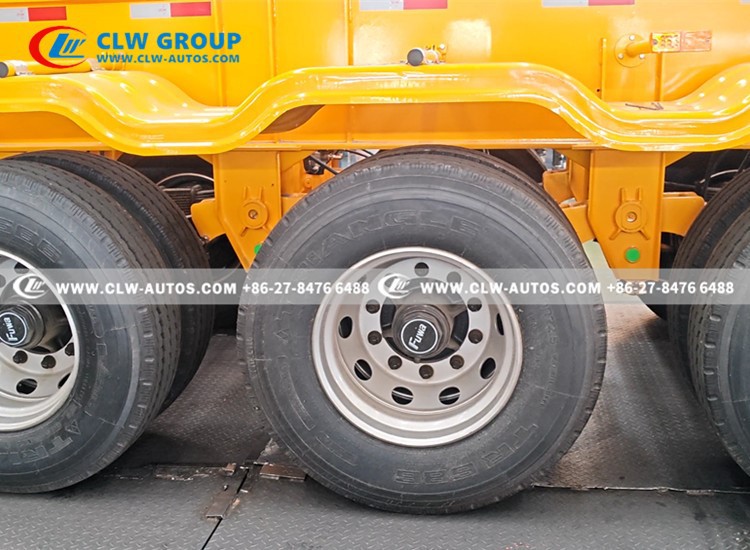

19	Wheel Rim	12 pieces 8.5-22.5 steel wheel rim
20	Tire	12 pieces 315/80R22.5 tire with one spare tire.
21	Spare Tire	One set of spare tire including a carrier
22	Braking System	WABCO RE
23	Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
24	Accessories	One standard tool box





3 units Side Loader trailers exported to Nigeria!

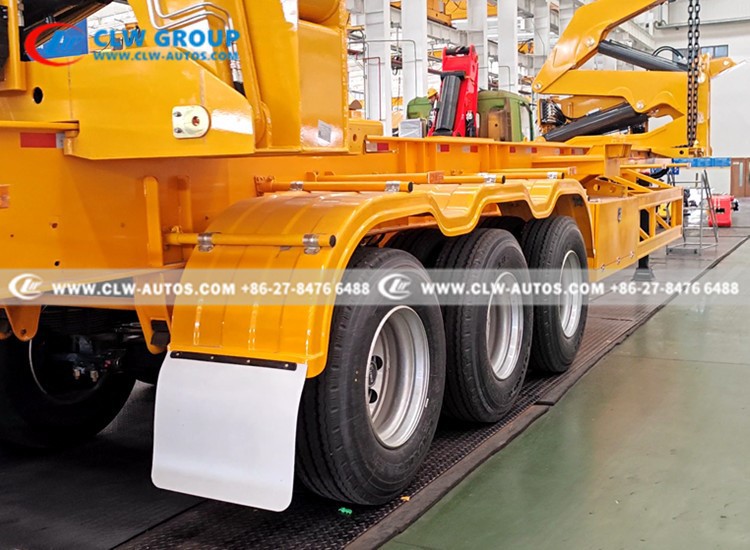

1. Trailer Chassis & Running Gear



• Configuration: Tridem axle (3 axles) with heavy-duty mechanical suspension (optional air suspension).
• Axle Capacity: Up to 13,000 kg per axle, BPW or FUWA brand (total axle load capacity: ~39,000 kg).
• Braking System: Full air brakes with ABS (Anti-lock Braking System) and optional EBS (Electronic Braking System).
• Suspension: Air ride suspension for cargo protection and road stability; optional liftable pusher axle for weight distribution.
• Frame: High-tensile steel main beams with reinforced crossmembers; designed for ISO container twistlock compatibility.
• Coupling: Standard kingpin for compatibility with semi-tractors.



2. Integrated Self-Loading Side-Loader System

• Loading Mechanism: Hydraulic telescopic lifting arms or scissor lift system mounted along the trailer side(s).
• Lifting Capacity: Up to 35,000 kg (capable of handling fully loaded 20ft and 40ft containers).
• Lifting Height: From ground level to trailer bed (approx. 1.2m - 1.5m).
• Lateral Movement: Hydraulic sliding mechanism for precise container positioning across the trailer width.

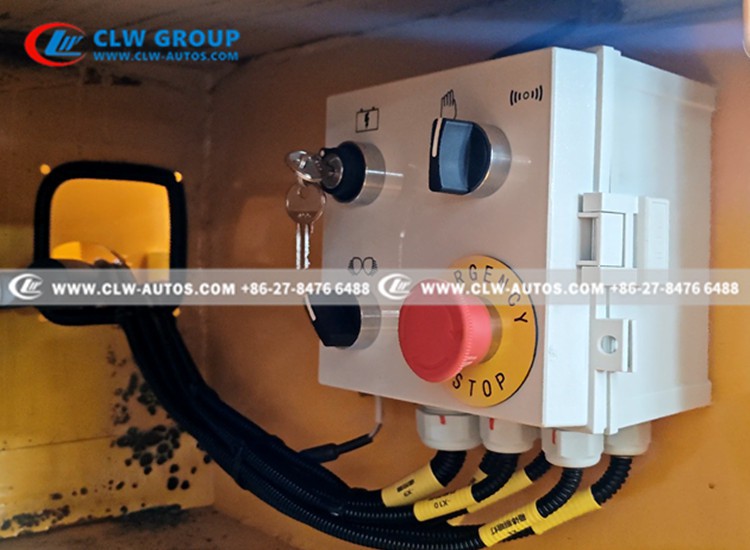

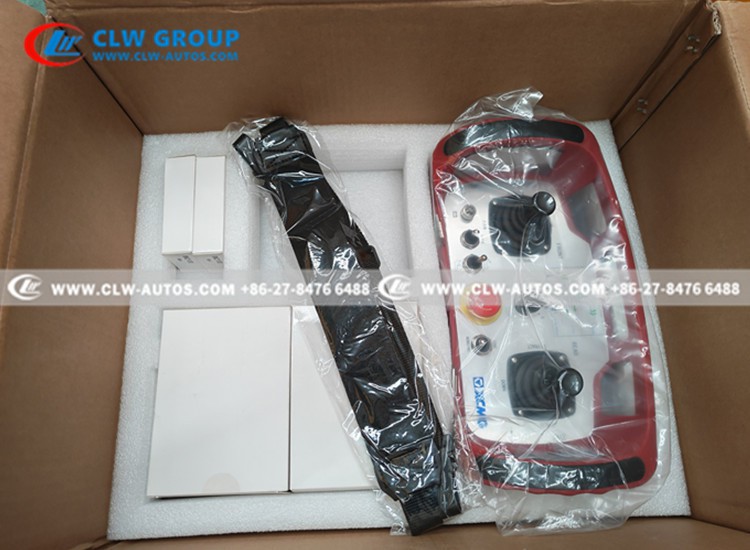

• Control System: Wired remote control pendant or wireless remote with safety interlocks.
• Operation Time: Full load/unload cycle in 3-5 minutes.



3. Container Handling & Locking System

• Container Compatibility: 20ft (6.058m), 40ft (12.192m), and 45ft ISO containers.
• Twistlock System: Automatic hydraulic twistlocks at all corner positions; manual twistlocks as backup.
• Spreader Option: Integrated hydraulic spreader for handling containers without corner castings (e.g., tank containers).
• Adjustability: Automatic width adjustment for different container sizes.



4. Hydraulic Power Unit

• Power Source: Independent diesel engine (e.g., Deutz, Cummins, Kubota) rated 50-80 HP.
• Hydraulic System: High-pressure gear pumps (pressure: 250-300 bar), proportional control valves, and large-capacity hydraulic cylinders.
• Fuel Tank: 100-150 liter capacity for extended operation.



5.  XCMG Knuckle Boom Crane



• Multiple Articulation Points: Typically 4–5 fully rotational knuckle joints for folding and unfolding in tight spaces.
• Compact Transport Profile: When folded, the crane occupies minimal space on a truck chassis.
• Versatile Reach: Ability to reach over, under, and around obstacles (e.g., buildings, machinery, warehouses).
• Continuous 360° Rotation: Full slewing capability for maximum operational flexibility.





Primary Applications:



• Port Operations: Rapid container movement between ships and storage areas
• Inland Container Depots: Efficient container sorting and storage management
• Last-Mile Logistics: Direct delivery to end-users without crane infrastructure
• Military Logistics: Rapid deployment in field conditions
• Disaster Relief: Quick container handling in emergency situations



Secondary Applications:



• Rail Terminals: Intermodal transfer operations
• Construction Sites: Mobile storage and equipment containers
• Temporary Facilities: Event management and mobile offices
• Agriculture: Portable storage for equipment and supplies



Self-Loading Container Trailer, Side Loader Trailer, 3-Axle Container Carrier, Autonomous Container Handler, ISO Container Transport, Hydraulic Side Loader, Intermodal Logistics Trailer.

The 3-Axle Side Loader Trailer represents a paradigm shift in container handling technology, delivering unprecedented efficiency, flexibility, and cost savings by empowering a single operator and trailer to perform work that traditionally required multiple pieces of equipment and personnel. It is engineered to keep your logistics operations moving-anywhere, anytime.
