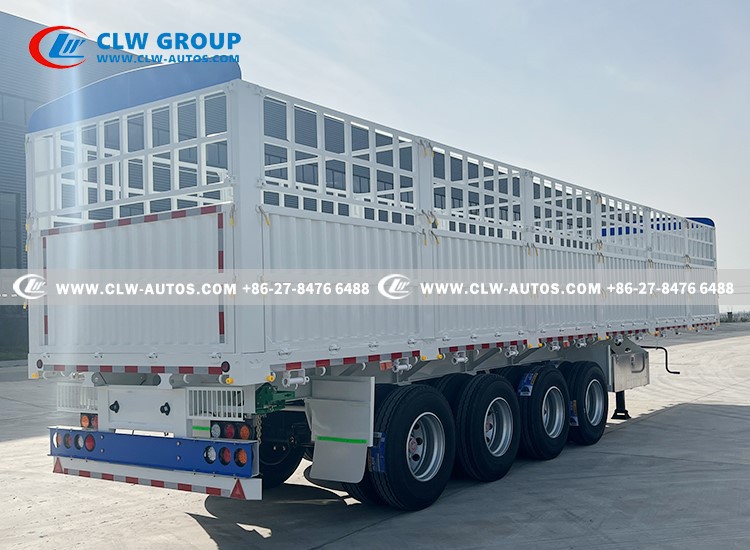

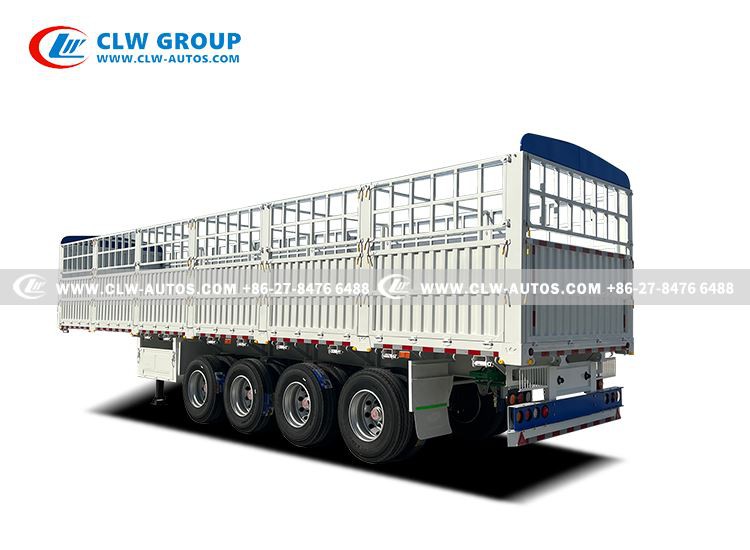

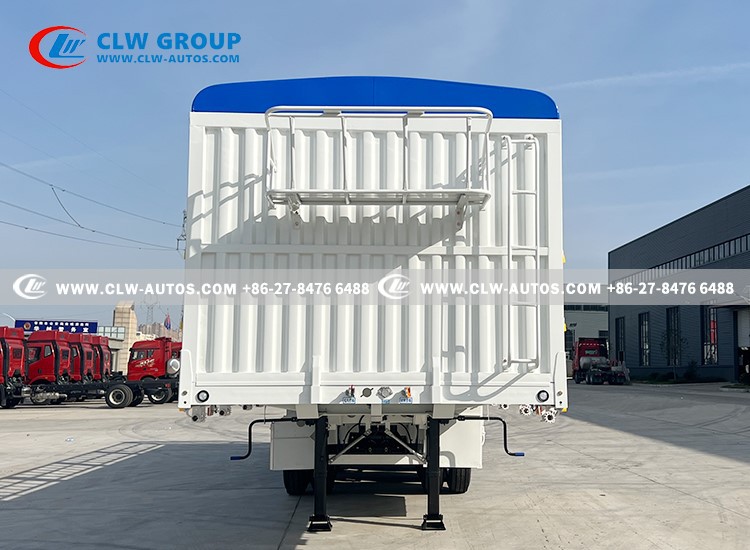

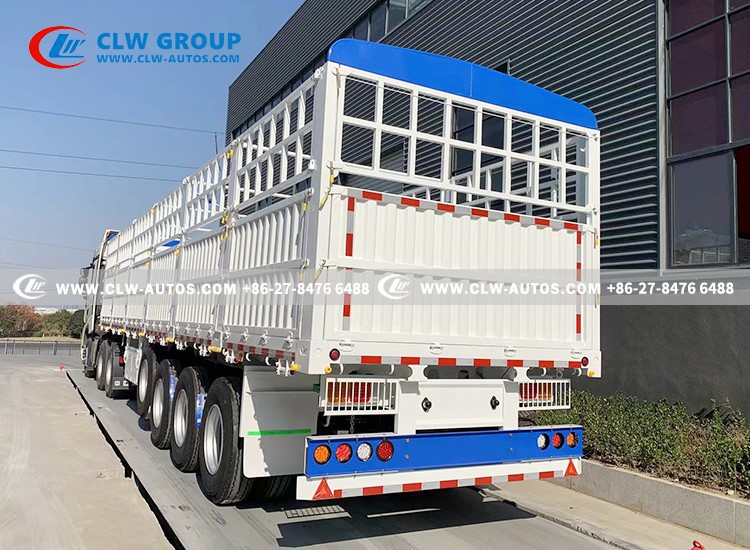

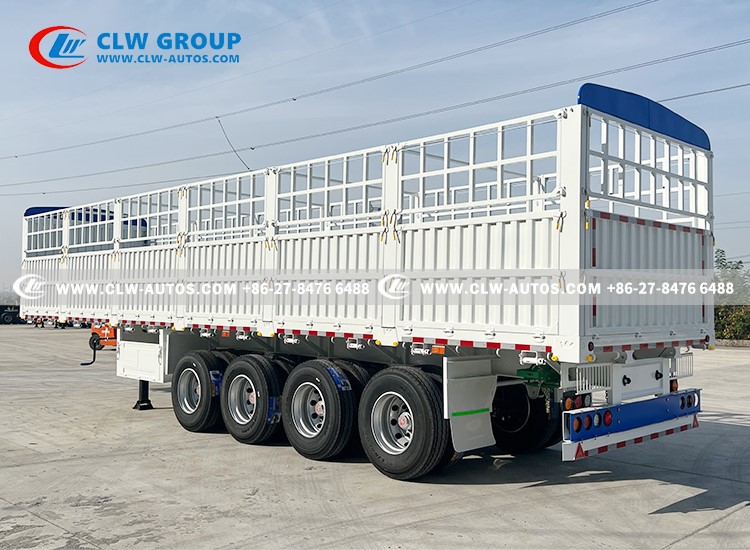

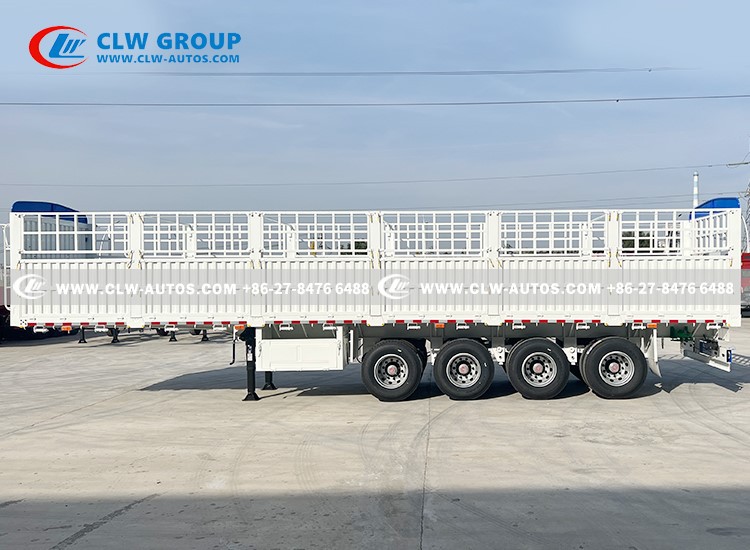

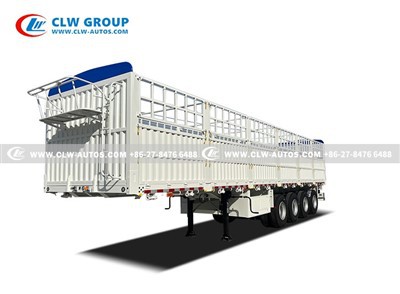

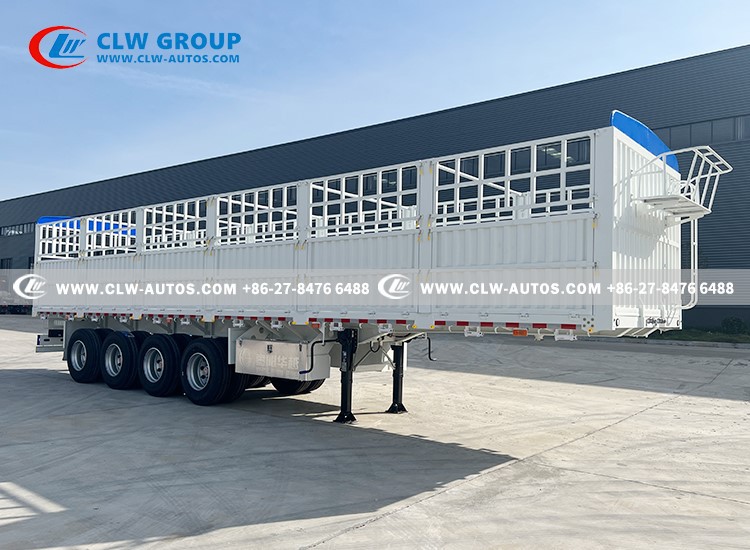

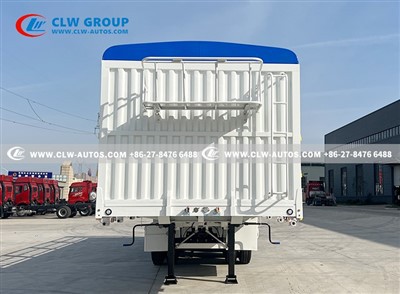

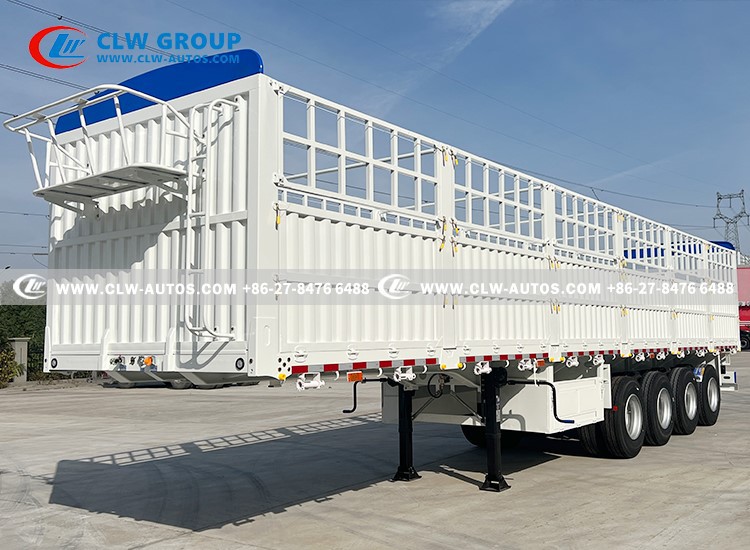

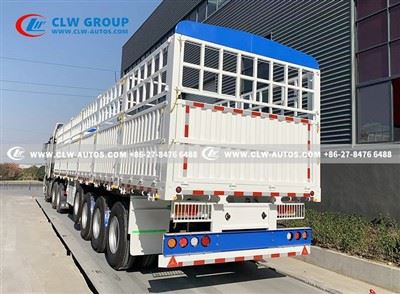

4 Axle 80 Tons Fence Warehouse Trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 80 tons fence warehouse trailer in China. If you're going to buy high quality 4 axle 80 tons fence warehouse trailer, welcome to get more information from our factory. For price consultation, contact us.





• CLW 's cargo fence warehouse semi trailer is usually just called sidewall trailer or side wall semi trailer for short.
• The only difference between the side wall semi trailer and flatbed semi trailer is the side wall or side boards.
• Flatbed semi trailers don't have the side boards, while side wall semi trailers have them.
• The side wall can be low or high depending on customer's needs. The side boards are usually disassembled prior shipping and stacked on top of each other to save space during transportation. Once they arrive their destination, the side boards can be assembled very easily.
• On the cargo side wall semi trailer, the frame is the main component used to support the load and install traction pins, suspension, landing gear and other devices.
• The side beams are generally channel steel or bending parts. At present, most trailers use channel steel . There will be more side beams for for light-body trailers because the requirements for strength are not too high. The support beam is the through beam, which are mostly W beams now.
• Axle can be 2 Axle, 3 Axle (Tri-Axles), 4 Axles. or more.



2 Axles	3 Axles	4 Axles
Brand: CLW Group-Chengli	Brand: CLW Group-Chengli	Brand: CLW Group-Chengli
Loading Capacity: 30-60T	Loading Capacity: 30-80T	Loading Capacity: 40-100T
Gooseneck Type: Optional	Gooseneck Type: Optional	Gooseneck Type: Optional
Main Beam
Material: Q345/T700	Main Beam Material: Q345/T700	Main Beam Material: Q345/T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 16mm	Upper Plate Thickness: 18mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 10mm	Middle Plate Thickness: 12mm
Lower Plate Thickness: 14mm	Lower Plate Thickness: 18mm	Lower Plate Thickness: 20mm
Main Beam Height: 500mm	Main Beam Height: 500mm	Main Beam Height: 500mm
Product Size
L*W: 13000mm*2550mm	L*W: 13000mm*2550mm	L*W: 13000mm*2550mm
Side Wall Height: 600mm-1700mm	Side Wall Height: 600mm-1700mm	Side Wall Height: 600mm-1700mm
Axle
2 Axles *13 Ton FUWA/BPW/FENG BAO, OR Other	3 Axles *13/16 Ton FUWA/BPW/FENG BAO, OR Other	4 Axles *13/16 Ton FUWA/BPW/FENG BAO, OR Other
Tire
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/ Other Brand	12R22.5 (12 Pieces) Linglong/Triangle/Double Coin/ Other Brand	12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/ Other Brand
Rim
9.00*22.5 (8 Pieces) Steel/Aluminum	9.0*22.5 (12 Pieces) Steel/Aluminum	9.00*22.5 (16 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10Pcs	90mm*13mm*10/90mm*16mm*10Pcs	90mm*13mm*10/90mm*16mm*10Pcs
King Pin
#50(2")/#90(3.5"), JOST/Other Brand	#50(2")/#90(3.5"), JOST/Other Brand	#50(2")/#90(3.5"), JOST/Other Brand
Landing Gear
28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand
Vehicle Painting
Electrophoresis painting	Electrophoresis painting	Electrophoresis painting



1. Advanced Axle Performance
Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers.

2. Anti-Tire Abrasion Suspension
Specially designed anti-Tire abrasion suspension system, prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.

3. Electrophoresis Painting
Corrosion resistant and strong print adhesiveness up to 9 years. The whole body painting process makes sure no spots are missed and gives the best anti-rust performance.

4. Finite Element Analysis
FEA, aka Finite Element Analysis, the analysis used in calculation of Aircraft material strength, is used here on our vehicle to maximize product performance.

5. Landing Gear
JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30ºC to 120 ºC.

6. National Welding Standard
All the welding is supervised with national highest standards, while automatic welding robots are incorporated. 30 minutes longer than normal welding time ensures the best results.

7. Rational Analysis Design
Adhering to the concept of uniform force on trailer frame, the 42 rib design ensures the safety and carrying capacity of our trailer.

8. Full Thickness Steel Plate
10mm steel plate, can be as thick as 10.9mm, special custom-made with 0.98‰ titanium and niobium, which ensures the high strength of the beam and frame.

9. Tires
High quality tire brands such as Double Coin/Linglong/Triangle/can be optioned for the best performance.
