Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 2 axle bitumen/asphalt tank trailer with insulation layer and burner in China. If you're going to buy high quality 2 axle bitumen/asphalt tank trailer with insulation layer and burner, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
1.Function of this series bitumen tanker trailer:
This series tanker semi trailer is tank-style designed, which is suitable for the transportation of Bitumen/Asphalt/Pitch/Tar.
2.Technical Parameter for 30T bitumen tanker trailer:
Considering different countries have different road safety rules,defferent regulations,different road conditions.We can manufacture different asphalt bitumen tanker according to your sepecial situation.
The specification of 2 Axle Bitumen/Asphalt Tank Trailer With Insulation Layer and Burner:
Technical Data | ||||||
Weight Rating (kgs) | Tare Weight | 9000 | ||||
Pay Load | 35000 | |||||
Dimension （㎜） |
Trailer
| Overall Length | 10580 | |||
Overall Width | 2490 | |||||
Overall Height | 3520 | |||||
Wheelbase | 6280+1310 | |||||
Tank | ||||||
Shape | Ellipse | |||||
Total Volume（m3） | 31.5 | |||||
Valid Volume（m3） | 30 | |||||
Drift Diameter（inch） | System | 4 | ||||
Outlet | 3 | |||||
Material | Q235A/6mm | |||||
End plate | Q235A/6mm, by punching | |||||
Spurn water | Q235A/5mm, 20 inch manhole 508MM | |||||
Parts for Tank | ||||||
Manhole cover | 3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valves, 3 pieces, 500mm | |||||
Unloading valve | 2 sets of DN80 fixed at button of Tank | |||||
Pipeline at button of tank | 4”seamless steel tube/Q235, 100MM | |||||
Labeling system | Oil Type Indication | |||||
Anti-static electricity system | pulling, wire carrier, sheet copper (6 sheet, reasonable layout) | |||||
Burner | Italy Riello Brand. | |||||
Other Parts | ||||||
Ladder | 1 unit at front of Tank | |||||
Guard on top of Tank | Zinc galvanizing net | |||||
Oil hose box | Circular single hole tube, 1 unit on each side | |||||
Oil hose | 2 unit, 3” x 6mm size in black rubber | |||||
Side guard | cross bar structure | |||||
Rear button guard | Fixed type | |||||
Work tank deck | Box type | |||||
Fire extinguisher box | 2 unit at back of each side | |||||
Mud guard | trapezoid structure in steel | |||||
Lights and wire | 24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp | |||||
Chassis | ||||||
Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes | |||||
Axle | Two units of BPW 13 ton axle, FUWA, L1 brand are optional. | |||||
Landing Gear | 28T, 19” ,JOST Two Speed Manual Operation | |||||
King Pin | One unit of 2” bolt-in king pin | |||||
Suspension | German style mechanical tandem suspension with 11mm x 100mm 13 leaf springs | |||||
Pneumatic Braking System | One units of WABCO RE 6 relay valve; four units of T30/30 chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. | |||||
Wheel rim | 8.25-22.5 rim, 9 pieces including one spare | |||||
Tire | 11R22.5 tubeless tire, 9 pieces including one spare | |||||
Painting | Sand blasting processing clean rust One coats of anti-corrosive Two coats of finish urethane paint Color as customer choice | |||||

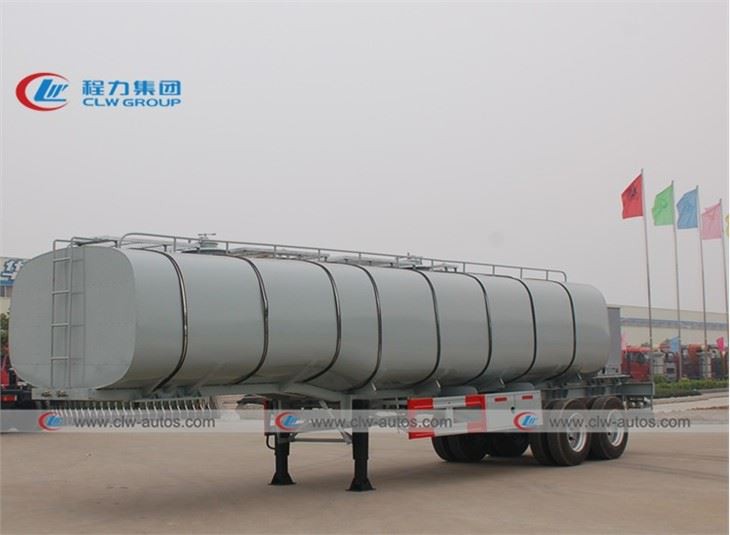

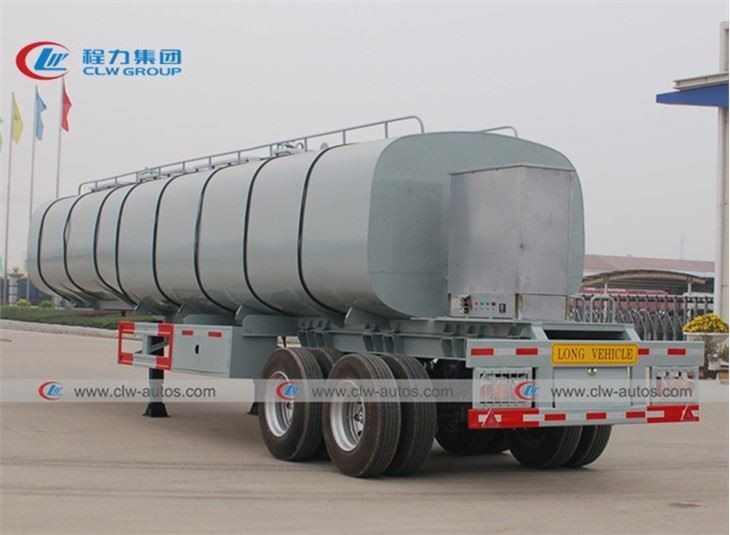

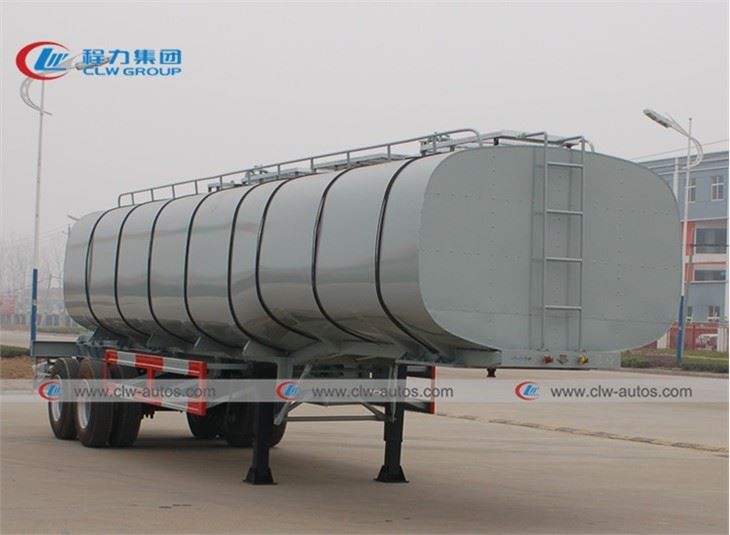

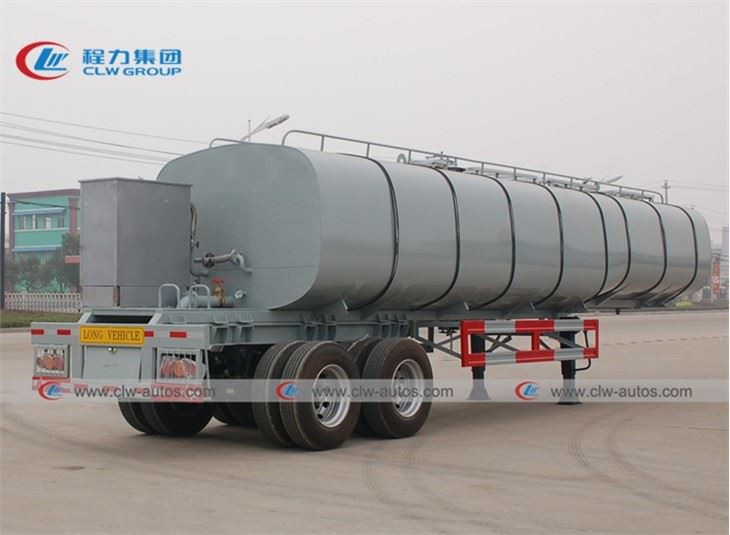

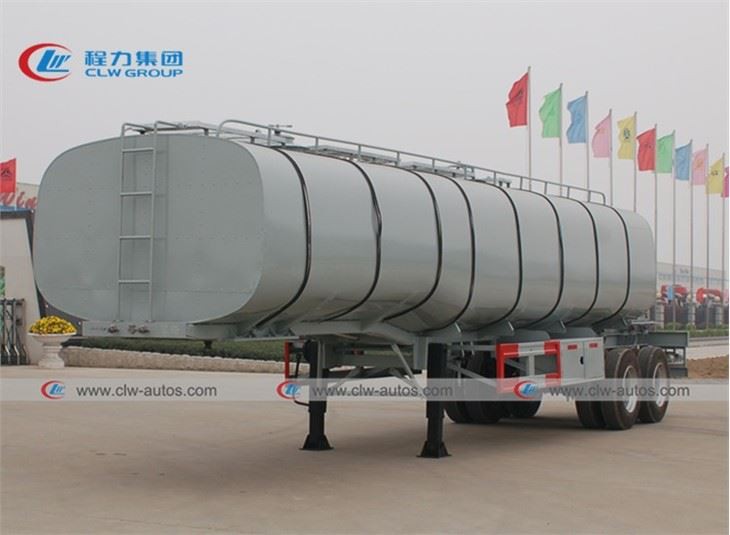

More Pictures for reference:
