Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 40000l 40m3 bitumen transport tank trailer in China. If you're going to buy high quality 3 axle 40000l 40m3 bitumen transport tank trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
CLW Group, Chengli Special Automobile Co., Ltd. manufacture high quality Asphalt Bitumen tank trailer is used to transport liquide asphalt from oil refinery and wharf to asphalt storge depot, also transport asphalt from asphalt storage depot to asphalt plant.
Bitumen tank trailer also called heated bitumen tank trailer, heated bitumen transport, hot asphalt tanker, Insulation asphalt tanker, Liquid Asphalt tank, semi-trailer hot asphalt tanker
The long service life and low maintenance of CLW Bitumen tank trailer have been well accepted by the customers across the world.
Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
The tanker can be produce with 1 compartments to 7 compartments according to customer demand
Axles: The axle can be selected in different famous brand of BPW and FUWA . domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
Suspension system: Mechanical suspension and air suspension series optional.
For more detailed information, please contact: Ms. Helen Jiang, Email Address: helen@clw-autos.com;
WhatsApp: +86 135 5419 5719.
Parameter for 3 Axle 40000L 40M3 Bitumen Transport Tank Trailer:
| Specification For Bitumen Tank Trailer | |
| Type | Asphalt tank trailer |
| Tank Body | |
| Shape | Round or Square (Optional) |
| Dimension | 9500-13000*2500*3900mm ( can be customized ) |
| Tare Weight | About 8000kgs-12800kgs |
| Volume | 30 m³ - 70 m³ |
| Material | 5mm or 6mm/Q235 Carbon steel / Aluminum alloy 5083 ,5182,5454 / Stainless steel |
| Manhole Cover | Carbon steel/ aluminum/ stainless steel manhole cover, diameter 500mm |
| Discharging Pipe | 4"rubber hose, 2 pcs, 6m/each |
| Heating pipe | Four pieces in one row |
| Discharging Valve | Diameter 3" or 4" or 6" |
| Bottom Valve | Thickness is 50 or 80 mm |
| Chassis | |
| Main Beam | Q345B Carbon steel material |
| Axles | 2 - 4 pcs 13 - 20tons BPW or Fuwa Axles |
| Suspenssion | Mechanical, Air, Bogie |
| Landing Leg | JOST E100 |
| Brake system | 6pcs T30/30 Brake Chambers, WABCO relay valve |
| Tire | 12R22.5, 315/80R22.5, 12.00R24 Triangle Brand |
| Rim | 9.00*22.5/8.0-20/8.5-20 |
| Leaf spring | 90mm (W) * 13mm (T)* 10 layer or 100mm *12mm *12 layer |
| King Pin | JOST 2" or 3.5 " Bolting Type |
| ABS | Optional |
| Burner | Italy RIELLO brand |
| Insulation layer | 100mm thickness fiber glass |

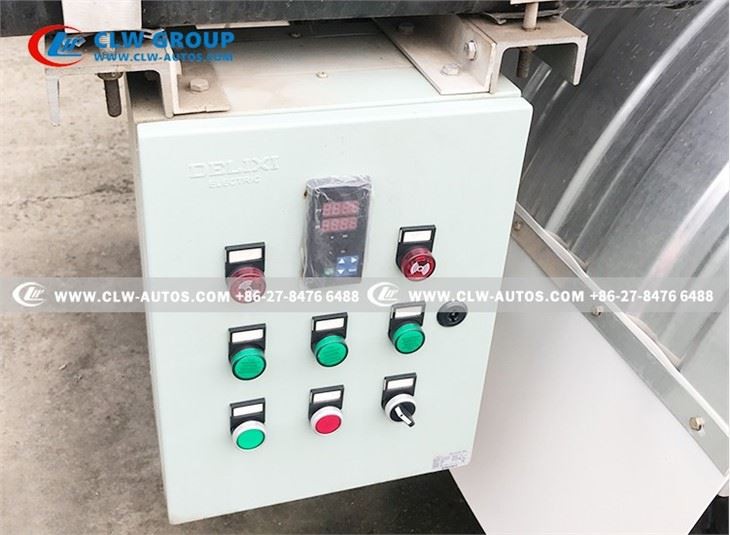

| Control Box | Electrical Controller |
| Any parts fitted could according to clients request, contact us to get more. | |

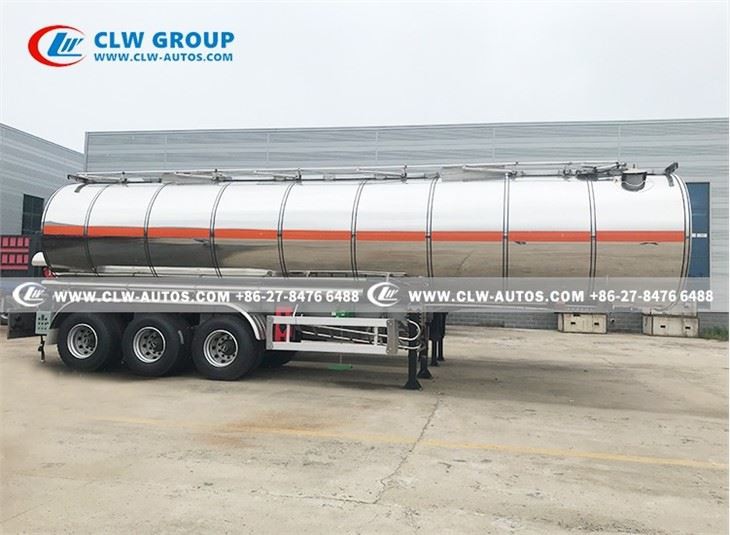

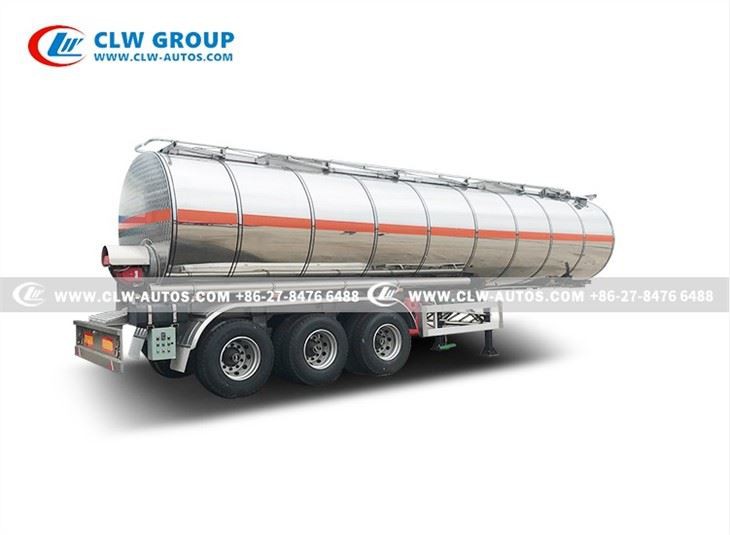

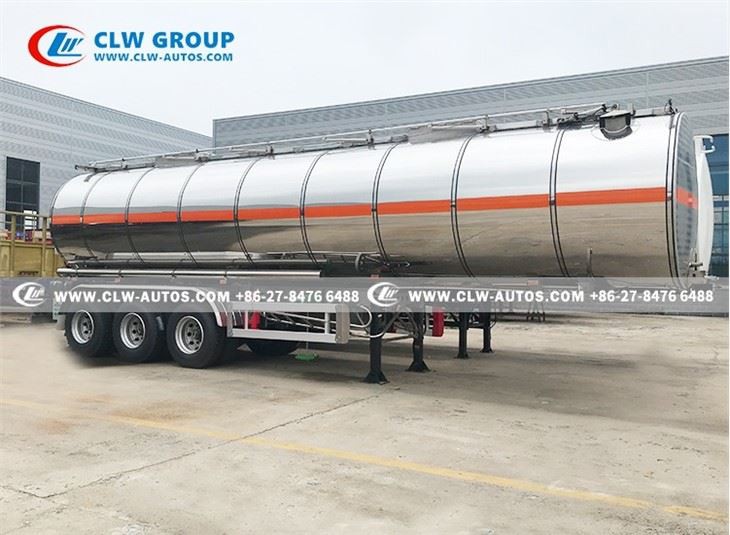

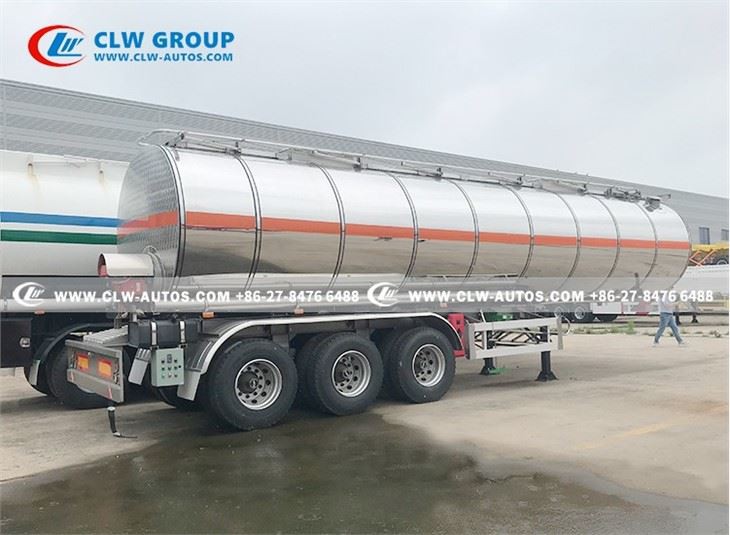

More pictures for 3 Axle 40000L 40M3 Bitumen Transport Tank Trailer:
