------ Before everything: what is a vacuum truck?
A vacuum suction truck (also called a vacuum tanker, sewer jet vac, or hydro-excavation truck) is a specialized vehicle equipped with a powerful vacuum system and storage tank, designed to safely suction and transport liquids, sludges, and solid debris.
High-pressure fan or positive displacement pump creates strong suction.
Typical capacity: 500–3,000+ CFM (cubic feet per minute).
Made of steel or reinforced polyethylene.
Capacity: 1,000–10,000+ gallons (3,800–38,000+ liters).
Often includes baffles to stabilize liquids during transport.
Municipal: Sewer cleaning, storm drain maintenance, septic tank pumping.
Industrial: Hazardous waste removal (e.g., oil, chemicals), spill recovery.
Construction: Hydro-excavation for non-destructive digging.
Emergency: Floodwater removal, disaster cleanup.
Hoses: Flexible or rigid pipes (2–12 inches diameter) for suction.
Nozzles: Jet nozzles for breaking up blockages.
Debris Separators: Filters to isolate solids from liquids.

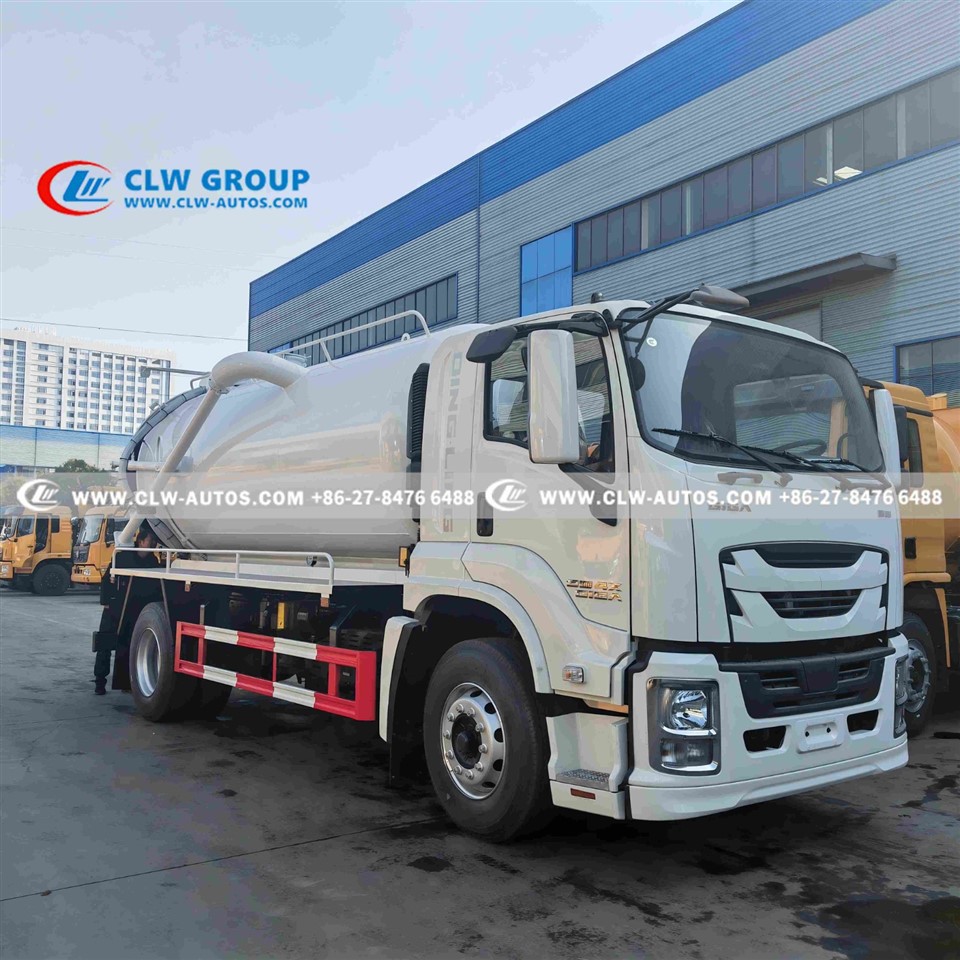

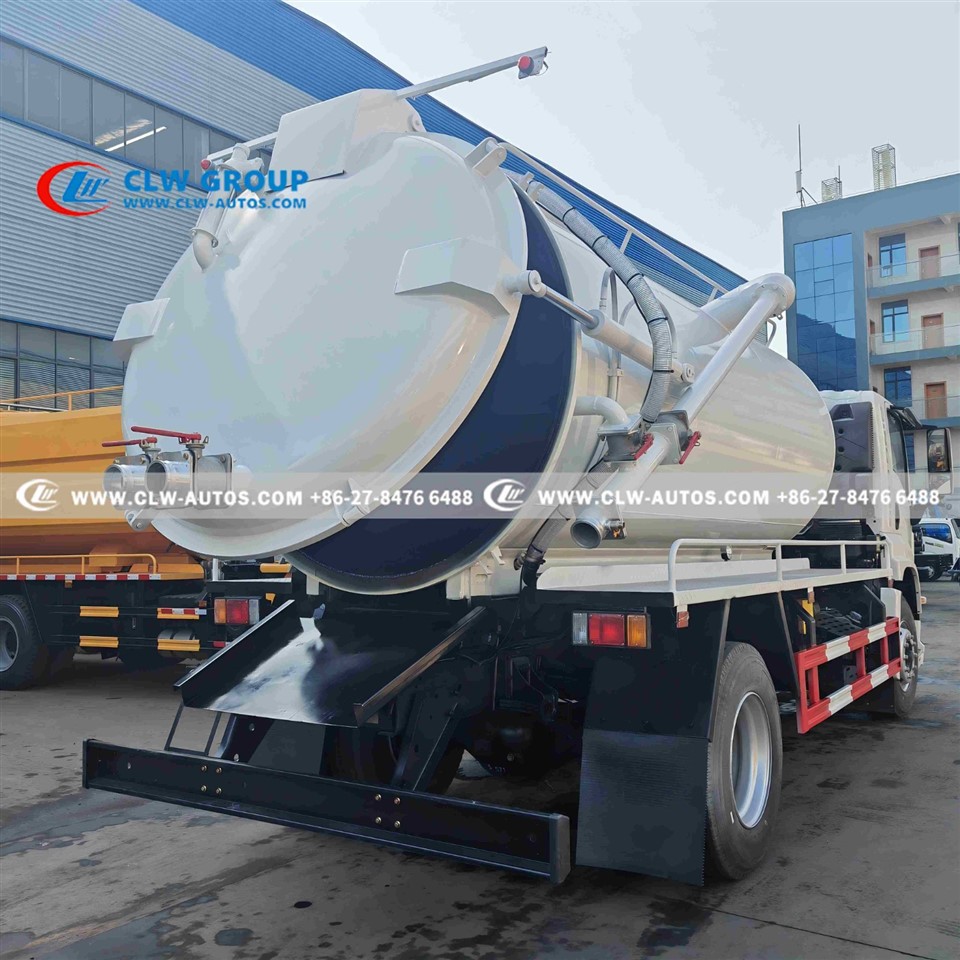

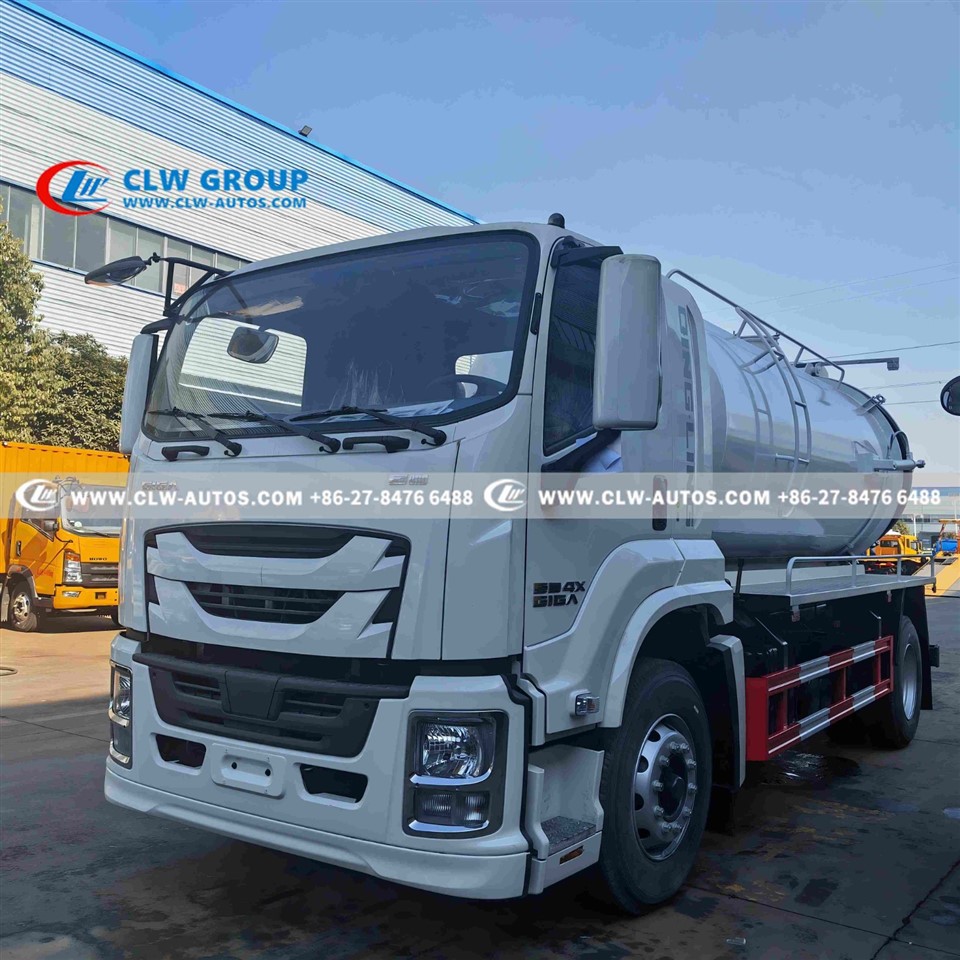

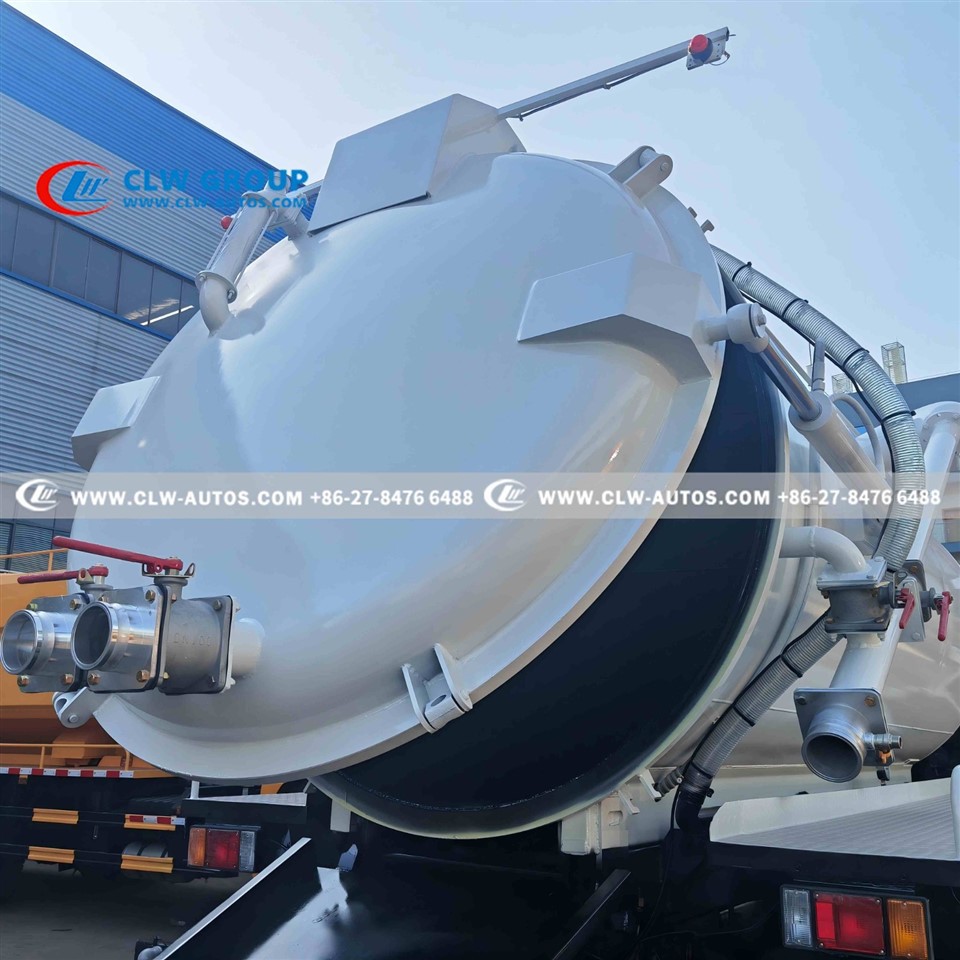

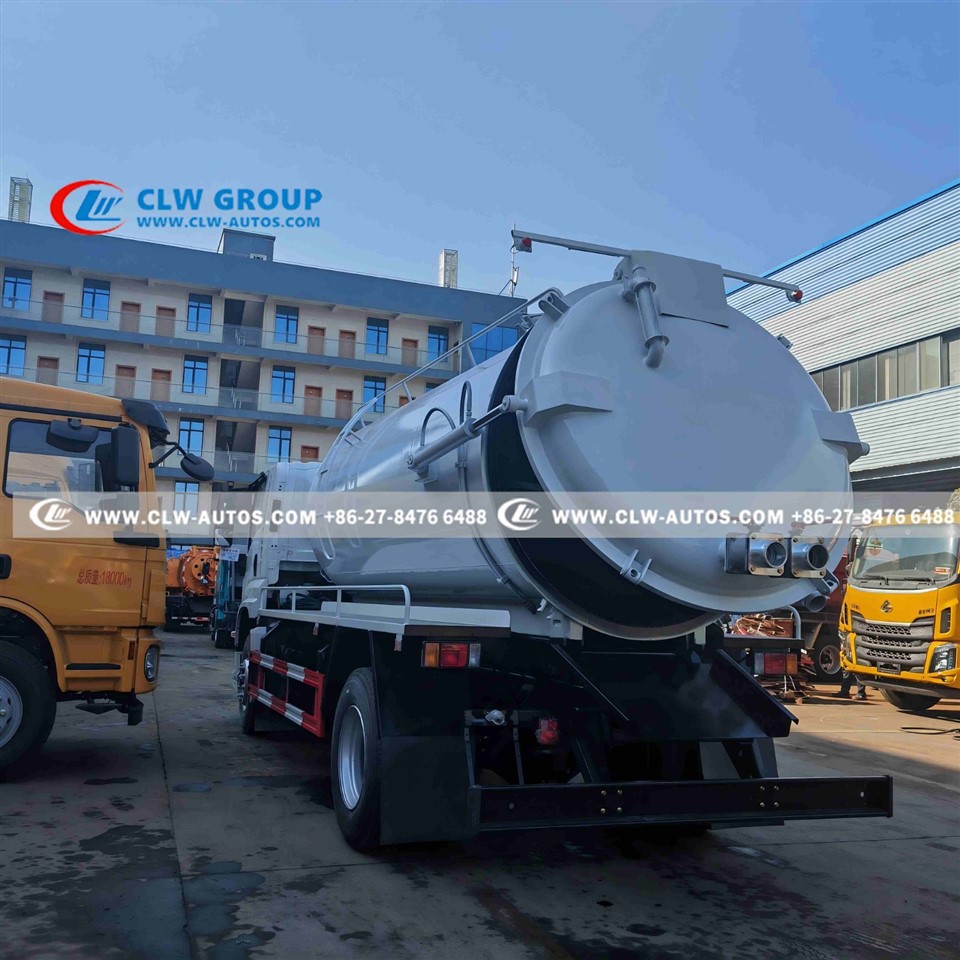

Reference Pictures for 8CBM 12 Tons ISUZU Vacuum Suction Truck
|
|
|
|
|
|
|
|
|
|
------ What are the advantages of 8CBM ISUZU vacuum suction truck?
The 8m³ ISUZU vacuum suction truck offers a balanced combination of efficiency, durability, and versatility, making it ideal for municipal, industrial, and emergency applications. Here are its key advantages:
8-cubic-meter tank (≈2,100 gallons) provides a perfect balance between payload and maneuverability.
ISUZU chassis ensures agility in urban areas (narrow streets, crowded spaces) while maintaining robust performance.
High suction capacity (typically 360–500 CFM) for rapid waste removal.
Deep vacuum level (≥25 inHg/85 kPa) to handle thick sludge, liquids, and solids.
Optional jetting system (100–150 bar pressure) for breaking up blockages.
Fuel-efficient engine: 4HK1/6HK1 diesel engines (150–300 HP) meet Euro V/VI emissions.
Low maintenance: Known for durability in harsh conditions (e.g., construction sites, sewers).
Adaptability: Compatible with both left- and right-hand drive configurations.
Explosion-proof options for hazardous environments (ATEX-certified models available).
Anti-overflow sensors and pressure relief valves to prevent tank overloading.
Compliance with DOT, ADR, and OSHA standards for waste transport.
Municipal: Sewer cleaning, storm drain maintenance, septic tank pumping.
Industrial: Oil sludge recovery, chemical spill cleanup.
Construction: Hydro-excavation for utility line digging (non-destructive).
Lower operational costs due to ISUZU's fuel efficiency and parts availability.
High resale value from ISUZU's global reputation for reliability.
|
Configurations |
||
|
(1)Overall Parameters |
||
|
Dimensions |
Approx. Overall Dimensions |
7750*2520*3600 mm |
|
Wheelbase |
4475 mm |
|
|
Front/Rear Overhang |
1350/2840 mm |
|
|
Approach/Departure Angle |
17/7° |
|
|
Performance |
Tank Capacity |
10 CBM/ 10,000 Liters |
|
Vacuum Pump |
PN 155, Italian Jurop |
|
|
Max. Driving Speed |
90 |
|
|
(2)Chassis |
||
|
Condition |
Factory New |
|
|
Brand |
ISUZU |
|
|
Cabin |
Model |
VC61(3X) |
|
Configurations |
Air Conditioner |
|
|
Power Windows |
||
|
Multi-function Steering Wheel |
||
|
Multi-function Instrument Panel |
||
|
Central Lock |
||
|
Engine |
Model |
4HK1-TCG61 |
|
Emission Standard |
Euro 5 |
|
|
Structure |
Inline-4 |
|
|
Displacement |
5.19 L |
|
|
Max. Power |
139 kW/ 189 hp |
|
|
Max. Torque |
507 N.m |
|
|
Transmission |
MLD manual, 6 Forwards & 1 Reverse |
|
|
Brakes |
Air Brakes |
|
|
Suspension |
Reinforced leaf Spring |
|
|
Axles |
Configuration |
4x2 |
|
Front Axle |
4 Tons |
|
|
Driving Axle |
7 Tons |
|
|
Tire |
Model |
235/75R17.5 18PR |
|
Quantity |
7 nos including 1 spare |
|
|
Safety Features |
Emergency Braking System |
Electronic Stability Control |
|
Lane Departure Warning System |
Front Collision Warning |
|
|
Tire Pressure Monitoring System |
Run Stability Control |
|
|
(3)Superstructure & Major Equipment |
||
|
Tank |
Capacity |
16 CBM/ 16,000 Liters |
|
Material |
Q235 Carbon Steel |
|
|
Thickness |
6 mm shell, 8mm head |
|
|
Vacuum Pump |
Brand |
Jurop, Italian Brand |
|
Model |
PN155 |
|
|
Flow |
2470m3/h |
|
|
Max. Vacuum |
93% |
|
|
Suction Depth |
≥18m |
|
|
Baffles |
2 nos, to keep balance while driving under heavy load |
|
|
Manhole |
1 nos, DN500 with cover |
|
|
Ladder |
1 nos, access to the manhole |
|
|
Maintenance Platform |
On either side of both chassis and tank top, made of anti-slip perforated metal |
|
|
Suction Hose |
2 nos, 8m, DN100 with quick-release joint, at either side of tank |
|
|
Tank Attachment to Chassis |
Rubber damper fixed with tie traps |
|
|
Other Accessories |
Water-gas separator ; 2. Oil-gas separator 3. Four way valve; 4. Safety valve 5. Anti overflow valve ; 6. Anti overflow warning device 7. Tube Flow Meter |
|
|
Remarks |
The color and LOGO is optional |
|
