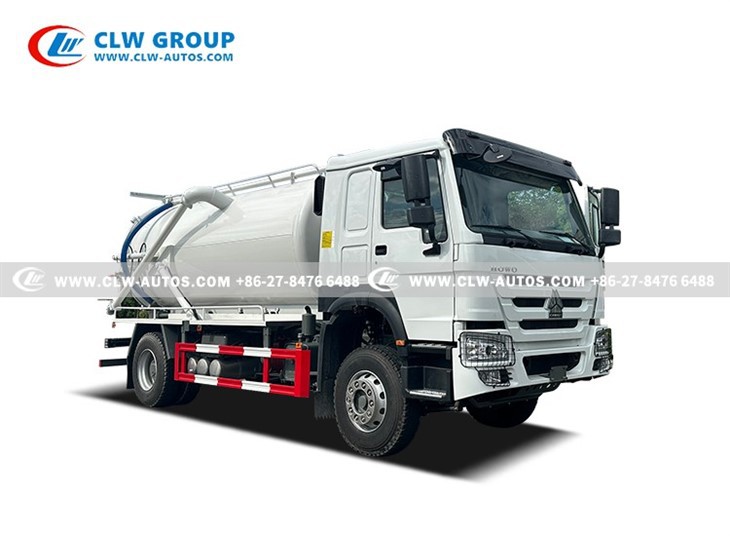

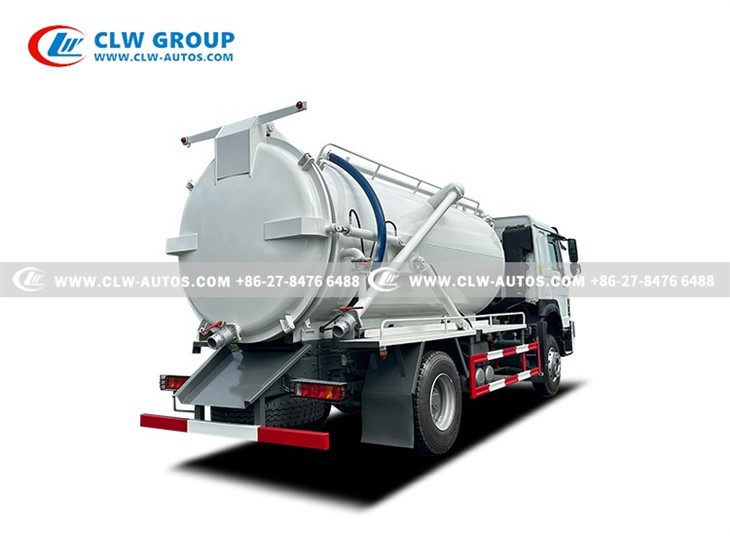

10 Tons Vacuum Cesspit Truck SINOTRUK HOWO With Italy Jurop Pump
We are professional sewage vacuum truck manufacturer in China since 2004
Sinotruk HOWO 4x2 Vacuum Cesspit Truck is a specialized heavy-duty vehicle for efficient sewage, sludge, and industrial waste management. Built on Sinotruk's proven HOWO platform, this truck combines robust performance, customizable configurations, and advanced vacuum technology to meet diverse sanitation and environmental cleanup needs. Ideal for municipal services, industrial plants, and septic tank maintenance, it ensures reliable operation in demanding conditions.
Engine: Powered by a Weichai 300HP diesel engine, delivering high torque and fuel efficiency for heavy-load operations while adhering to emission standards.
Transmission: Equipped with the HW19710 manual transmission, ensuring smooth gear shifts and adaptability to urban or rural terrains.
Tires: Configurable with 12.00R20 or 295/80R22.5 tires for enhanced load-bearing capacity and stability.
Fuel Tank: A 400L fuel tank supports extended operational range, minimizing downtime during long-haul waste disposal tasks.
Tank Capacity: between 10-cubic-meter or 12-cubic-meter tank volumes to suit varying project requirements.
Material & Durability: Constructed with 6mm or 8mm thick carbon steel or stainless steel, ensuring corrosion resistance and longevity, even when handling abrasive or hazardous waste.
Lifting Mechanism: optional for mid-lift or front-lift systems for optimal weight distribution and safe, efficient tank emptying.
Vacuum pump:Optional Weilong or Yifeng oil-operated vacuum pumps, known for cost-effectiveness and reliability in domestic applications.
Water-Circulation Pump: The SK-12 water-circulation vacuum pump offers eco-friendly operation, ideal for reducing environmental impact.
Premium Option: The Italian Jurop PN155 vacuum pump delivers high suction power and durability, perfect for intensive industrial use.
Safty confirguration: Second anti-flow device, visible sewage level column, sewage level alarming device, postive and negative pressure balancing valve
Rear arrow working light X 2 units
7 meters long thickened suction pipe
Camera in the left, right and rear side of the truck, real-time monitoring in the cabin.
Chassis optional for : Sinotruk HOWO, FAW Jiefang, ISUZU, SHACMAN, Dongfeng, BEIBEN, JAC, JMC, etc.
Versatile Use: Designed for sewage collection, septic tank cleaning, storm drain maintenance, and industrial waste transport.
Durability: Reinforced chassis and high-quality materials ensure resilience in harsh environments.
Efficiency: The 400L fuel tank and powerful engine reduce operational interruptions, while customizable pumps optimize suction performance.
Safety: Advanced hydraulic systems and secure tank designs prevent leaks and spills during transport.
Sinotruk HOWO 4x2 Vacuum Cesspit Truck stands out as a versatile, high-performance solution for modern waste management challenges. With its Weichai 300HP engine, customizable carbon steel/stainless steel tank, and multiple vacuum pump options (including the premium Jurop PN155), this truck guarantees efficiency, durability, and adaptability. Whether servicing urban municipalities or industrial facilities, it ensures reliable, eco-friendly waste disposal.
Wechat/Whatsapp: +86 135 4506 4324
Email: shirley@clw-autos.com
|
Sewage Suction Tanker |
||
|
Sewage tank |
Capacity(cbm/liters) |
10cbm/10000 liters |
|
Tank material |
Q235 carbon steel |
|
|
Thickness(mm) |
6mm |
|
|
Opening of Rear Cover |
100% open by hydraulic control |
|
|
Sewer Suction Inlet(mm) |
100 |
|
|
Sewer Discharging outlet(mm) |
150 |
|
|
Tank is front tipping under function of oil cylinder |
||
|
Painting |
Tank exterior will be spray-painted with 2 coats of superior quality anti-corrosion primer and 2 coats of enamel metal paint pf reputable make; |
|
|
Sewage pump |
Brand |
WEILONG |
|
Type |
vacuum pump |
|
|
Model |
65QZ XD H-110/7000 |
|
|
Power(KW) |
5KW |
|
|
Rotation Speed |
800 r.p.m |
|
|
Suction Speed |
68 m3/h |
|
|
Suction depth |
6~8 meters |
|
|
Others |
Anti-overflow valve and stainless steel filter in the vacuum tube (to prevent impurities from entering the pump) A shock-resistant pressure gauge with a diameter of 100 is installed at the position of the sewage suction four-way valve, which can resist the vibration of the working environment and reduce the pulsation effect of the medium pressure. |
|
|
Rear door |
liquid tight by means of a self-compensating seal; locked by means of at least four (4) manual latches; sight glass located at side of the tank sight glass is tempered-proof and easily replaced; |
|
|
Suction Pipe |
4" Suction hose/8 meters long/with aluminum or galvanized steel and PVC hose with quick-connection fitting |
|
|
Other accessories |
Pressure relief valve Water-gas separator; Oil-gas separator Four way valve; Drain valve; Sewer-observation valve(glass valve); Anti overflow valve ; Hydraulic control rear cover; Pressure Gauge; Hand washing device. |
|
Sewage level Column
Real-time monitoring of tank sewage level status.
sewage Level Alarm
When the sewage tanker is almost full, the sensor inside the tanker will sense it and make the sound alarm to remind people to avoid overloading the tanker and damaging the vacuum pump.
Positive and negative pressure balancing valve
The device can adjust the pressure in the tank to prevent the pressure in the tank from being too high or too low.
Second Anti-flow Device
When the tank is fully loaded, this device will automatically start to discharge excess sewage and prevent damage to the vacuum pump.
Other Details
Italy Jurop PN155 Vacuum Pump
Powerful, durable, long woking time.

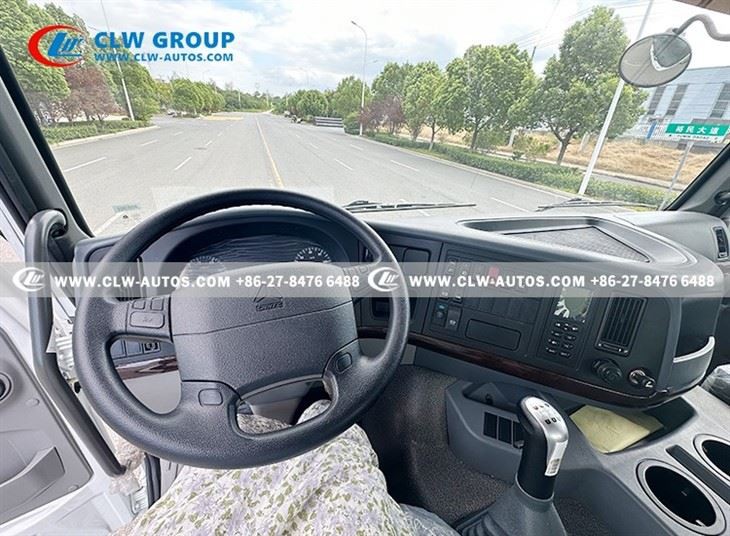

Real Time Monitoring In the Cabin
Camera in the left, right ,rear of the truck.
7 meters Long Thickened Suction Pipe
Testing after Production
