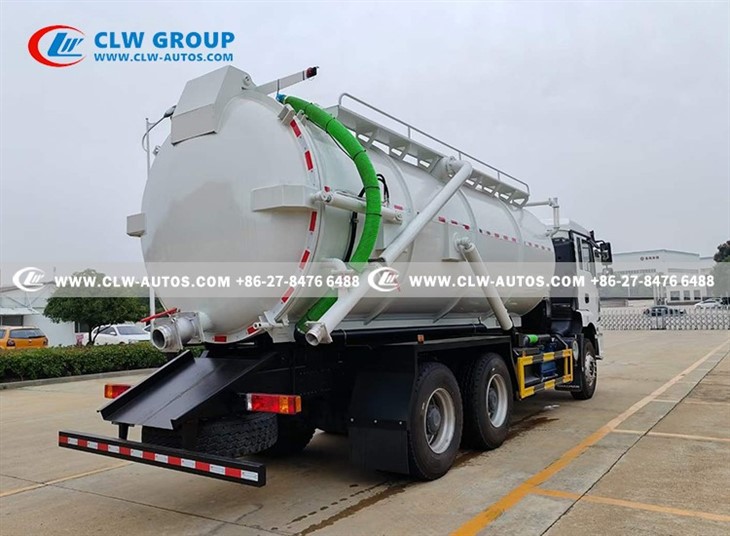

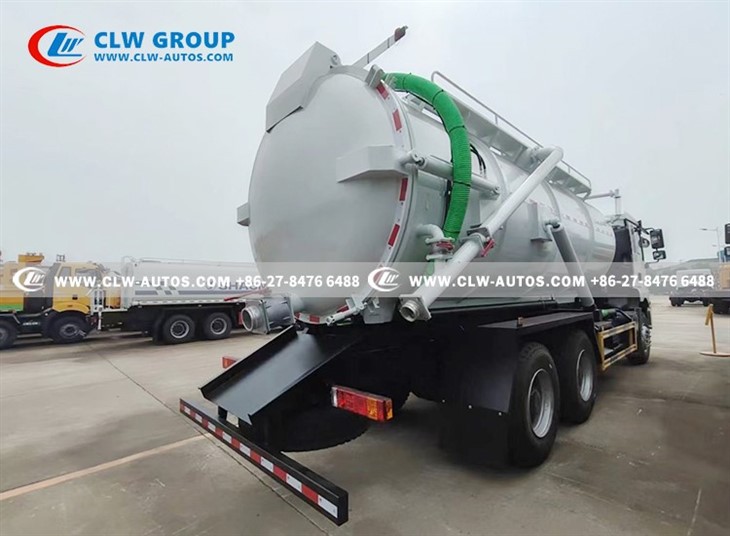

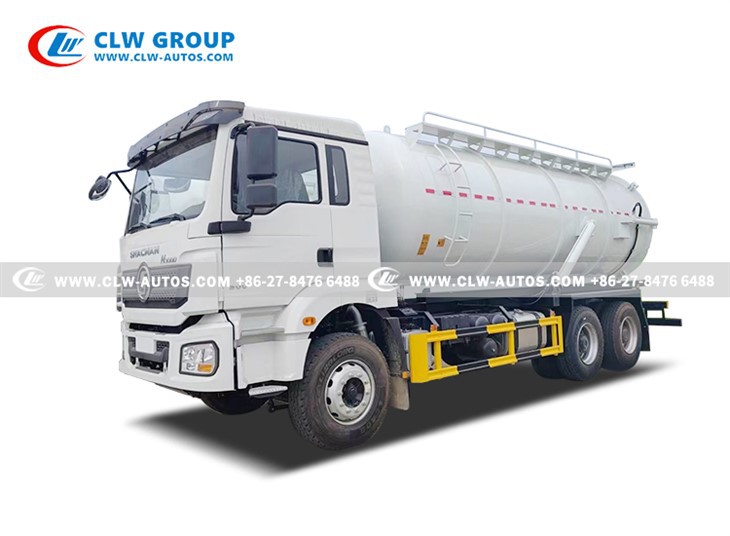

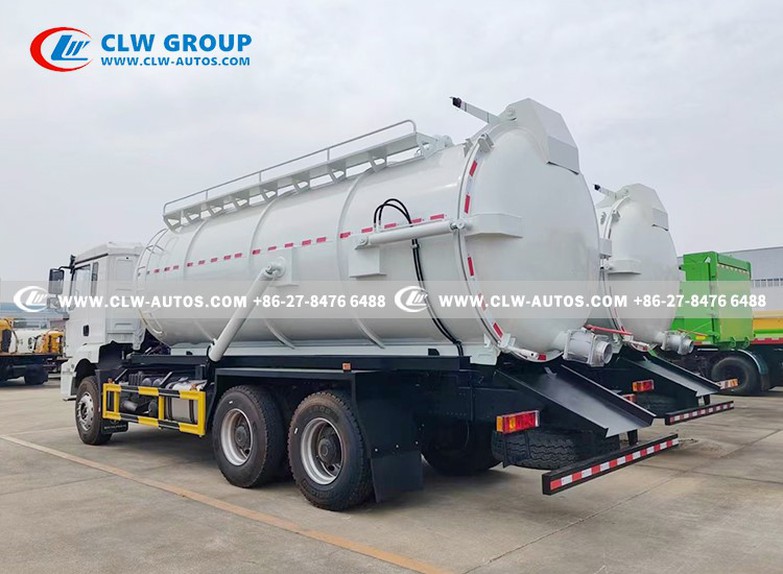

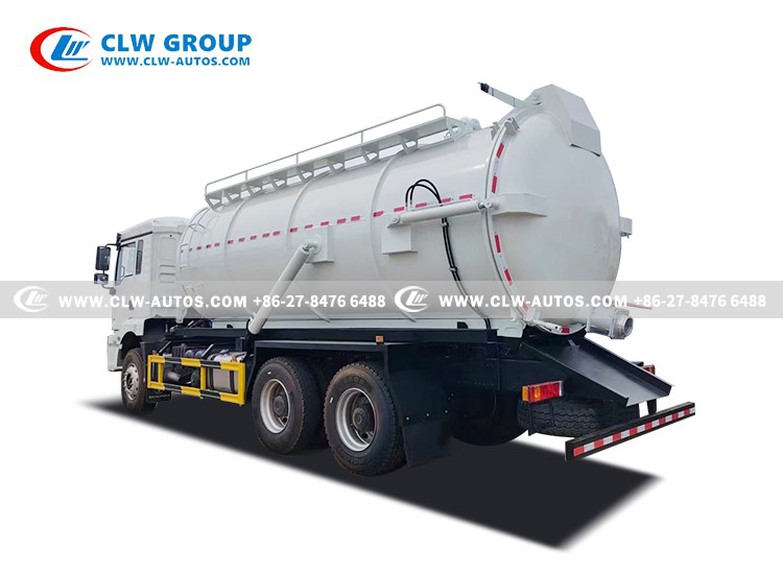

Shacman H3000 20000Liter Sewage Suction Truck
Description
Sewage suction truck is a new type of sanitation vehicle that collects, transfers, cleans and transports sludge and sewage to avoid secondary pollution. The sewage suction truck can self-prime and discharge. It has fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid materials such as feces, mud, crude oil and so on. The sewage suction truck adopts the domestic technology-leading sewage suction truck vacuum pump, which has large suction power and long suction range. It is especially suitable for suction, transportation and discharge of sludge in the sewer, especially sewer mud, silt, stones and bricks. Larger objects such as blocks
Feature
--sewage suction truck Tanker material optional for carbon steel Q235B, you can also choose Q345 or stainless steel ;
--Tanker thickness 8mm,endplate thickness 8mm and baffle 5mm;
-- Chinese brand pump or Italy brand Battioni Pagani ,Jurop, US brand Moro Kaiser imported brand;
--Suction speed less than 10min and and discharge speed less than 8 min;
--High quality weichai 300HP diesel engine;
-- You can also choose Top brand chinese vacuum pump 2BE-204 suitable for African countires
Specification
| Shacman F3000 20,000Liter sewage suction truck | |||||
| Condition | New condition/Left hand drive/6X4 | ||||
| Chassis | Brand | Shacman H3000 | |||
| Curb weight(kg) | 10500kg | ||||
| Wheelbase(mm) | 4375+1400 mm | ||||
| Dimensions(mm) | 8450*2500*3150 mm | ||||
| Axle Load(kg) | 7500/13000/13000 kg | ||||
| Max. driving speed(km/h) | 90 km/h | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Brakes | air brake | ||||
| Steering Gear | Power assistant | ||||
| Tire | Number | 10pcs with one spare tire | |||
| Specifications | 12.00R20 | ||||
| Transmission |
RTD-11509C , manual type. 9 Forwards and 1 Reverses |
||||
| Cabin | It can accommodate three people, With Air conditioner | ||||
| Engine | Brand | Weichai | |||
| Model |
WP10.300E22 |
||||
| Horsepower/(HP) | 220HP | ||||
| Emission standard | Euro 2 | ||||
| Upper Body | |||||
| Sewage tank | Capacity(cbm/liters) | 20cbm/20,000 liters | |||
| Tank material | Q235 carbon steel | ||||
| Tank Thickness | 8 mm | ||||
| Sewage pump | Italy Brand Pump | Brand | Moro Kaiser | ||
| model | PM110W | ||||
| Speed(r/min) | 1400r/min | ||||
| Max vacuum | 95% | ||||
| Vertical suction range(m) | ≥9m | ||||
| Main parts | 1. Hydraulic cylinder; | ||||
| 2. Pressure meter; | |||||
| 3. Liquid level gauge; | |||||
| 4. Four way valve; | |||||
| 5. Safety valve; | |||||
| 6. Anti overflow valve, and Anti overflow warning device; | |||||
| 7. Hydraulic control rear cover; | |||||
| 8. Tipping sewage tank body; | |||||
| 9. Operating handle system; | |||||
| 10. Suction hose: Rubber material, 2 units 7 meters length | |||||
| Device list | 1. fire extinguisher | ||||
| 2. Liquid full alarm | |||||
| 3. Positive pressure and negative pressure safety valve | |||||
Optional vacuum pump : Jurop, Moro Kaiser, BATTIONI PAGANI
