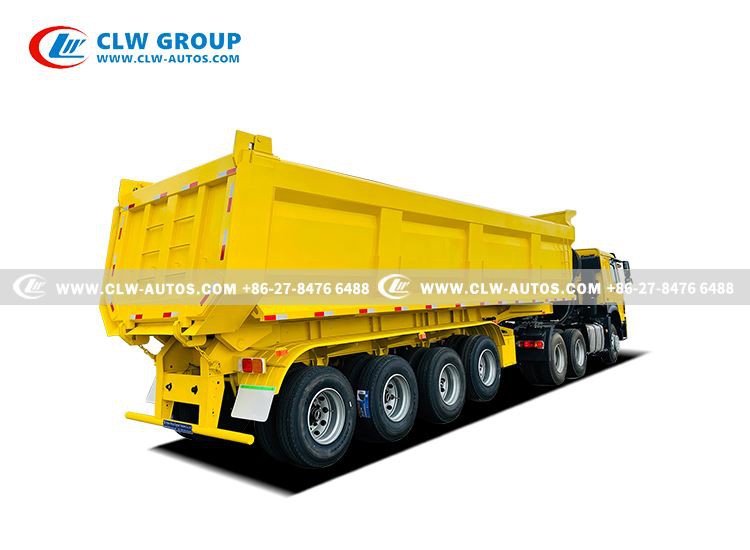

60 Tons Rear Tipping Semi Trailer
Axles:4 axles
Dump volume:34.6m3
Loading Capacity: 60 Tons
Material:T700 high tensile strength steel
King Pin:JOST brand 2" Bolk-in King Pin
Leaf Spring:10-pieces leaf spring
Landing Gear:JOST Brand
Tyre:12R22.5-18PR Tubeless Tire
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 60 tons rear tipping semi trailer in China. If you're going to buy high quality 60 tons rear tipping semi trailer, welcome to get more information from our factory. For price consultation, contact us.

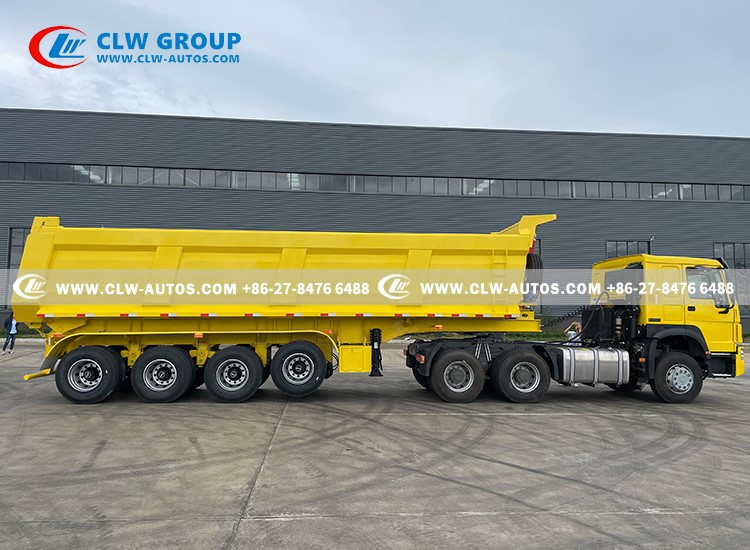

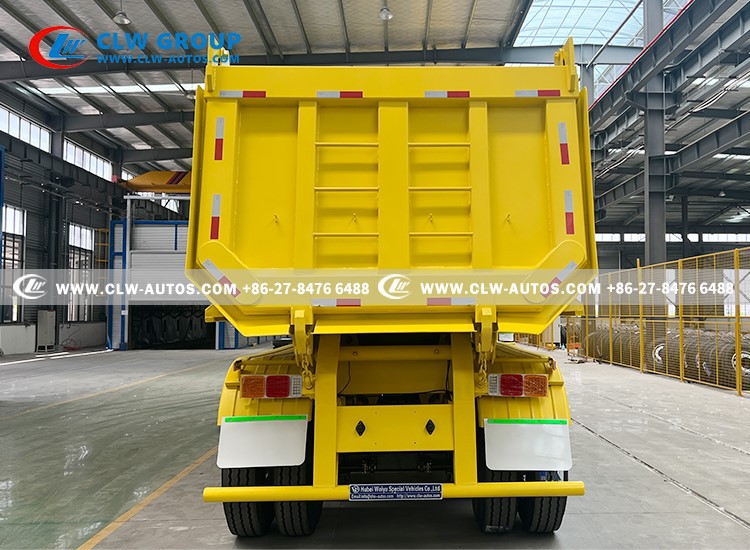

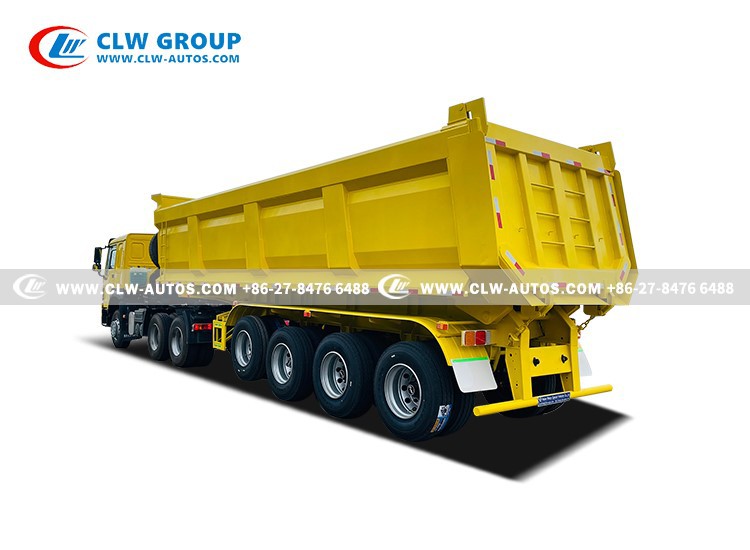

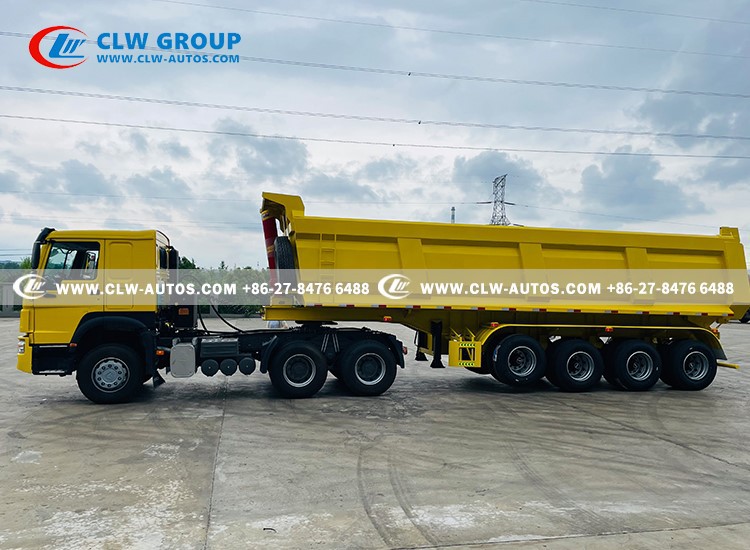

4 Axles 60 Tons Rear Dump Tipper Semi Trailer For Sale
We are 100% Straight Semi Trailer Manufacturer From China
Product Descriptions
Heavy Duty Rear Tipper Trailer is designed for transportion of sand, stone, gravel, laterite, coal, earthwork and other construction materials.
The loading capacity of our dump trailers are optional for 40t, 60t, 80t, etc. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.
Product Features:
- Enhanced mechanical suspension ensures driving safety and handles rough road conditions effectively.
- The heavy-duty side beam, made of Q345B vertical beam material, reduces repair costs and provides long-lasting service.
- Equipped with internationally renowned JOST brand landing gear accessory, our trailer offers better bearing capacity and extended service life.
- The front axle is liftable with an air bag system, reducing tire wear and minimizing the weight when the dump is empty.
- Our trailers are coated with high-quality polyurethane paint that has excellent adhesion, vibrant color, and twice the durability compared to ordinary paint; ensuring it won't peel off for at least five years.
For more informations, please contact:
whatsapp: +86 139 2570 3918 Ms.Juniper Gong
Products Parameters
|
Dimension |
|||
|
Tare Weight |
13,000kgs |
Overall Length |
10,500mm |
|
Payload |
70,000kgs |
Overall Width |
2,500mm |
|
Dumper Body |
|||
|
Volume |
34.6m3 |
Dimension |
9400x2300x1600mm |
|
Side Wall |
6mm thickness,T700 high tensile strength steel material |
Bottom |
8mm thickness,T700 high tensile strength steel material |
|
Front Wall and Floor |
8mm thickness,T700 high tensile strength steel material |
||
|
Specification |
|||
|
Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 8mm; Bottom Flange 16mm,width 140mm. |
||
|
Axle |
4 Axle Fengbao 13T with front axle liftable with Air bag |
King Pin |
JOST brand 2" Bolk-in King Pin |
|
Hydraulic System |

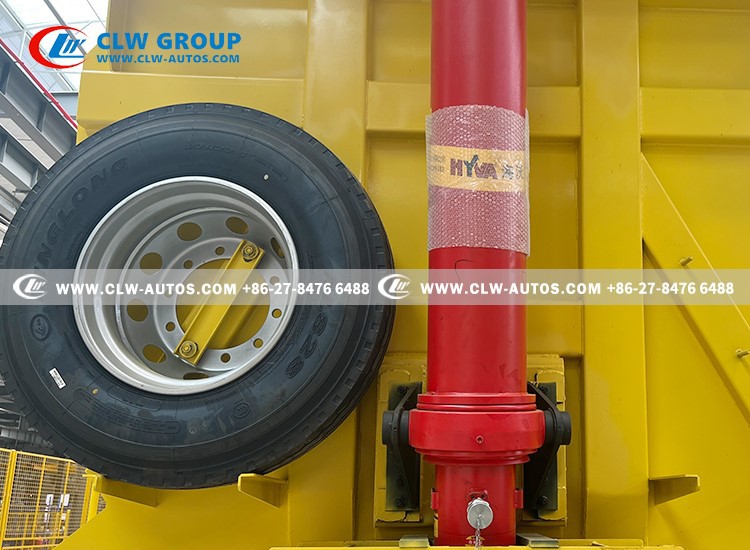

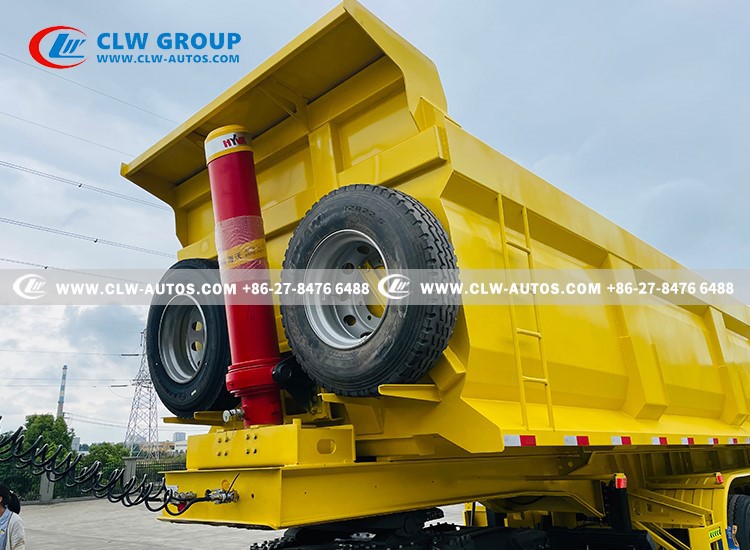

Rear tipping oil cylinder, International brand or China famous brand |

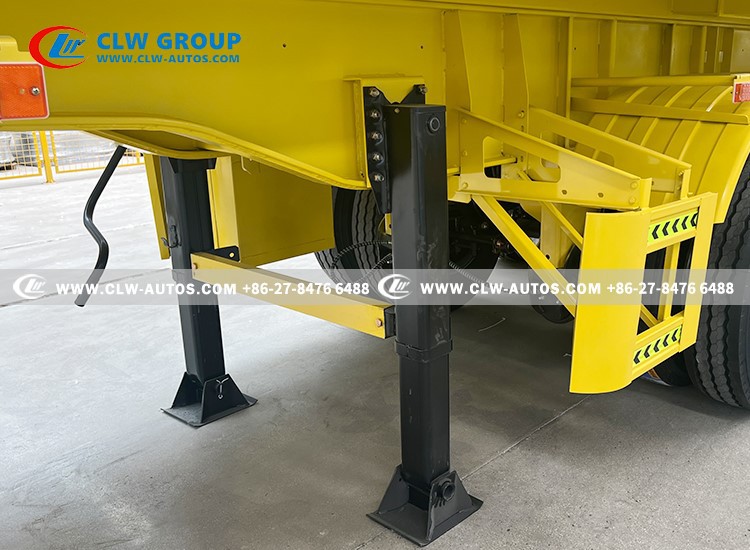

Landing gear |
JOST Brand,manual operation, heavy duty landing gear |
|
Suspension |
Heavy Duty Mechanical Suspension X |
Wheel Rim |
9.00R22.5 wheel rim, 17 pieces |
|
Leaf Spring |
10-pieces Leaf Spring |
Tyre |
Linglong brand, 12R22.5-18PR tubeless tire, 16 pcs with 1 spare |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
||
|
Sparetire Carriers |
1 Unit |
||
|
Accessory |
1 Set of Tool box |
||
|
Color&Logo |
Can be customized |
||
Reference Pictures

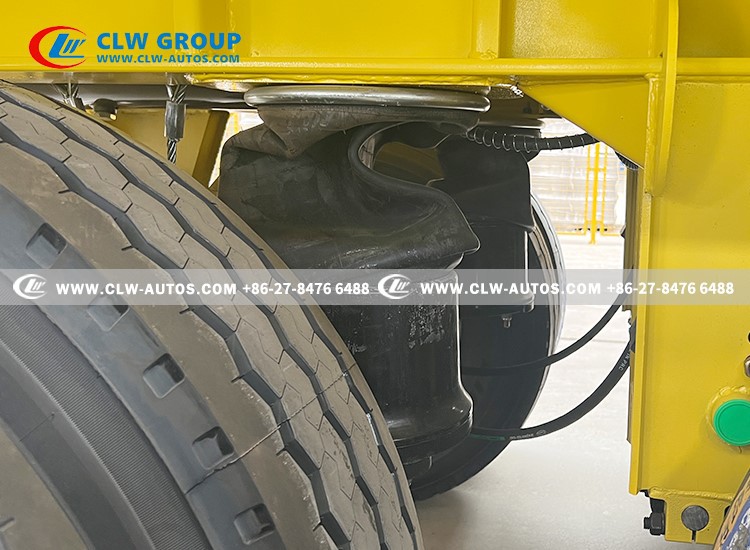

Front air suspension lifting bridge, which can lift the axle when the dump is empty,reduce tire wear, and reduce the weight of the dump.

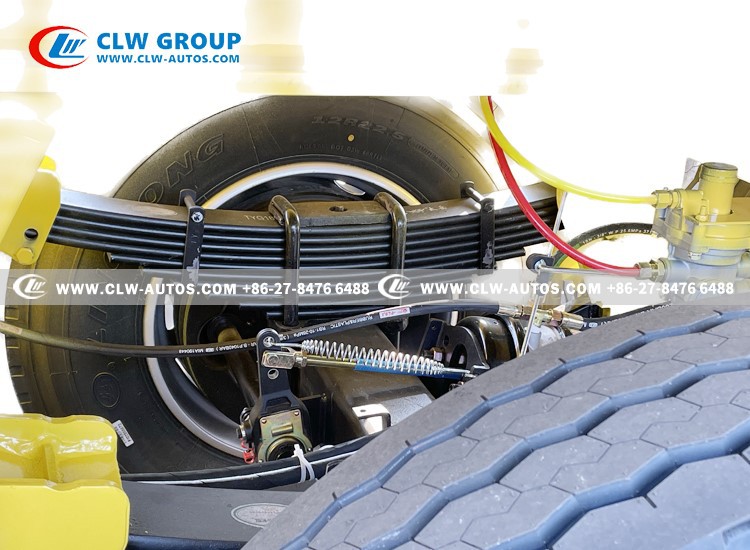

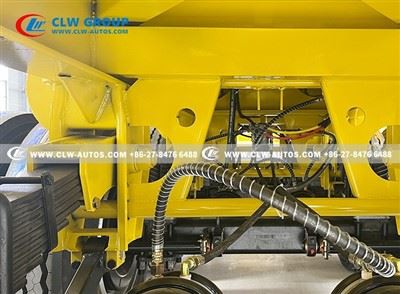

Heavy duty machinal suspension with 10-pieces leaf spring, ensuring the drving safety and handle the bad road condition

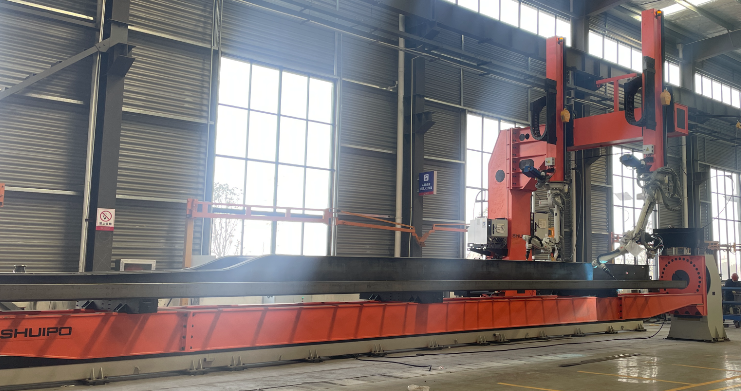

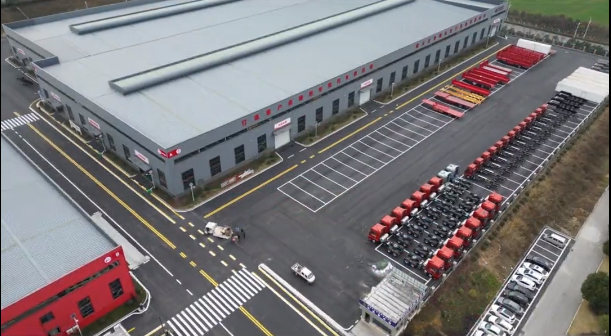

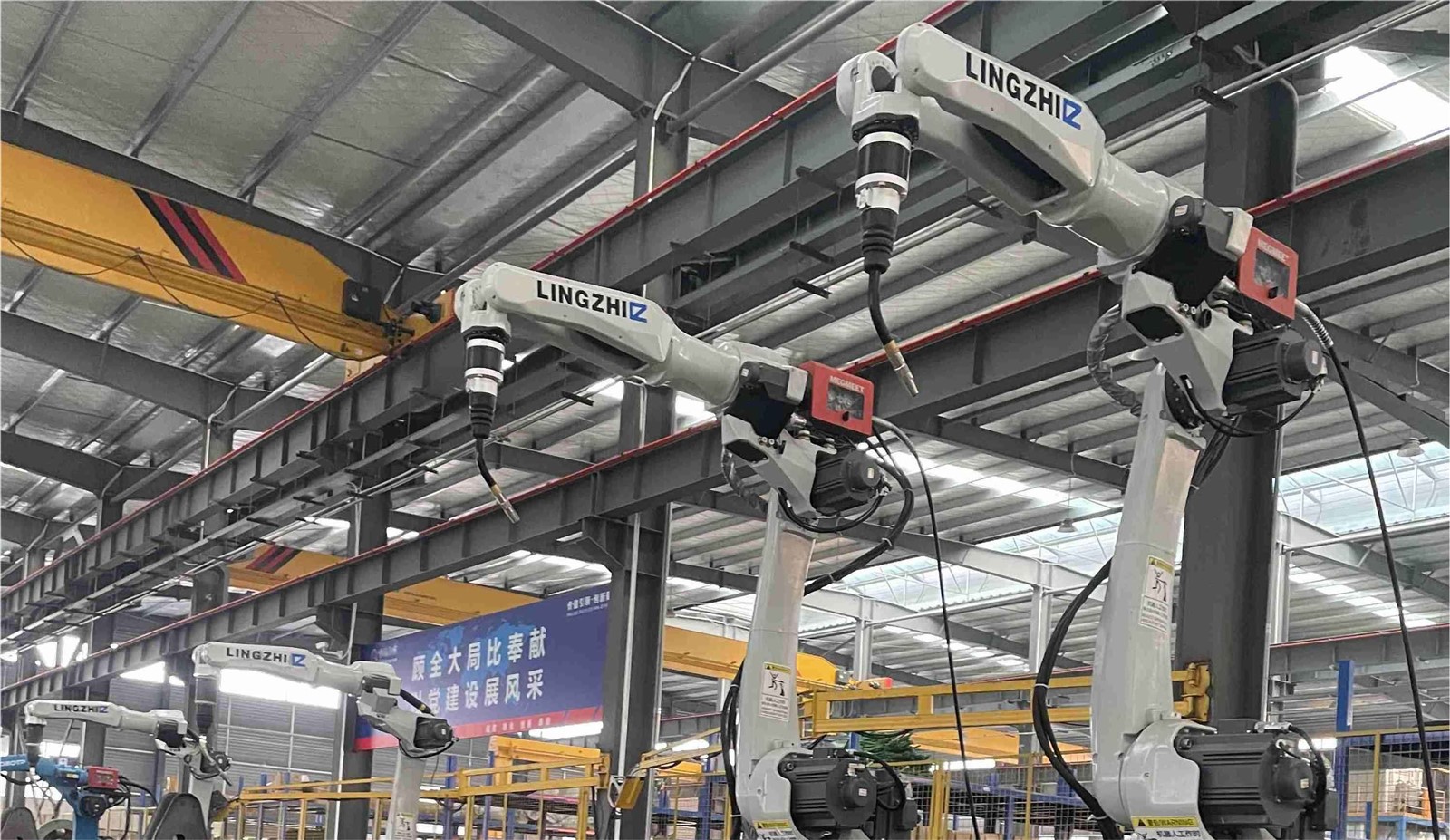

Factory & Equipment
Welcome to Visit Our Factory
