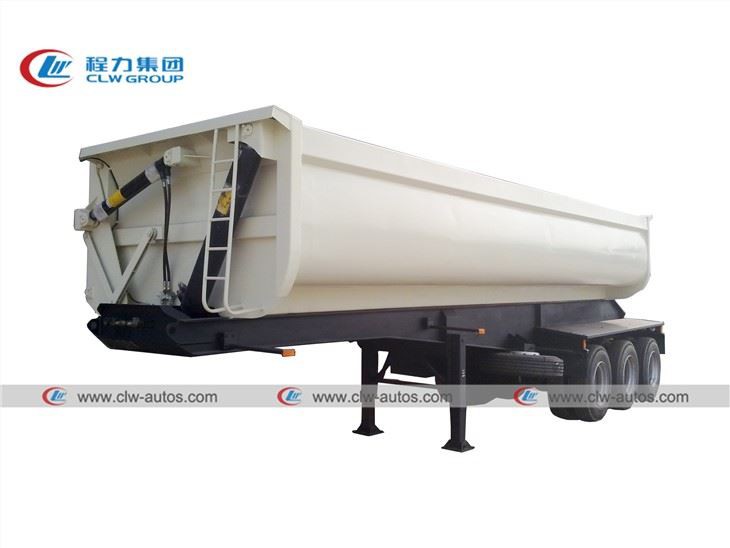

3 Axle 50Tons U-Shape Side Tipper Dump Trailer
3 Axle U-Shape Side Tipper Dump Semi Trailer Tipper Body Material: Q345B or NM450 Wear resistant steel Loading Capacity: 45Tons 50Tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 50tons u-shape side tipper dump trailer in China. If you're going to buy high quality 3 axle 50tons u-shape side tipper dump trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
1. U-shaped dump semi trailer is used to transport of bulk cargo, Heavy stone, coal, ore ,mineral and build materials. The corner of U-shaped box doesn't exist dead ends, unloading more clean.
2. Our U-shape side or end Tipper semi trailer adopt NM450 Wear resistant steel and T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled. We adopt world famous brand of parts, like JOST, WABCO braking valve, etc.
3. We are a professional manufacturer of semi trailers, provide customized service, design as the customers' every request.
4. We have a professional trailer design department , rich production experience, short delivery time.
5. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
6. We can support SKD and CKD order for semi trailers.

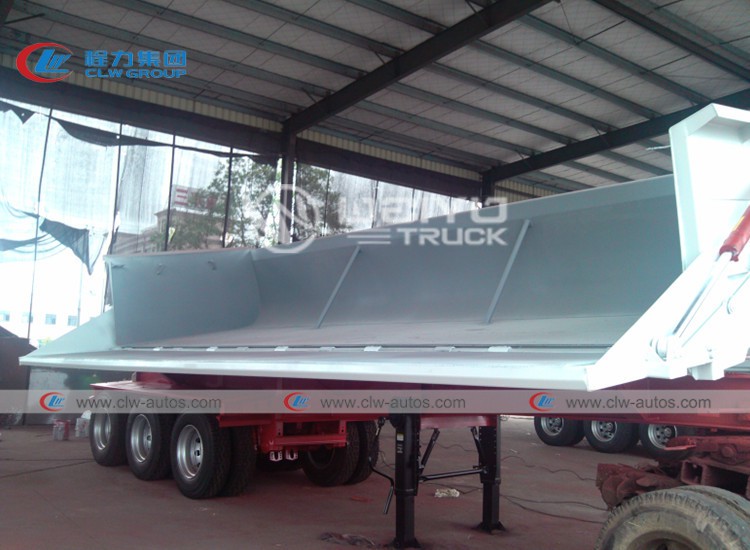

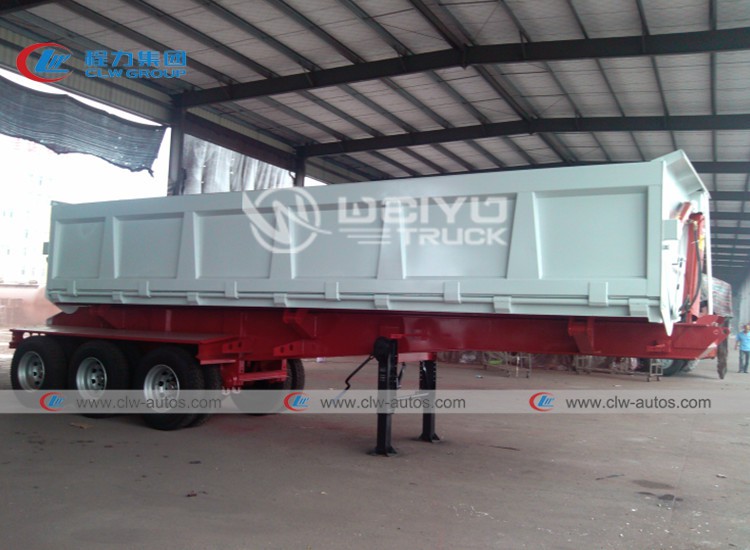

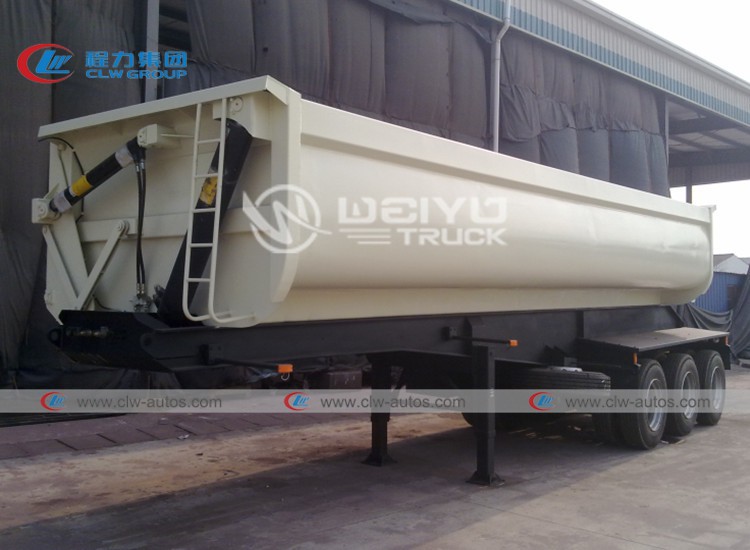

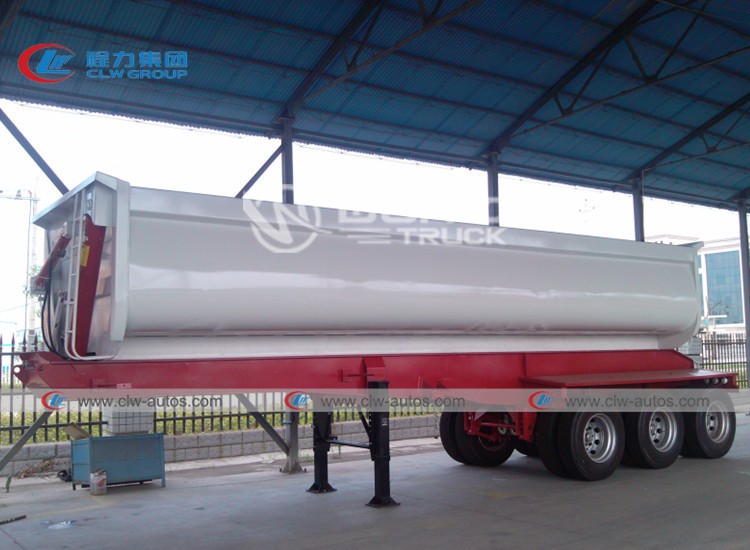

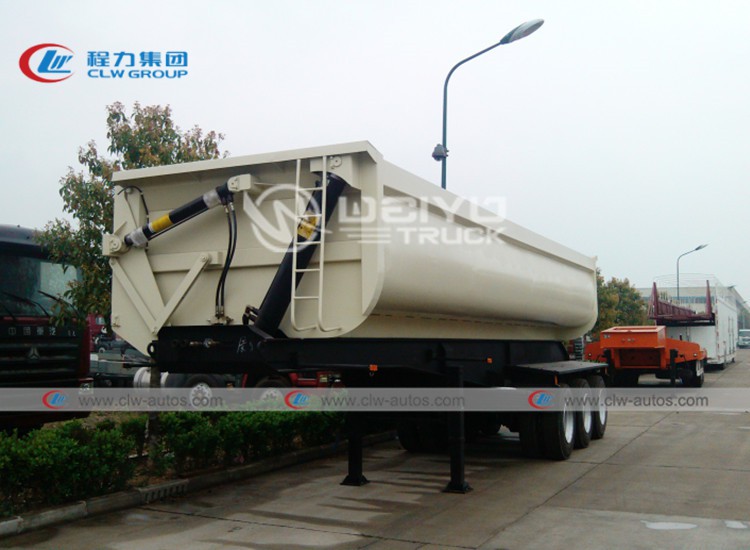

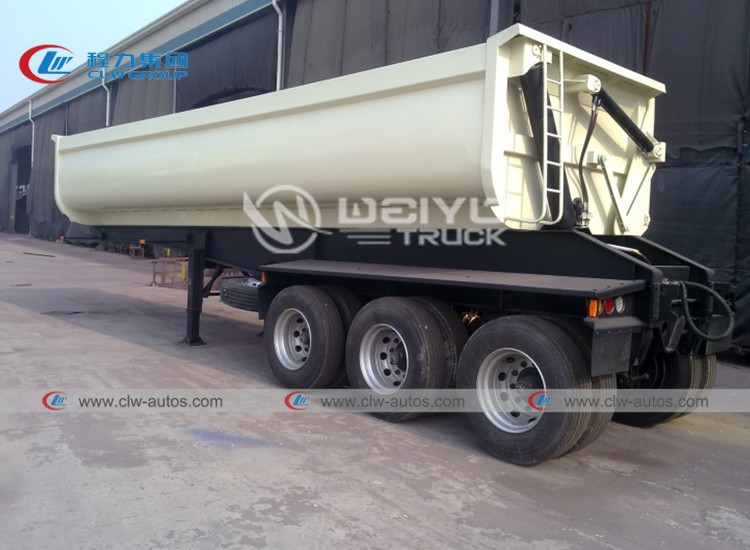

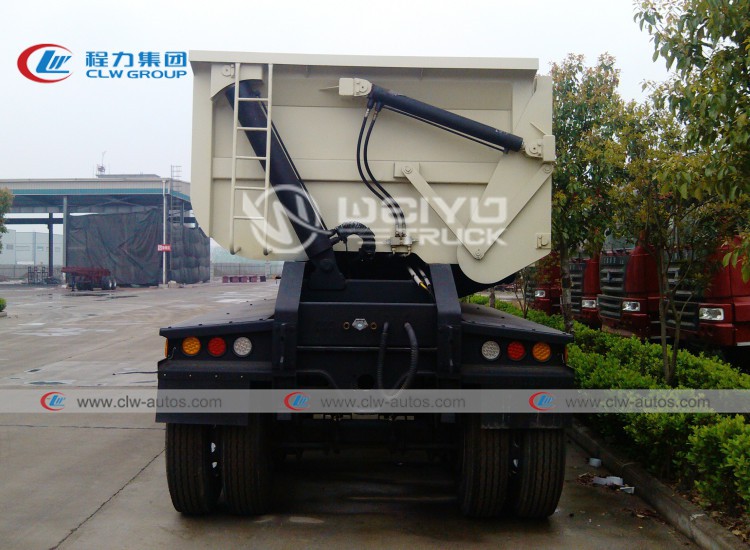

More pictures for 3 Axle 50Tons U-Shape Side Tipper Dump Trailer:
Parameters for 3 Axle 50Tons U-Shape Side Tipper Dump Trailer:
DIMENSIONS | |||||
Tare Weight | 12500kgs | ||||
Payload | 50000KGS | ||||
Overall Length | 11200mm | ||||
Overall Width | 2465mm | ||||
Dump body size | 8000mmx2480mmx1600mm, 31.7 cubic meters. | ||||
Photo for reference, final produce can be made according to exact requirements | |||||
DUMPER BODY | |||||
Volume | 31.7cbm | ||||
Side and Front Wall | 5mm thickness, Made by NM450 Wear resistant steel | ||||
Floor | 6mm thickness, Made by NM450 Wear resistant steel | ||||
SPECIFICATION | |||||
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 6mm ; Bottom Flange 18mm,width 140mm. | ||||
Axle | 3 axles | ||||
FUWA Brand 13 ton | |||||
Hydraulic System | One set of Famous Brand Side Tipper cylinder | ||||
Suspension | Mechanical suspension, | ||||
Leaf Spring | 13-piece leaf spring. 10x160 | ||||
King Pin | JOST brand 2” Bolt-in King Pin | ||||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
Wheel Rim | 9.00-22.5 wheel rim, 13 pieces including one spare tire. | ||||
Tyre | 12R22.5 tubeless tire with one spare tire, 13 pieces including one spare tire | ||||
Spare Tire | One set of spare tire including a carrier | ||||
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||||
Accessories | One standard tool box | ||||
Other equipment | With ABS | ||||
