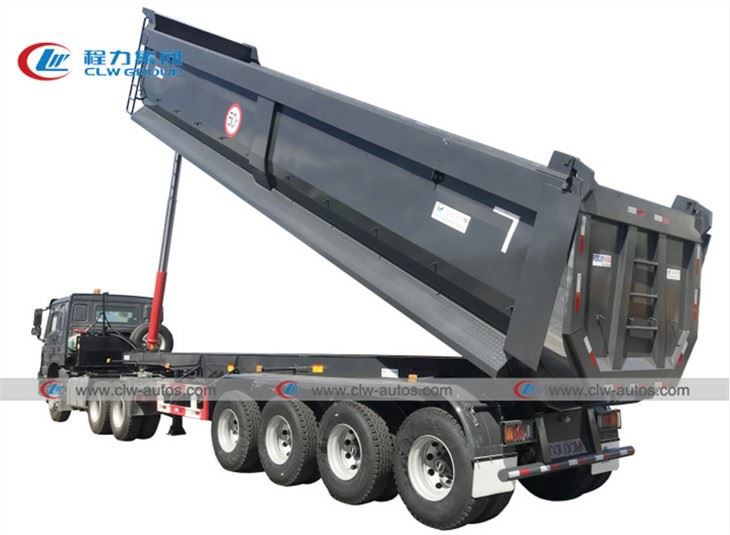

4 Axle 50T U-Shape Tipper Dump Semi-Trailer
4 Axle 50T U-Shape Tipper Dump Semi-Trailer Tipper Dump Box Made by NM450 Wear resistant steel. Loading Capacity: 50Tons, 60Tons For West Africa market.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 50t u-shape tipper dump semi-trailer in China. If you're going to buy high quality 4 axle 50t u-shape tipper dump semi-trailer, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
1. Tipper trailer suitable for transport of coal, ore, building materials and other bulk goods scattered.
2. Dump trailer use can be divided into two categories: one is a non-highway transportation of heavy and super-heavy-duty dump trailer is mainly responsible for large-scale mining, engineering and other transport tasks, usually supporting the use of excavators.
3. Another part of the road transport of light and medium dump trailer is mainly responsible for ordinary sand, clay, coal and other bulk cargo transport, usually supporting the use of loaders.
4. The use of rollover and rear compartment turn dump mode, which can effectively improve transport efficiency loaders transporting bulk goods scattered.
5. stringer frame and carriage are welded by high quality manganese plate containers have two kinds. All have High strength, lifting power, stiffness, toughness, strong bearing capacity, no permanent deformation.
6. Sophisticated technology: use Netherlands Hayward cards (HYVA) hydraulic lifting cylinders, stable lifting performance, stringer with automatic submerged arc welding is made using precision assembly axle assembly machine, steel spring.
7, Tipper trailer can be designed according to different needs of customers, or tell us your different media cargoes, we come to you to design the corresponding models, to meet customer's individual requirements.
8. Heavy duty loading capacity: could be up to 50Tons, 60Tons, 70Tons, 80tons, or more.
DIMENSIONS | |||||
Tare Weight | 13500kgs | ||||
Payload | 60000KGS | ||||
Overall Length | 11200mm | ||||
Overall Width | 2465mm | ||||
Dump body size | 10100mmx2300mmx1500mm, 35 cubic meters. | ||||
Photo for reference, final produce can be made according to exact requirements | |||||
DUMPER BODY | |||||
Volume | 35cbm | ||||
Side and Front Wall | 6mm thickness, Made by Q345B high tensile strength steel | ||||
Floor | 8mm thickness, Made by Q345B High tensile strength steel | ||||
SPECIFICATION | |||||
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 6mm ; Bottom Flange 18mm,width 140mm. | ||||
Axle | 4 axles, The first axle is liftable. | ||||
FUWA Brand 13 ton | |||||
Hydraulic System | One set of HYVA Brand cylinder, 191 | ||||
Suspension | The first suspension is air bag, others are German design mechanical suspension, | ||||
Leaf Spring | 13-piece leaf spring. 10x160 | ||||
King Pin | JOST brand 2” Bolt-in King Pin | ||||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
Wheel Rim | 9.00-22.5 wheel rim, 17 pieces including one spare tire. | ||||
Tyre | 315/80R22.5 tubeless tire with one spare tire, 17 pieces including one spare tire | ||||
Spare Tire | One set of spare tire including a carrier | ||||
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||||
Accessories | One standard tool box | ||||
Other equipment | With ABS | ||||

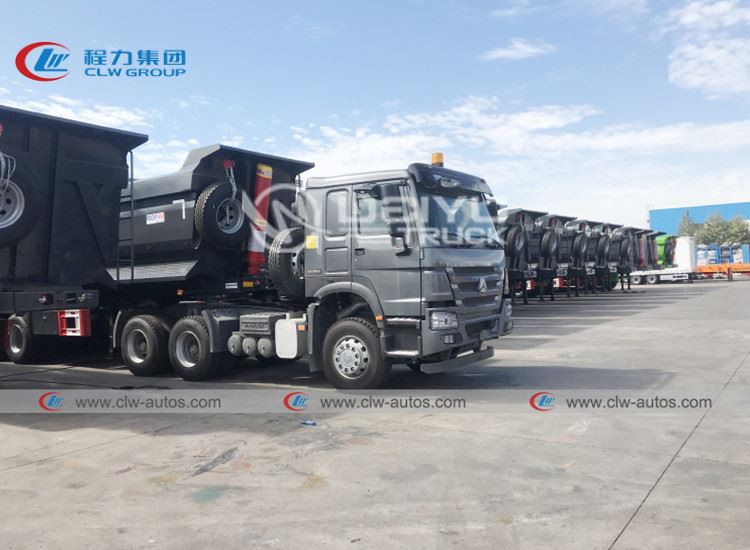

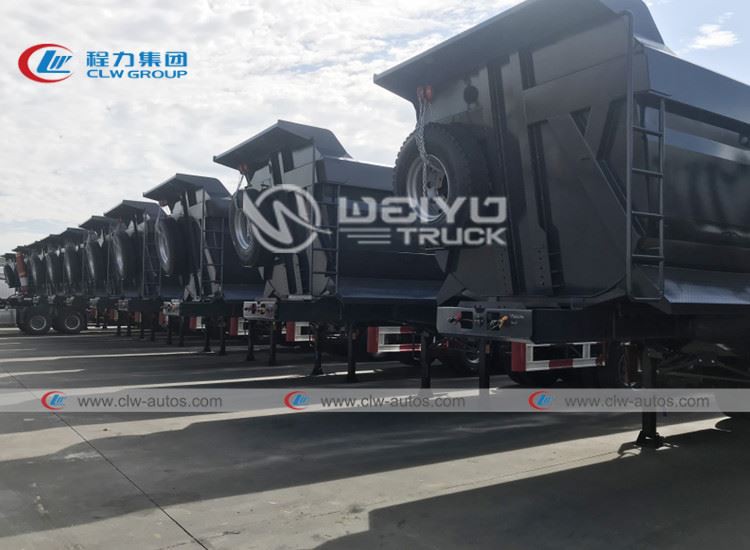

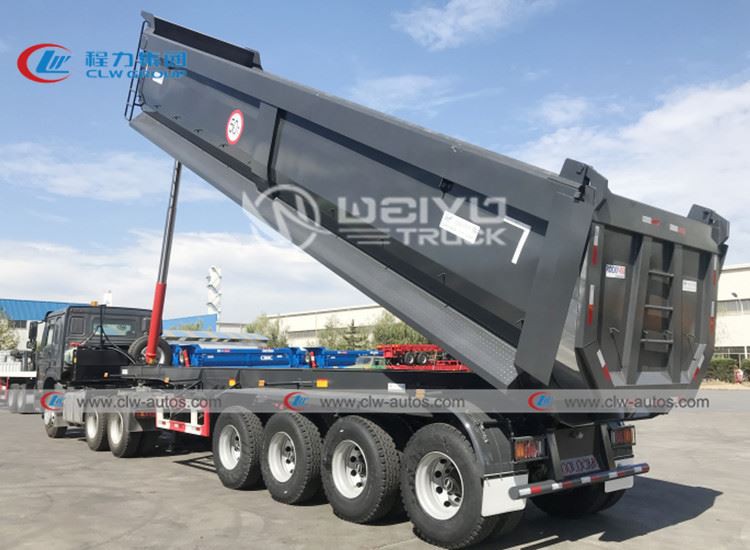

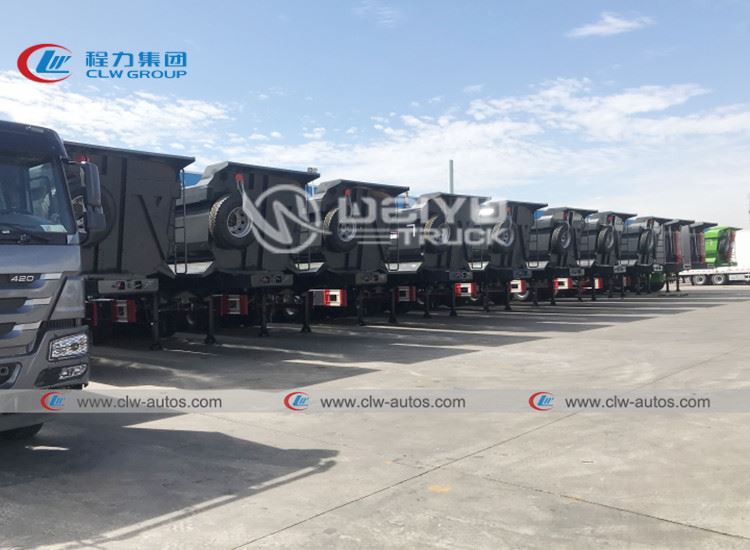

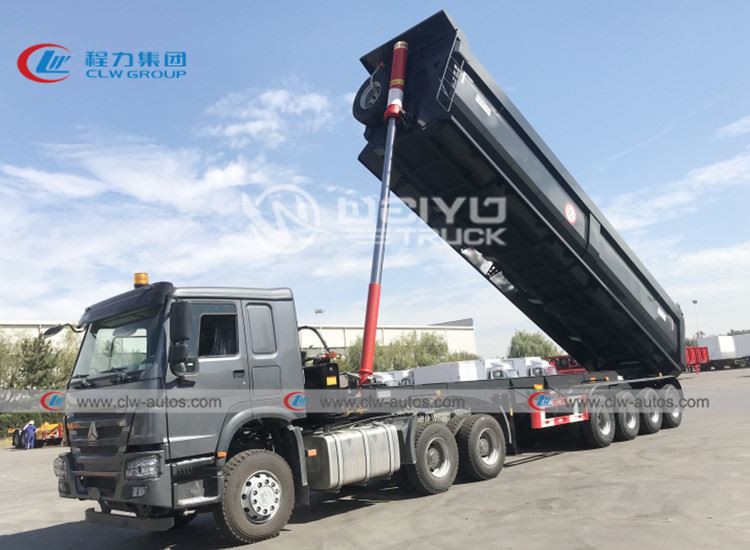

More pictures for 4 Axle 50T U-Shape Tipper Dump Semi-Trailer:
