Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 5m3 concrete/cement paste spray truck in China. If you're going to buy high quality dongfeng 5m3 concrete/cement paste spray truck, welcome to get more information from our factory. For price consultation, contact us.
The detailed Specification of Dongfeng 5M3 Concrete/Cement Paste Spray Truck:
Item
Concrete/Cement Paster Spray Truck
Chassis Brand
Dongfeng
Vehicle parameters
GVW(kg)
7360
Overall Dimension (mm)
6580×2100×2520
Curb weight (kg)
5380
Steering Wheel
LHD
Wheelbase (mm)
3360
Driving Type
4*2
Engine parameters
Engine Brand
Dongfeng
Model
CY4100Q
Emission Standard
Diesel, Euro 3
Horse Power(hp)
82
Displacement
3700ml
4 stroke,4-cylinders in line, water cooling
Gear Box
6 speed, Manual
Performance Parameter
Max Speed (km/h)
90
Front Axle
1503
Cab Seat
3,2
Rear Axle
1494
Leaf Spring
6/6+5
Front Suspension
1040
Tire No.
6+1
Rear Suspension
2010
Tire Specification
7.00-16
Approach Angle
19
Axle No.
2
Departure Angle
11
Upper Structure
Tank Volume
5CBM
Tank Material
Carbon steel
Equiped
Spray Nozzle,Hydraulic pump &motor etc.

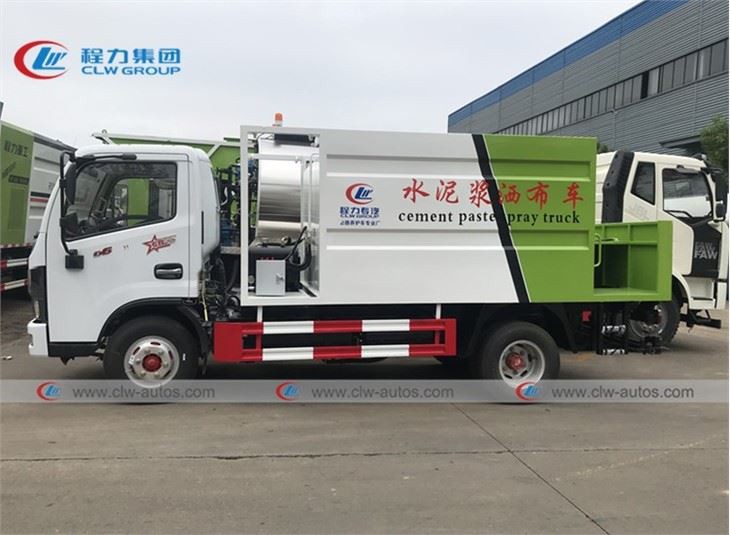

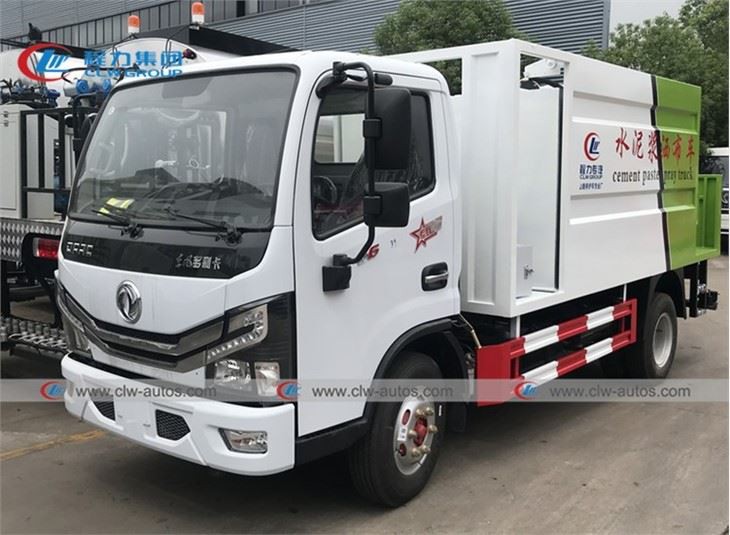

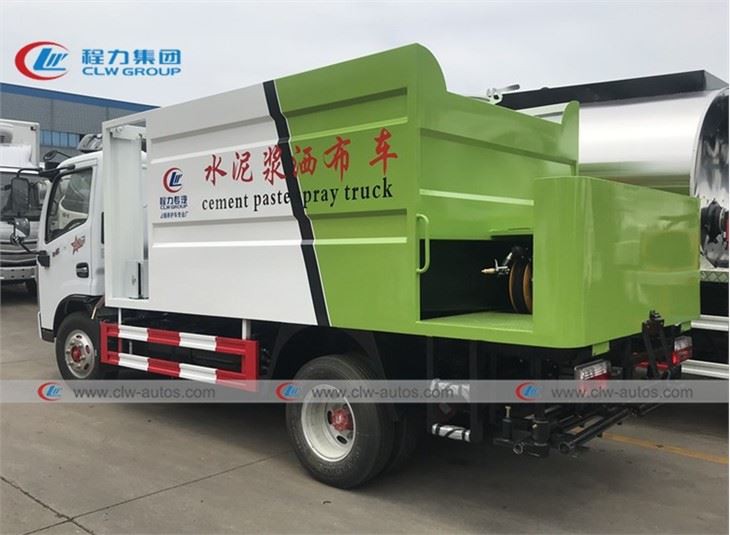

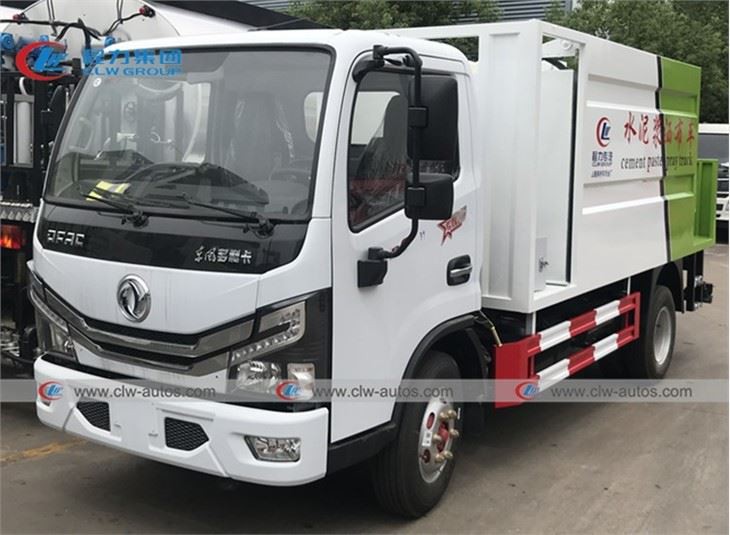

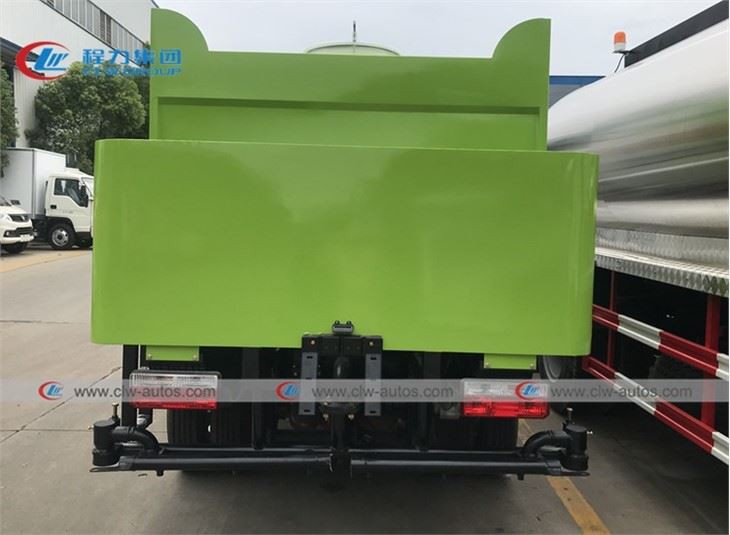

The more detailed pictures about Dongfeng 5M3 Concrete/Cement Paste Spray Truck:
