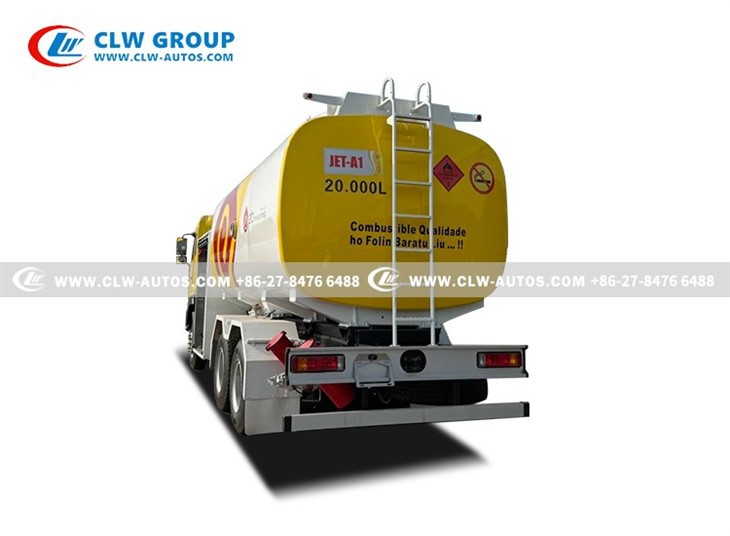

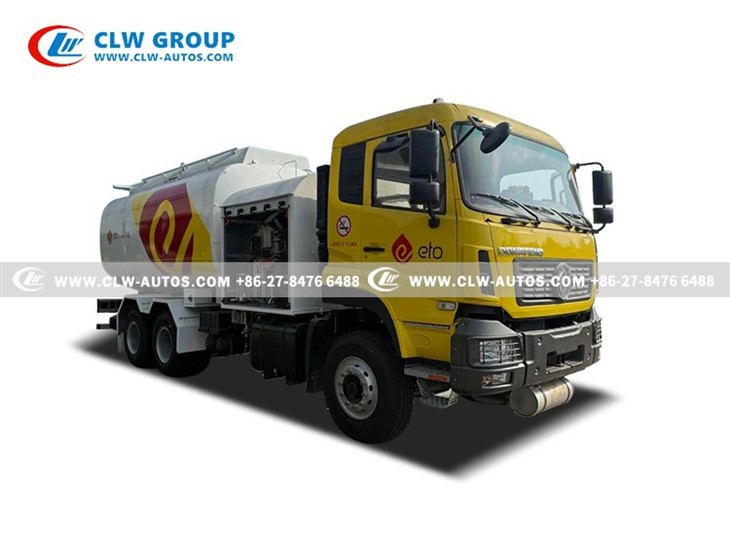

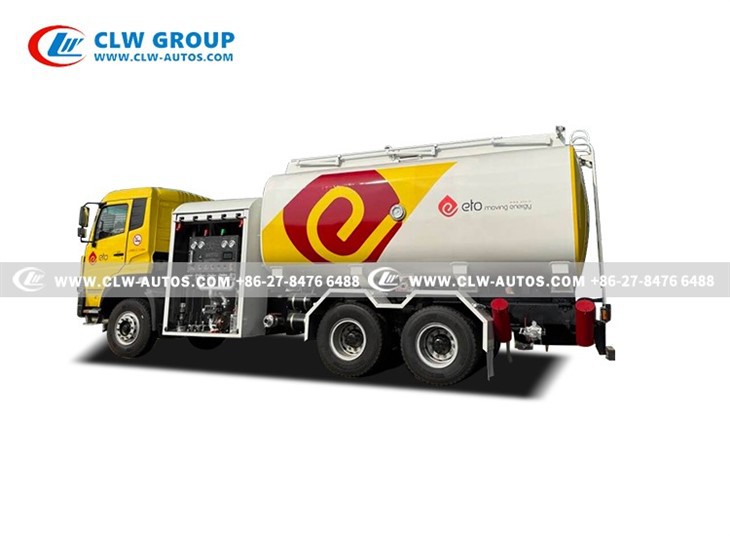

**20,000 litres 6*4 Dongfeng Aviation Jet-A Pressure Refueler**

Products Description

This heavy-duty aviation refueler, engineered on a rugged Dongfeng OEM 6x4 chassis, delivers high-efficiency Jet-A fuel transfer for civil aviation (CAAC/FAA standards) and large-scale fixed-base operator (FBO) applications. With a 20-cubic-meter (5,300-gallon) capacity and pressure-feed technology, it meets the rigorous demands of servicing commercial airliners, cargo jets, and corporate fleets at major airports or high-traffic FBO hubs.

Our Key Features and technical highlights

Chassis Reliability

Dongfeng 6x4 chassis with 300+ HP diesel engine, heavy-duty suspension, and ABS braking ensures stability under full load (GVWR ≈ 50,000 lbs).

Pressure Refueling System

50–60 PSI operational pressure enables rapid, safe fueling of large aircraft via single-point pressure ports (standard 4" NATO coupling).

Integrated Filtration and Monitoring

Triple-stage filtration (5μm final filter), water separator, and digital flow metering (±0.25% accuracy) with temperature compensation.

Certified Fuel Handling

Dedicated to Jet-A/JP-54 aviation turbine fuel (ASTM D1655 compliant).

Safety Systems

Grounding reel, static discharge, overpressure valves, deadman controls, and fire suppression compliance (NFPA 407).

Ergonomic Design

All-weather operator platform, dual hose reels (100 ft each), LED lighting, and low-profile construction for clearance under wings.

Products Specification

Technical Parameters
Condition	New condition/Left hand drive/6x4
Chassis	Brand		Dongfeng
	Curb weight(kg)(Whole Truck)		12000 kg
	Wheelbase(mm)		4350+1350/4350+1300mm
	Front/Rear axle loading weight(kg)		7000/13000/13000 kg
	Dimensions(mm)(Whole Truck)		1097525903950 mm
	Max. driving speed(km/h)		80 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	10pcs with one spare tire
		Specifications	315/80R22.5
	Fuel tank volume(L)		400 L
Transmission	Manual type, 12 Forwards and 2 reverses
Steering	Power steering, hydraulic steering with power assistance
Cabin	It can accommodate three people, With Air conditioner
Engine	Brand		Dongfeng Cummins
	Model		ISL380 50
	Fuel type		Diesel
	Displacement(ml)		9726 ml
	Power(kw)		280 kw
	Horsepower(HP)		380 HP
	Cylinder number		6 pcs
	Emission standard		Euro 5
Upper & Equipment
Fuel tank	Capacity(cbm)		20.0 cbm
	Tank material		Aluminium alloy 5182
	Compartment quantity(pcs)		1 pcs
	Filling medium		Aviation kerosene
	Piping system		Aluminium alloy 5182
	Manhole		Quantity(pcs)	2 pcs
			Size(mm)	500 mm
			Standard	API
			Material	Aluminium alloy
	Breather valve		Quantity(pcs)	4 pcs
			Material	Aluminium alloy
	Oil-gas recovery system		With
	Overflow protection system		With
	Bottom valve		1 unit 8inch
	Tanker body thickness(mm)		5.6 mm
	End dish thickness(mm)		5.8 mm
	Baffle thickness(mm)		5.6 mm
Filter	China famous brand;Flow rate is 2500L/min
Flow Meter	The Precision level is 0.2 level. Flow rate is 2500L/min
Centrifugal Pump	Pumping in and pumping out. Flow rate is 2500L/min
Filling nozzle	1.5inch (DN38) 20m Gravity refueling hose with filling nozzle(≥350L/min) 2.5inch(DN65) 25m Pressure refueling hose with filling nozzle(≥1200L/min)
Hose Reel	It is driven by hydraulic motor. The winding/rewinding speed is adjustable
Level gauge	6 inch floating-ball type level gauge
Remarks	Remote magnetic switch Hand throttle(With gas cylinder) DEADMAN system In-line pressure control valve Venturi tube High liquid level control valve Magnetic control refueling controller Vacuum meter Pressure gauge Differential pressure meter Venturi pressure gauge Hydraulic pressure gauge Sampling system Electrical System Control Panel Mechanical type ladder

Factory Real Shot Video For You

20cbm Dongfeng Jet A-1 refueler truck

6x4 Jet refueler truck

6x4 Jet refueler truck manufactuer

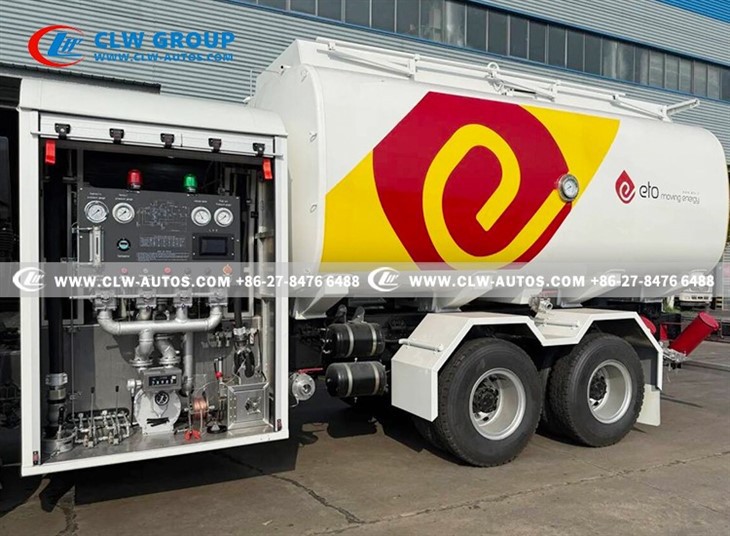

Refueling system and Primary applications

How It Fuels Aircraft

Positioning: Drives beneath aircraft wing/fuselage.
Grounding: Connects static ground cable to aircraft.
Coupling: Attaches pressure hose to aircraft's single-point receptacle (SPR).
Automated Transfer: Engages pump; fuel passes through filters/water separators → digital meter → aircraft tank.
Shutdown: System auto-stops at preset volume; disconnects after pressure bleed-off.

Primary Use Scenarios

Civil Aviation (CA): High-volume refueling for narrow-body jets (A320/B737) and regional aircraft at commercial airports.
FBO/MRO Facilities: Fleet servicing for corporate jets (e.g., Gulfstream, Bombardier) and cargo operators.
Defense Logistics: Supporting military transport aircraft at dual-use airfields.
Remote Operations: On-site fuel support for c
harter flights in areas with limited hydrant systems.
