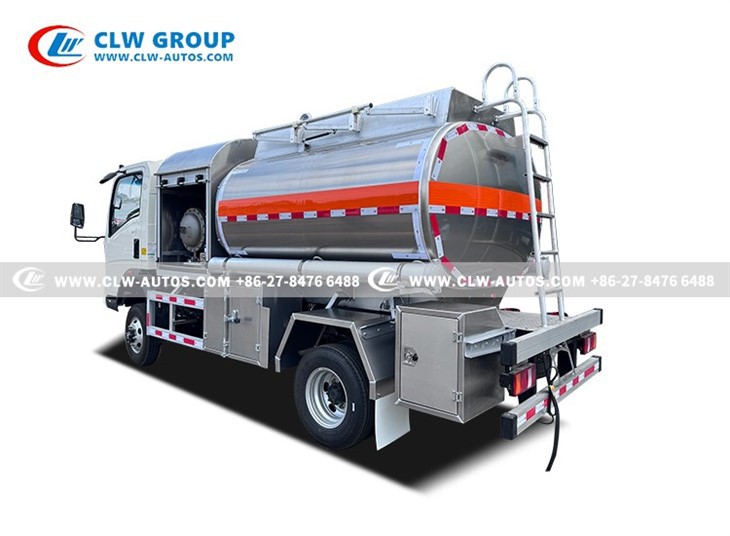

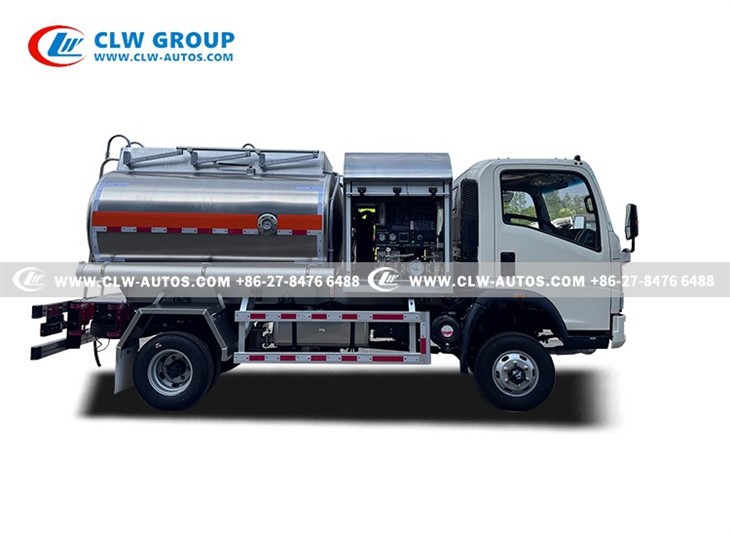

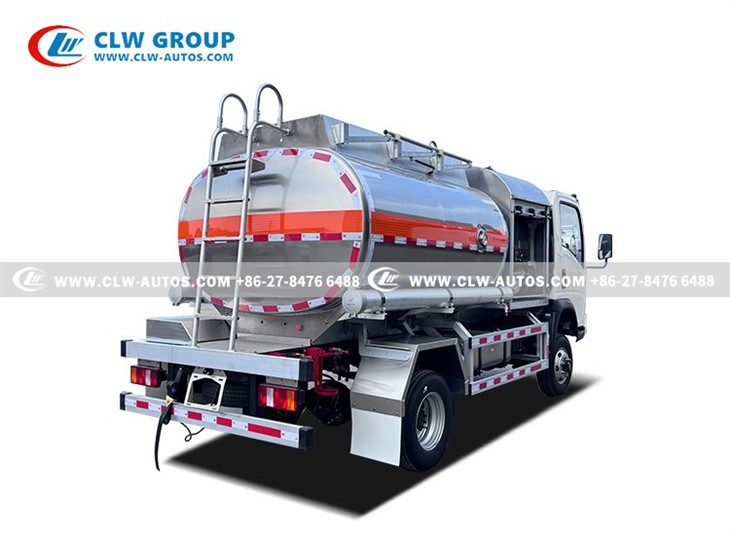

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5,000 liters helicopter refueling truck in China. If you're going to buy high quality 5,000 liters helicopter refueling truck, welcome to get more information from our factory. For price consultation, contact us.
We Are 100% Straight Factory Manufacturer For Aircraft Refueling Truck Since 2004
The aircraft refueling truck is used for helicopter refueling and mobile transporting aviation keroscene. And it's also called Aviation Jet Refueling truck, aircraft fuel servicing truck, Jet A-1 refueler vehicle, avaition bowser truck, aircraft refueling lorry, Jet refueler truck, etc. The main parts include fuel pump, flow meter and filling gun, and the brands are imported from aboard.
Features:
SINOTRUK 4×4 Jet A-1
Explosion-proof design
Leak detection technology
High-flow pumps
Corrosion-resistant tanks
Durability
Corrosion-Resistant Tanks: Made of aluminum or stainless steel for long-term durability.
All-Terrain Mobility: Reinforced chassis and 4x4 options for operations in harsh environments
Enviromental Protection
Vapor Recovery Systems: Capture 99% of fuel vapors to reduce emissions.
Spill Containment: Secondary containment barriers prevent soil/water contamination.
Cost-effective Solutions
Reduce ground crew labor costs by 30% through automated systems. Lower maintenance costs with modular, easy-to-replace components.
High Safety Standards
Explosion-Proof Design: Built with fire-resistant materials and anti-static systems to prevent fuel ignition.
Leak Detection Technology: Sensors monitor fuel lines for leaks, ensuring compliance with aviation safety regulations.
|
Chassis technical specification |
||
|
Chassis brand |
Sinotruk HOWO |
|
|
Driving mode |
4x4 |
|
|
Overall dimension |
6800*2500*3000mm |
|
|
Curb weight |
8,000kg |
|
|
Gross Vehicle Weight |
15,000kg |
|
|
Payload |
5,000kg |
|
|
Wheel Base |
3360mm |
|
|
Cab |
HOWO 1880mm single row cab ; Right hand driving; With air conditioning; |
|
|
Engine |
Engine brand |
Cummins, ISF3.8s3141; |
|
Horsepower |
141hp |
|
|
Displacement |
3.8L |
|
|
Emission standard |
Euro Ⅲ |
|
|
Transmission |
WLY6TS55, 6 forward gears and 1 reverse |
|
|
Front axle loading |
2,400kg |
|
|
Rear axle loading |
4,200kg |
|
|
Tyre |
7.00R16 |
|
|
Fuel tank |
120L, aluminum alloy material |
|
|
Superstructure parameters |
||
|
Tank volume |
5m3, 5 cubic meters |
|
|
Loading medium |
Aviation kerosene or aviation gasoline |
|
|
Compartment |
Single warehouse |
|
|
Tank materail |
Aluminum alloy 5182 |
|
|
Tank shape |
Square round |
|
|
Tank body thickness |
5.5mm |
|
|
Tank head thickness |
5.7mm |
|
|
Pumping system |
Refueling pump; Flow meter; Filter separator; |
|
|
Pipeline fittings |
||
|
Manhole |
One aluminum alloy European standard manhole; |
|
|
Breathing valve |
Equipped built-in brathing valves |
|
|
Discharging valve |
Gravity refueling method |
|
|
Overflow prevention |
With anti-overflow system |
|
|
Safety bottom valve |
seabed valve and high-level valve |
|
|
Refueling gun |
15m jet fuel hose reel gun |
|
|
Safety system |
oil and gas recovery system; emergency shut-off valve,emergency shutdown system; emergency shut-off valve red button at the rear of the tank. |
|
|
Level gauge |
4-inch float level gauge |
|
|
Operational control |
Integrated control system |
|
|
Accessories |
||
|
Guardrail |
Manual aluminum alloy guardrails on both sides |
|
|
Ladder |
Aluminum alloy rear ladder |
|
|
Operation cabinet |
Standard operational cabinet |
|
|
Fire proofing |
4kg iron fire extinguisher cylinders*2 |
|
|
Antistatic device |
One set of electrostatic reels |
|
|
Explosion-proof lights |
Equipped in the operation cabinet |
|
|
Tool box |
Aluminum alloy standard tool box |
|
|
Anti-slip walkway |
Aluminum alloy anti-slip net walkway is equipped in the tank top enclosure |
|
|
Colors |
All aluminium allloy color |
|
We also provide different brands of Jet A-1 refueler vehicle, such as Dongfeng, Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.
Our advantages:
Scalable tank capacities (5,000 to 50,000 liters) for small airports or mega-hubs.
Regular audit-ready documentation for fuel quality traceability.
360° Visibility: LED lighting and cameras enhance safety during night or low-visibility refueling.
Spill Containment: Secondary containment barriers prevent soil/water contamination.
