10 Units of FAW J6P 6×4 Dump Trucks Exported to Togo



📝 Project Overview

In July 2025, Hubei Chengli Special Automobile Co., Ltd. successfully exported 10 units of FAW J6P 6×4 390HP Dump Trucks to Togo, West Africa. These trucks will be used in a major infrastructure construction project supported by the local government, ensuring efficient and reliable transport of construction materials.









🚛 Product Introduction

The FAW J6P 6×4 dump truck features a 390HP high-power engine, U-shaped T700 high-tensile steel dump body, and reinforced 16-ton double rear axles. Designed for heavy-duty applications, it provides strong performance, high durability, and excellent load capacity.











⭐ Key Highlights

• Powerful 390HP FAW CA6DM2-39E3F engine
• T700 high-strength steel U-shape dump box for extended durability
• Large 19.3 m³ capacity with front hydraulic tipping system
• Reinforced 300×80×(8+8) U-profile frame with subframe
• Both left-hand and right-hand drive available for international markets

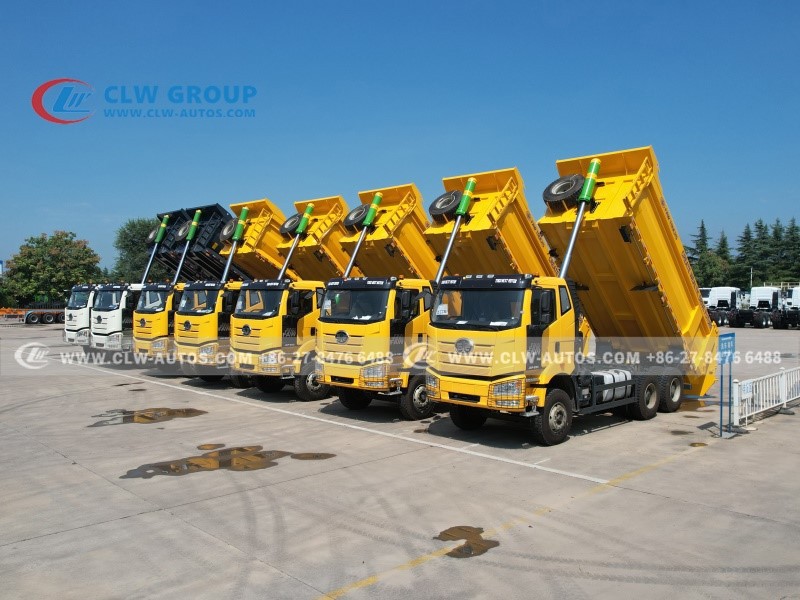

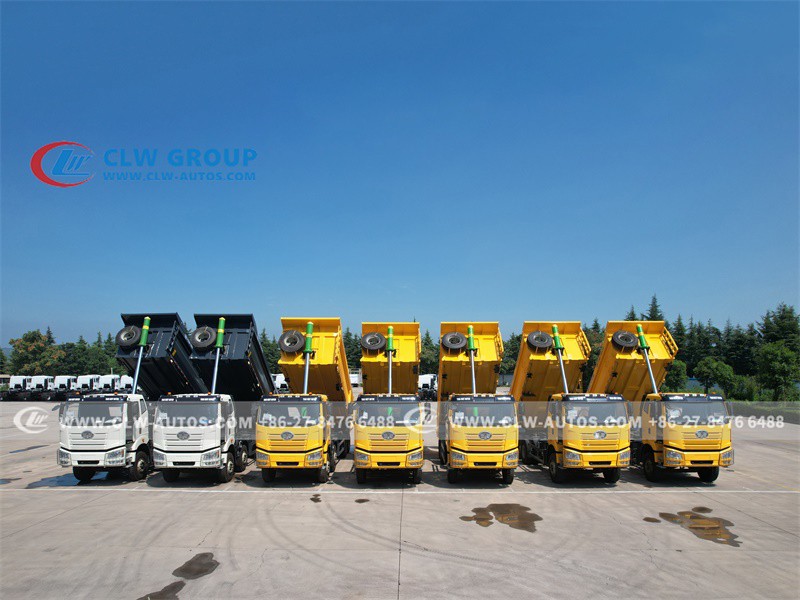

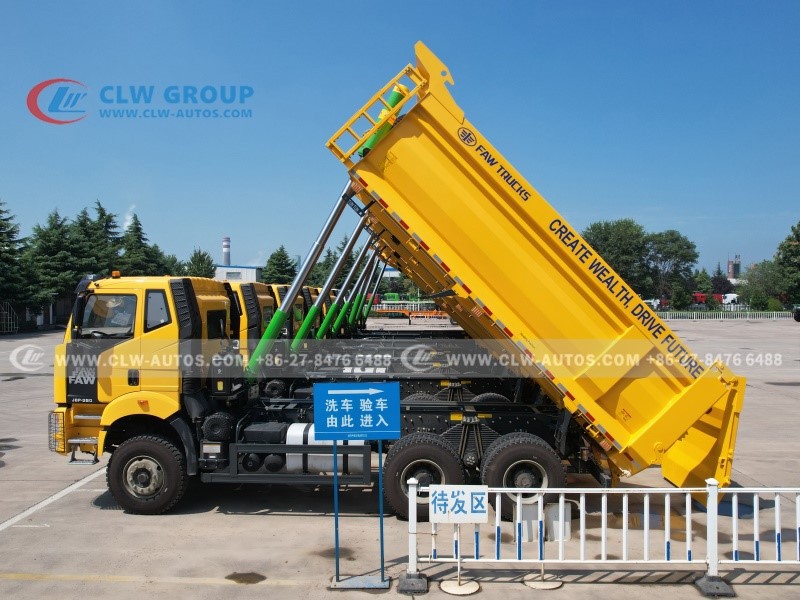

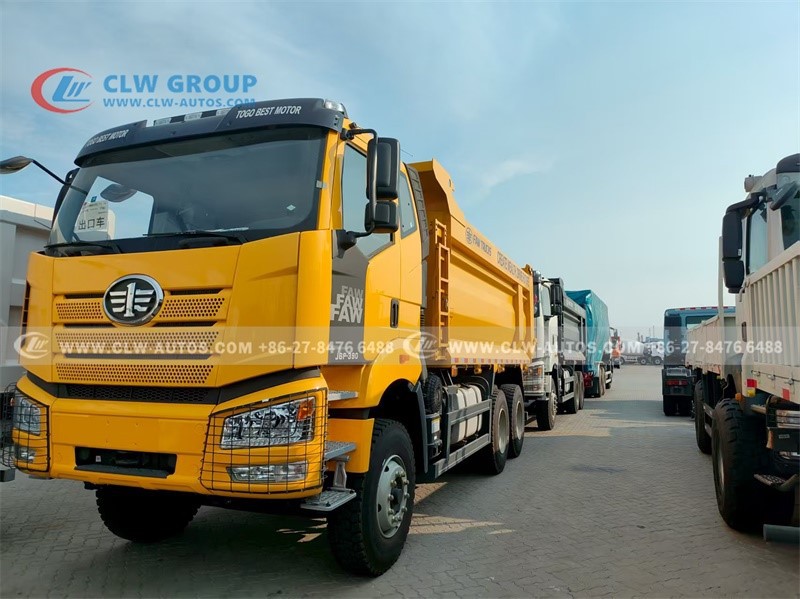

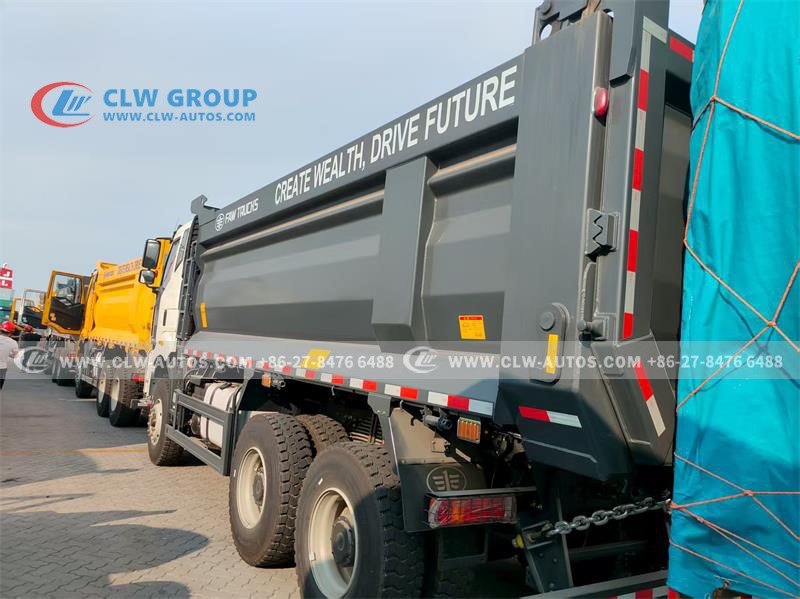

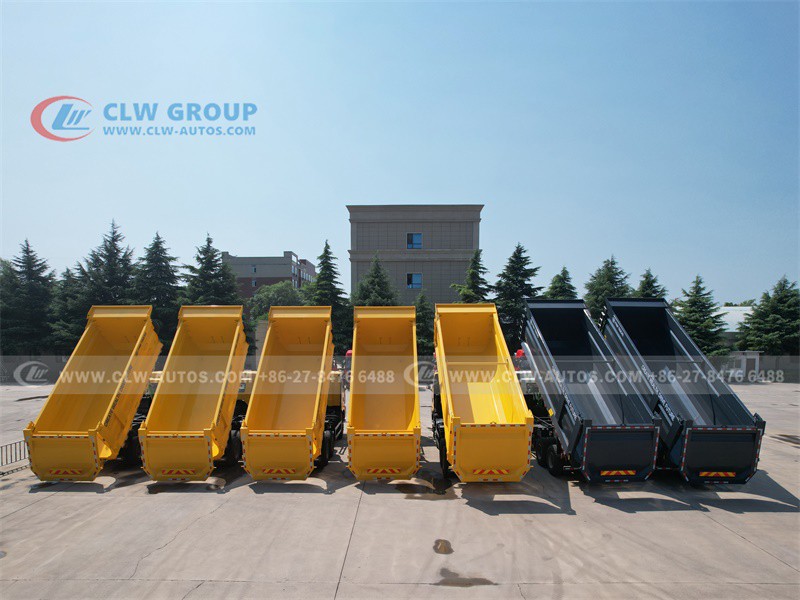

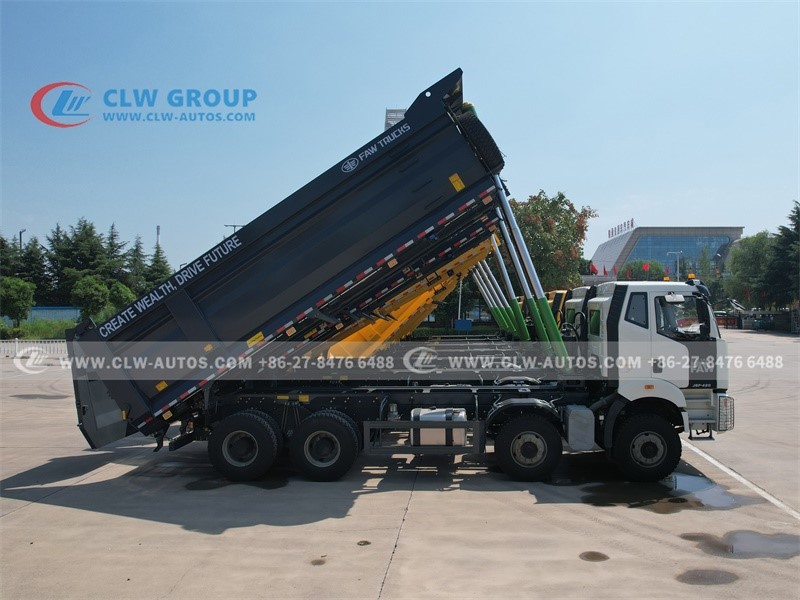

📷 Project Image Gallery





📋 Technical Specifications

J6P 390HP 6×4 Dump Truck
Model		CA3250P66K24L2T1E
Driving type		6×4
Towing weight		80T
Dead weight		17 T
Cabin		New J6P flat roof, fully floating, one sleeper bed, AC, electrical window lifter, manual adjustable rearview mirror, adjustable mechanical spring driver's seat.
Economical speed		43-58 KM/h
Egine		Make：FAW Engine Model:CA6DM2-39E3F 4 stroke direct injection diesel engine 6 cylinder in-line with, turbo-charging & intercooling,water cooling Maximum output: 390PS(290Kw) at 1900 rpm Maximum torque: 1750Nm at 1100~1400 rpm Bore: 123mm; Stroke: 155mm; Displacement: 11.04L; Compression ratio: 17.5 Overhead camshaft, Single cylinder with four valves
Transmission		Transmission, model：CA10TAX190F, 10 forward and 2 reverse Ratio :10.957 8.18 6.073 4.464 3.319 2.455 1.833 1.361 1.00 1.63 0.744 11.227/2.515(R)
Clutch		ф430 (Eaton)
Rear axle		CAR16T230W 16T*2, Casted axle housing, central single reduction with planetary wheel reduction (hub reduction) and automatic slack adjuster Overall ratio:4.405
Front axle		Steering with double T-cross section beam, with drum brake system
Chassis specification		Frame: High-strength U-profile frame with a section of 300x80x(8+8)and reinforced subframe, all cold riveted cross members Front suspension: 12 semi-elliptic leaf springs (2*16mm+9*18mm+1*10mm) Rear suspension: 12*24mm leaf springs Fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis
Steering		Hydraulic steering with power assistance Option:TRW steering box
Wheel base		3800+1350MM
Tyres		12.00R-20
Dump Box Material		T700 high tensile material
Dump Box Size		5600*2300*1500 mm 19.32 m3
Dump Box Shape		U Shape
Dump Box Thickness		Side 6mm Bottom 8mm
Oil Cylinder		Front Tipping/φ180
