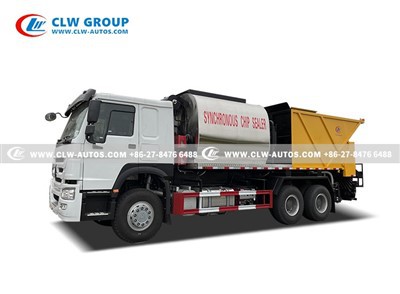

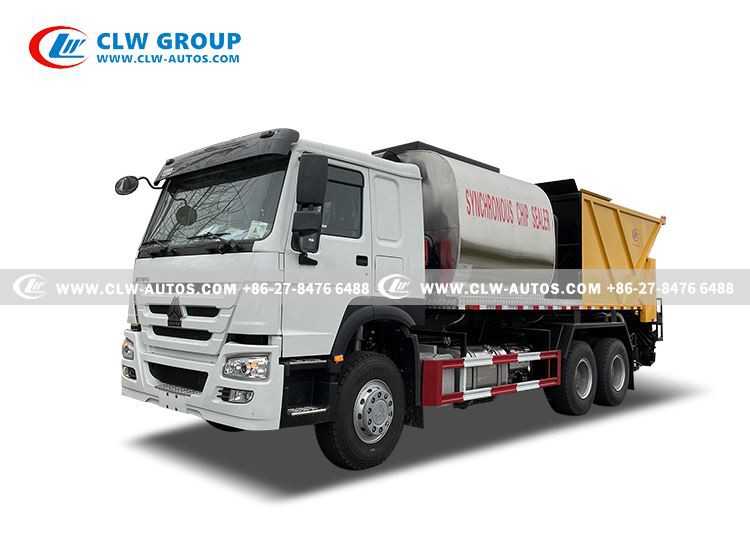

Sinotruk Synchronous Chip Sealing Truck
Synchronous Chip Sealing Truck for road maintenance
Chassis brand: SINOTRUK HOWO
GVW: 25 Tons
Drive type: 6x4
Asphalt Tank Capacity: 8m³
Aggregate Hopper Capacity: 14m³
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk synchronous chip sealing truck in China. If you're going to buy high quality sinotruk synchronous chip sealing truck, welcome to get more information from our factory. For price consultation, contact us.
6x4 Sinotruk Synchronous Chip Sealing Truck
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Products Description
Synchronous Chip Sealing Truck, also known as synchronized gravel sealing truck, asphalt gravel synchronized sealing truck, synchronized paving truck, etc. is a kind of special equipment used for road construction, mainly used for synchronized gravel sealing technology. This technology forms a single-layer asphalt rubble abrasion layer or stress-absorbing layer through synchronized spraying of asphalt binding material and spreading of aggregates to enhance the anti-skid, waterproofing and abrasion-resistant properties of the road surface.
Contact for business discussion
Hedy He Sales Manager
Mobile: +86-188 2740 1066(whatsApp)
Email: hedy@clw-autos.com
Introduction to Synchronous Chip sealer Truck
Truck Features
Synchronized operation
Efficient construction
High performance, small size
Strong adaptability
Improve pavement performance
Asphalt Spreading System
Asphalt tank: good heat preservation, even heating
Heating part: high efficiency and energy saving
Hydraulic part: adopting international brand components, reliable transmission, smooth operation
Control system: intelligent control, high sprinkling precision
Spraying part: nozzle independent control, even spraying
Stone spreading system
Silo: equipped with 2-way conveyor belt to ensure the synchronized output of stone materials
Material door: precisely set the opening degree to effectively improve the spreading uniformity
Dividing and lowering plate: large adjustable range, suitable for a wide range of specifications of stone materials from S3 to S24mm
Electrical operating
Intelligent parameter adjustment: real-time monitoring of the equipment operating status
Manual/automatic switching: simple operation, improve work efficiency
Flexible width adjustment: can be adjusted according to the width of the road surface
Limit protection:adopts limit switch to control the lifting of nozzle rack and material bin to ensure the safety of man and machine
Automatic alarm function
Products Parameters
| Specification | |
| Name | SINOTRUK HOWO 6x4 25Tons Synchronous Chip Sealing Ttuck |
| Dimension | 9200X2500X3200 mm |
| Gross Vehicle Weight | 25000 kg |
| Loading Weight | 18000 kg |
| Curb Weight | 7000 kg |
| Approach/Departure Angle | 19°/14° |
| Front/rear overhang | 1500/3025 mm |
| Axle Number | 3 |
| Wheelbase | 4300+1400 mm |
| Tire | 10 wheels, with one spare tire |
| Tire Specification | 12.00R20 |
| Fuel Tanl | 400 L |
| Engine | WEICHAI, diesel engine |
| Horse power: 340 HP | |
| Displacement: 10000 ml | |
| Emission standard: Euro Ⅱ | |
| Transmission | Manual type, 10 forward and 2 reverse |
| Max.Speed | 80 km/h |
|
Asphalt tank system parameters |
|
|
External dimensions of the tank (Long / long axle / short axle) |
2240 / 2190 / 1860 mm |
| actual size: 2400 / 2350 / 2020 mm | |
| thickness of insulation : 80 mm | |
| Asphalt Tank Capacity | 6/8 m³ |
| Asphalt pump flow rate | 150-300 L/min |
| Spraying Medium | Hot/diluted/emulsified asphalt |
| Spraying Volume | 0.3-3.5 L/㎡ |
| Spreading Error | ±2% |
| Spreading Width | 4 m |
| Transportation medium | emulsified asphalt |
| Aggregate system parameters | |
| Aggregate Hopper Capacity | 10/14 m³ |
| Spreading Width | 4 m |
| Aggregate Sprinkling | 5-20 kg/㎡ |
| Aggregate size range | 3-16 mm |
| Spreading accuracy | ±5% |

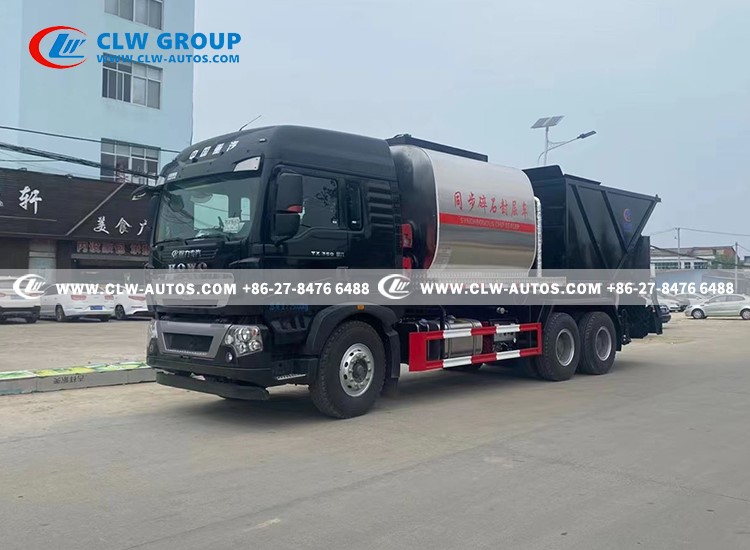

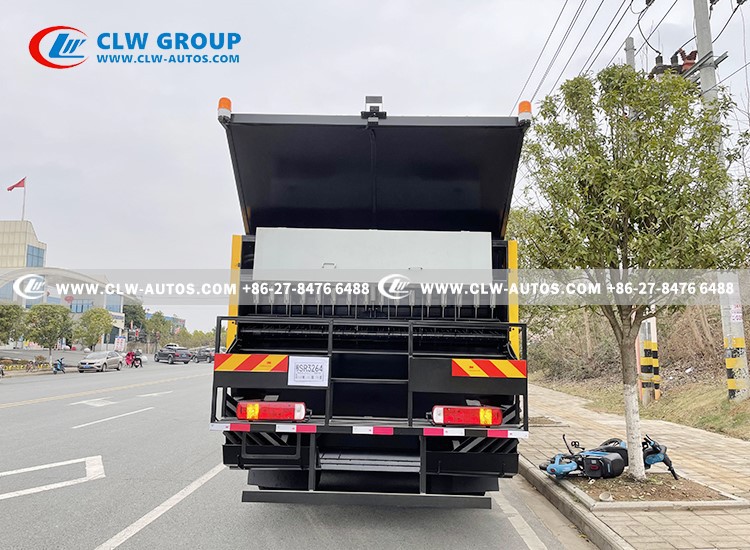

Truck Photos

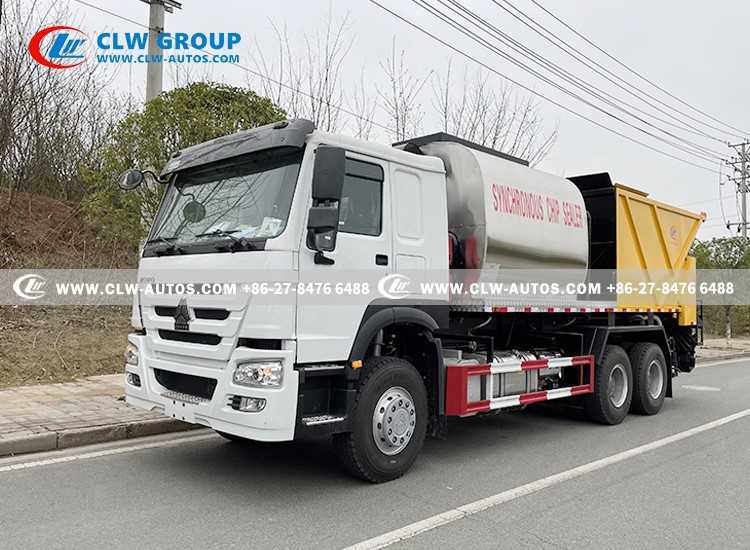

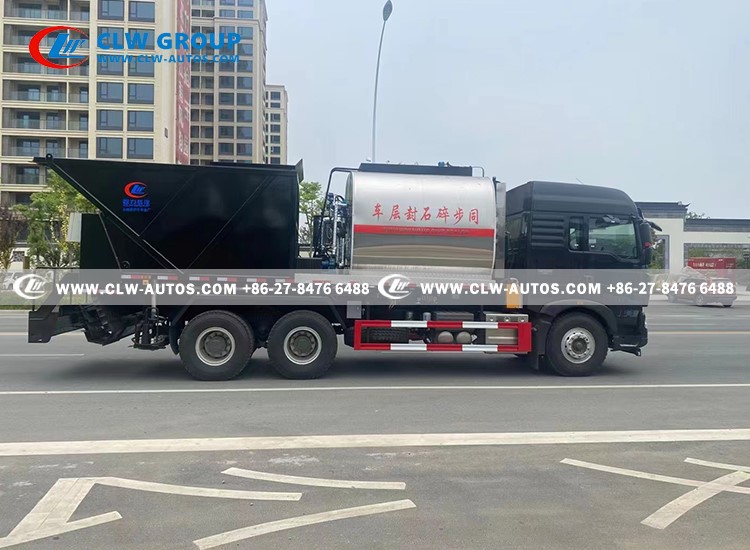

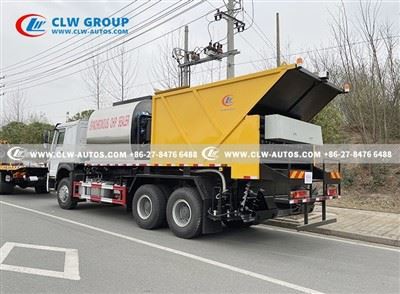

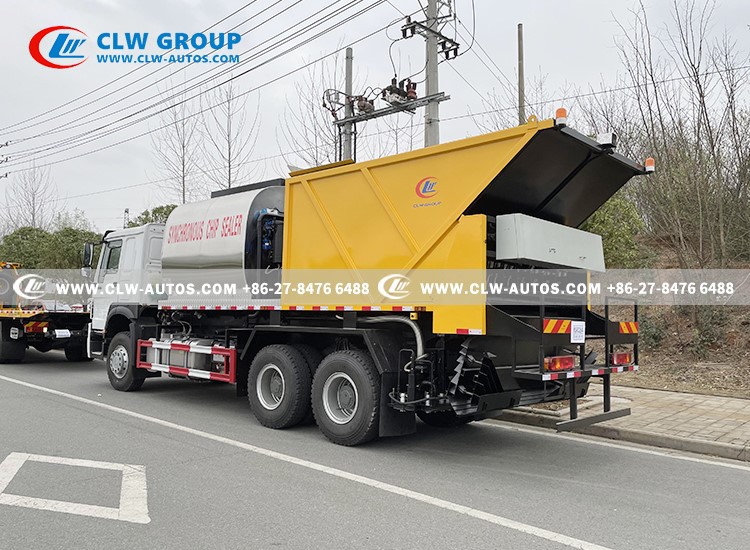

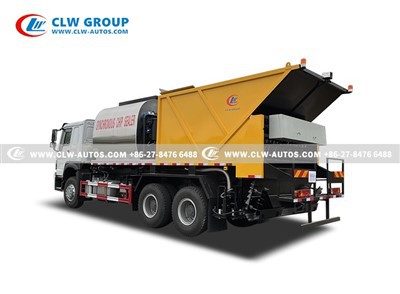

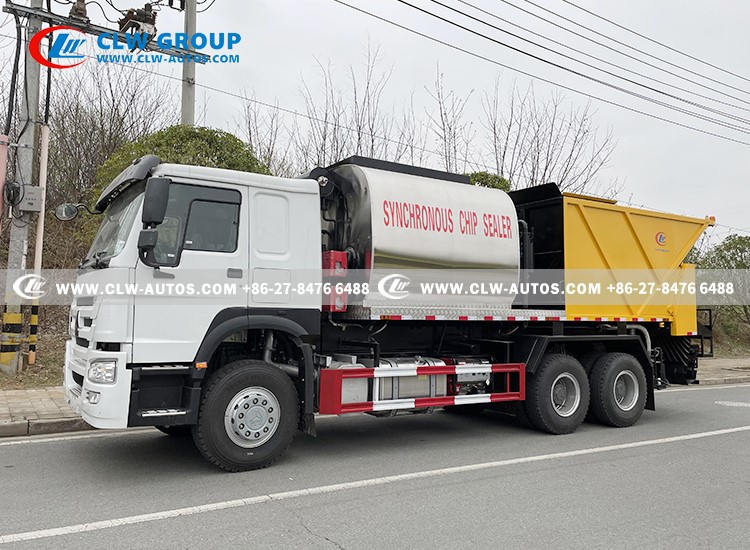

Sinotruk-HOWO-25Tons-Synchronous Chip Sealing Truck
Other brand Synchronous Chip Sealer Truck

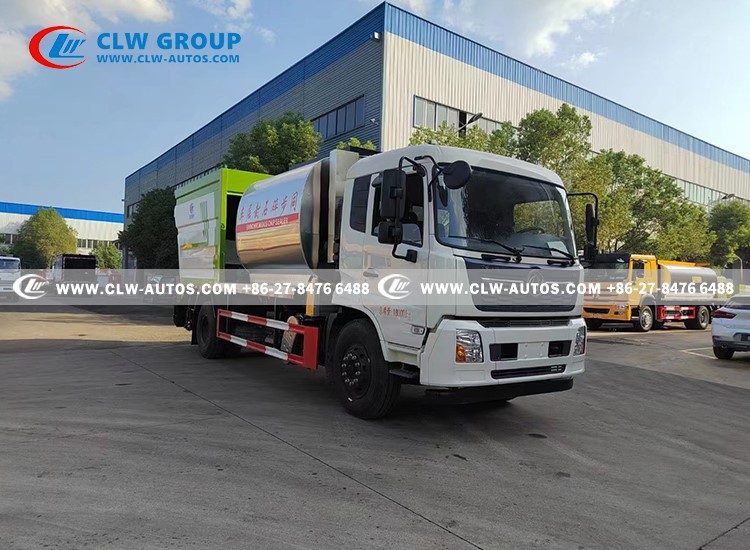

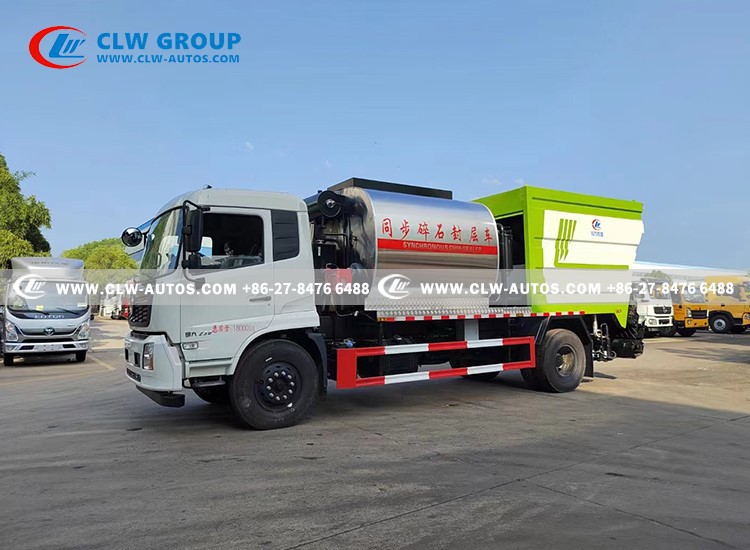

DongFeng
