Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw j6l 20t wrecker truck with zoomlion crane in China. If you're going to buy high quality faw j6l 20t wrecker truck with zoomlion crane, welcome to get more information from our factory. For price consultation, contact us.

Products Description

This FAW J6L 6×4 20T Integrated Wrecker Truck with 20-Ton Underlift Towing Fork and Zoomline Telescopic Crane is designed for professional towing companies, emergency Rescue/Recovery services in city and highway, and heavy-duty logistics, offering a robust combination of lifting, pulling, and transport/Traffic, Policy capabilities.

FAW J6L 6×4 20T Integrated Wrecker Truck:

Key Features:

Chassis: FAW J6L heavy-duty truck chassis with a 6×4 drive configuration for superior stability and load-bearing capacity.
Towing Capacity: Integrated 20-ton underlift towing fork for heavy-duty recovery operations.
Crane System: Equipped with a Zoomline hydraulic crane for lifting and loading operations (customizable lifting capacity, typically 12-16T).
Integrated Design: Combines a powerful wrecker system with a durable crane for versatile recovery and transport tasks.
Hydraulic System: High-efficiency hydraulic pump and cylinders for smooth operation of the underlift and crane.
Stabilizers: Outriggers or stabilizer legs for secure lifting and towing operations.
Control System: Remote or cabin-mounted controls for precise maneuvering of the crane and towing mechanisms.
Durable Construction: Reinforced steel frame and high-strength components for long-term reliability.
Applications: Ideal for highway breakdown recovery, accident vehicle removal, and heavy equipment transport.
Crane: XCMG/SANY is available

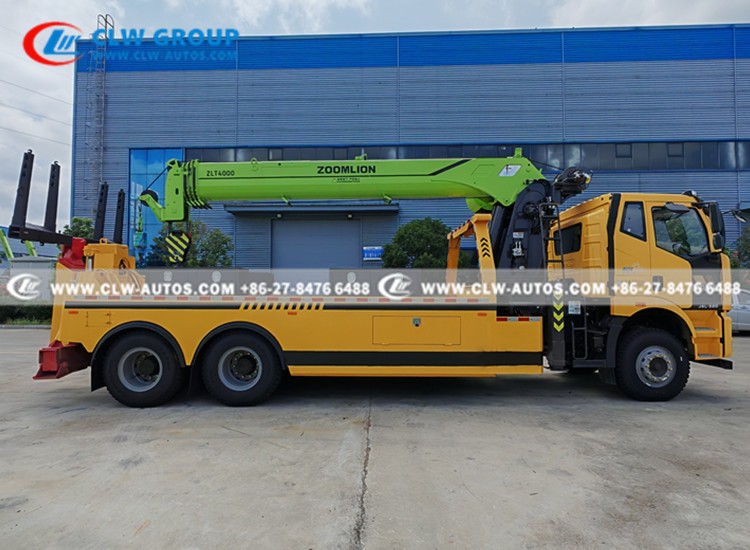

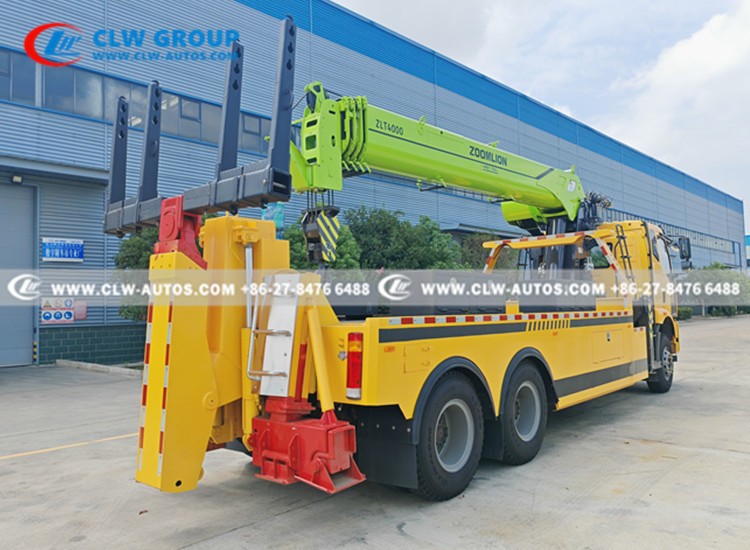

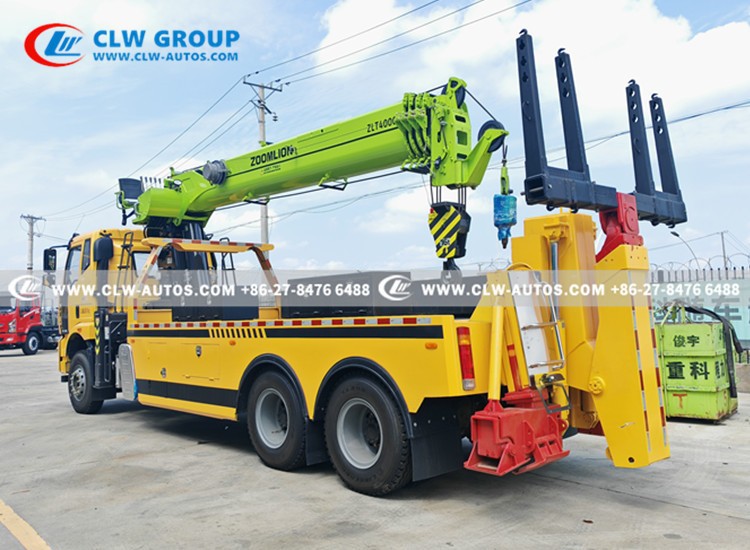

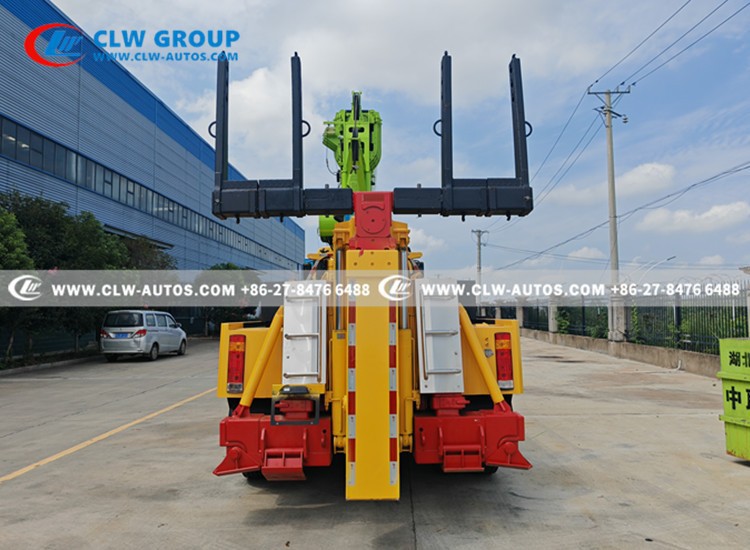

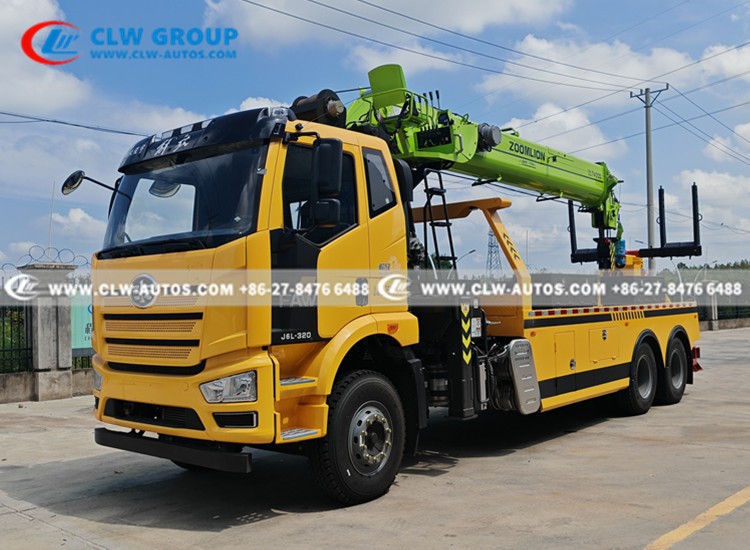

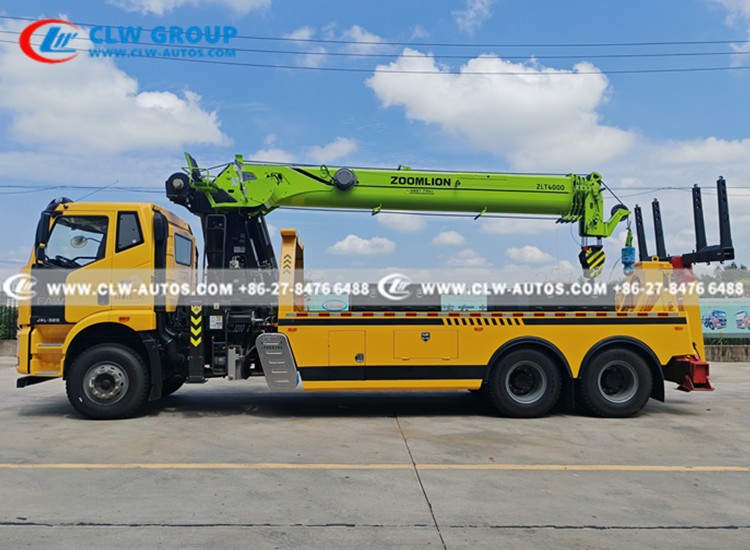

Products Ref. Pictures

Products Specification

Technical Specifications :

Truck Chassis: FAW J6L 6×4 heavy-duty truck chassis, powered by a 340HP diesel engine , ensuring robust performance for demanding towing operations.

Engine: 340HP diesel engine

Max. Towing Capacity: 20 tons (underlift/ Under Wheel Lift), Equipped with a 20-ton capacity under-wheel lift system for secure and stable recovery of disabled vehicles (rear-mounted design for optimal balance).

Crane Max. Load: 12-16T (depends on Zoomlion model),multi-stage boom extension for flexible loading/unloading and recovery tasks.

Boom Length: Adjustable 8-11 meters, 360 degree rotation

Outriggers: 2 pieces at the rear side; Extendable outriggers or stabilizer legs to ensure safety during lifting and towing.

Control Options : Dual controls (cabin-mounted + wireless remote control) for precise maneuvering.

Applications : Ideal for highway breakdowns, accident recovery, and transport of heavy machinery or construction equipment.

Products Advantages

Versatility : Combines heavy-duty towing with crane-assisted loading.
Efficiency : Fast setup and operation for emergency recovery.
Reliability : FAW's Top-grade chassis + Zoomline's high-performance crane.

What we can do

FAQ

Q: What is the maximum towing capacity of this wrecker?

A: The rear underlift supports up to 20 tons , while the Zoomline telescopic crane typically has a separate capacity of 12–16 tons (configurable).

Q: What engine powers the FAW J6L 340HP chassis?
A: It uses a FAW 340HP diesel engine , compliant with Euro V/VI emissions standards , ensuring power and fuel efficiency.

Q: Is the transmission manual or automatic?
A: 9/10-speed manual (varies by market configuration).

Crane & Underlift Features

Q: What's the reach of the Zoomline telescopic crane?
A: The crane typically extends 8–12 meters (customizable) with multi-stage hydraulic booms for flexible loading/recovery.

Q: Can the rear underlift tow vehicles with all-wheel drive (AWD)?
A: Yes, the 20T underlift is designed for AWD/rear-wheel-drive vehicles, but ensure wheels are properly secured.

Q: Does the crane include a rotator for 360° operation?
A: Optional-standard models may have limited rotation (e.g., 270°), but full 360° rotation can be specified.

3. Safety & Stability

Q: How does the truck stabilize during lifting?
A: It features extendable outriggers/stabilizers to prevent tilting during crane or underlift operations.

Q: Are there backup controls for the crane/underlift?
A: Yes-dual controls include in-cabin joysticks + wireless remote for precision and safety.

Q: Is the underlift compatible with wheel-lift and flatbed modes?
A: This model focuses on wheel-lift (underlift) towing , but flatbed configurations may be available upon request.

4. Purchasing & Customization

Q: Can I add a recovery winch?
A: Yes-options include 15–25T hydraulic/electric winches (front/rear-mounted).

Q: What's the delivery lead time?
A: Typically 8–12 weeks (varies by region, customization, and order volume).

Q: Are spare parts readily available?
A: FAW and Zoomline have global service networks ; parts for chassis/crane are standardized and accessible.

5. Applications

Q: Is this truck suitable for highway accident recovery?
A: Absolutely-its 20T towing + crane makes it ideal for accidents, breakdowns, and heavy-duty recovery .

Q: Can it tow construction machinery?
A: Yes, but ensure the machine's weight/axle load aligns with the crane/underlift capacities (consult specs).

Q: Does it work in extreme climates?
A: The hydraulic systems and engine are tested for -30°C to 50°C , but additional cold/hot-weather packages may be advised.
