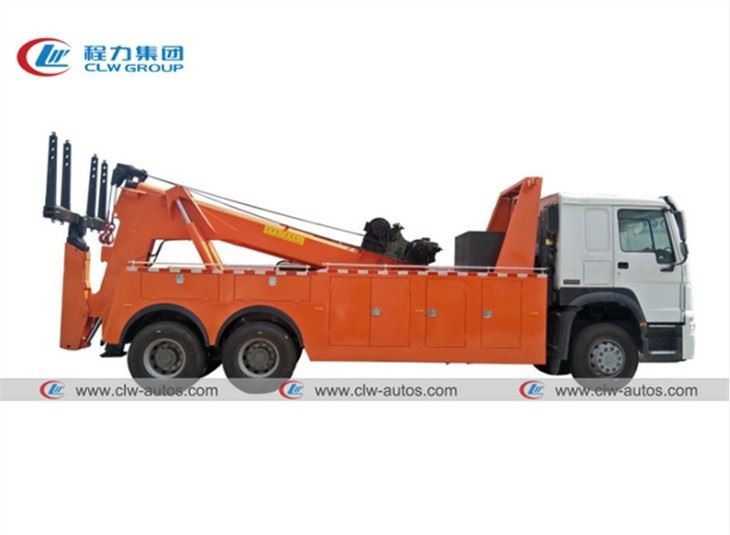

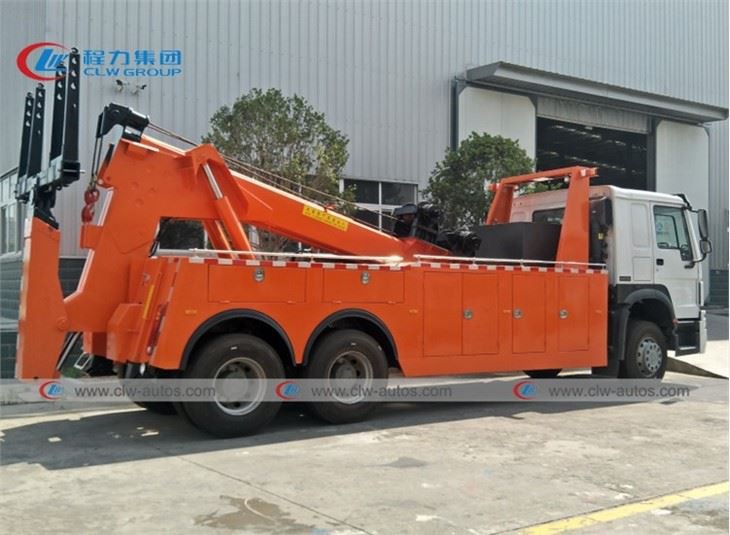

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 6x4 371hp 20tons road wrecker rescue truck in China. If you're going to buy high quality sinotruk howo 6x4 371hp 20tons road wrecker rescue truck, welcome to get more information from our factory. For price consultation, contact us.
The Truck chassis:
It adopts heavy truck HOWO chassis, HW76 cabin with one sleeper bed, original cold and warm air conditioner in the cab, HOWO 371HP EURO-2 engine, ten speed forward & 2 reverse gearbox, wheel base 5825 + 1350mm, 12.00R20 original steel tire, air brake and with ABS system.
The truck specification:
|
Cabin |
Driving type 6x4, Right hand drive |
|
||
|
HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for ref. |
||||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm |
10695×2500×3800 |
||
|
Wheel base (mm) |
5800+1350 |
|||
|
Wheel track (front/rear) (mm) |
1830/1830 |
|||
|
Approach/Departure angle(°) |
16/18 |
|||
|
Weight in KGS |
Tare Weight |
21000 |
||
|
payload |
25000 |
|||
|
Front axles loading capacity |
1x9000 |
|||
|
Rear axles loading capacity |
2x16000 |
|||
|
Engine |
Brand |
Sinotruk |
||
|
Model |
WD615.47 |
|||
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||
|
Horse Power（HP) |
371 |
|||
|
Emission standard |
Euro Ⅱ |
|||
|
Gearbox |
HW19710, 10 Forwards gear & 2 reverse gear |
|||
|
Tire |
12R22.5 tubeless tire with one spare |
|||
|
Clutch |
Reinforced diaphragm clutch, diameter 430 mm |
|||
|
Steering |
ZF8098 |
|||
|
Oil tank |
400L |
|||
|
Special Device For Wrecker System |
||||
|
Towing |
Max Towing Weight (kg) |
25000 |
||
|
Hoisting Organ |
Rated under-pulling capacity(kg) |
12000 |
||
|
Max Under-hoisting Capacity with all extension (kg) |
6000 |
|||
|
Max Under-hoist length (mm) |
1728 |
|||
|
Under hoisting work angle |
-10~85° |
|||
|
Lifting Organ
|
Max lifting capacity(kg) |
16000 |
||
|
Max lifting high(mm) |
4782 |
|||
|
Telescope length(mm) |
8172 |
|||
|
Winch |
10000kgs×2 |
|||
|
Steel rope |
40M，Φ18 |
|||
|
Crane luffing angle |
5°~ 23° |
|||
|
Landing Leg |
Distance between front legs(mm) |
0 |
||
|
Distance between rear legs(mm) |
1450 |
|||
Upper configuration:
Heavy duty double axle obstacle removal vehicle of SINOTRUK HOWO, 20 ton conjoined top mounted,
two-section hexagonal boom, three supporting arms, split carriage, imported hydraulic system,
bilateral linkage operation device, and counterweight is installed on the front bumper. Two 10Tons electro-hydraulic winches, 45m steel wire rope, 18mm in diameter,
equipped with 4 sets of steel forks, 1 set of trailer set, 1 set of steel plate lifting lug towing fork, 1 set of tire holding device, 1 set of onboard tools,
1 set of auxiliary lamp assembly, 1 set of auxiliary air pipe assembly.
1 set of yellow long row LED engineering alarm lamp.
Our company's obstacle removal vehicle adopts foreign advanced and skilled product technology and production technology, all imported seals and reinforced beam fixation, which enhances the bearing capacity.
