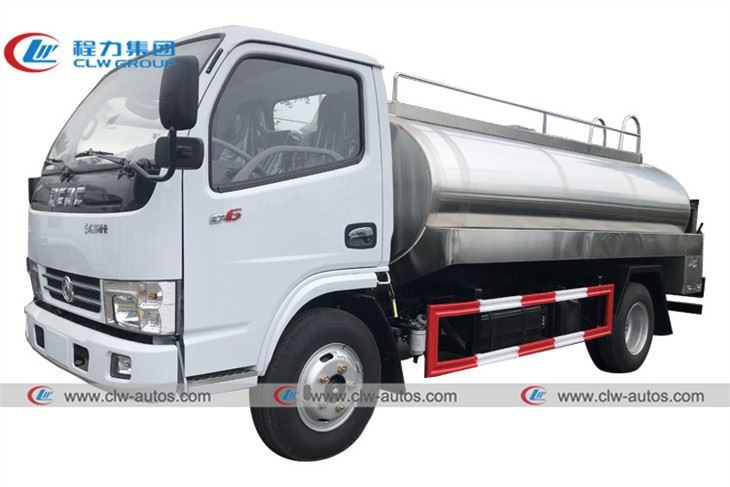

Dongfeng Duolika 4000Liters Stainless Steel Tank Milk Delivery Truck
Product Description Milk delivery truck( also called milk tank truck, milk transport truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory. We adopt stainless steel or aluminum alloy...
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng duolika 4000liters stainless steel tank milk delivery truck in China. If you're going to buy high quality dongfeng duolika 4000liters stainless steel tank milk delivery truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Milk delivery truck( also called milk tank truck, milk transport truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory.
We adopt stainless steel or aluminum alloy for the tanker body; tank interior and outside are polished completely. Additional cold keeping layer could be applied to keep milk from deterioration.
Milk tank truck can be devided into many compartments to transport different types of drinkable liquid, milk, ewe's milk...Every compartments are equipped with CIP cleaning function.
1.Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Product Specification
| Item No. | Parameters |
| Overall Dimension | 5995x2100x2450mm |
| Driving Model | Left hand drive |
| Loading Weight | 4000 Kg |
| Wheel Base | 3360mm |
| Front/rear Tread | 1015/1972 mm |
| Approach/Departure Angle | 22/14 degree |
| Front Axle | 2550kg |
| Rear Axle | 4550kg |
| Engine | CY4102 |
| Engine horsepower | 95HP |
| Displacement | 3856mL |
| Max Driving Speed | 105 km/h |
| Gearbox | WLY6T46, Manual Transmission |
| Cabin | Air Conditioner optional |
| Tire | 7.00R16 |
| Milk Tank Body | |
| Tank Volume | 4000Liters/4cbm |
| Tank Size | According to design drawing |
| Tank Material | Inner Stainless Steel material:304/2B food degree; Insulation material:100mm polyurethane foam Cover steel:2mm mirror Austenite SUS 304 stainless steel |
| Compartment no. | 1 |
| Discharging Outlet no. | 1 |
| Breath valve no. | 1 |
| Water Inlet pipeline | Ф38mm |
| Manhole | DN500mm with food grade rubber |
| Washing equipment | Automatic cleaning ball in every compartment |
| LOGO | Company Logo or any advertisement can be printed on the tank according to the customer's design. |

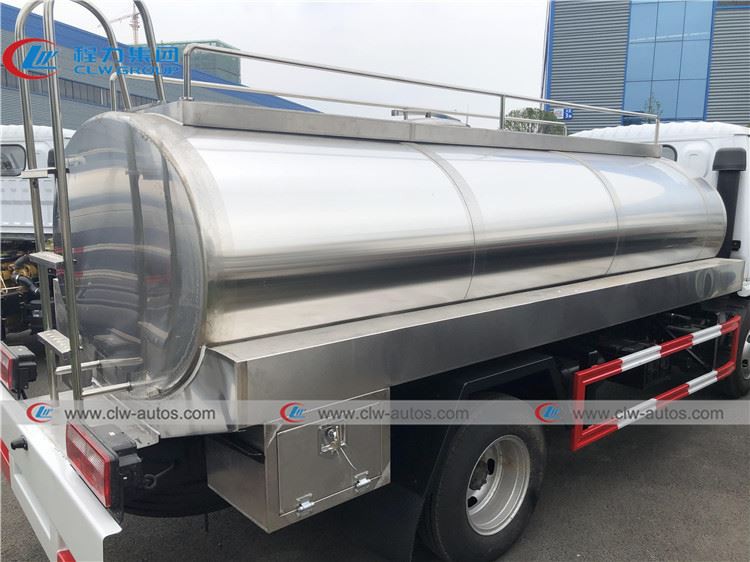

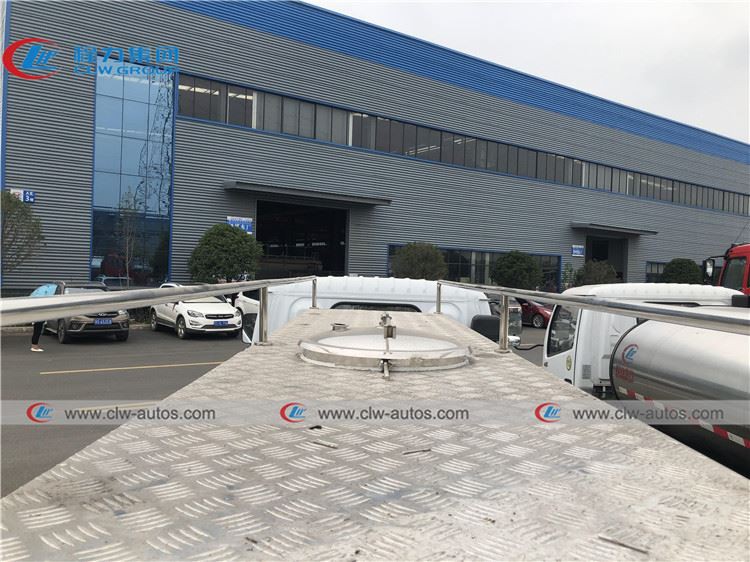

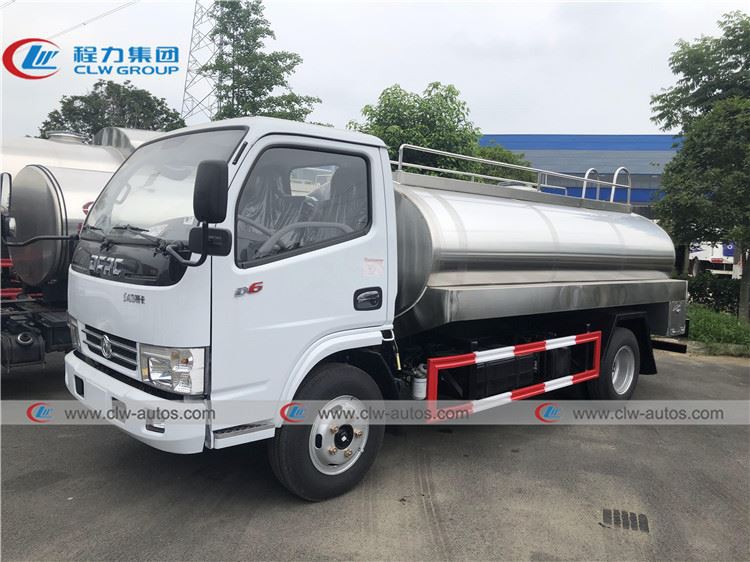

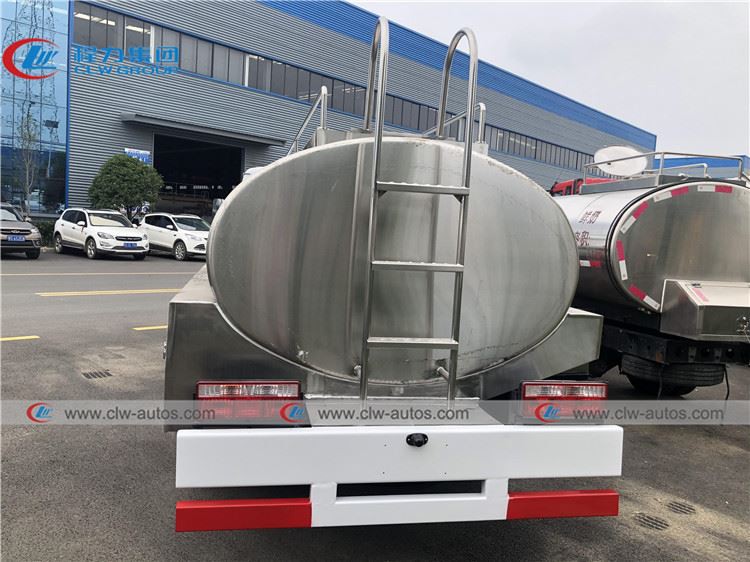

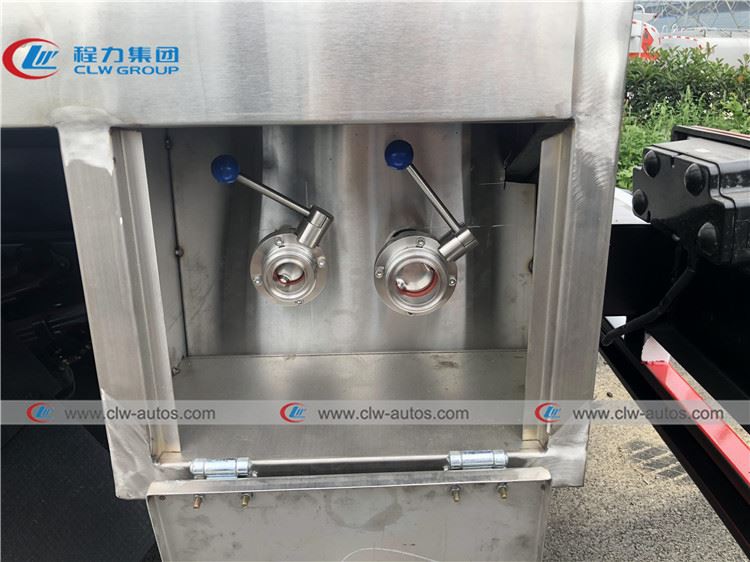

Reference photos
