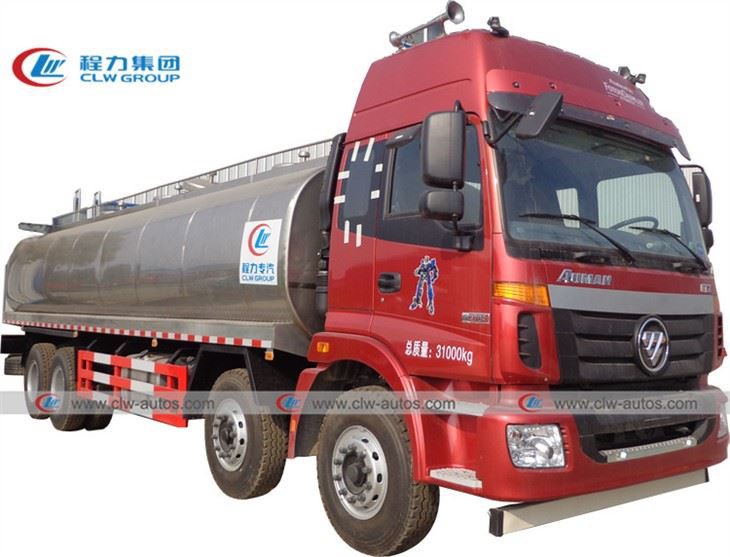

Foton Auman 8X4 24,500liters Fresh Milk Transport Tank Truck
milk transport tank truck
Brands:Foton/Dongfeng/HOWO/FAW/Shacman
Models:4x2/6x4/8x4/semi-trailer
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton auman 8x4 24,500liters fresh milk transport tank truck in China. If you're going to buy high quality foton auman 8x4 24,500liters fresh milk transport tank truck, welcome to get more information from our factory. For price consultation, contact us.
Description
Milk trucks are used to transport fresh milk, which can maintain temperature change of less than 1°C for 24 hours.
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.

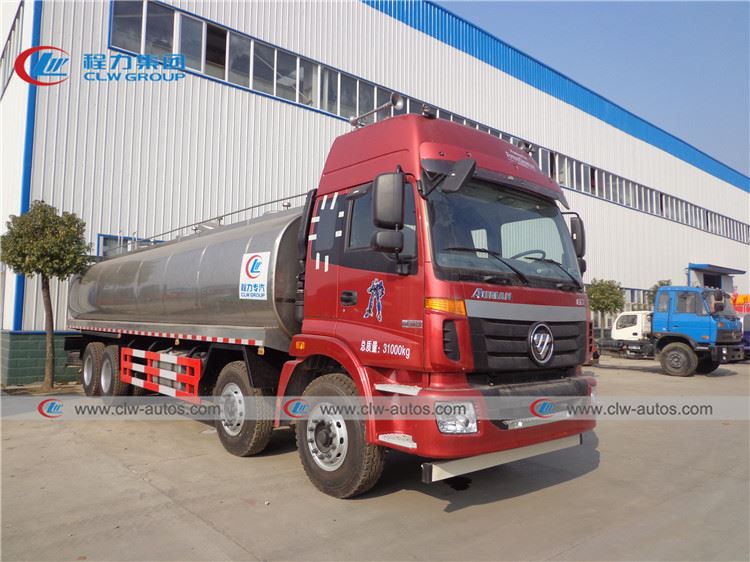

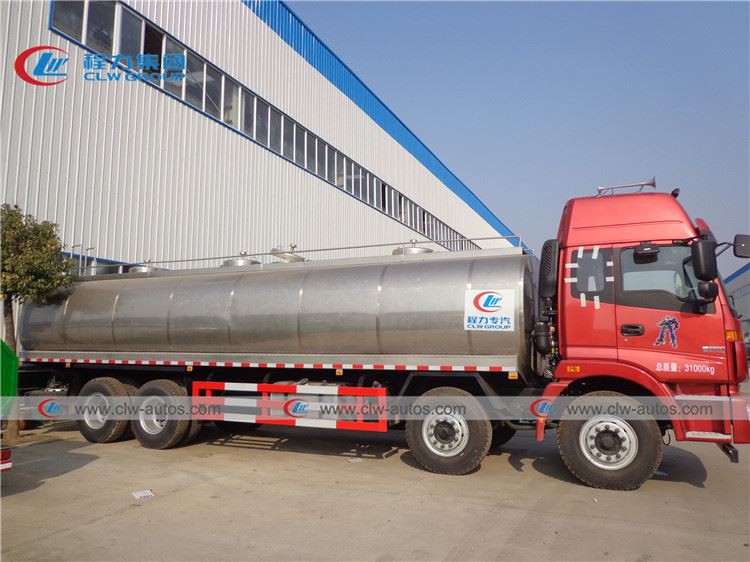

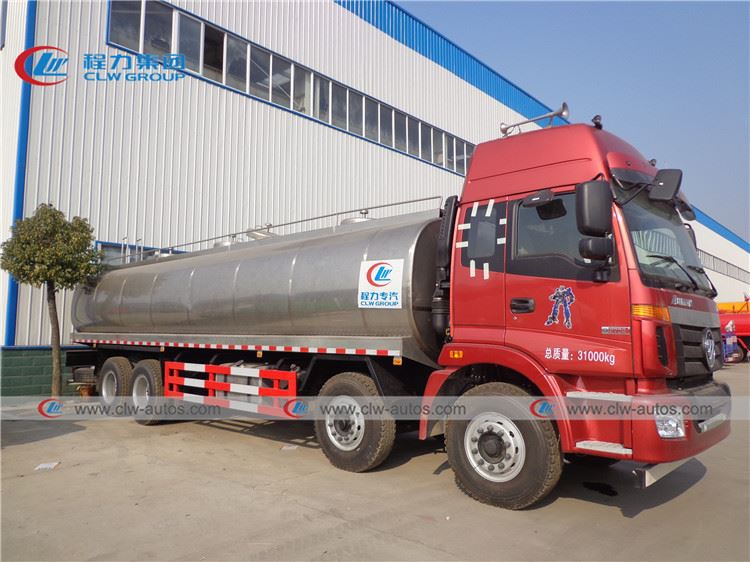

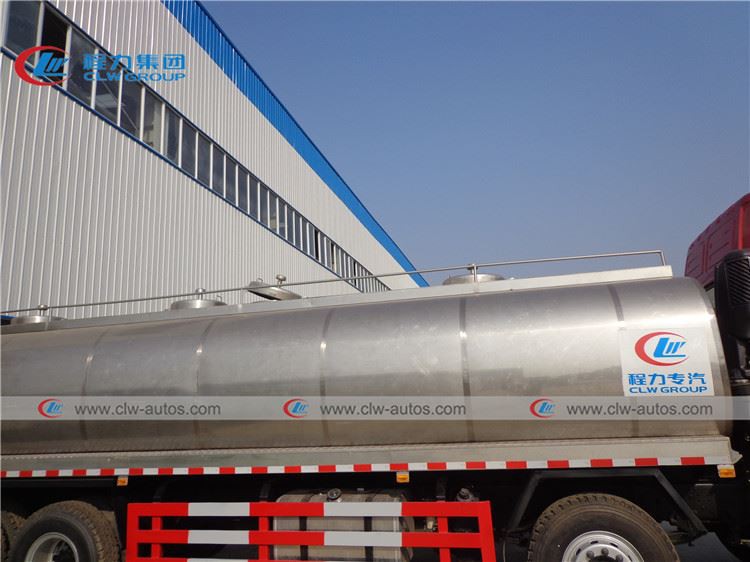

Truck Pictures
Specifications
| Product Name | Foton Auman 8×4 24,500 liters milk tank truck | |
| Cab | Single sleeper cab, two doors, rated passengers 2 or 3, with an A/C | |
| Volume(L/m3) | 24,500L | |
|
Chassis | Brand | Foton Auman |
| Chassis model | BJ1312 | |
| Drive type | 8*4 | |
| Tire | 11.00 R20 with 1 spare tire | |
| Tire No. | 12+1(spare) | |
| Braking System | air brake | |
| Transmission | Manual , 9 forward and 1 reverse | |
| Engine | Model | CLW9DK3 |
| Engine brand | Shanghai diesel engine co., LTD | |
| fuel type | diesel | |
| Horse Power(kw/hp) | 228kw/310hp | |
| Displacement(ml) | 8820ml | |
| Emission standard | Euro 2/3/4 | |
|
Dimension & weight | Overall dimension (L*W*H/mm) | 11875x2500x3720mm |
| Axles No. | 4 | |
| Curb Weight(kg) | 15,270 | |
| Max speed(km/h) | 90 | |
| performance parameter | Transport medium | fresh ewe's milk, fresh cow milk, beer, juice, cold drinks, cooking oil, liquid syrup and other fresh food products |
| Tank material | the inner material is 3-4 mm thickness 304-2B edible stainless steel plate, the middle insulation layer is 50-80mm thickness polyurethane foam, the external material is 2mm thickness 304 stainless steel plate. The semi-trailer manhole polyurethane foam is 60 mm thickness. | |
| unattached warehouse | One or more | |
| Standard configuration | 1. Each warehouse has separated discharge outlet, feeding mouth and PIC cleaning device. 2. PIC cleaning device include cleaning rod (or cleaning ball),Cleaning tube (Φ 38 mm), four or more rotary cleaning nozzles. 3. According to the volume of tank it has different default warehouse number. Of course warehouse number can be set according to your requirements. | |

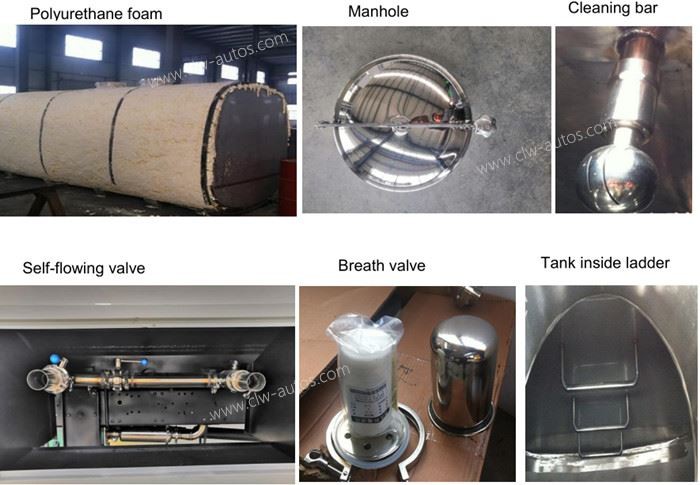

Parts pictures

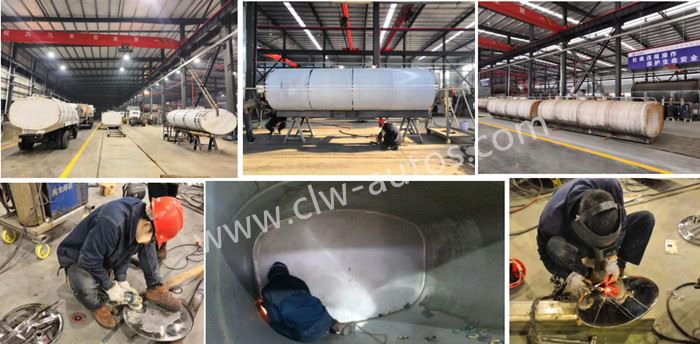

Production process for tank
