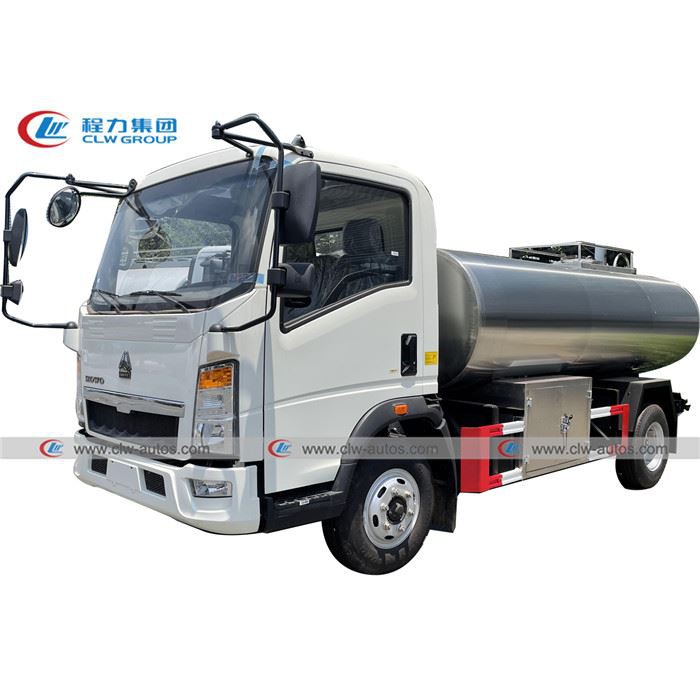

10, 000liters Sinotruk Howo Stainless Steel Fresh Milk Delivery Tanker Truck
milk transport tank truck
Brands:Foton/Dongfeng/Sinotruk HOWO/FAW/Shacman
Models:4x2/6x4/8x4
Drive Model: Left or Right Hand Drive
Tank Material:Stainless Steel, Aluminum Alloy, etc.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10, 000liters sinotruk howo stainless steel fresh milk delivery tanker truck in China. If you're going to buy high quality 10, 000liters sinotruk howo stainless steel fresh milk delivery tanker truck, welcome to get more information from our factory. For price consultation, contact us.
10, 000liters Sinotruk Howo Stainless Steel Fresh Milk Delivery Tanker Truck
Product Description
Milk trucks are also called fresh milk trucks, milk tank trucks, and liquid food trucks. The tank body is made of food-grade stainless steel plates. The outside of the tank body needs to be insulated to prevent the fresh milk from deteriorating. Add CIP (cleaning device) in each milk tank.
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.

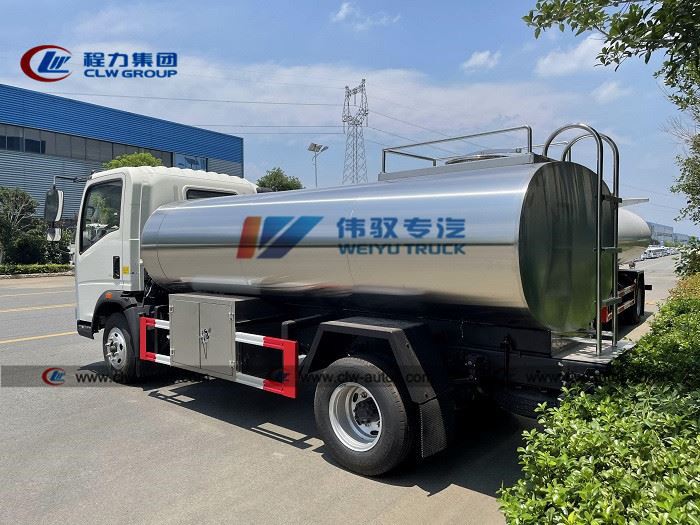

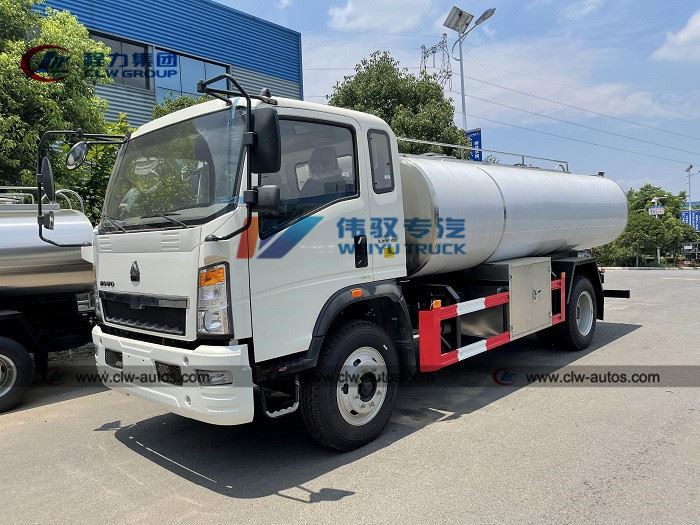

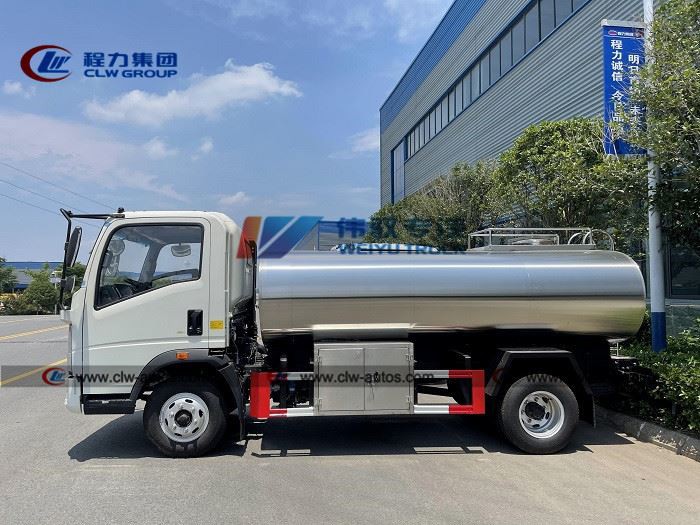

Reference Photos
Product Specification
Cabin | Driving type 4x2 | |
1880 Standard cab, with two seats, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5998x2150x2650 |
Wheel base (mm) | 3360 | |
Wheel track (front/rear) (mm) | 1160/1475 | |
Approach/Departure angle(°) | 20/18 | |
Weight in KGS | Tare Weight | 4000 |
Loading Capacity | 5000 | |
Front axles loading capacity | 1x2400 | |
Rear axles loading capacity | 1x4200 | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | YUNNEI |
Model | YN4102 | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 116HP | |
Emission standard | Euro 2 or 3 or 4 | |
Gearbox | WLY6T46, 6 forwards & 1 reverse | |
Clutch | Diaphragm spring clutch | |
Steering Gear | Power steering | |
Fuel tank (L) | 120L | |
Tire | 7.00R16 with one spare, 7 pieces | |
Tank specification | 5,000 liters, tank thickness is 3 mm, seal is 4 mm Tank Material: Stainless or Aluminium alloy | |

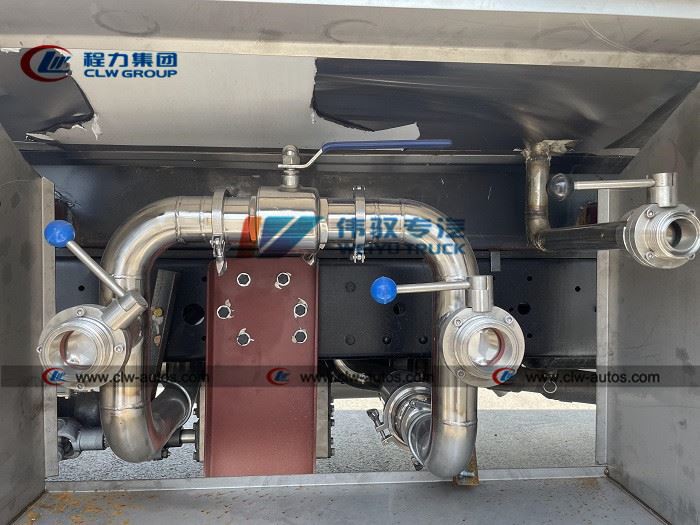

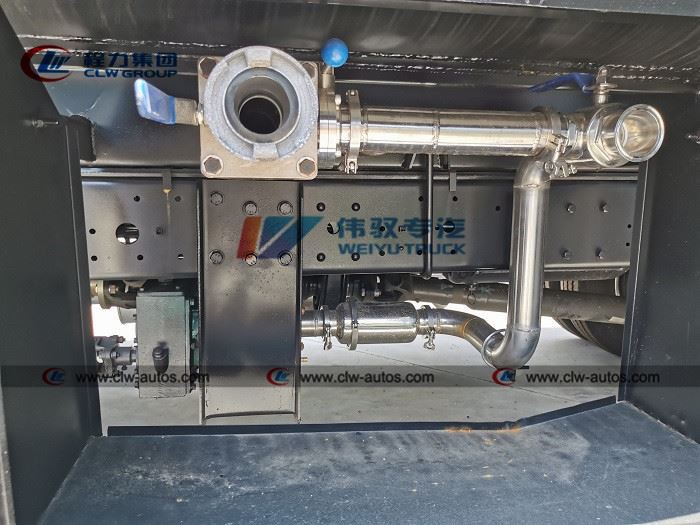

Main Details
Factory Scene
