Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 30ton dump truck in China. If you're going to buy high quality isuzu giga 30ton dump truck, welcome to get more information from our factory. For price consultation, contact us.

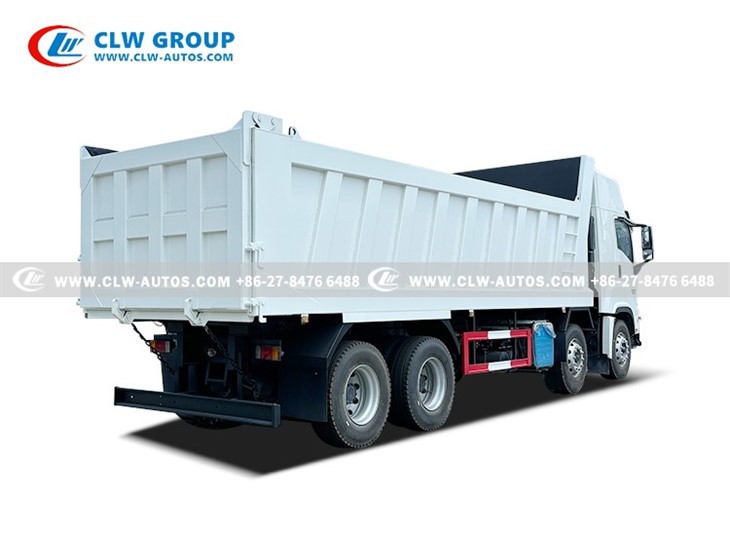

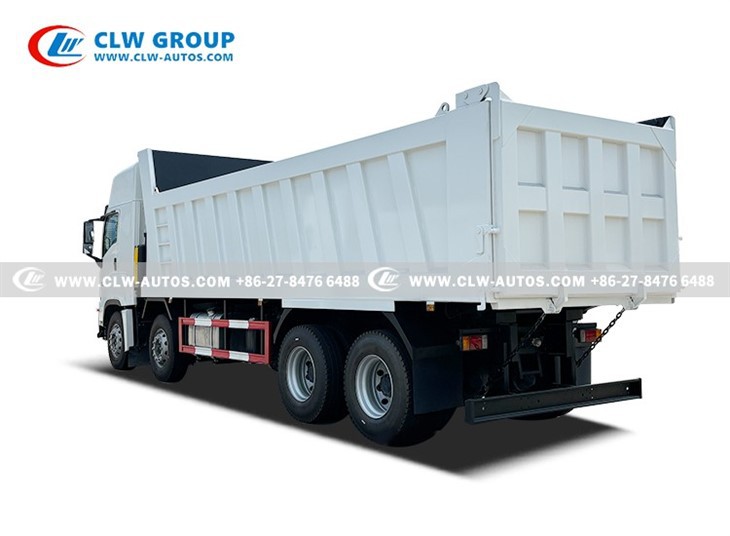

ISUZU GIGA 30Ton Dump Truck 12 Wheels 8X4 / Front-top Lift / GIGA Cabin
isuzu dump truck --- Core Features
Powertrain
1. Engine: Equipped with Isuzu 6WG1 or 6UZ1 series large-displacement diesel engines (e.g., 15.6L or 17L), delivering a power range of 350–520 HP. Designed for low-speed, high-torque performance, ideal for heavy-load starts and climbing.
2. Transmission: Paired with ZF or Allison automatic transmissions, or Isuzu manual transmissions, ensuring smooth shifting and high reliability.
Chassis & Load Capacity
1. Reinforced Frame: Utilizes a high-tensile steel ladder frame with superior torsional resistance, adaptable to rugged off-road conditions.
2. Suspension System: Front multi-leaf spring suspension + rear rubber suspension or air suspension (optional), balancing load capacity and ride comfort.
3. Dump Body Volume: The 30-ton dump body offers a capacity of approximately 18–22 m³ (depending on configuration), constructed with wear-resistant high-strength steel and equipped with a hydraulic lifting system (lifting time ≤20 seconds).
Cab & Safety
1. Cab Design: Wide flat-roof cab provides excellent visibility; standard features include shock-absorbing seats, air conditioning, and a multi-function steering wheel, with some models offering smart instrument panels.
2. Safety Features: ABS+EBD, exhaust brake, reverse radar, and Roll-Over Protection Structure (ROPS).
Superior Reliability
Cost Efficiency
Versatility
Driver Comfort
|
ISUZU GIGA 8X4 Dump Truck |
|
|
Chassis Specification |
|
|
Chassis Model |
QL231 |
|
Driving Model |
8X4 |
|
Dimension |
10000 x 2600 x 3200 mm |
|
Cab |
|
|
Wheelbase |
1850+2980+1370 mm |
|
Gross vehicle Weight |
31000 kg |
|
Loading Weight |
30000 kg |
|
Front Axle Loading Capacity |
7500 kg X2 |
|
Rear Axle Loading Capacity |
20000 kg X2 |
|
Axle Number |
4 |
|
Tire |
12R22.5 18PR |
|
12pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 6UZ1-TCG61 |
|
|
Horse power: 380 HP |
|
|
Displacement: 9839 ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: FAST |
|
12 Forward & 1 Reverse |
|
|
Braking System |
Air brake |
|
With ABS |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
6500 X 2400 X 800 mm |
|
Loading Capacity |
30 Tons |
|
Bottom Thickness |
8 mm |
|
Side Thickness |
6 mm |
|
Shape |
Tofu block |
|
Material |
High quality Q235 carbon steel |
|
Hydraulic Lifting System |
Mid-top lift |
|
Inclination Angle |
>45° |
|
Color |
White Can be customized |
For quick inquiry, please contact Ms. Hedy He:
WhatsApp/ Wechat: +86 188 2740 1066
Email: hedy@clw-autos.com.
Hubei ChengLi Special Automobile Co.,Ltd
ChengLi Special Automobile Co., Ltd. is the core enterpriset Chengli Automobile Group and a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles. The company is located in Suizhou City, Hubei Province, with production bases in the southern suburbs of Zengdu District and the Zengdu Economic and Technological Development Zone.
We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Welcome to visit our factory!
Hot Tags: isuzu giga 30ton dump truck, China, manufacturers, suppliers, factory, price
